Yanmar Marine Diesel Engine 1GM10(C) 2GM20(F)(C) 3GM30(F)(C) 3HM35(F)(C) Service Manual

This service manual covers one of the most widely-used small marine diesel platforms of its era — Yanmar's GM and HM series, ranging from the single-cylinder 1GM10 up through the three-cylinder 3GM30 and 3HM35. Each engine size appears in multiple cooling configurations within the same reference: base models running direct sea-water cooling, "F" variants adding fresh-water cooling, and "C" variants representing a further updated configuration — a genuinely broad spread of options that Yanmar bundled into a single comprehensive manual because the underlying block architecture and service procedures overlap so heavily across the family.

Correct identification matters more with this engine family than most, since cylinder count, cooling method, and update generation all combine to distinguish otherwise similar-looking blocks: 1GM10/1GM10C (single-cylinder), 2GM20/2GM20F/2GM20C (twin-cylinder), 3GM30/3GM30F/3GM30C (three-cylinder), and 3HM35/3HM35F/3HM35C (a larger-displacement three-cylinder variant) — eleven distinct model designations documented together. The manual itself opens with detailed guidance on reading the engine model name plate and clutch model name plate specifically to confirm which configuration is actually installed before beginning any service work.

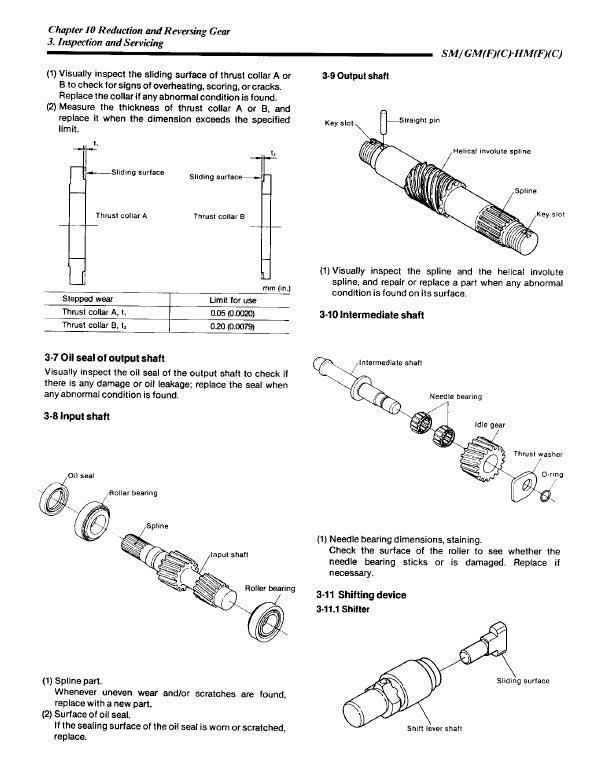

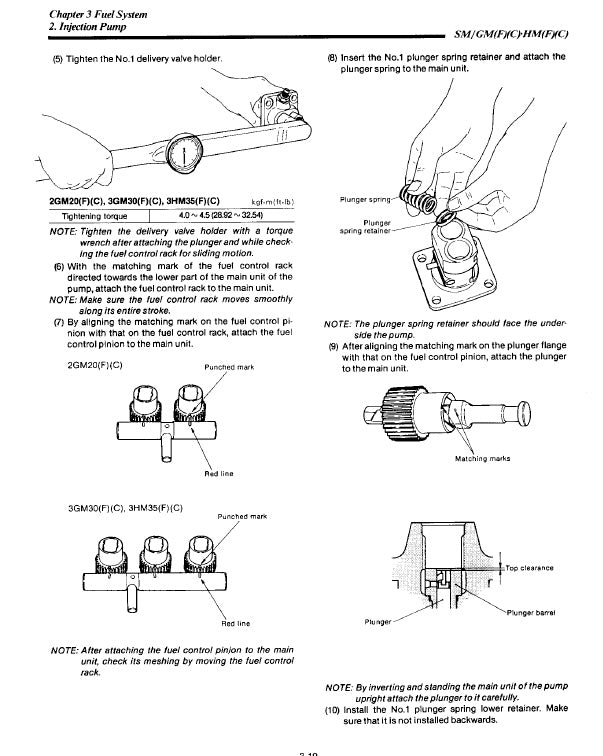

The manual's structure reflects genuine mechanical depth across every system a marine technician needs: basic engine construction, fuel system and governor operation, intake and exhaust, lubrication, both direct sea-water cooling and fresh-water cooling systems (with a dedicated chapter specifically covering how to modify one cooling configuration into the other), reduction and reversing gear, remote control system setup, and the full electrical system. Separate disassembly-and-reassembly chapters are provided for direct sea-water-cooled engines versus fresh-water-cooled engines — a genuinely important distinction, since the two cooling architectures route coolant and raw water through different castings and require different teardown sequences. Step-by-step procedures cover the engine block, cylinder head, pistons, crankshaft, and camshaft assemblies, along with timing gear service, flywheel inspection, and precise wear-limit specifications needed for a reliable rebuild rather than a guess-and-check repair.

This factory service manual covers the construction, function, and servicing procedures needed to keep a Yanmar 1GM10(C)/2GM20(F)(C)/3GM30(F)(C)/3HM35(F)(C) marine diesel engine running the way it was built to.
