Yanmar 3TNV 4TNV Series Diesel Engine Service Manual

The TNV series represents the core of Yanmar's construction equipment and industrial machinery presence globally — a platform built around a genuinely simple split: 3-cylinder 3TNV blocks power skid steers, mini excavators, and small generators in the sub-5-tonne class, while 4-cylinder 4TNV blocks step up to wheel loaders, larger excavators, and industrial gensets in the sub-10-tonne range. Yanmar's own model naming tells you most of what you need to know at a glance — the numeral following "TNV" (82, 84, 88, 94, 98, 106) indicates the cylinder bore in millimeters, letting technicians identify displacement class before ever cracking the block.

Yanmar built the TNV name around "Total New Value" engineering: reduced emissions through improved combustion and fuel injection design, quieter operation via a reworked cylinder block casting, and genuine durability improvements through better block cooling, a stiffer crankshaft, and upgraded pistons versus the older TNE-series engines they replaced. Combustion runs direct injection across the TNV lineup — a genuine step up from the indirect-injection design used on some smaller Yanmar blocks — delivering the low fuel consumption and consistent power output the platform is known for across demanding industrial applications from Komatsu and Hitachi to Case, Hyundai, Volvo, and John Deere equipment.

The specific models covered under this documentation span the naturally aspirated and turbocharged range: 3TNV82A, 3TNV84, 3TNV84T, and 3TNV88 on the 3-cylinder side, paired with 4TNV84, 4TNV84T, 4TNV88, 4TNV94L, 4TNV98, 4TNV98T, and 4TNV106 on the 4-cylinder side — a genuinely broad spread covering everything from compact mini-excavator power plants to larger industrial and generator applications. Three systems account for the bulk of real-world TNV downtime: fuel injection wear (showing up as hard starting, white smoke, and rough idle before a full stoppage), cooling system issues, and piston/liner wear — with fuel filtration quality mattering more to injector longevity than raw operating hours.

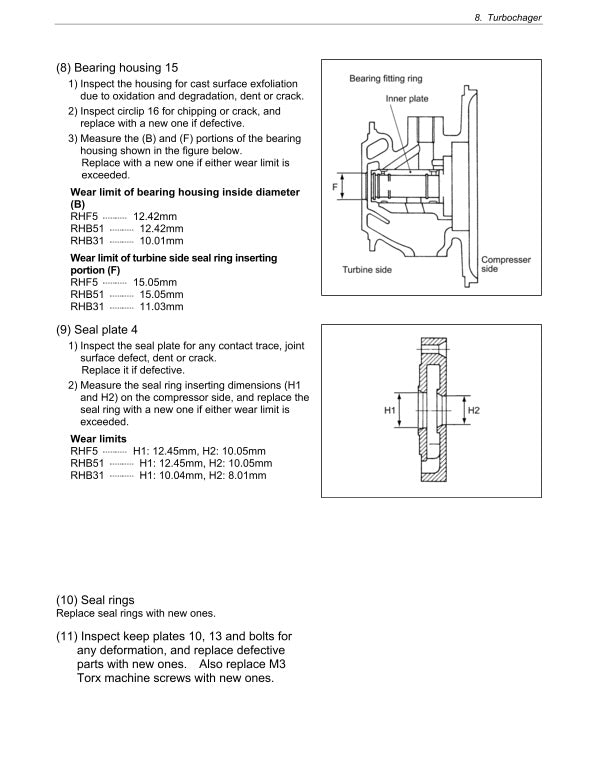

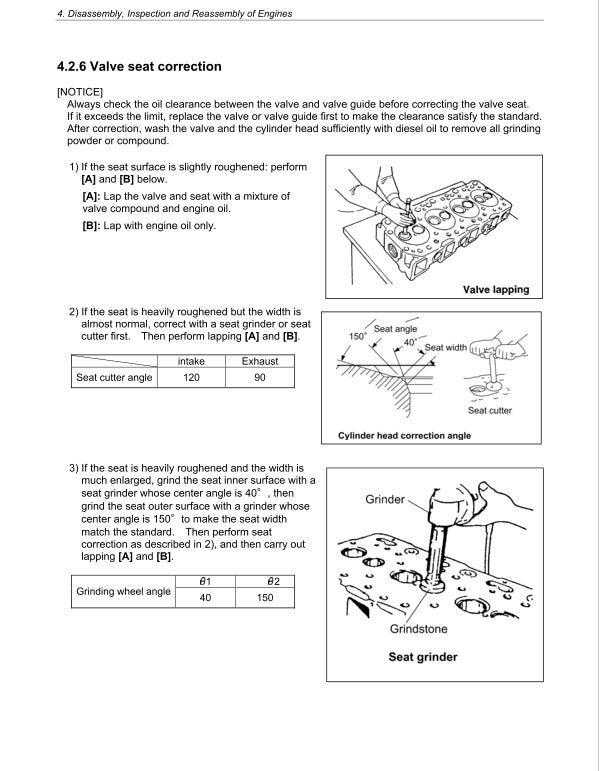

This factory service manual covers the general specifications, service procedures, operating principles, measurement and adjustment, and full teardown/rebuild diagrams needed to keep 3TNV/4TNV series engines running the way Yanmar built them.
