Yamaha YZF1000R Thunderace 1996-2003 Service Manual

Bennetts' own review doesn't dress up why this bike exists: "Honda's FireBlade caught Yamaha with its trousers down. The Iwata firm had no instant answer to the CBR900RR in '92, so instead created a stop-gap model, the YZF1000R Thunderace, using the best components to hand, before unveiling its proper answer, in the form of the YZF-R1, in 1998." That same review confirms a genuinely important detail for anyone buying or servicing one today: "although on sale for seven years (1996-2003), the Thunderace's final update came in 1999. The extent of each model year's updates was limited to paint and graphics, bar a wiring loom change in 1997 to allow easier fitment of alarms. Consequently, values relate more to condition and mileage than year of registration. All bikes registered between '99 and '03 are 1999 spec."

Motorcycle.com's own contemporary review confirms the genuine parts-bin engineering behind this bike, calling it "a bit of a mongrel — the 5-valve four-cylinder mill was spawned from an FZR1000 mold, and the frame was adapted from the vastly underrated YZF750R." Power comes from a 1,002cc liquid-cooled DOHC 20-valve inline-four, a 75.5mm x 56mm bore and stroke, delivering a claimed 145-158 hp at 10,000 rpm (Bennetts' own real-world testing found "it's more like 125bhp at the wheel") and roughly 78.3 lb-ft (106.2 Nm) of torque, run through a 5-speed constant-mesh gearbox.

MCN's own review found the Thunderace genuinely better suited to sport-touring than outright track work: "the standard of modern superbike handling may have moved on, but the big ol' Yamaha YZF1000R Thunderace is still no slouch with its YZF750R-derived chassis... you can get on with destroying distances in relative comfort thanks to its broad and comfortable seat." That same review confirms real competitive pedigree too — raced in the Isle of Man production TT — and calls the torque spread "smooth, solid, glitch-free and versatile," comparable to Kawasaki's ZZ-R1100.

Autoevolution's own confirmed chassis account lists a twin-spar aluminum frame with a 45mm preload-adjustable fork, a preload-adjustable monoshock, hollow three-spoke cast wheels, dual 298mm front discs with four-piston calipers, and a 245mm rear disc. MCN's own maintenance notes flag genuine finish-quality concerns on neglected examples, though confirming the fundamentals "mechanically they're solid and proven motorcycles."

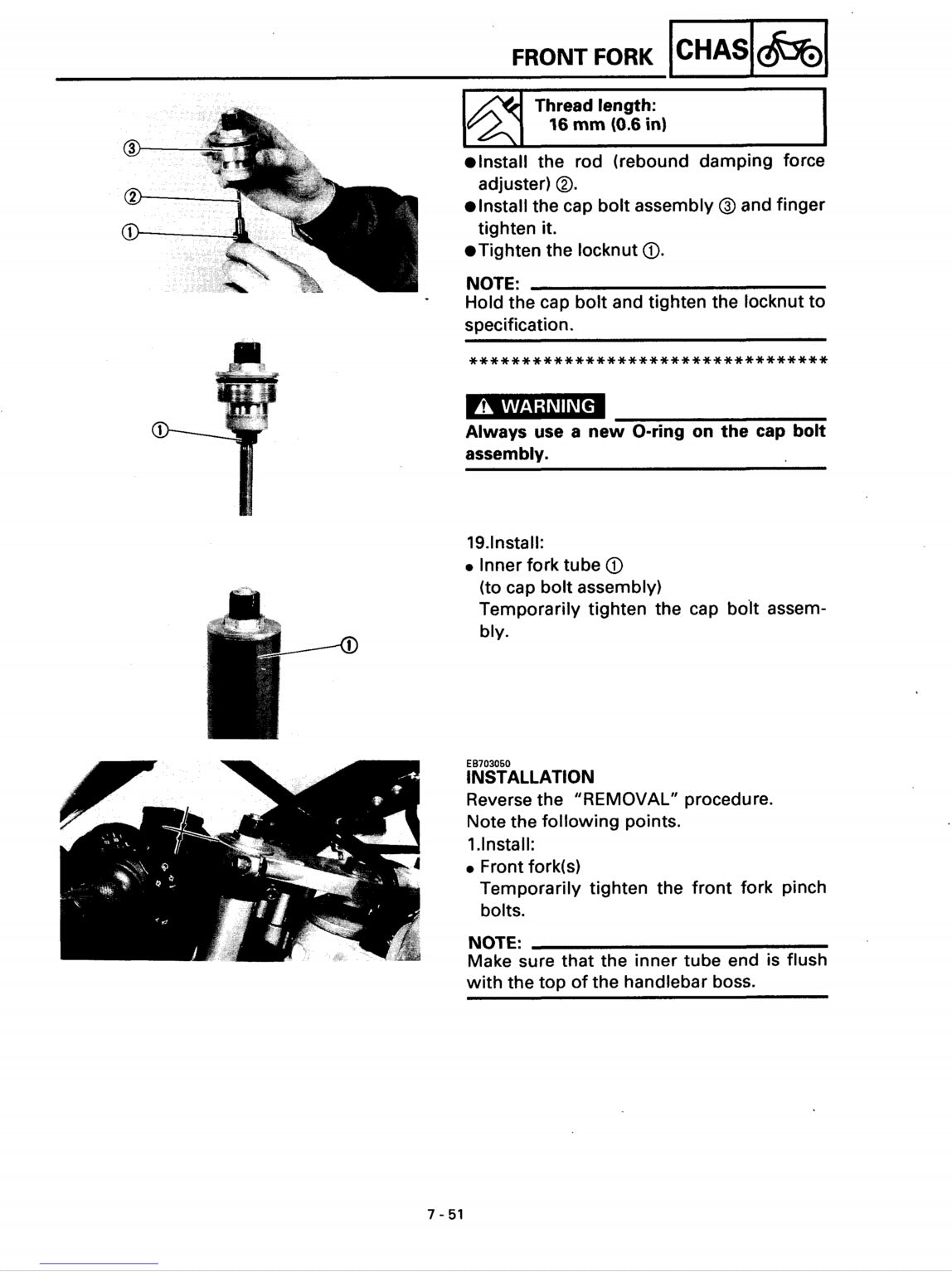

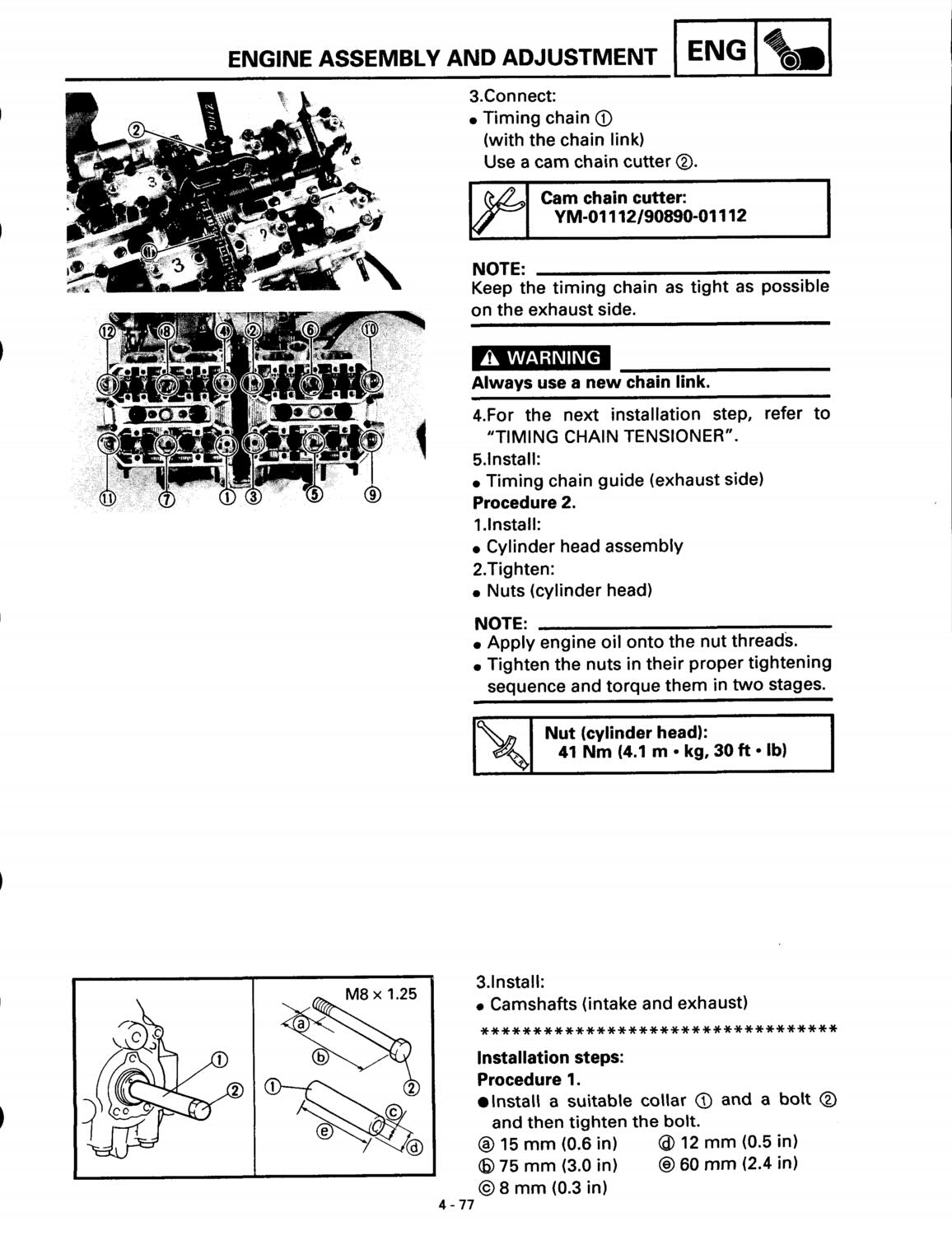

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1996-2003 YZF1000R Thunderace running the way it was built to.
