Yamaha YFM50 Raptor ATV Quad 2003-2016 Service Manual

MFG Supply's own product description captures the Raptor 50's exact purpose: "the perfect introduction to off-road adventure for young or beginner riders," pairing Yamaha's trusted reliability with the same aggressive, sporty styling that made its bigger Raptor siblings icons of the class — mirrored down to a genuinely kid-sized package. Yamaha kept the model largely unchanged across its long production run, a deliberate choice for a machine built around consistency and safety rather than year-over-year performance chasing.

Power comes from a 49cc air-cooled four-stroke single, SOHC with electric start, delivering smooth, deliberately manageable output through a fully automatic transmission — no clutch or manual shifting required, letting younger riders focus on control rather than mechanical operation. Amazon's own listed spec sheet for a mid-cycle model notes a single-speed transmission and a 1.8-gallon fuel tank, with steel wheels wrapped in Dunlop AT tires (16x7-7 front, 16x8-7 rear). Yamaha's official parts manual documents the shaft-drive secondary reduction system and left-hand-operated gear selection specific to this model, alongside a steel tube frame with a notably tight 1-degree caster angle for stable, predictable low-speed handling.

Suspension pairs a leading-arm front end with a swingarm rear, both using coil-spring/oil-damper shocks — genuinely modest wheel travel (57mm front, 56mm rear per Yamaha's factory specifications) that keeps the ride controlled and forgiving rather than aggressive, appropriate for a machine built for supervised riding rather than trail-blazing. Front and rear drum brakes, both cable-operated by hand (front) and foot or hand depending on configuration, provide straightforward, low-maintenance stopping power. A wet-type air filter element and API GL-4 hypoid gear oil in the final drive round out the service-relevant specifications. Throughout its production run, the Raptor 50 has stayed priced as an accessible entry point into Yamaha's ATV lineup, with a one-piece seat and youth-proportioned ergonomics setting it apart from the adult-oriented Raptor 350, 660, and 700 models sharing the same aggressive styling language.

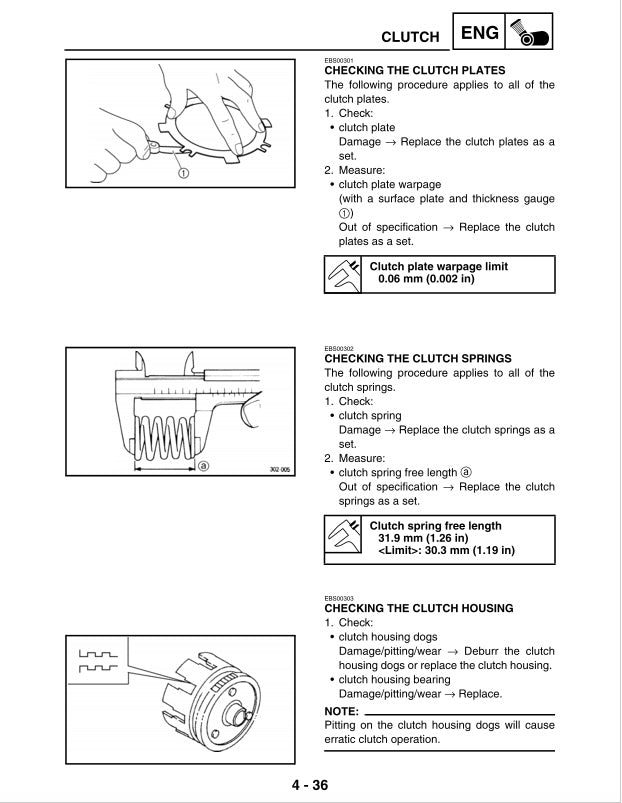

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2003-2016 Raptor 50's engine and driveline running the way it was built to.
