Yamaha XT600 1984-2003 Service Manual

Specs Motorcycles' own history frames the XT600's genuine engineering leap over its legendary predecessor plainly: "its disc brakes, four-valve engine, mono-shock absorber (Monocross) and contemporary 12-volt electrics represented significant improvements over the 1975 Yamaha XT500 model." That same source traces the genuine lineage carefully: "the first XT600 was introduced in June 1983: the XT600ZL Ténéré (type 34L), with the Yamaha XT550 engine, kick start only, with a 30-litre tank. In 1984 the basic XT600 was introduced to 'replace' the XT550" — with the standard road-oriented XT600 trading the long-range Ténéré's massive fuel tank for a considerably smaller 11.5-litre unit.

Power comes from a 595cc air/oil-cooled SOHC single, 4 valves per cylinder, a 95mm x 84mm bore and stroke, and an 8.5:1 compression ratio, fed by a 27mm dual-stage Teikei carburetor, delivering a claimed 45-46 hp at 6,000-6,500 rpm and roughly 37-38 lb-ft of torque at 5,500-5,750 rpm through a 5-speed transmission with chain final drive — kick-start only on early models. Specs Motorcycles' own reliability account is genuinely striking: "the reliability of the XT unit was not reduced, mileages of over 100,000 km without an engine rebuild being not uncommon" — a real testament to the fundamental engineering underneath this platform's long, largely unchanged production run.

Genuine mechanical evolution ran through this span as emissions rules tightened: Specs Motorcycles' own account confirms "due to more stringent emissions requirements, the power of the XT600E, which had become the only available model, was reduced by 4 kW to 29 kW (39 hp), and a tachometer was reintegrated in the cockpit. The clutch actuation on the engine body was moved from the left to the right side, and the muffler was no longer part of the rear frame" — genuine running changes worth knowing when servicing a later, E-designated example versus an earlier carbureted-era bike. Autoevolution's own coverage of the 1999 XT600E confirms suspension by this point consisted of a 41mm oil-damped telescopic fork with 225mm of travel up front, paired with a preload-adjustable Monocross rear suspension delivering 220mm of travel — genuinely long-travel, off-road-capable geometry for a machine still fundamentally built to handle both paved and unpaved roads. Standard equipment throughout the run included a high-mounted front fender, a small rectangular headlight in a compact cowl, a one-piece dual seat, a high-mounted exhaust system, and wire-spoke wheels, with braking handled by a 267mm front disc and a rear drum on earlier models. The related XT600 Ténéré, launched in 1982 alongside this platform, added a front disc brake in place of the standard model's rear drum plus a progressive Monocross suspension with an aluminum swingarm for genuinely more serious off-road capability. This platform ran through 2003 before Yamaha's XT660R, XT660X, and XT660Z Ténéré successors took over — models that, per Specs Motorcycles' own account, directly carried forward the XT600's proven all-purpose enduro formula.

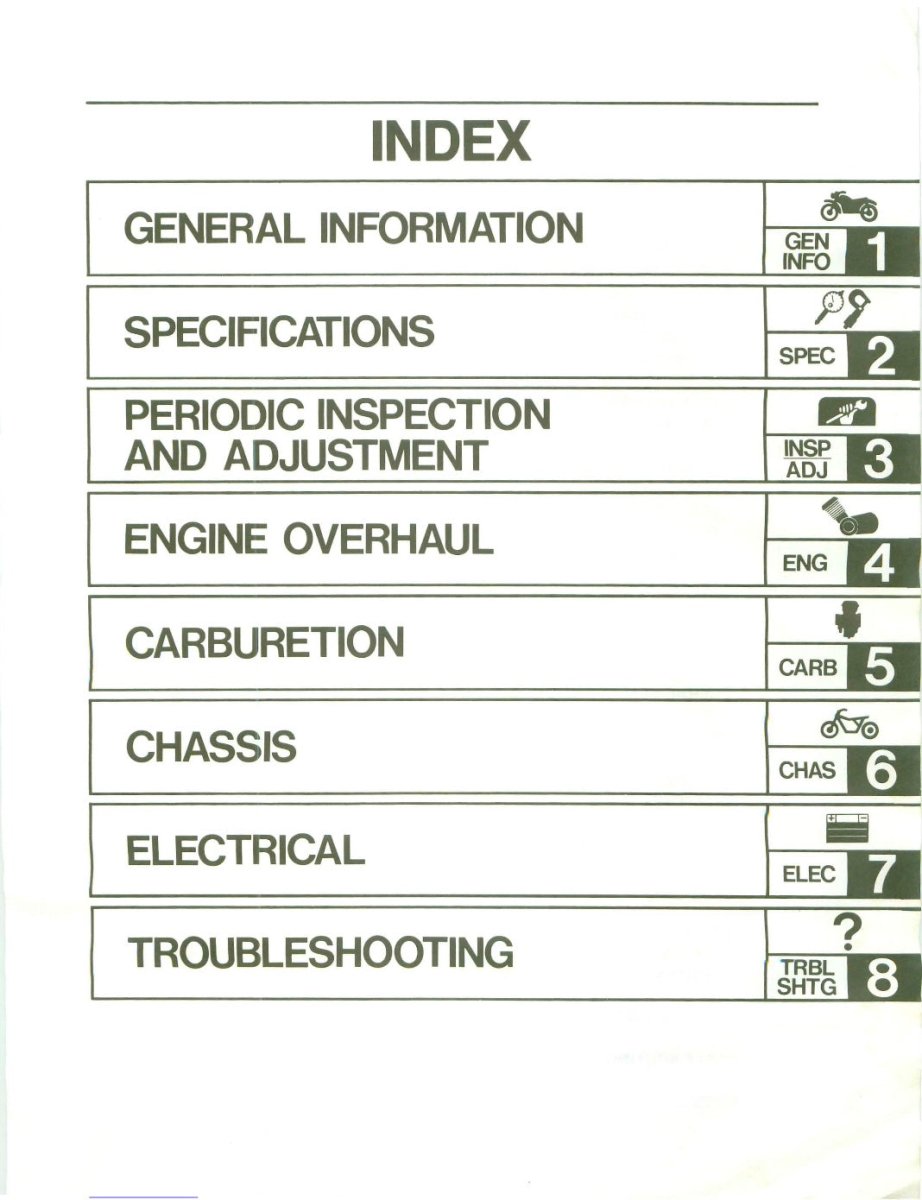

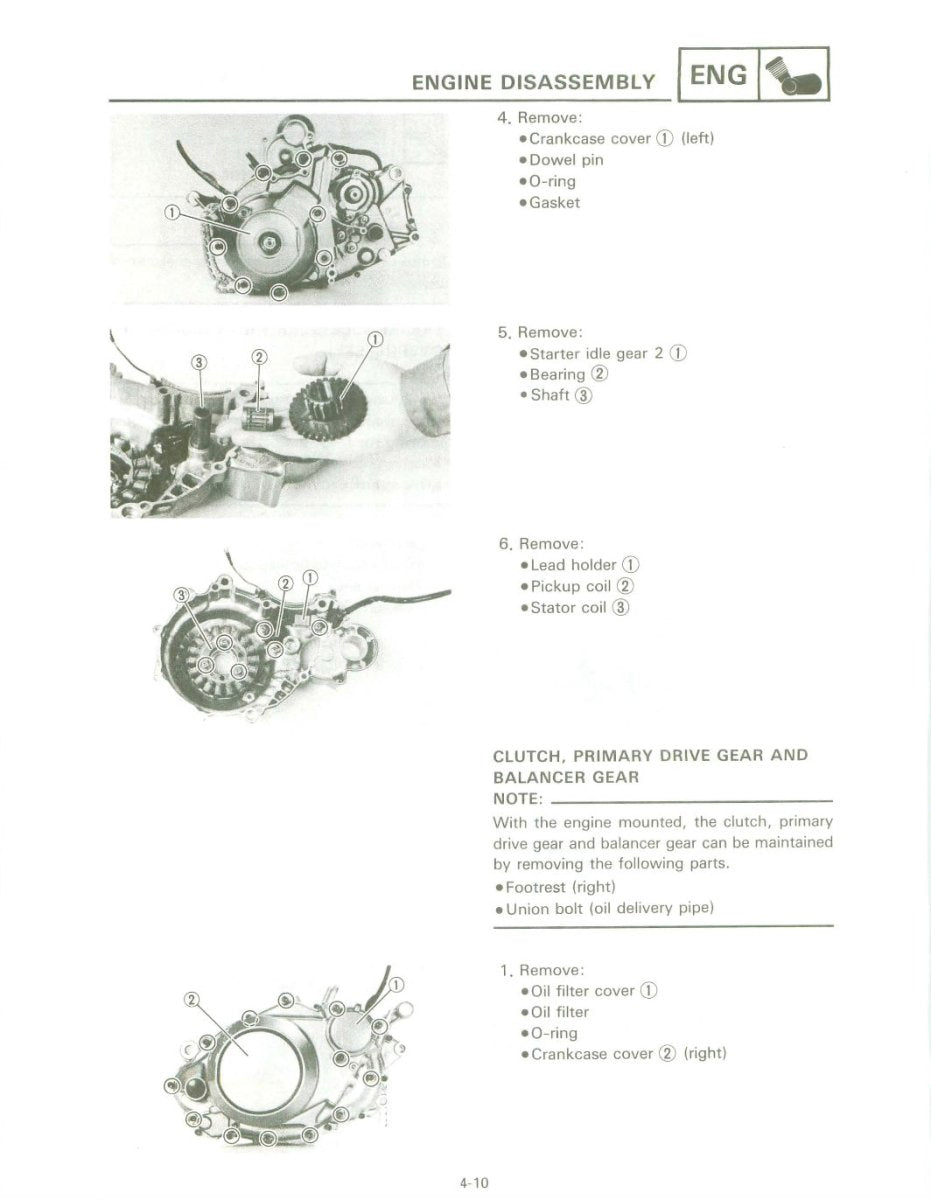

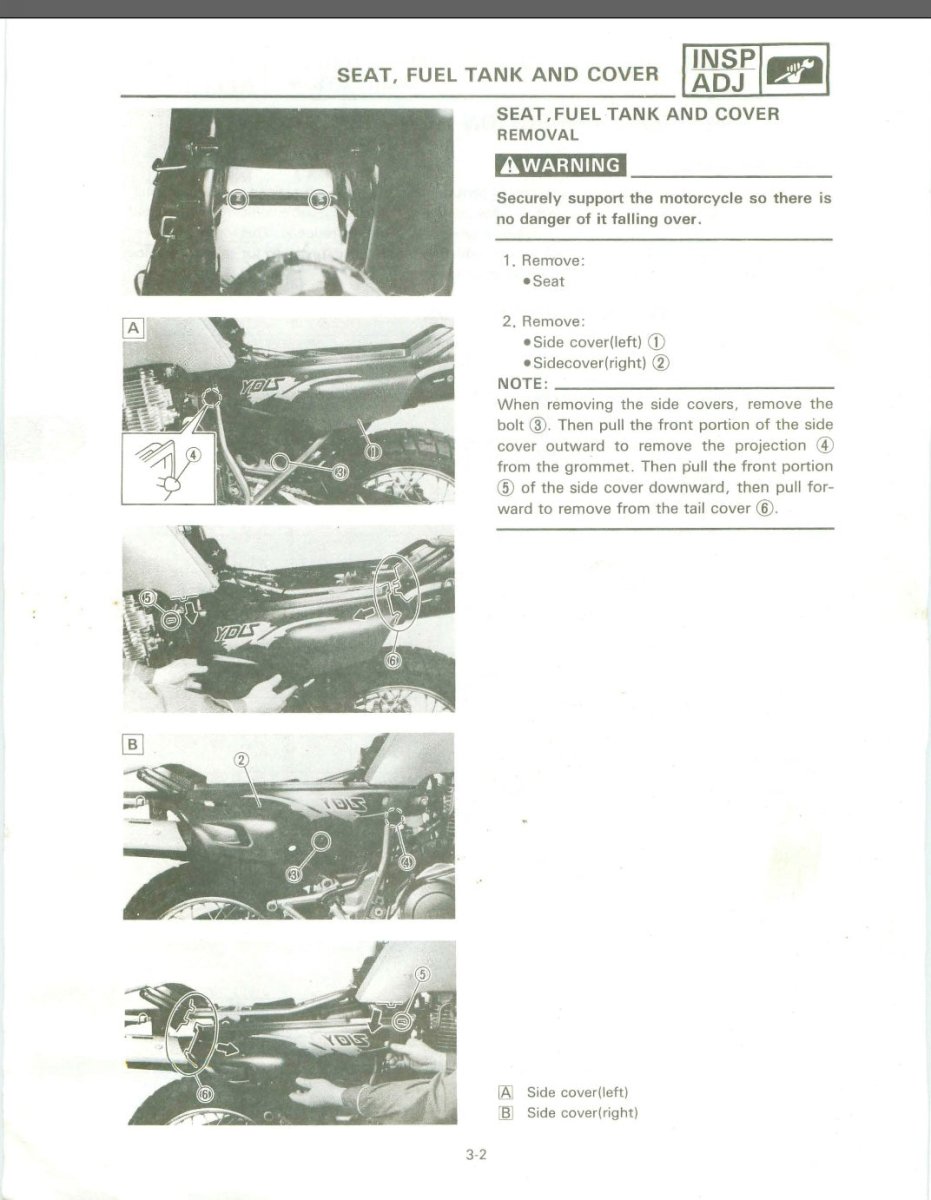

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1984-2003 XT600 running the way it was built to.
