Yamaha XMAX 300 2017-2021 Service Manual
Yamaha XMAX 300 2017-2021 Service Manual
Couldn't load pickup availability
2017-2021 Yamaha XMAX 300 Service / Repair / Workshop Manual
Instant download after purchase, in PDF form, NOT a physical book.
This manual contains 462 pages in English Language, it is the only manual you will require to maintain, repair and service your Yamaha XMAX 300.

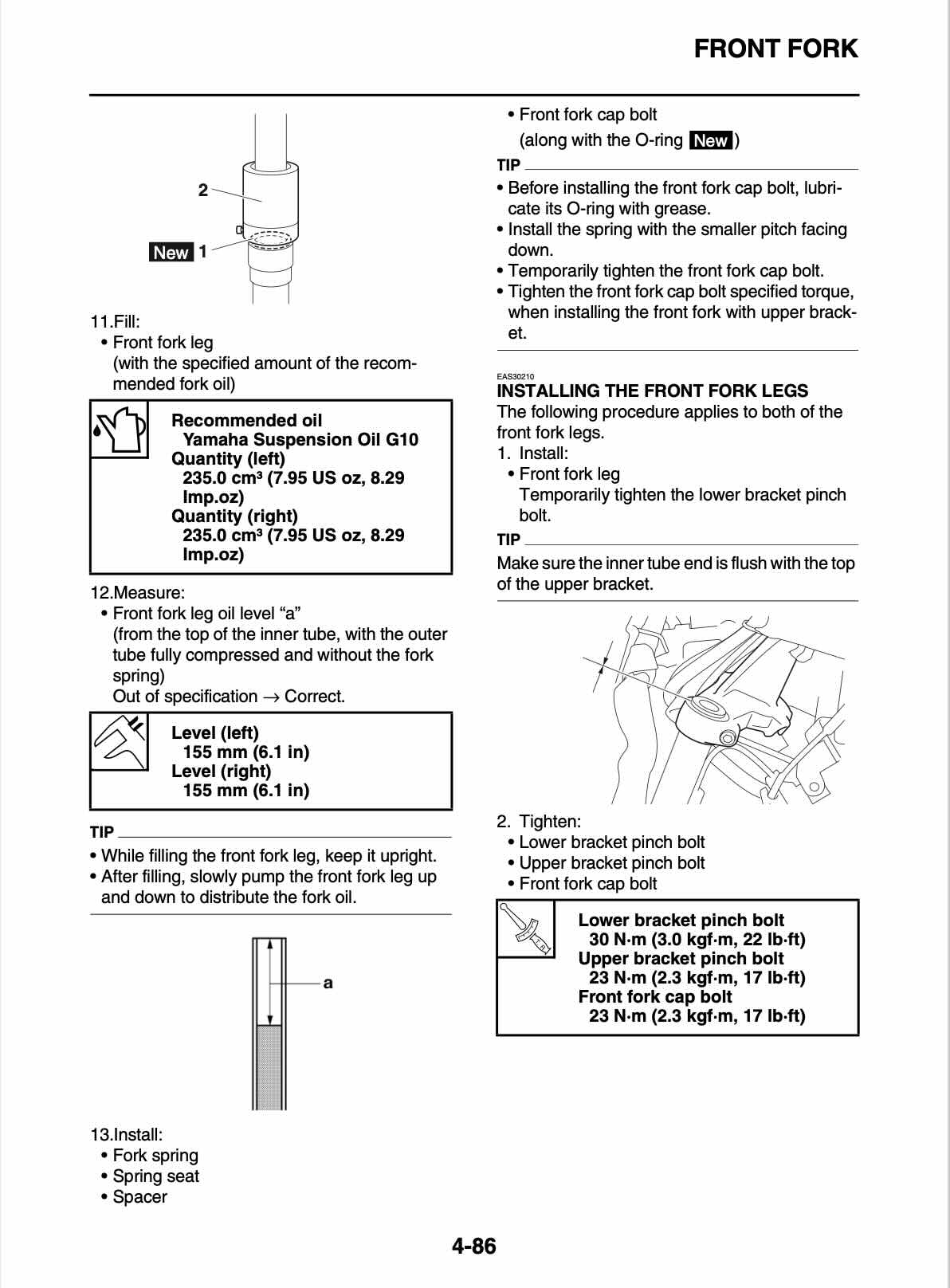

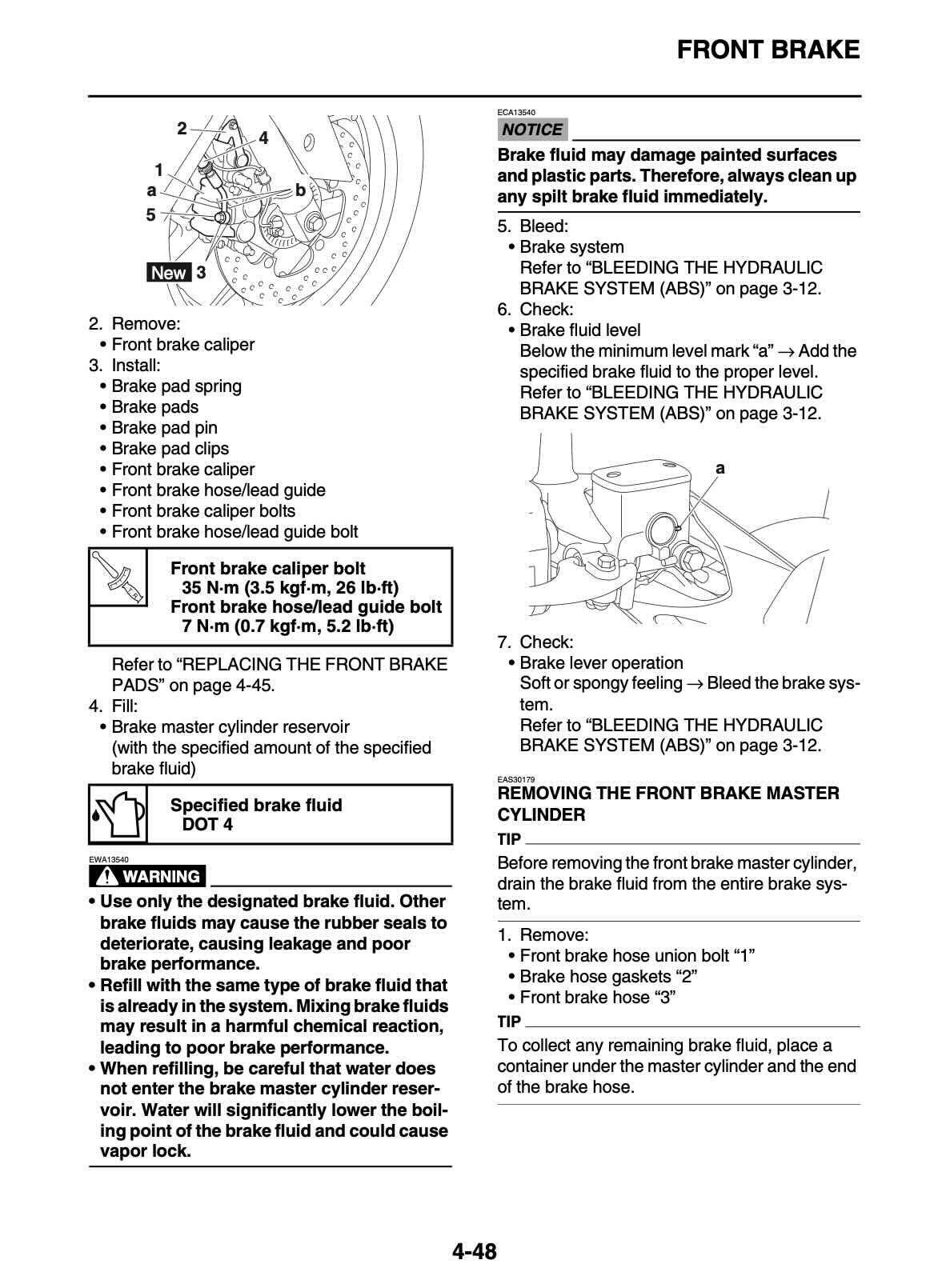

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.
Features Chapters: general information, specifications, periodic checks and adjustments, chassis, engine, cooling system, fuel system, electrical system, troubleshooting
Suits Models from 2017, 2018, 2019, 2020, 2021
If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.
Share
Yamaha XMAX 300 2017-2021 Service Manual: Blue Core Single, CVT and ABS Scooter Repair Guide
Yamaha introduced the XMAX 300 in 2017 as a bigger, more capable step up from the smaller XMAX range, aimed at riders who wanted a commuter that could also handle the open road. Euro 5 became mandatory from January 2021, and Yamaha claimed the updated model cut fuel consumption by around 6%.
Power comes from a 292cc liquid-cooled, four-valve, single-cylinder engine with a 70mm bore and a 10.9:1 compression ratio. It makes about 28 hp at 7,250 rpm and 29 Nm of torque at 5,750 rpm, with fuel injection and a belt-driven automatic CVT sending the power to the rear wheel.
The chassis uses a telescopic fork and a unit-swing rear, on a 15-inch front wheel and a 14-inch rear. Braking is by a 267mm front disc and a 245mm rear disc with ABS. The 13-litre tank gives it useful touring range, and the underseat storage is big enough for helmets.
This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Yamaha XMAX 300 running the way it was built to.
-
