Yamaha XJ900 1983-1994 Service Manual

Rider Magazine's own retrospective is blunt about the XJ900's origins: it was "definitely a last-minute fill-the-gap model." By 1982, Kawasaki had the GPz1100, Suzuki the GS1100E, and Honda the CB1100F — fast, chain-driven machines with genuine sporting credibility — while Yamaha's big-bore lineup consisted of the shaft-driven, cruiser-leaning XJ1100 Maxim, hardly competitive in the same conversation. The XJ900 existed to plug that gap while Yamaha's more serious sportbike designs were still on the drawing board.

The original 1983 model ran an 853cc air-cooled DOHC inline-four with 8 valves, fed by four 35mm Mikuni carburetors, delivering a claimed 97 hp and roughly 59 lb-ft of torque through a 5-speed gearbox with shaft final drive — genuinely unusual for a sportbike of the era, and a trait that drew criticism from riders more accustomed to chain-drive handling. Motorcycle Classics didn't mince words either, noting the 900 Seca was underpowered for its class and its suspension package fell short of contemporaries almost as soon as it launched, despite anti-dive front forks and triple disc brakes.

1984 brought a genuine revision: displacement grew to 891cc, carburetors went up to 36mm, and the bike switched to more conventional front forks along with a standard belly pan — changes that addressed some of the original's shortcomings while keeping the core shaft-driven, sport-touring formula intact. That 891cc configuration then carried the XJ900 essentially unchanged all the way through to 1994, spanning three internal designations (58L from 1984, then 4BB1 from 1990) before the model was finally replaced by the XJ900 Diversion.

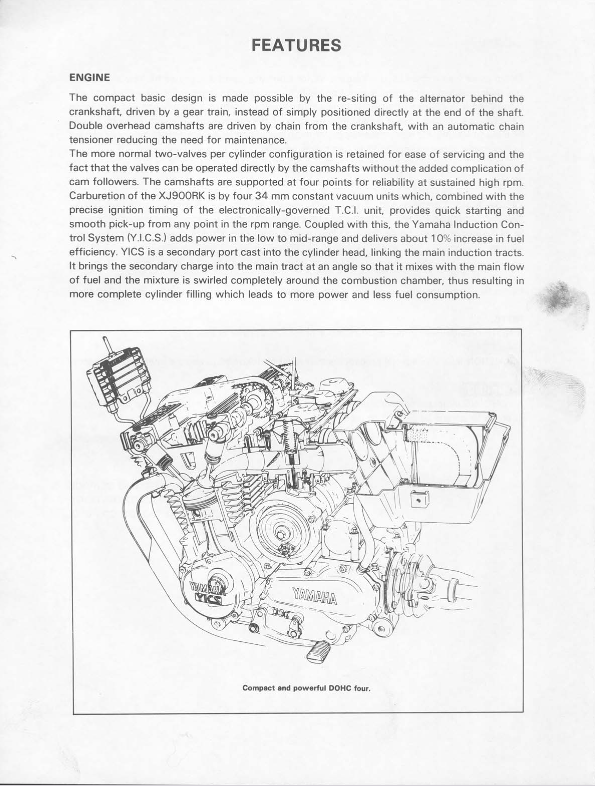

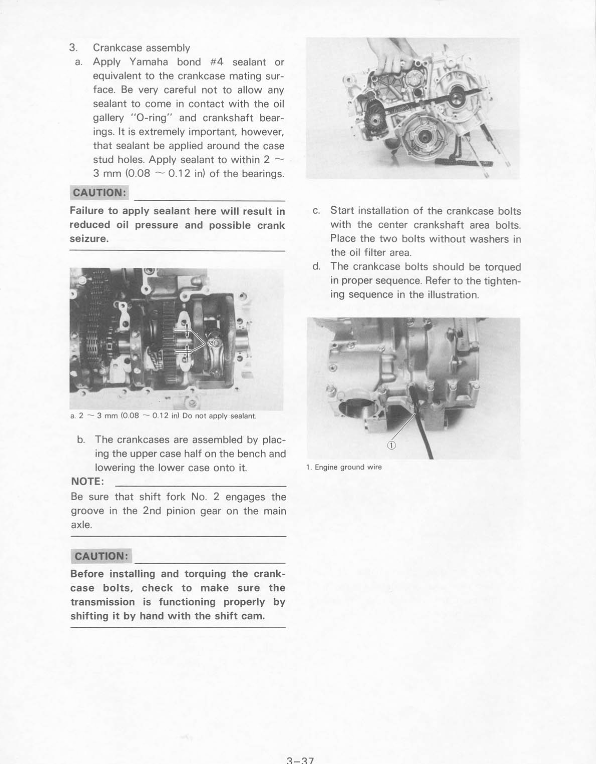

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1983-1994 XJ900 Seca running the way it was built to.
