Yamaha Wolverine RMAX4 2022-2025 Service Manual

Yamaha's own confirmed product materials make one specific reliability claim that's genuinely rare in this industry: "the most trusted transmission in the industry is backed by an unprecedented, Yamaha-exclusive 10-Year Belt Warranty" — a real, tangible confidence signal for a CVT-based drivetrain, since belt failure remains one of the most common wear complaints across the whole side-by-side category.

Power comes from a 999cc liquid-cooled DOHC parallel-twin, a 93.0mm x 73.5mm bore and stroke, an 11.2:1 compression ratio, fed by Yamaha Fuel Injection through dual 48mm throttle bodies, delivering drive through Yamaha's proven Ultramatic V-belt transmission with all-wheel engine braking across L, H, N, and R settings. ATV.com's own confirmed 2023 spec sheet lists this engine as a genuine 4-stroke, 8-valve parallel-twin — the same fundamental architecture Yamaha's own materials describe as delivering "class-leading power and smooth performance thanks to its potent 999cc DOHC eight-valve parallel-twin engine, featuring legendary Yamaha reliability."

Yamaha's own confirmed suspension specification for the range-topping Limited trim lists FOX 2.0 iQS shocks delivering a genuinely substantial 14.2 inches of front travel and 13.3 inches at the rear, via wide-arc A-arms — described by Yamaha's own materials as "designed to provide maximum articulation in low speed situations, a balanced feel when trail riding and maximum bottoming resistance at higher speeds." Standard tires across the range run 29-inch GBC Dirt Commander rubber on 14-inch aluminum wheels.

Yamaha's own confirmed feature list details large 62mm front and 72mm rear DAC (Double Angular Contact) wheel bearings, forged sway bar links, and large vehicle-specific ball joints — genuine heavy-duty componentry built for sustained trail use. Standard seating accommodates four full-sized adults with six-position seat belts per seat and a raised second row for improved visibility, while a factory suntop, integrated stereo, and Yamaha Adventure Pro GPS navigation feature on the range-topping Limited Edition trim. ATV.com's own confirmed 2023 pricing lists $30,399 for the Limited Edition, with Yamaha's own current lineup pricing showing the range spanning from the Compact R-Spec at $24,199 up to the full-size Limited at $29,199.

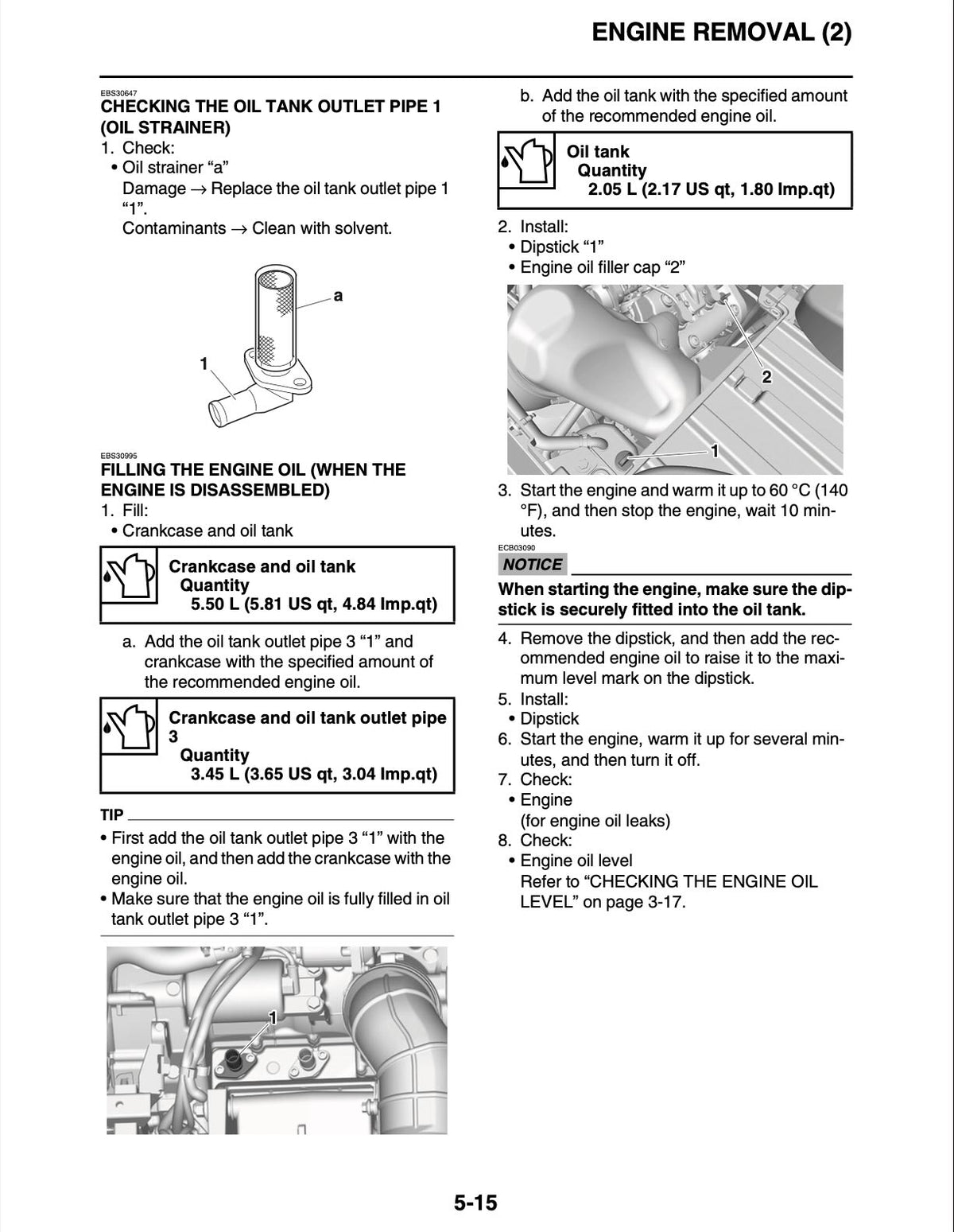

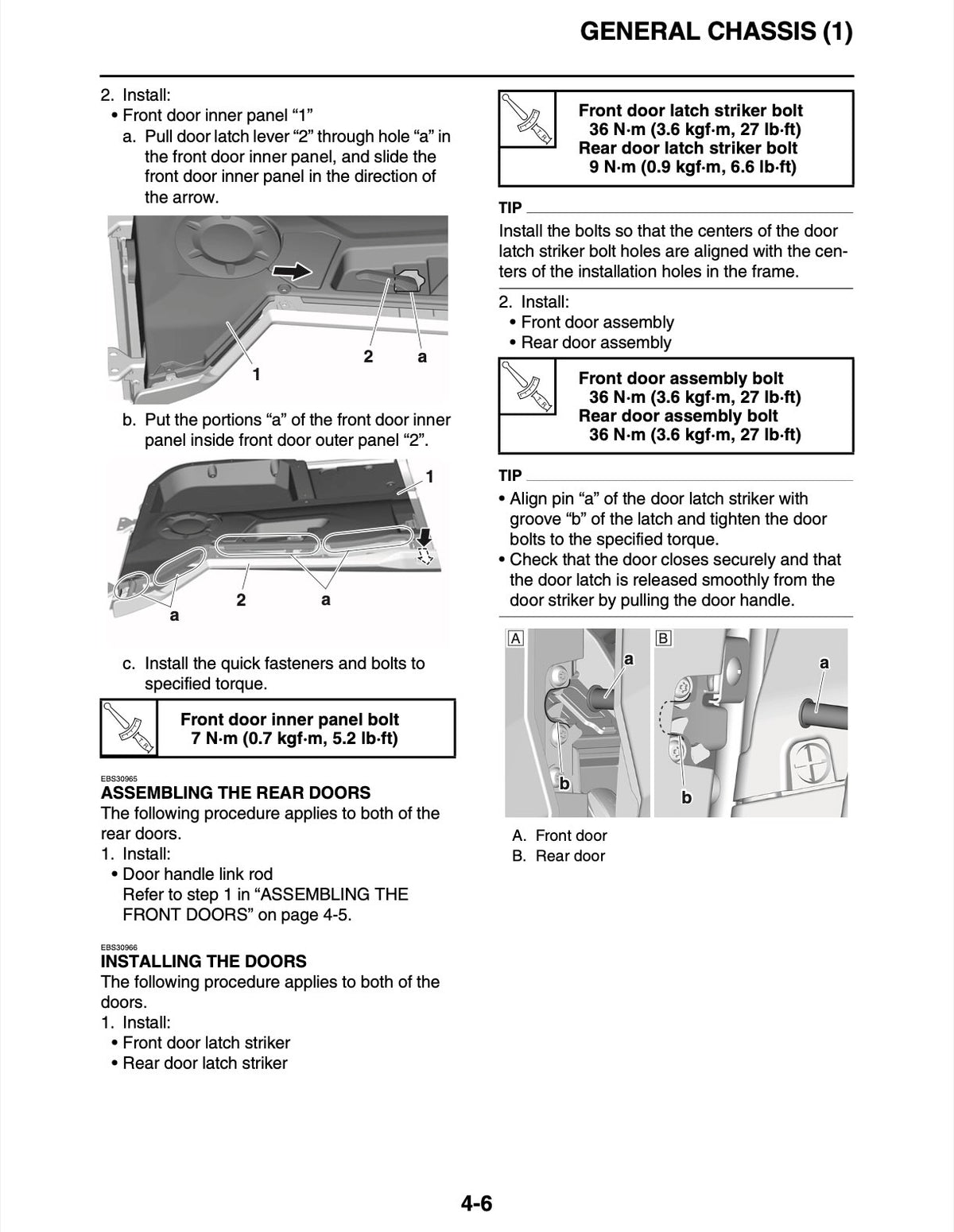

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2022-2025 Wolverine RMAX4 1000 running the way it was built to.
