Yamaha TTR125 TTR 125 2001-2023 Service Manual

A dedicated review of this platform confirms exactly why it's remained such a long-running favorite: a genuine stepping-stone dirt bike for kids and adults alike, built to be simple, easy to ride, and easy to maintain, with a lower seat height than most rivals in its class. Real owner comparisons against the Honda XR100 and CRF150F confirm the TTR125 makes more power than the XR100 while typically costing less than either direct competitor.

Power comes from a 124cc air-cooled single-cylinder four-stroke engine, a 10.0:1 compression ratio, fed by a carburetor, delivering roughly 7 hp through a 5-speed transmission with a wet clutch. The base TTR125 ran kickstart-only from 2000 to 2003, before the TTR125E introduced electric starting for 2003 onward — a genuine, real distinction worth confirming against the specific model year and suffix before ordering starter-system parts. A further LE trim added larger 19-inch front and 16-inch rear wheels for taller riders.

Confirmed dimensions list a 31.7-inch seat height and 11.6 inches of ground clearance, with the suspension pairing a telescopic fork with a single rear shock — genuinely soft, forgiving damping tuned for novice and intermediate riders rather than serious competition use. Stock gearing delivers a top speed around 45 mph on flat ground.

Real owner and mechanic feedback confirms the stock carburetor's small pilot jet as the platform's most commonly flagged weak point, with jetting kits a popular and effective first upgrade. A genuine hardware distinction worth checking on any 2002-or-later example: sprocket bolts changed from 8mm to 10mm that year, meaning drivetrain parts aren't universally interchangeable across the whole range.

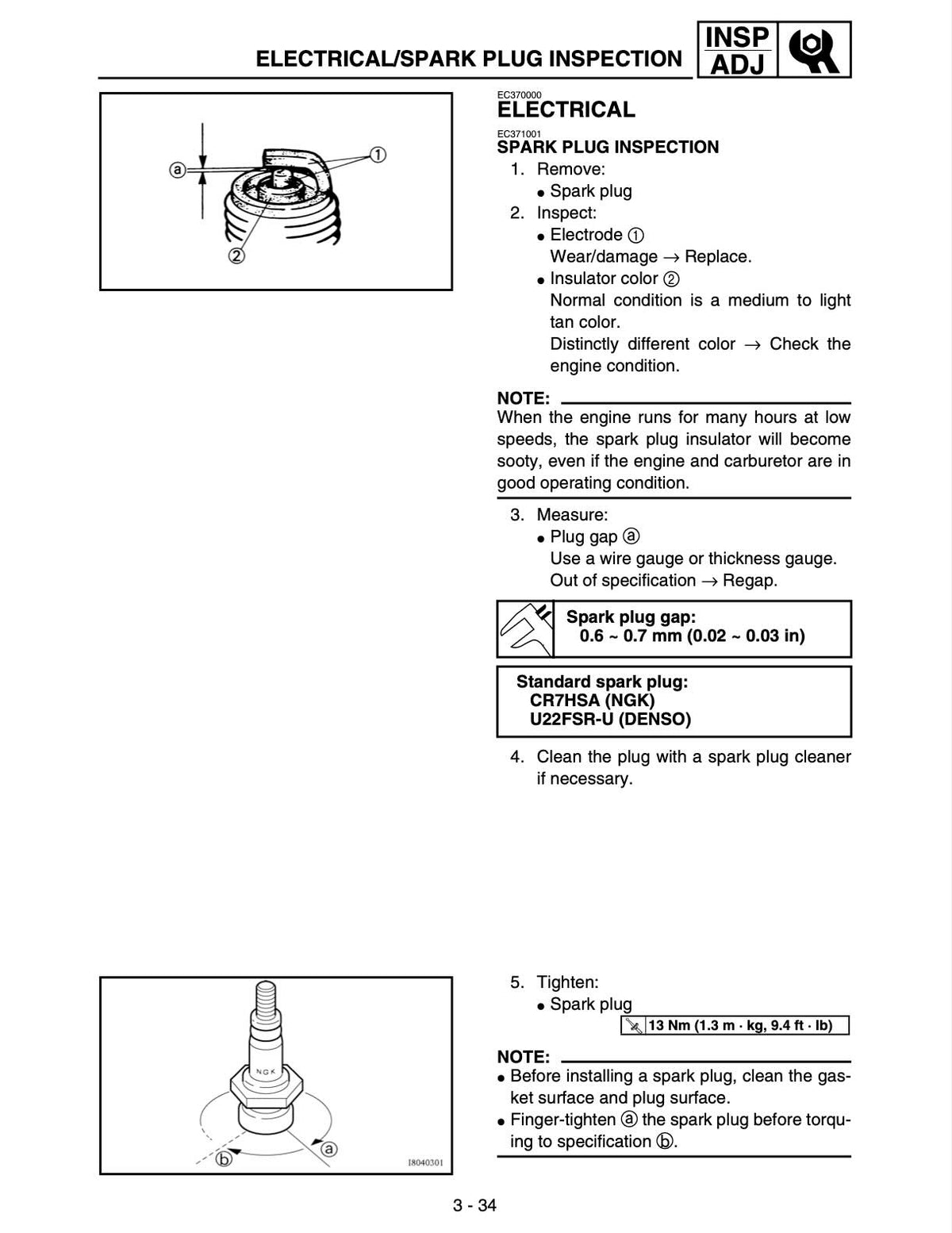

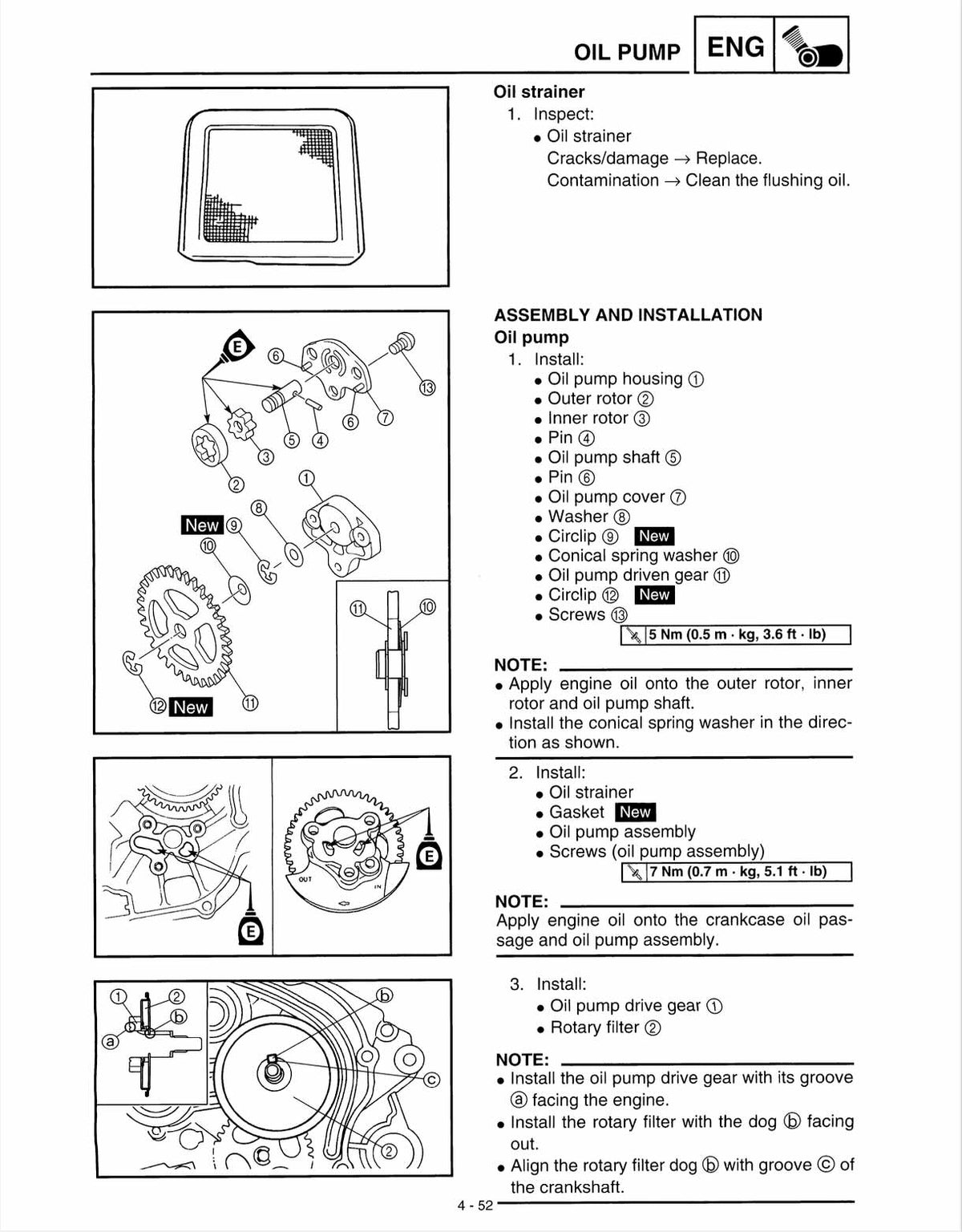

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a TT-R125/TT-R125E/LE's engine and driveline running the way it was built to.
