• Yamaha TMAX Tech Max 560 2020-2024 Service, Workshop & Repair Manual
  • Text 'INSTANT Download' with a green button on a white background

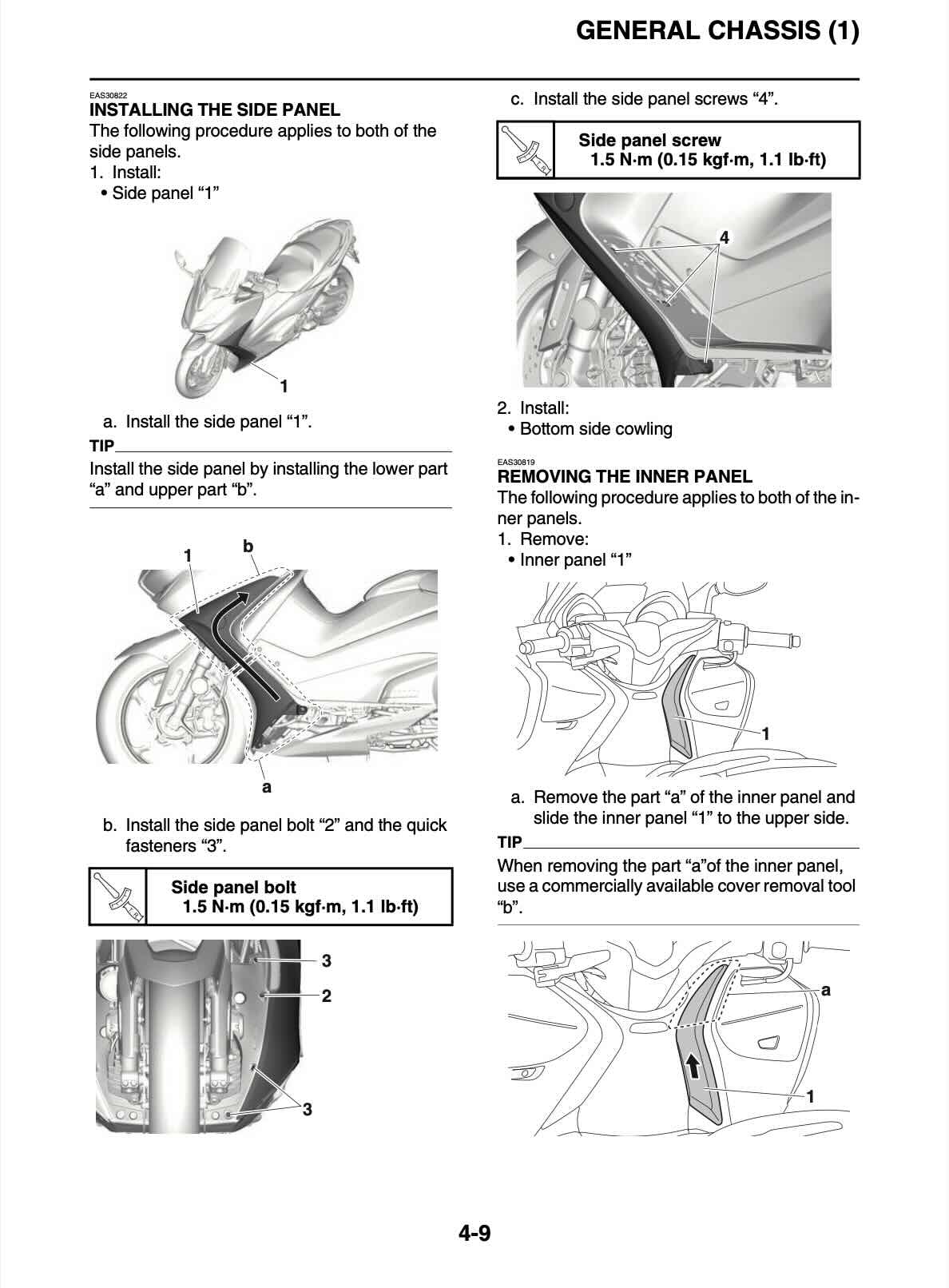

  • Yamaha TMAX 560 service manual page 4-9 general chassis with side panel installation procedures showing scooter side view, panel bolt and fastener locations, inner panel removal and disassembly with cover removal tool, torque specifications 1.5 N·m

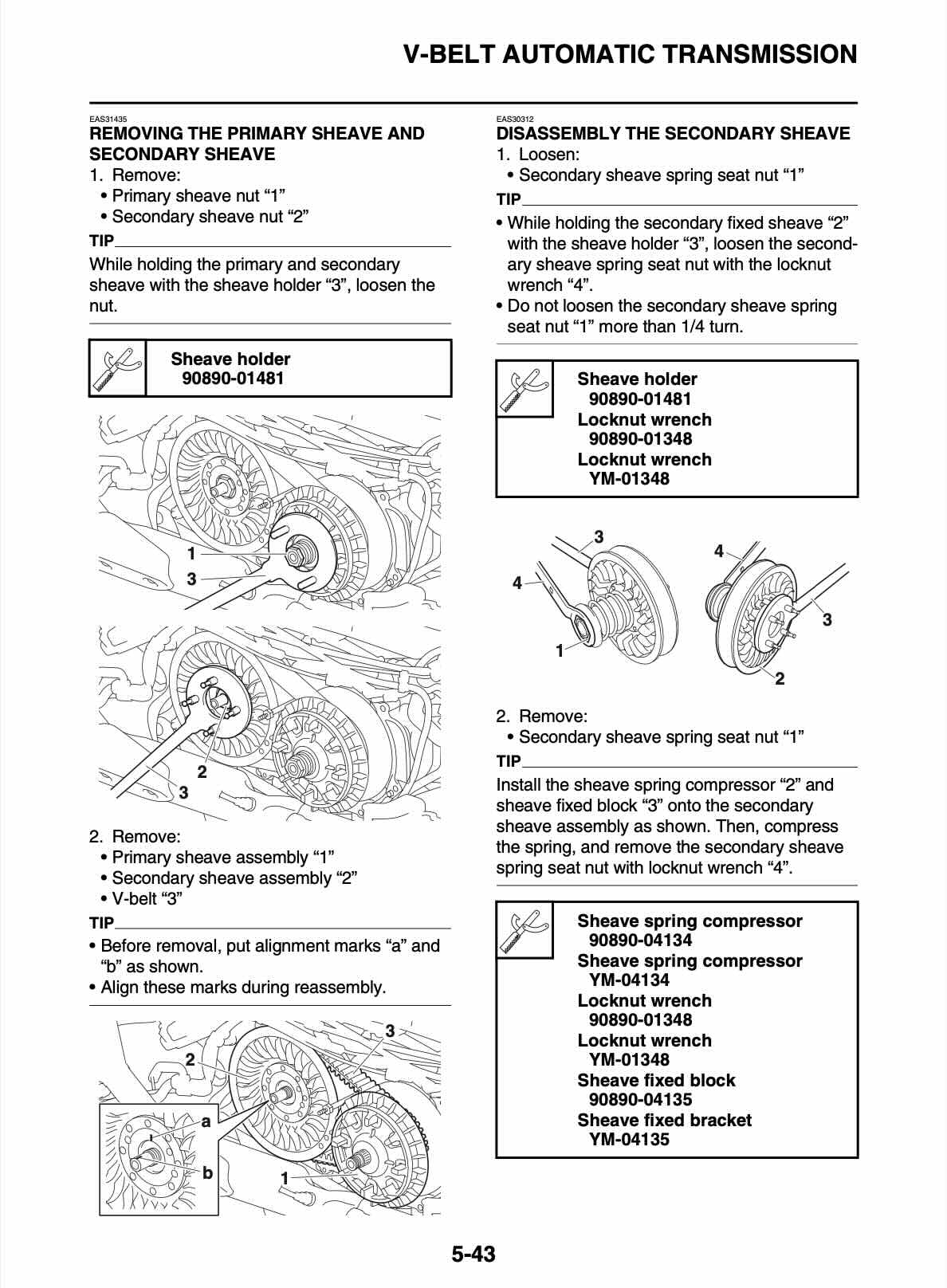

  • Yamaha TMAX 560 service manual page 5-43 V-belt automatic transmission with primary and secondary sheave removal and disassembly procedures, sheave holder tool 90890-01481, sheave spring compressor and locknut wrench specifications, alignment marks diagram, spring seat nut removal and installation sequence
1 4

Dr. E Manuals

Yamaha TMAX Tech Max 560 2020-2024 Service Manual

Yamaha TMAX Tech Max 560 2020-2024 Service Manual

£10.95 GBP
£10.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

2020-2024 Yamaha TMAX Tech Max 560 Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 688 pages in English Language, it is the only manual you will require to maintain, repair and service your 2020-2024 Yamaha TMAX Tech Max 560.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: general information, specifications, periodic checks and adjustments, chassis, engine, cooling system, fuel system, electrical system, self diagnostic

Suits Models from 2020, 2021, 2022, 2023, 2024

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

TMAX 560 / Tech MAX (2020-2024): Yamaha's Flagship Sport Scooter, Updated to the 562cc Euro 5 Engine

The TMAX 560 arrived for 2020 as the seventh-generation TMAX, replacing the 530, with a new 562cc engine, new bodywork and Euro 5 compliance. Yamaha rebuilt the engine around new pistons, conrods, camshafts and crankcases, and gave it new intake and exhaust systems. The aluminium beam frame carried over, but firmer damping gave it a sportier feel in corners. The Tech MAX is the luxury version. It adds heated grips, a heated seat, an electronically adjustable windscreen and cruise control, with gold-finish forks. 2020 colours were Tech Kamo and Sword Grey.

Power comes from the 562cc liquid-cooled parallel twin, with DOHC and four valves per cylinder. It has a 70mm x 73mm bore and stroke and a 10.9:1 compression ratio, fed by fuel injection. It makes a claimed 47.6 PS (about 46.9 hp) at 7,500 rpm and 55.7 Nm (41 lb-ft) of torque at 5,250 rpm. The transmission is a belt-driven automatic with a centrifugal clutch.

For 2022 the TMAX had a major refresh, with sharper styling, a more compact front end and a 7-inch colour TFT display with smartphone connectivity, while keeping the 562cc engine and sport-scooter chassis. The Tech MAX received the new design too, and the 2023 and 2024 bikes ran essentially unchanged from it. Because the bodywork, dash, lighting and electronics differ between the 2020-2021 and 2022-onward bikes, check body-panel and instrument parts against the model year.

Confirmed figures list an 800mm seat height and a weight of about 220 kg (485 lbs) for the standard 560, with ABS standard. Yamaha gave the bike a two-year warranty with no mileage limit in Europe.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2020-2024 TMAX 560/Tech MAX running the way it was built to.
