Yamaha TDM850 1996-2000 Service Manual

MCN's own detailed model-year history confirms the genuine, comprehensive rework this bike received right at the start of your range: "1996: Bigger 43mm forks, shorter frame, close ratio gearbox, 270-degree crank engine, redesigned exhaust and silencers, twin bulb headlamps, new styling, larger 20 litre fuel tank." Classic Motorbikes' own review confirms why that 270-degree crank change mattered so much: "the original 360-degree crank design was updated in 1996 to a smoother 270-degree item, this creates a real push in the acceleration department allowing the power strokes to be closer together and making the big yam feel much more like a V-twin than an inline motor ever should."

Power comes from an 849cc liquid-cooled parallel-twin, delivering a claimed 77-80 hp at 7,500 rpm and roughly 56-59 lb-ft (76-80 Nm) of torque at 6,000 rpm through a 5-speed gearbox with chain final drive. Wikipedia's own account confirms the genuine engineering sharing built into this exact generation: this crossplane engine "was shared with the TRX850 model as well as its transmission" — the same fundamental architecture, just tuned and packaged differently for the TDM's more upright, sport-touring role versus the TRX's café-racer positioning.

MCN's own confirmed collected owner reviews are consistently enthusiastic decades later: "I've had many different makes and models, but this is so reliable comfy and economic I can't believe it," and one 6'6" owner found "the handling, its really easy to chuck around," despite initial adjustment to the tall front end. Another confirmed genuine long-term durability: "no problems with the engine at 24k, build quality is surprisingly good (1998 model)," while flagging the gearbox as the platform's one recurring weak point — "notchy, noisy."

Autoevolution's own confirmed spec sheet lists dual 298mm front discs with four-piston calipers and a 245mm rear disc, three-spoke lightweight wheels, a dual headlight system, and a top speed around 129 mph. That same source confirms MCN's 1997 running change: a modified wiring loom specifically to allow alarm fitment. This exact 270-degree-crank generation ran through 2001 before Yamaha's substantially reworked TDM900 replaced it.

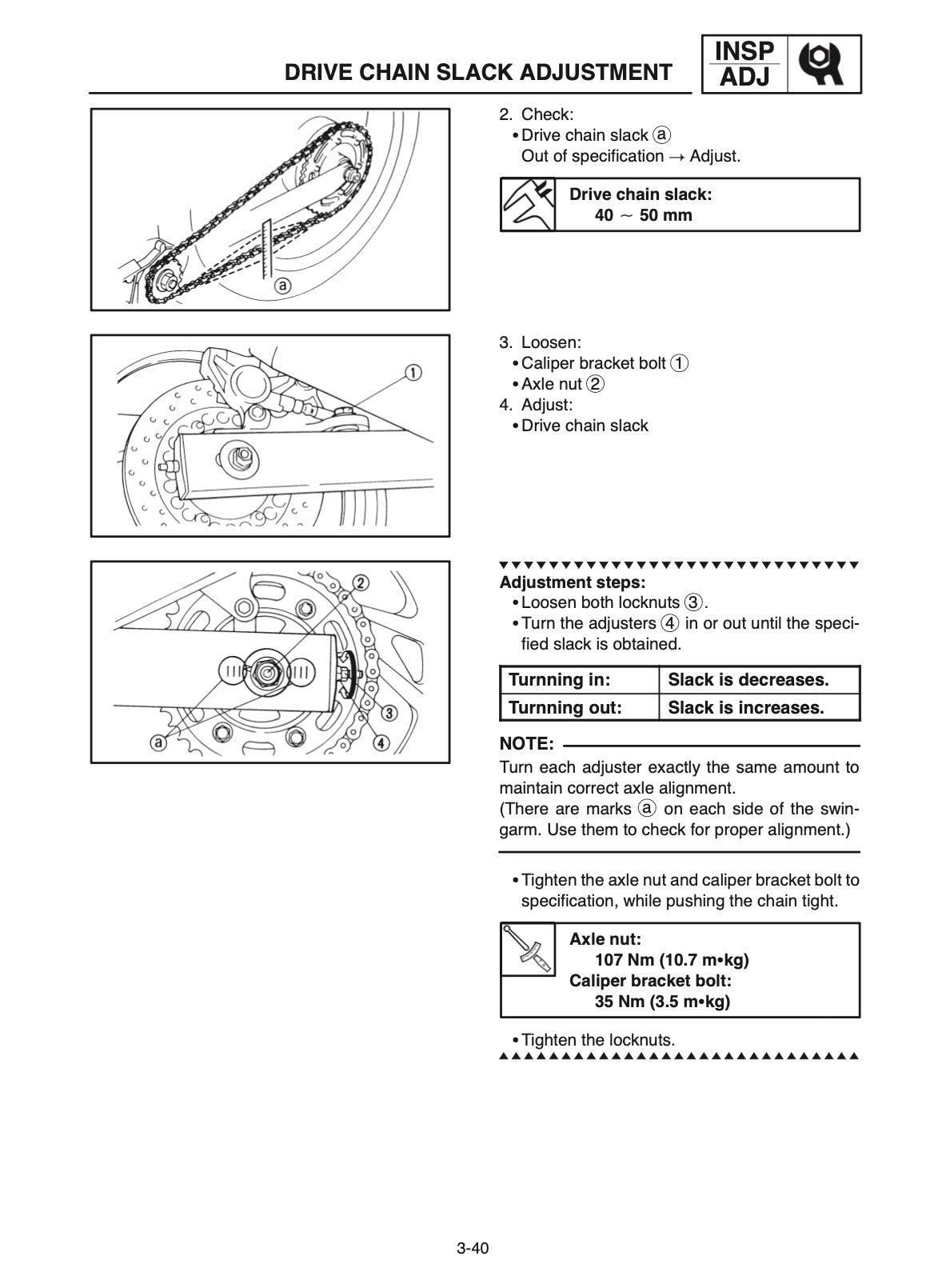

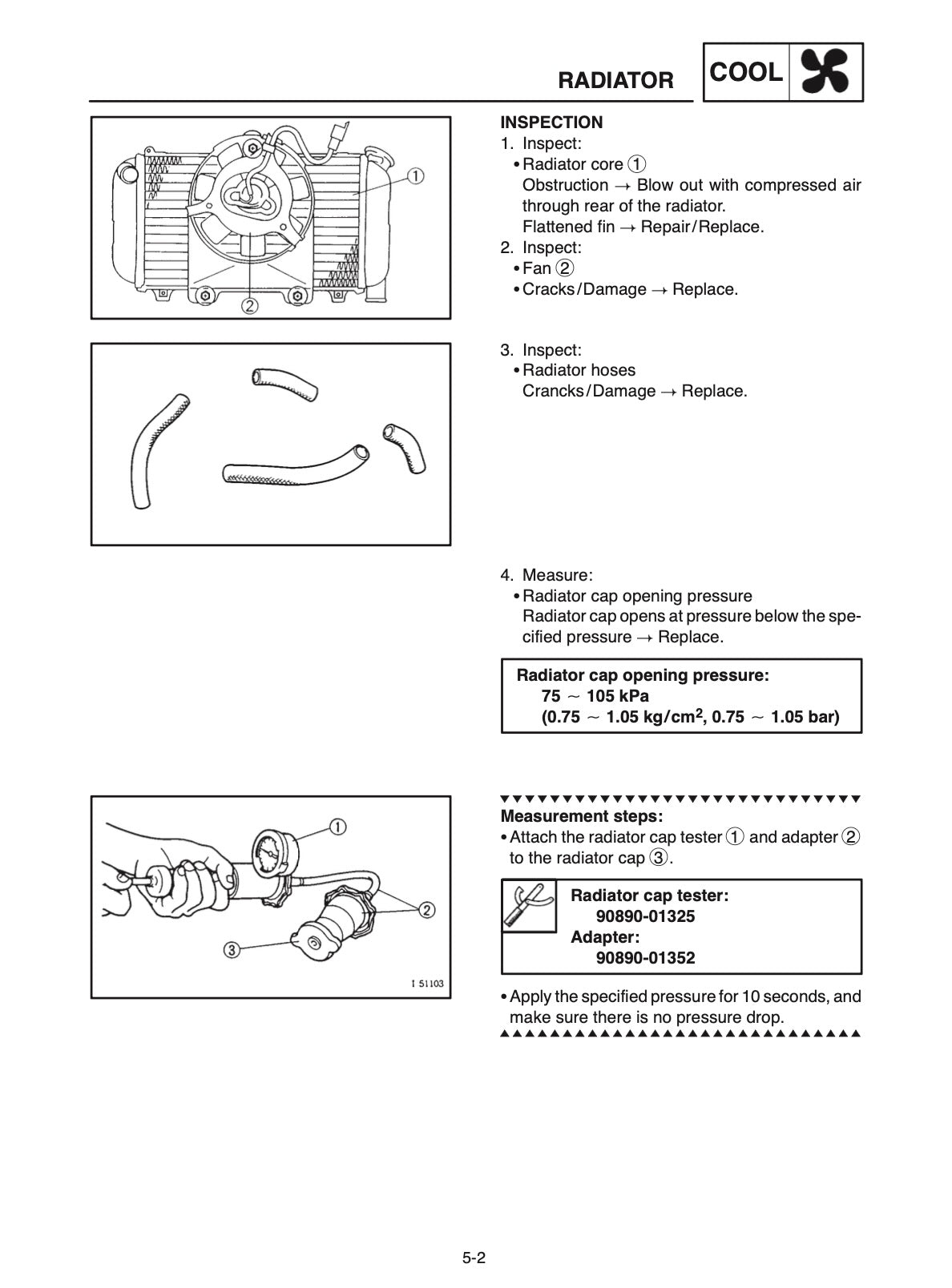

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1996-2000 TDM850 Mk II running the way it was built to.
