2024 Yamaha NMAX GDP 155 Service / Repair / Workshop Manual
Instant download after purchase, in PDF form, NOT a physical book.
This manual contains 636 pages in English Language, it is the only manual you will require to maintain, repair and service your Yamaha NMAX GDP 155.

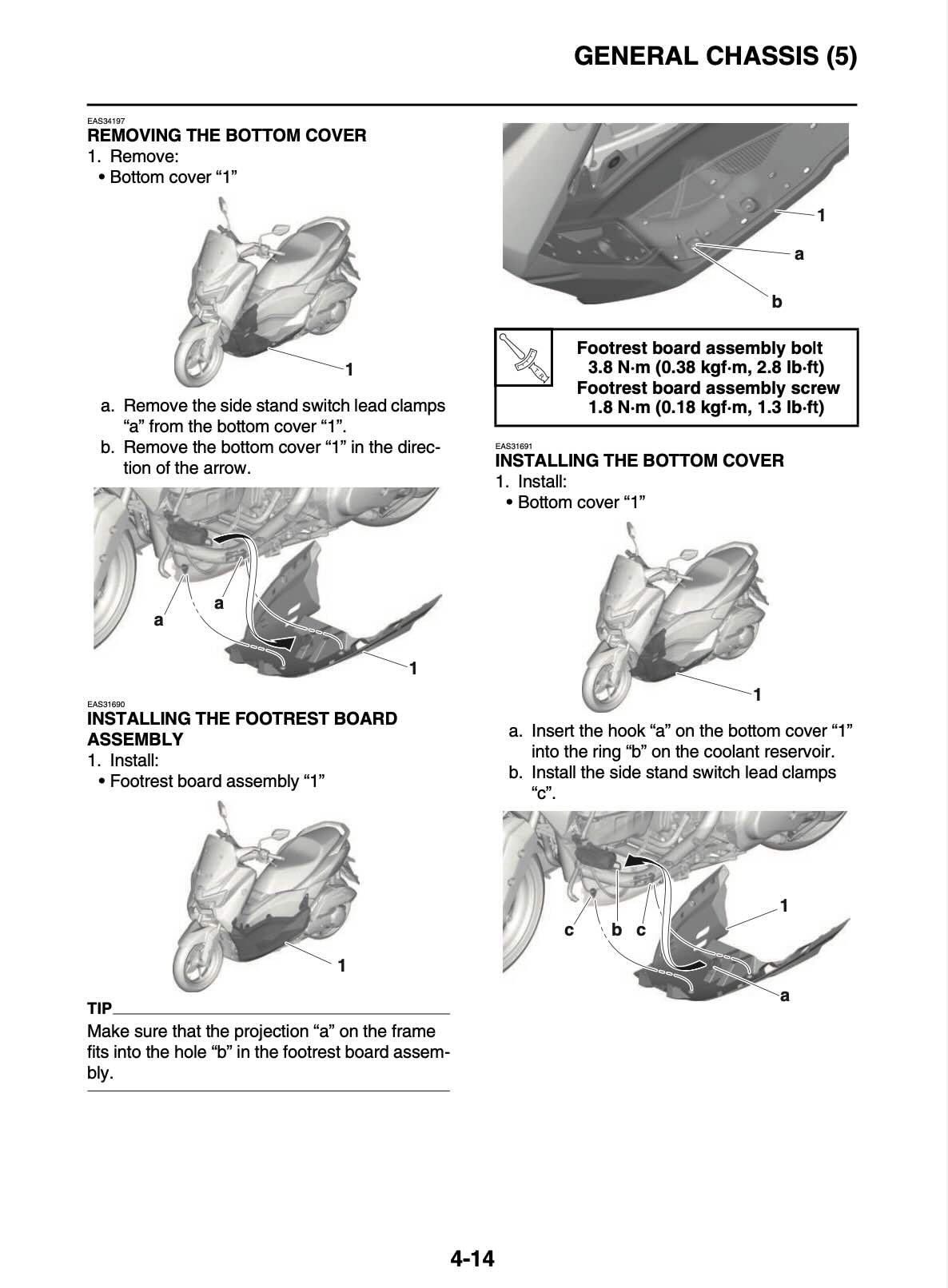

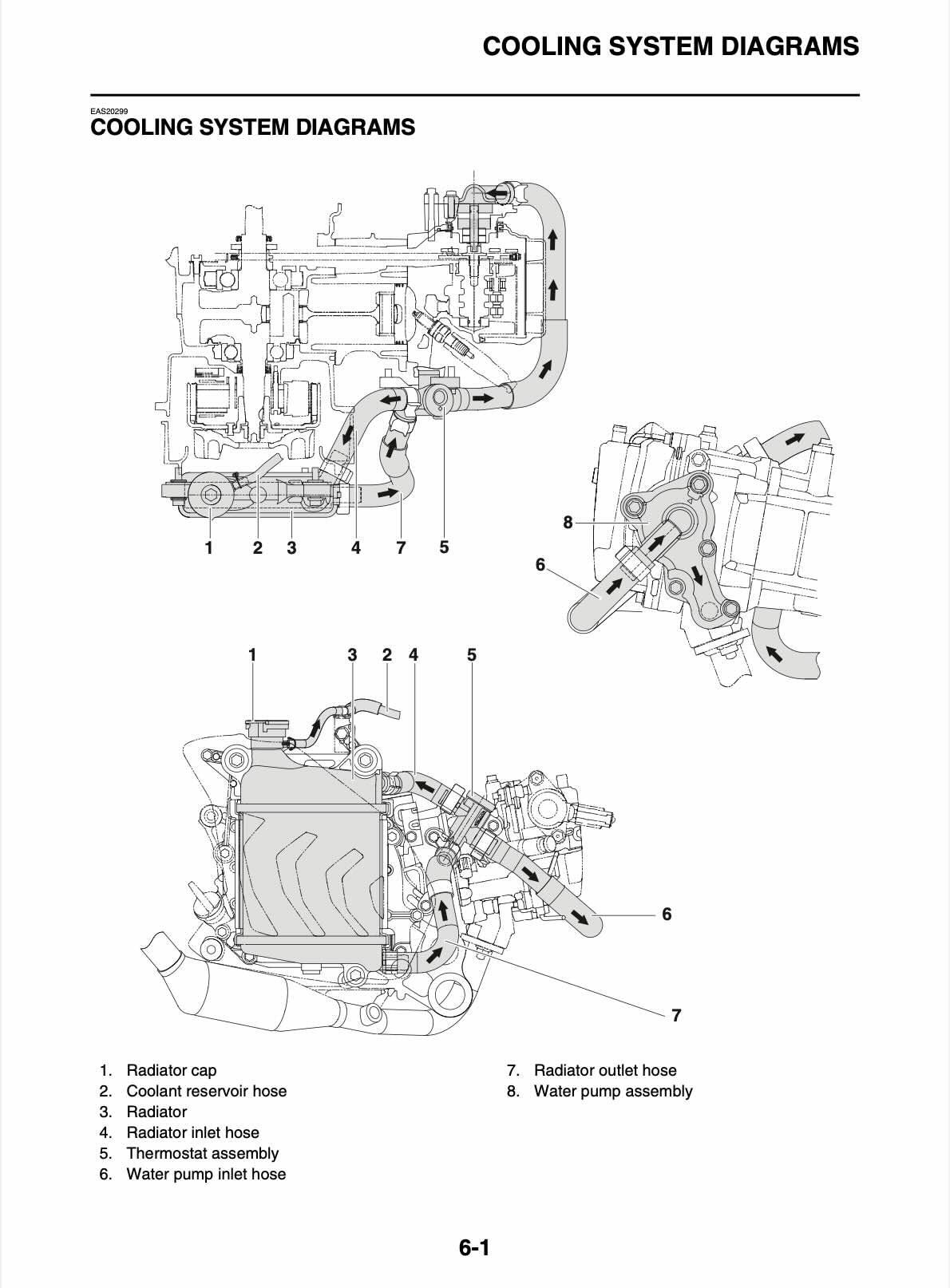

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.
Suits Models from 2024
If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.
Share
NMAX 155 (2024): Yamaha's Sport-Styled Entry Point Into the MAX Scooter Ladder
Yamaha positions this as the first step onto its broader MAX sport-scooter lineup, aimed squarely at car drivers and returning riders wanting an accessible taste of two-wheel commuting. The 2024 configuration carries a genuinely sophisticated feature set for its class: two selectable ride modes, a downshift function letting the rider command acceleration or deceleration on demand, and a TFT instrument cluster with smartphone connectivity and onboard navigation.
Power comes from a 155.1cc liquid-cooled 4-stroke SOHC single, a 58.0mm bore and 58.7mm stroke, and a 10.5-11.6:1 compression ratio depending on market tune, delivering drive through a CVT with belt final drive. Yamaha's own European product copy confirms the genuine practical benefit of the engine's Blue Core tuning — quiet, economical running paired with a 7.1-litre fuel tank (6.6 litres on some market variants) delivering roughly 300km of range between fill-ups.
Suspension consists of a telescopic front fork offering 100mm of travel, paired with a rear swingarm and double shock absorbers delivering 91mm of movement — smooth, comfortable damping tuned for both solo and two-up riding. Braking uses single-piston calipers on 230mm discs at both wheels. Standard equipment includes Yamaha's Smart Key keyless ignition system, twin-eye LED headlights with integrated position lights, LED tail lighting, and Yamaha's Communication Control Unit (CCU) pairing with the MyRide smartphone app over Bluetooth.
Confirmed dimensions list a 1,955mm length, 765mm (30.1-inch) seat height, and a 1,350mm wheelbase, riding on 110/70-13 front and 130/70-13 rear tubeless tires with a 26-degree rake. This exact configuration represents a genuinely mature, well-established stage of the NMAX 155's ongoing production, which Yamaha has continued building in Indonesia since the platform's original February 2015 launch.
This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2024 NMAX 155 running the way it was built to.
-
