Yamaha FJR1300A 2008-2012 Service Manual

Motorcycle News' own confirmed review sums up the FJR1300A's whole value proposition directly: "the Yamaha FJR1300 represents loads of motorcycle for the money and ready to head to Spain straight, unlike some rivals which need expensive additional luggage options. The key factor about the Yamaha FJR1300A is that it looks, feels and rides like it was designed specifically to waft two people in luxury for two weeks of motorcycling leisure. It delivers on all counts." That same review confirms panniers, a small luggage rack, and ABS braking had all been standard fitment since 2006 — genuinely built-in touring capability rather than an accessory upsell, carried through the entire 2008-2012 range covered here.

Power comes from a 1,298cc liquid-cooled inline-four, fed by an advanced fuel injection system with lightweight forged pistons, delivering a claimed 144-145 hp at 8,500 rpm and roughly 99 lb-ft (125 Nm) of torque at 6,000 rpm through a 5-speed transmission with shaft final drive. Wikipedia's own confirmed account details genuine, real engineering refinement carried across this exact span: "for 2007, some very minor changes were made to the ECU to deal with potential issues related to altitude changes... in 2008 changes were made to throttle 'feel,' to improve low speed on/off throttle transitions. As well as Yamaha changed suppliers for the ABS system. Further refinements in the throttle control were introduced with the 2009 model."

That same confirmed account flags a real running change worth knowing at the end of this range: "the AE variant was discontinued for 2010, although the AS model continued to be sold in markets outside of the US and Canada" — the FJR1300AE (called AS elsewhere), Yamaha's semi-automatic Chip Controlled Shift variant, disappeared from North American sales starting that model year, though the standard manual-shift FJR1300A covered by this listing carried on unaffected. Wikipedia's own confirmed account also notes "for 2012 the previously optional heated handgrips became standard" — a genuine, real equipment upgrade at the tail end of your listed range.

Suspension consisted of a fully adjustable 48mm inverted telescopic fork up front and a preload- and rebound-adjustable single shock at the rear, braking through dual 320mm front discs with four-piston calipers and a 283mm rear disc with a single-piston caliper, all backed by Yamaha's Unified Braking System (UBS) standard since 2006. This 1,298cc engine and chassis architecture ran consistently across the entire 2008-2012 span before Yamaha's substantially reworked 2013 "Gen-III" update brought new front bodywork and further refinements.

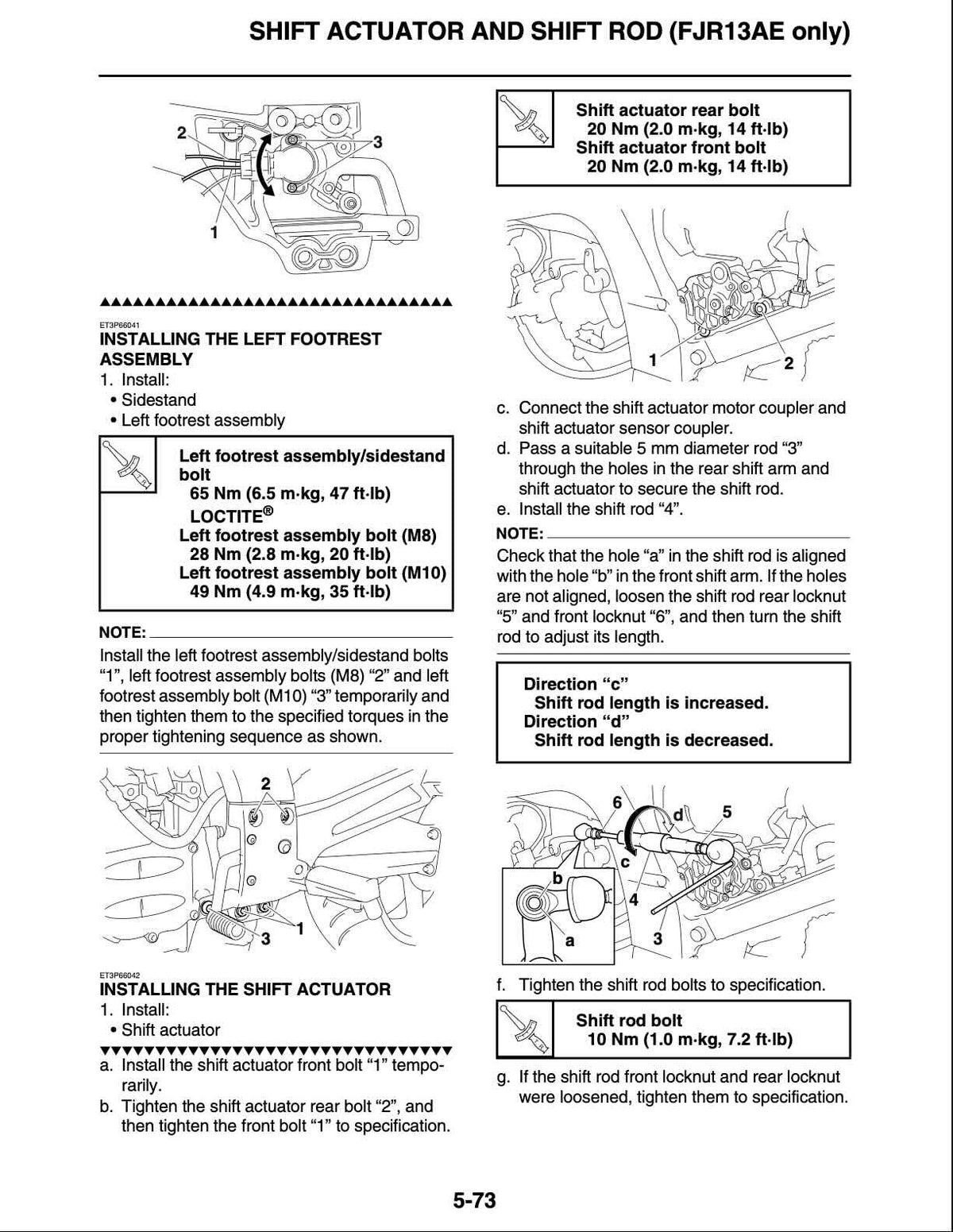

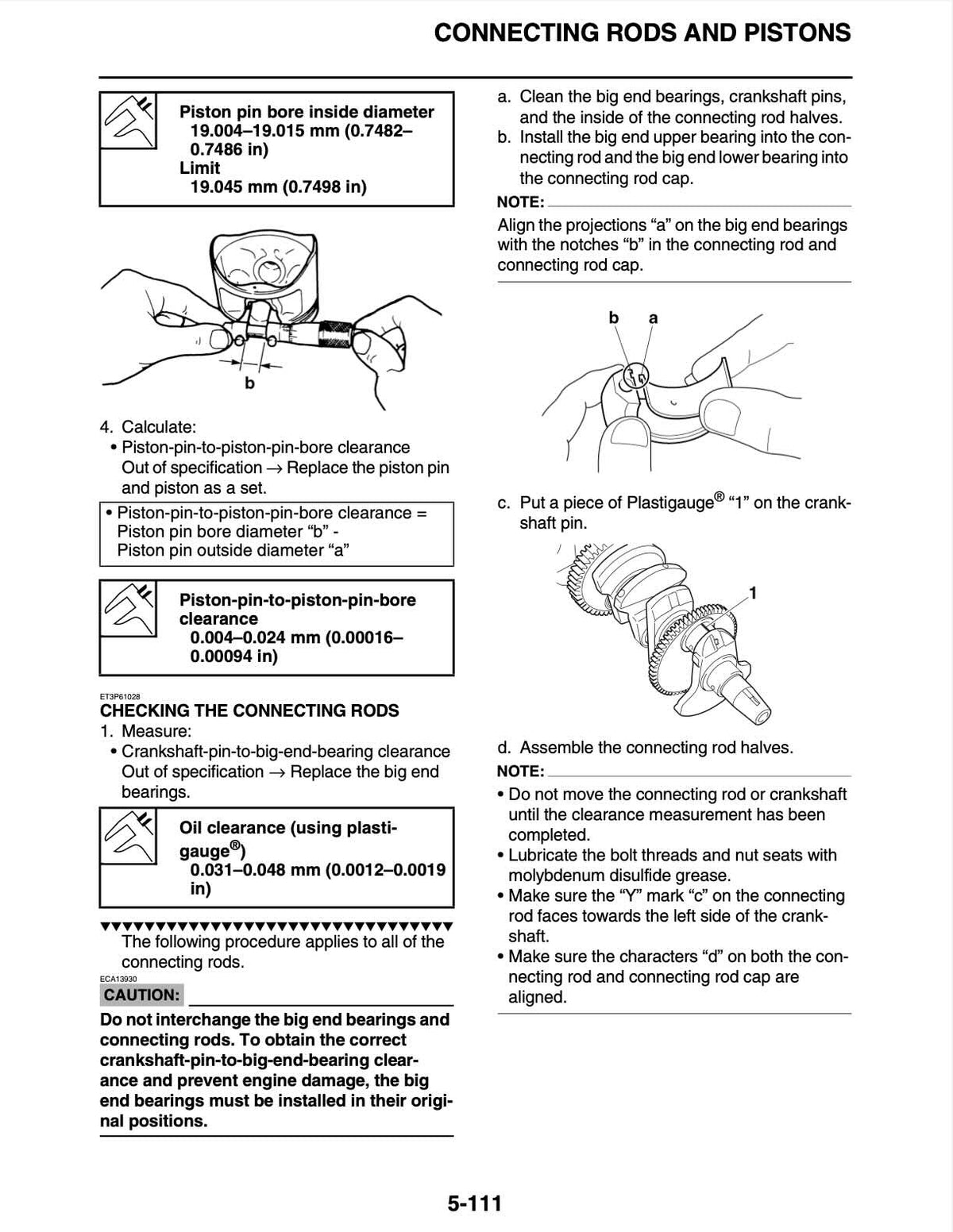

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2008-2012 FJR1300A running the way it was built to.
