Yamaha Breeze 125 ATV 1989-2004 Service Manual

Off-Roading Pro's own history highlights the genuine engineering first behind this bike: the Breeze 125 was "the first Yamaha quad equipped with an automatic V-belt transmission" — a real technological leap for youth ATVs in the late 1980s, when most competitors still relied on manual clutch-and-shift setups that intimidated younger or less experienced riders. WebBikeWorld's own long-term owner review sums up the practical result plainly: "reliable, abundant and easy to find cheap parts and fun would also describe the Breeze 125 quad well. It's a basic ATV, what more can you ask for?"

Power comes from a 124cc air-cooled single-cylinder SOHC engine, forward-inclined with a 49mm x 66mm bore and stroke and a 9.0:1 compression ratio, fed by an 18mm Mikuni VM18SH carburetor through a wet-sump lubrication system. A continuously variable V-belt automatic transmission with reverse gear sends power through a sealed O-ring chain to the rear wheels, with digital CDI ignition and electric start standard. Smart Vehicle Care's own review notes a genuinely thoughtful safety feature for a youth machine: parents could adjust the throttle to physically limit the maximum speed the Breeze could reach, letting the ATV grow with a young rider's skill level over time.

The chassis pairs a steel trellis frame with independent double-wishbone front suspension offering 2.8 inches of travel and a rear swing-arm setup with 3.2 inches — genuinely stiff by modern standards, as WebBikeWorld's long-term owner noted, but adequate for the youth and light-duty use the Breeze was built for. Braking uses dual front drums with a sealed rear drum, and Electric Power Steering — a genuine rarity on a youth ATV of this era — came standard, meaningfully easing handling effort for smaller riders. Dry weight comes in at 298 lbs, with a 27.2-inch seat height, 42.5-inch wheelbase, and 5.7 inches of ground clearance, plus a 1.85-gallon fuel tank. Yamaha kept the introductory list price at a consistent $2,999 across the model's entire 1989-2004 production run, with optional extras including colored fairings, a 12V accessory kit, and a rear cargo rack.

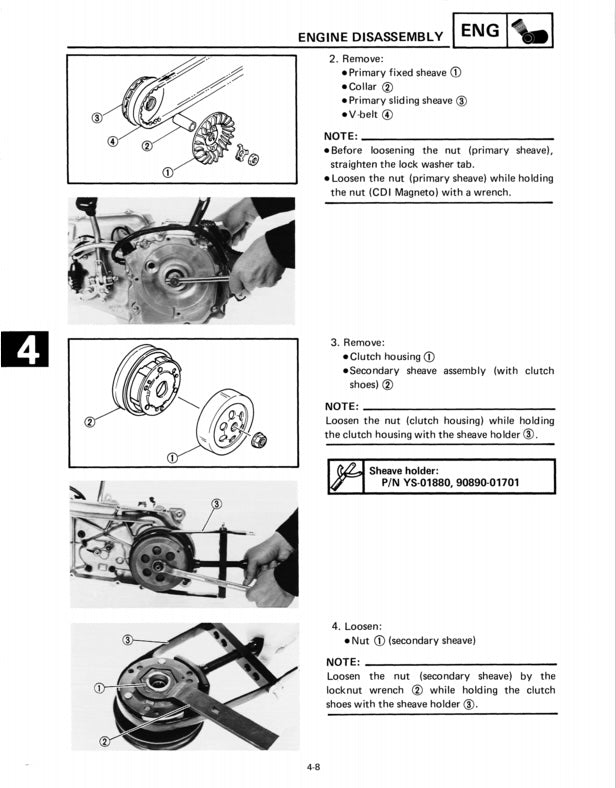

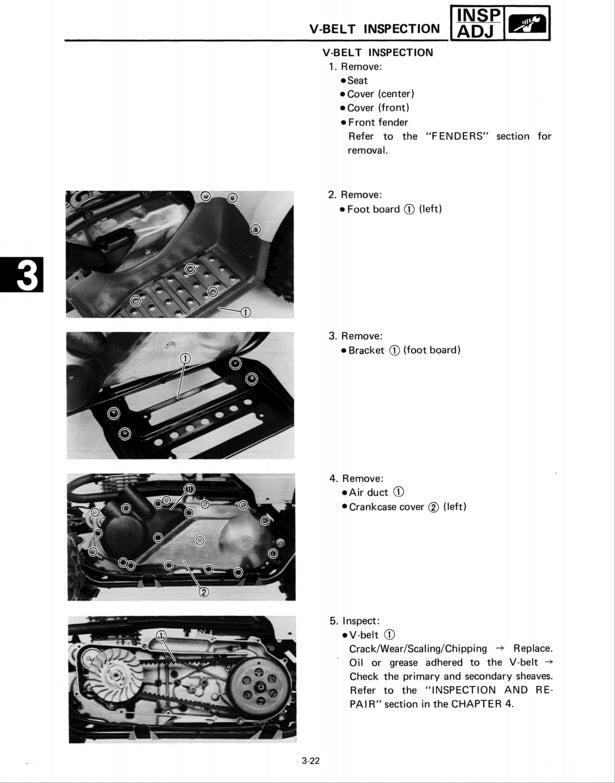

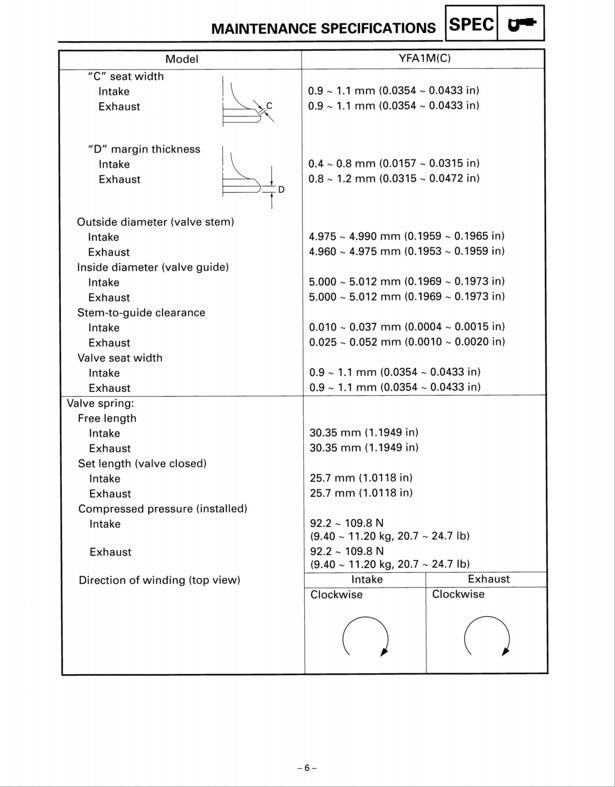

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1989-2004 Breeze 125's engine and driveline running the way it was built to.
