Triumph Trophy 900 1991-2001 Service Manual

Motoparts Store's own retrospective doesn't hold back on the genuine cult status this bike earned: "the Triumph Trophy 900 isn't just a motorcycle—it's a declaration. Born in 1991 during Triumph's modern resurgence, this inline-three touring machine carved a niche with its blend of characterful engineering and long-distance practicality. Over its decade-long production run, the Trophy 900 became synonymous with a distinct auditory signature—a deep, throaty thrummm—and a riding experience that balanced sporty vigor with touring comfort." Autoevolution's own model history confirms the genuine engineering shortcut behind this bike's existence: launched alongside the larger Trophy 1200, "the Triumph Trophy 900... except for the engine, the bikes were very similar," differing mainly in the smaller triple, lower final drive gearing, reduced weight, and a fairing sticker reading "900" instead of "1200."

Power comes from an 885cc liquid-cooled DOHC transverse inline-three, delivering a claimed 95-98 hp at 9,000 rpm and roughly 61 lb-ft of torque at 6,500 rpm through a 6-speed manual gearbox with wet multi-plate cable-operated clutch and chain final drive, fed by three 36mm Mikuni carburetors. Motoparts Store's own technical breakdown highlights the genuine engineering refinement behind the engine's smooth character: "the 120° crank and twin balancer shafts deliver smoothness without sanitizing the experience" — a real balance most inline-triples of the era struggled to achieve between vibration-free comfort and honest mechanical character. CycleChaos' own year-by-year account confirms Triumph continued genuinely refining the tune throughout this long run: by 1996, "the engine has been tweaked for more balanced power delivery, throughout the rev range," while retaining the same fundamental 885cc architecture shared across Triumph's broader modular range of this era.

The genuine styling evolution across this decade-plus run is worth knowing for anyone dating a specific example: autoevolution's own coverage confirms the original 1991-1995 bikes ran "a full fairing, a single trapezoidal headlight, a windscreen... a three-into-two exhaust system... and six-spoke alloy wheels" on a steel trellis frame with 43mm forks and a tri-link rising-rate rear shock, while "a visual revision in 1996" brought "a more aerodynamic fairing, two roundish headlights, and a larger windscreen" alongside three-spoke alloy wheels and side-mounted panniers — a genuinely distinct second-generation look that carried through to the end of production. Motoparts Store's own long-term riding assessment confirms the touring-focused equipment genuinely delivered on its promise: a plush 780mm seat, integrated lockable panniers totaling 72 litres, and a 25-litre tank supporting 217-248 miles of real-world range, with the honest weak points being heat wafting onto the rider's legs in traffic and mirror vibration at highway speed — genuinely minor quibbles the same review calls "quibbles in an otherwise stellar touring package." Dry weight sits around 485 lbs (220kg), with a genuine top speed near 140 mph.

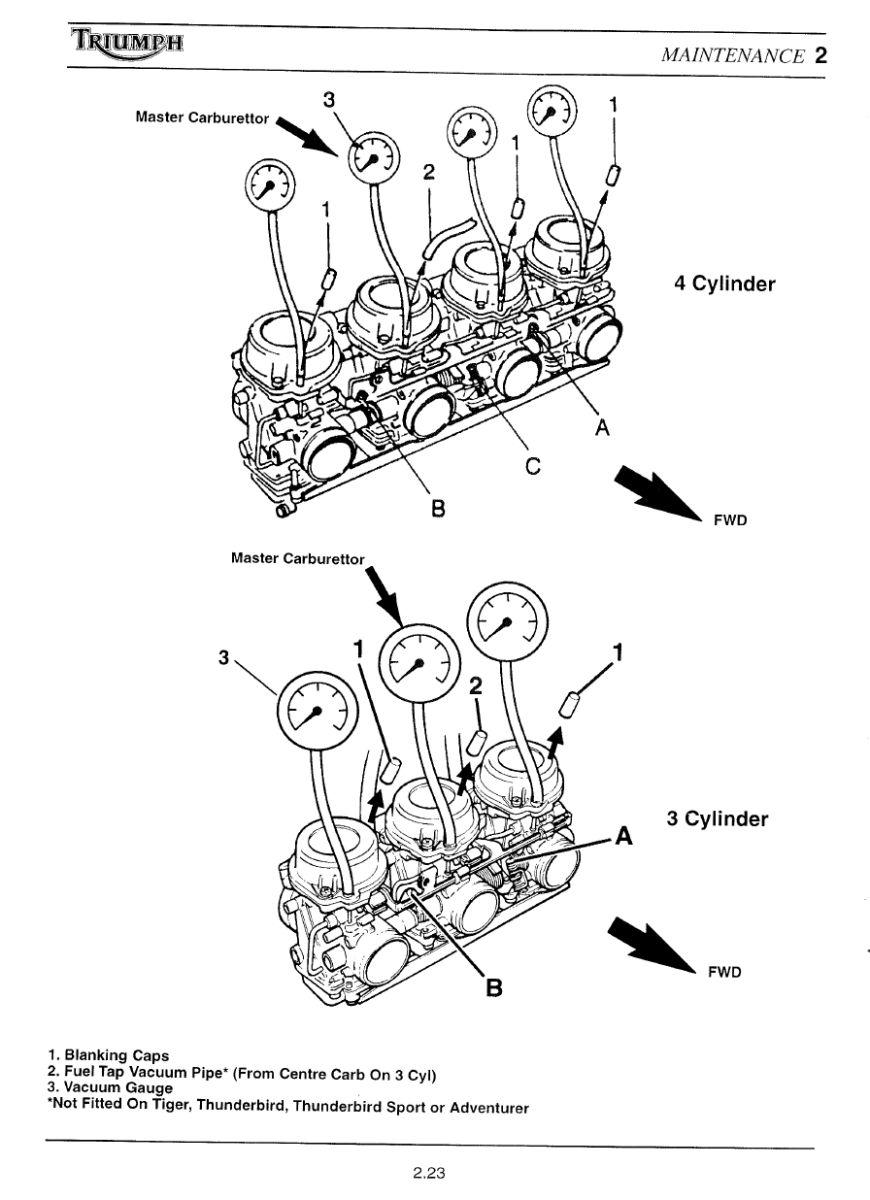

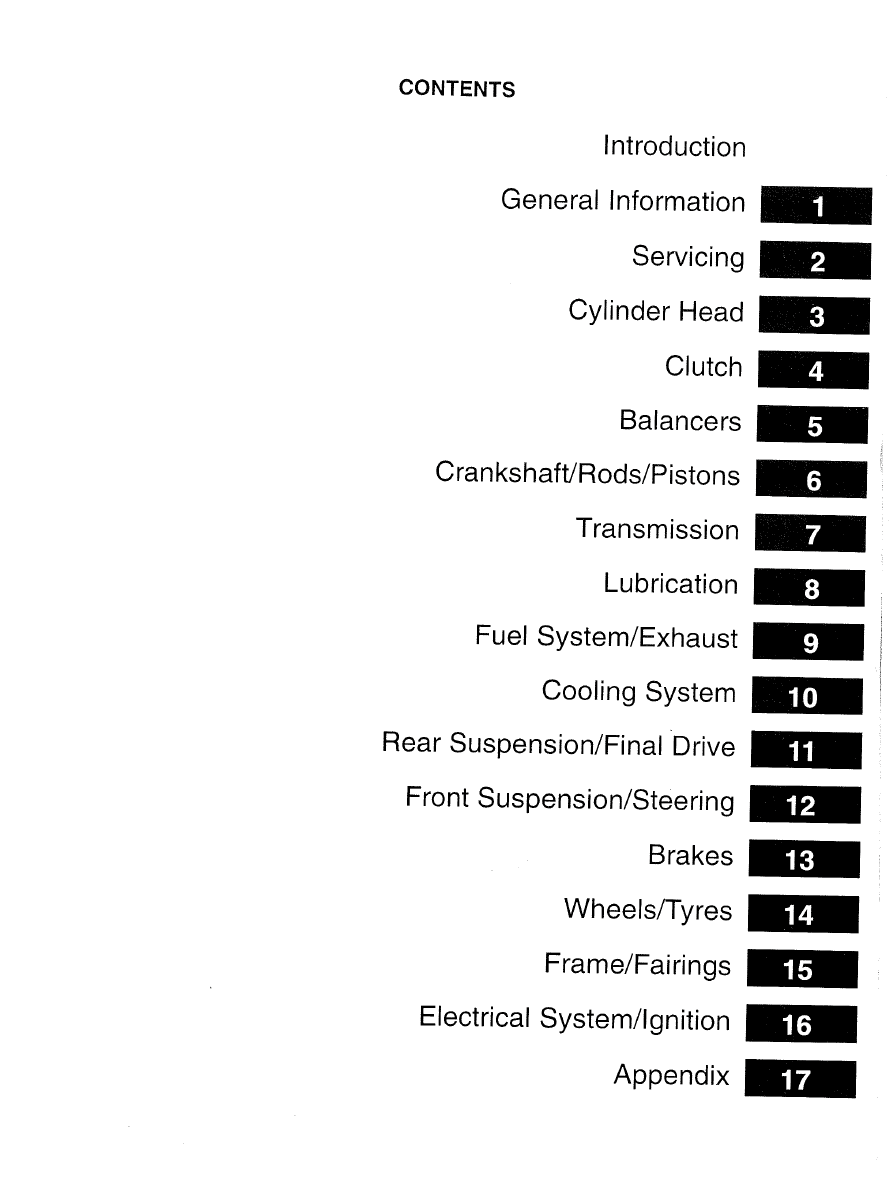

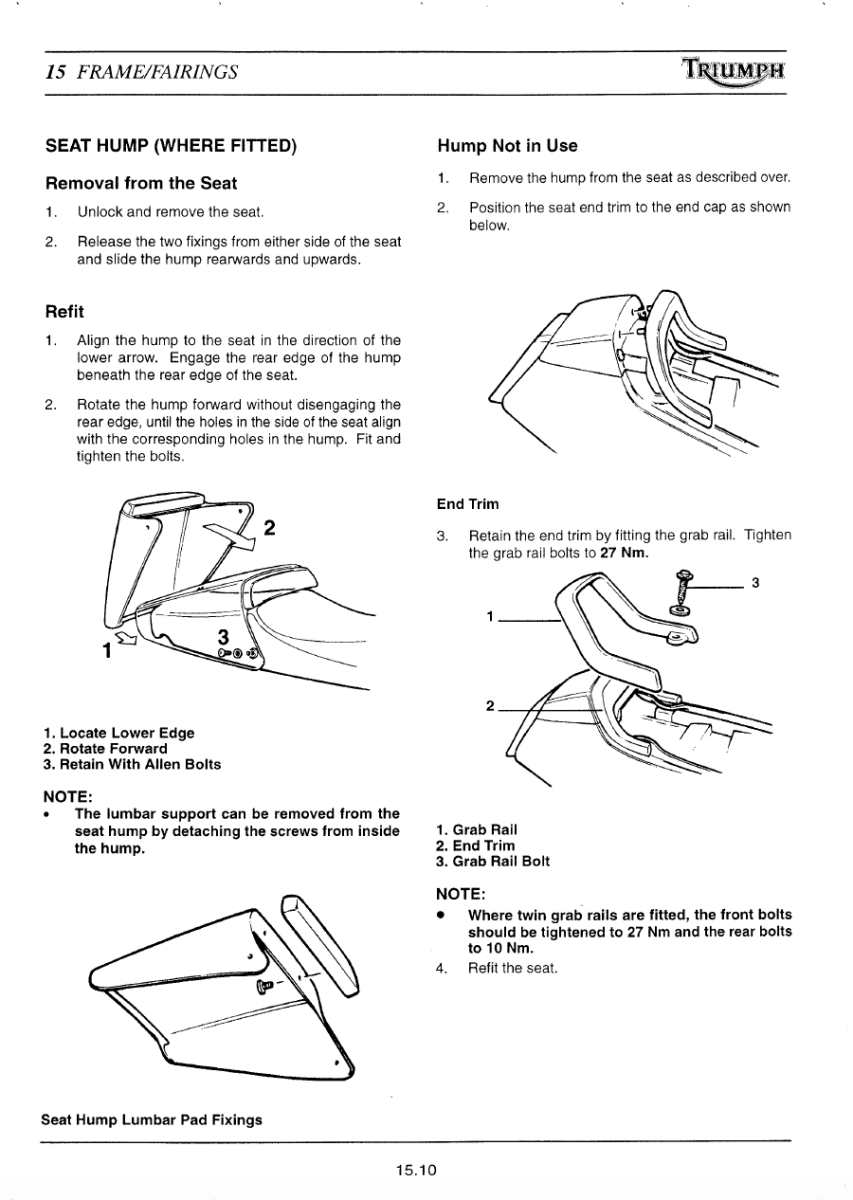

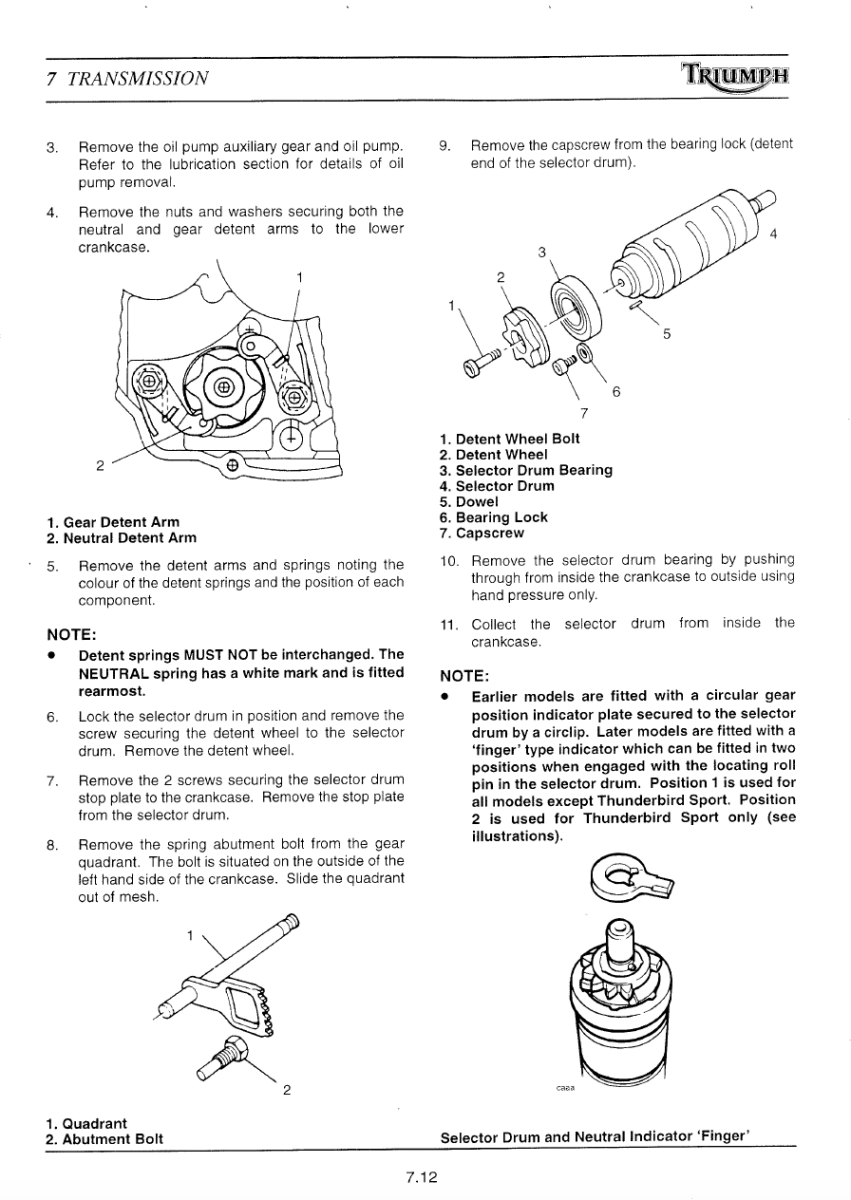

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1991-2001 Trophy 900 running the way it was built to.
