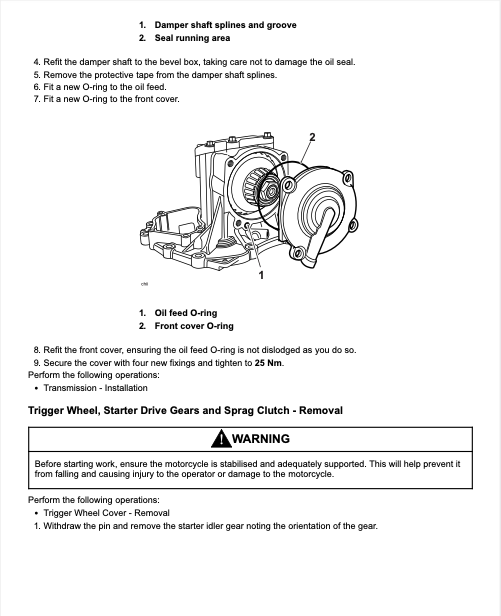

  • A black and white technical instruction sheet showing a motorcycle oil pan with numbered assembly and removal steps, including text for damper shaft splines, oil feed O-ring, front cover, and trigger wheel/clutch removal.

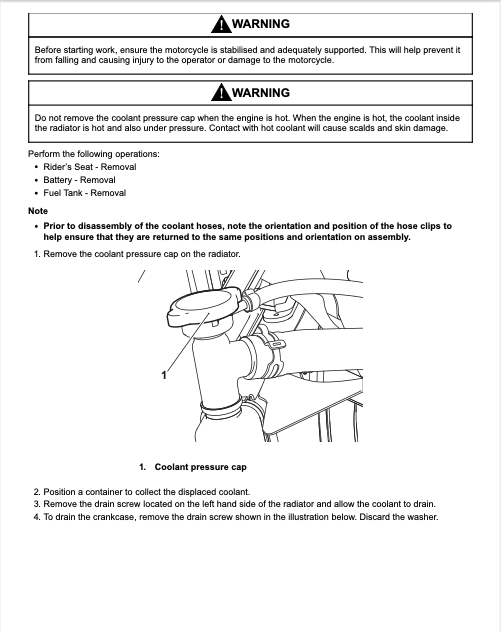

  • A black and white technical instruction sheet showing how to remove a coolant pressure cap from a motorcycle radiator, with warning labels and numbered steps next to a line drawing.
1 4

Dr. E Manuals

Triumph Tiger Explorer XC XCX 1200 2018-2023 Service Manual

Triumph Tiger Explorer XC XCX 1200 2018-2023 Service Manual

£11.95 GBP
£11.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

2018-2023 Triumph Tiger Explorer XC XCX 1200 Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 867 pages in English Language, it is the only manual you will require to maintain, repair and service your Triumph Tiger Explorer XC XCX 1200.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Suits Models from 2018, 2019, 2020, 2021, 2022, 2023

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

Tiger 1200 XC/XCx (2018-2021): Lighter, Sharper, and Genuinely Off-Road Capable

2018 marked a substantial overhaul for the Tiger 1200 XC line, not just a mid-cycle refresh. The XCx dropped roughly 5% of its weight, gained an upgraded 1,215cc inline triple, a new lightweight rear silencer, and five traction-control modes, while the range-topping XCa shed a further 5% and added heated seats and grips, an electric adjustable windscreen, and adaptive LED cornering lighting — genuine engineering work behind the spec-sheet bragging rights.

The 1,215cc triple delivers a claimed 139 PS (137 hp) at 9,300 rpm and 90.7 lb-ft of torque at 6,200 rpm, run through a 6-speed gearbox with shaft final drive. Every XC-line bike came standard with cornering ABS and traction control, a full-color TFT dash, five power modes, semi-active WP suspension, cruise control, and an electronically adjustable screen — a genuinely comprehensive spec sheet that helped justify pricing at the top of the adventure-bike segment. Where the road-biased XR models ran cast wheels, the XC range switched to spoked wheels front and rear, signaling real off-road intent rather than just styling.

On loose surfaces, the XC proved genuinely capable: selecting off-road mode frees up the rear wheel for controlled slides while keeping the front ABS engaged, giving confident riders room to play. At 248kg dry it's no lightweight, and less experienced off-roaders may find the sump guard clipping the ground over larger bumps, but reviewers consistently rated it excellent on tarmac with real trail capability layered on top.
