Triumph Tiger Explorer 1200 2012-2015 Service Manual

Triumph Tiger Explorer 1200 2012-2015 Service Manual

£11.95 GBP
£11.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

2012-2015 Triumph Tiger Explorer 1200 Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 554 pages in English Language, it is the only manual you will require to maintain, repair and service your Triumph Tiger Explorer 1200.

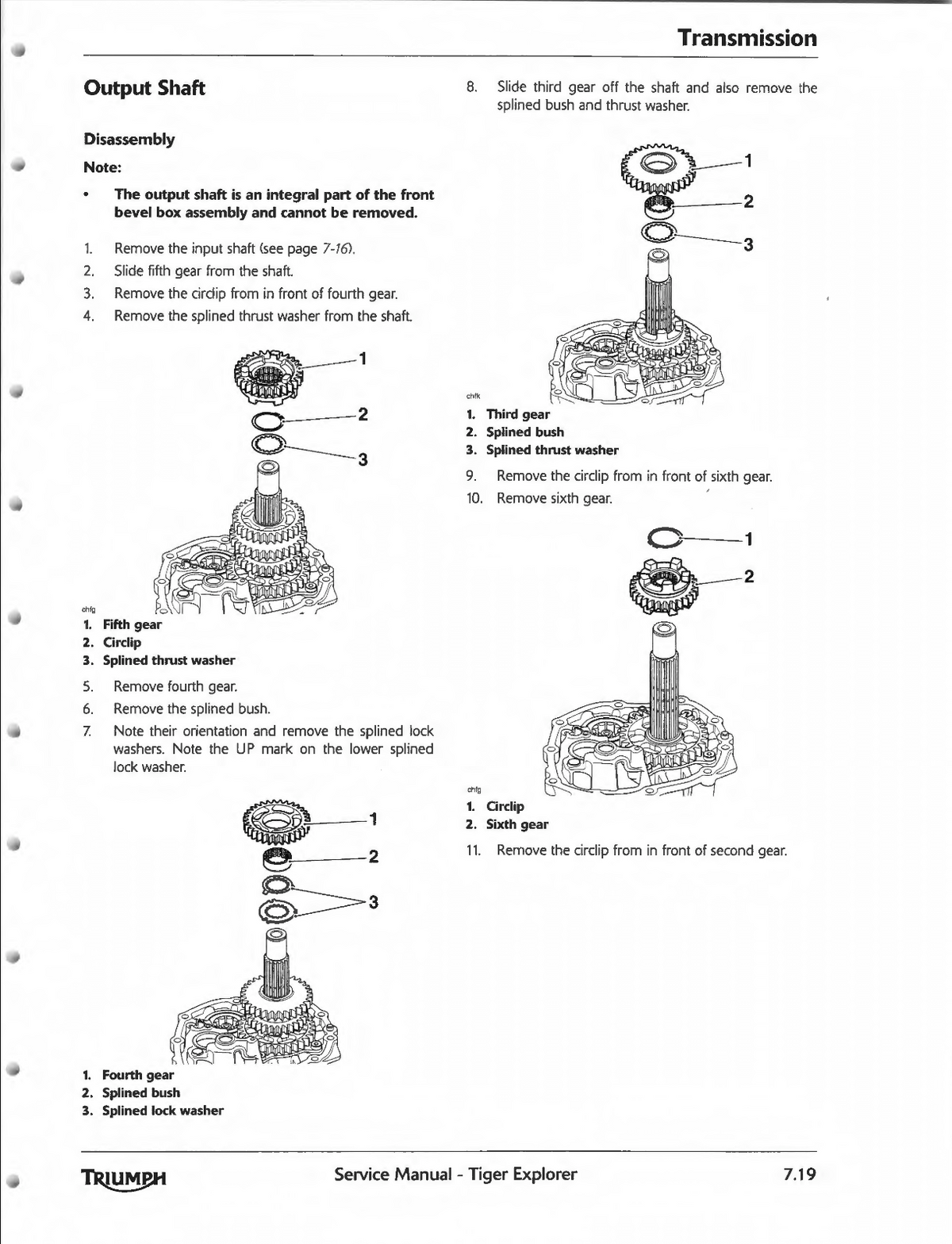

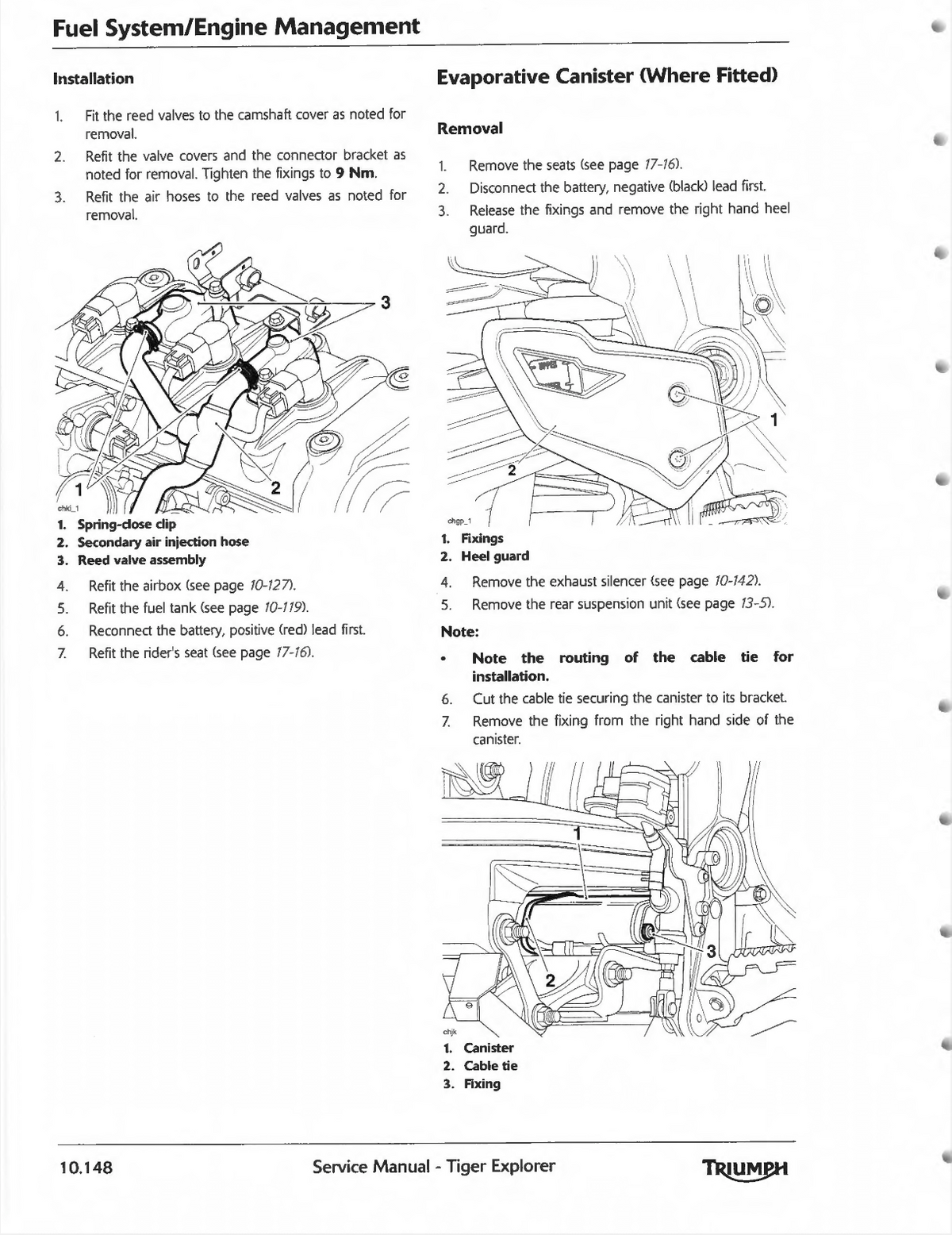

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Suits Models from 2012, 2013, 2014, 2015

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

Tiger Explorer 1200 (2012-2015): Triumph's First Shaft-Drive, Ride-By-Wire Flagship, Built to Take On the R1200GS

Bennetts' own buying guide calls this Triumph's genuine answer to BMW's dominant adventure bike, and MCN's own review agrees it's "extremely well put together, with build quality on par, if not better than BMW" — while noting the Explorer undercut the R1200GS on price without the German bike's brand cachet. Motorcyclespecs.co.za's own launch materials confirm this was Triumph's first-ever ride-by-wire throttle, paired with a genuinely new shaft-drive triple built specifically for the adventure-touring class.

Power comes from a 1,215cc liquid-cooled DOHC inline-three, delivering a claimed 135-137 hp at 9,000 rpm and roughly 89 lb-ft (121 Nm) of torque at 8,400 rpm, run through a 6-speed gearbox and a genuine shaft final drive — a first for a Triumph triple. Standard equipment included cruise control, switchable ABS, two-stage traction control, and a 950W generator Triumph called class-leading, letting owners run heated grips, heated seats, and other accessories simultaneously without straining the electrical system.

The chassis uses a tubular steel trellis frame with cast alloy wheels (19-inch front, 17-inch rear) on a single-sided swingarm, braking through twin 305mm front discs with Nissin four-piston calipers and a 282mm rear disc. Autoevolution's own confirmed model-year account notes 2013 and 2014 carried the same specification with no significant changes, and a spoke-wheeled XC variant with off-road styling joined the standard road-oriented model in 2013. MCN's own owner reviews are mostly positive — "fantastic ride, equipment, quality," with one flagging the seat as tiring on long rides and another noting front discs can warp.

This exact 2012-2015 configuration ran before Triumph's 2016 update brought a lighter, freer-revving engine, Euro4 compliance, and a six-variant XR/XC lineup, ahead of the model being renamed Tiger 1200 in 2017.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2012-2015 Tiger Explorer 1200 running the way it was built to.
