Triumph Tiger 900 Rally Pro 2020-2023 Service Manual

Wikipedia's own account confirms the genuine scope of this 2020 launch: "the Triumph Tiger 900 is a middle-weight dual-sport motorcycle introduced in 2020... a completely new design intended as a successor of the Triumph Tiger 800," bringing a higher-capacity 900cc engine, a larger 5.3-gallon fuel tank, LED lighting, major suspension updates, and new Brembo disc brakes — genuine across-the-board improvement rather than a simple displacement bump.

Power comes from an 888cc liquid-cooled inline-three, DOHC with 12 valves, a 78mm x 61.9mm bore and stroke, and an 11.27:1 compression ratio, delivering a claimed 94-95 hp at 8,750 rpm and roughly 64 lb-ft of torque at 7,250 rpm through a 6-speed gearbox with wet multi-plate clutch. The genuine engineering headline for this platform is Triumph's new T-plane crankshaft — an uneven firing order (rather than the smooth, evenly-spaced firing of a conventional triple) specifically engineered to deliver more low-down torque and a genuinely different, more characterful exhaust note than Triumph's other three-cylinder engines, giving the Tiger 900 a distinct personality within the brand's own lineup.

As the range-topping trim, the Rally Pro distinguished itself with genuinely serious off-road-focused hardware: Showa 45mm upside-down forks with manual preload, rebound, and compression damping adjustment delivering 240mm of travel, paired with Brembo Stylema 4-piston Monobloc front calipers on twin 320mm floating discs and Optimised Cornering ABS — premium components shared with Triumph's sportier models rather than a budget-tier adventure-bike setup. A tubular steel trellis main frame with a fabricated, bolt-on aluminum rear subframe carries the engine as a semi-stressed member, with the Rally Pro's taller 860-880mm seat height and 222kg wet weight reflecting its genuinely more off-road-oriented spoke-wheel configuration versus the road-focused GT variants sharing the same platform. Standard equipment on the Rally Pro included a 7-inch TFT display with My Triumph connectivity, full LED lighting, a TPMS system alerting riders to low tire pressure, and — added during this exact production span — pillion-controlled heated seat functionality for genuine two-up touring comfort. A 20-litre fuel tank and 100/90-19 front / 150/70R17 rear tire combination on wire-spoke wheels rounded out the Rally Pro's genuine long-distance, mixed-terrain touring capability. This platform ran through the 2023 model year before Triumph's more substantial 2024 update brought a larger 899cc engine and further chassis refinement to the Rally Pro and its GT/GT Pro siblings.

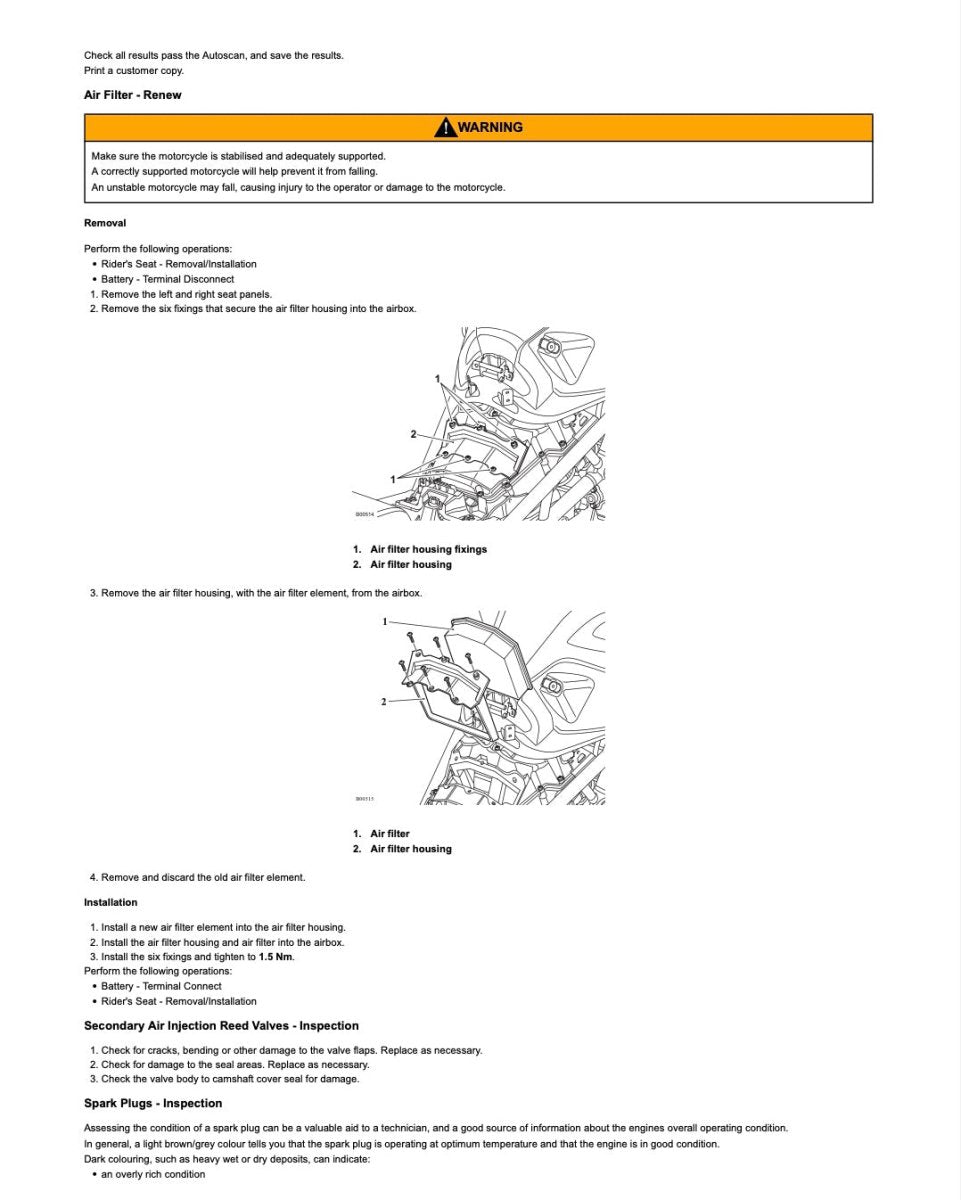

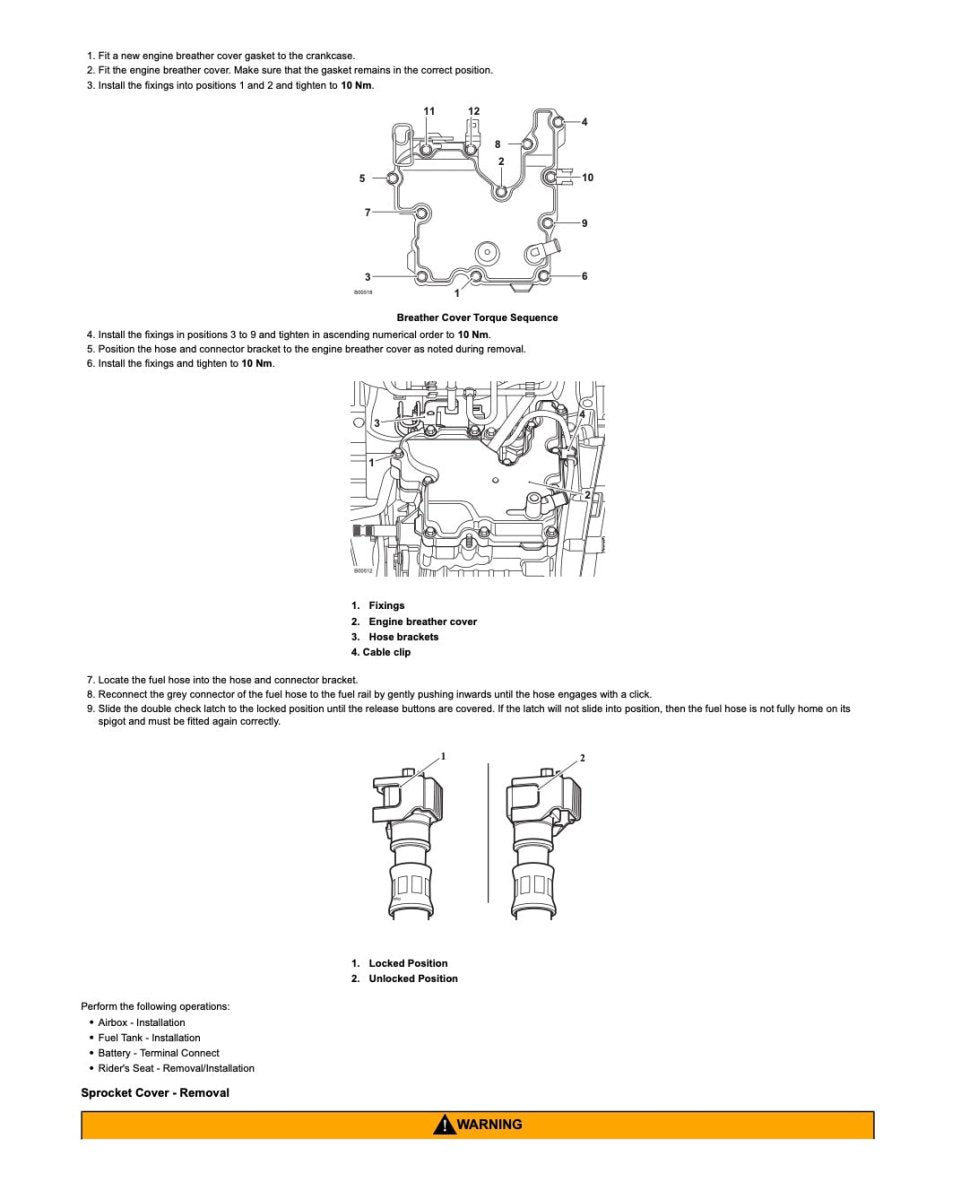

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2020-2023 Tiger 900 Rally Pro running the way it was built to.
