Suzuki V-Strom DL650 A / XA / XAA 2017-2024 Service Manual

Cycle World's own retrospective confirms this exact generation's stability: "the bike was then further updated in 2017, remaining the same since," giving genuinely uninterrupted mechanical continuity across the entire 2017-2024 span, with only trim options and colorways shifting year to year. One owner review captures the model's appeal perfectly: "healthy, economical, reliable, comfortable, it's a different kind of riding pleasure from more powerful machines... it's THE reasonable bike without being too boring."

Power comes from a 645cc liquid-cooled 90-degree V-twin, DOHC with 8 valves and Suzuki's TSCC (Twin Swirl Combustion Chamber) technology, delivering a claimed 71 hp at 8,800 rpm and roughly 46 lb-ft (62 Nm) of torque at 6,500 rpm through a 6-speed gearbox and ABS as standard equipment across all trims. MCN's own owner reviews consistently praise the engine's genuine everyday character — one owner downsizing from larger sportbikes noted being "amazed at how well the V Strom goes for a 650 and how flexible it is pulling from low speed," with the V-twin's engine braking meaningfully reducing the need for hard braking, and fuel economy consistently exceeding 70 mpg in real-world riding.

The lineup across this generation split into three genuinely distinct trims: the base DL650A running cast aluminum wheels for street-focused riding, the DL650XA adding wire-spoke wheels and the distinctive "beak" front cowl that gives the bike genuine adventure styling, and the DL650XAA (XT Adventure) layering on hard-sided luggage, hand guards, and an engine guard for serious long-distance touring. Cycle World's own 2024 model breakdown confirms the XT Adventure specifically arrives with gold spoked wheels alongside its protective hardware, while pricing across the 2024 range ran from $9,199 for the base model to $10,899 for the fully-equipped XT Adventure.

The chassis uses an aluminum frame and swingarm — genuinely lightweight construction that's helped keep the V-Strom 650 a consistently well-regarded handling package throughout its production life, paired with a full LCD/analog instrument cluster combining digital trip meters, clock, and temperature readouts with a retained analog tachometer needle. Fuel capacity sits at 20 litres, delivering genuinely long range for a middleweight adventure-tourer. Some owner criticism did emerge later in this run regarding the bike's aging dash and lighting technology relative to newer rivals — one 2024-model reviewer noted "no LED headlight, the same dashboard as the 2017 bike" — but the fundamental mechanical package, engine character, and genuine everyday usability that built the V-Strom 650's reputation stayed remarkably consistent across this entire eight-year span.

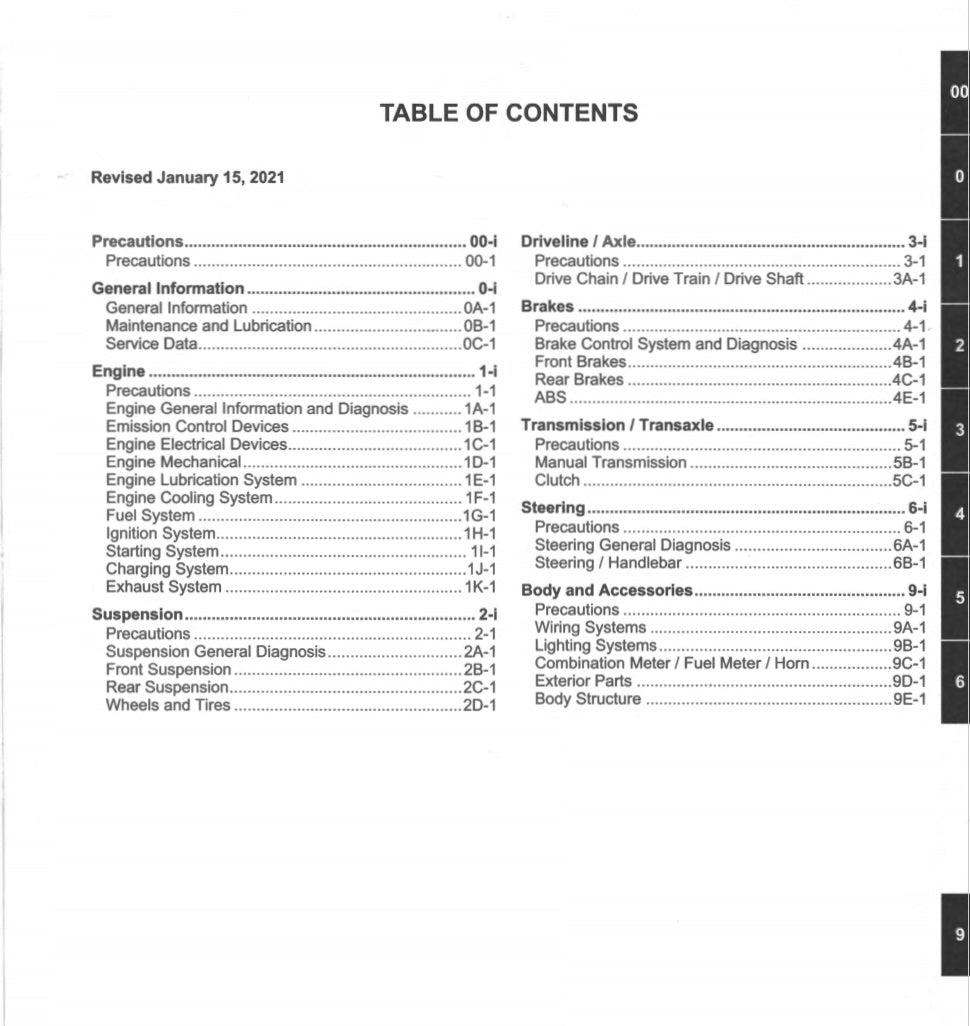

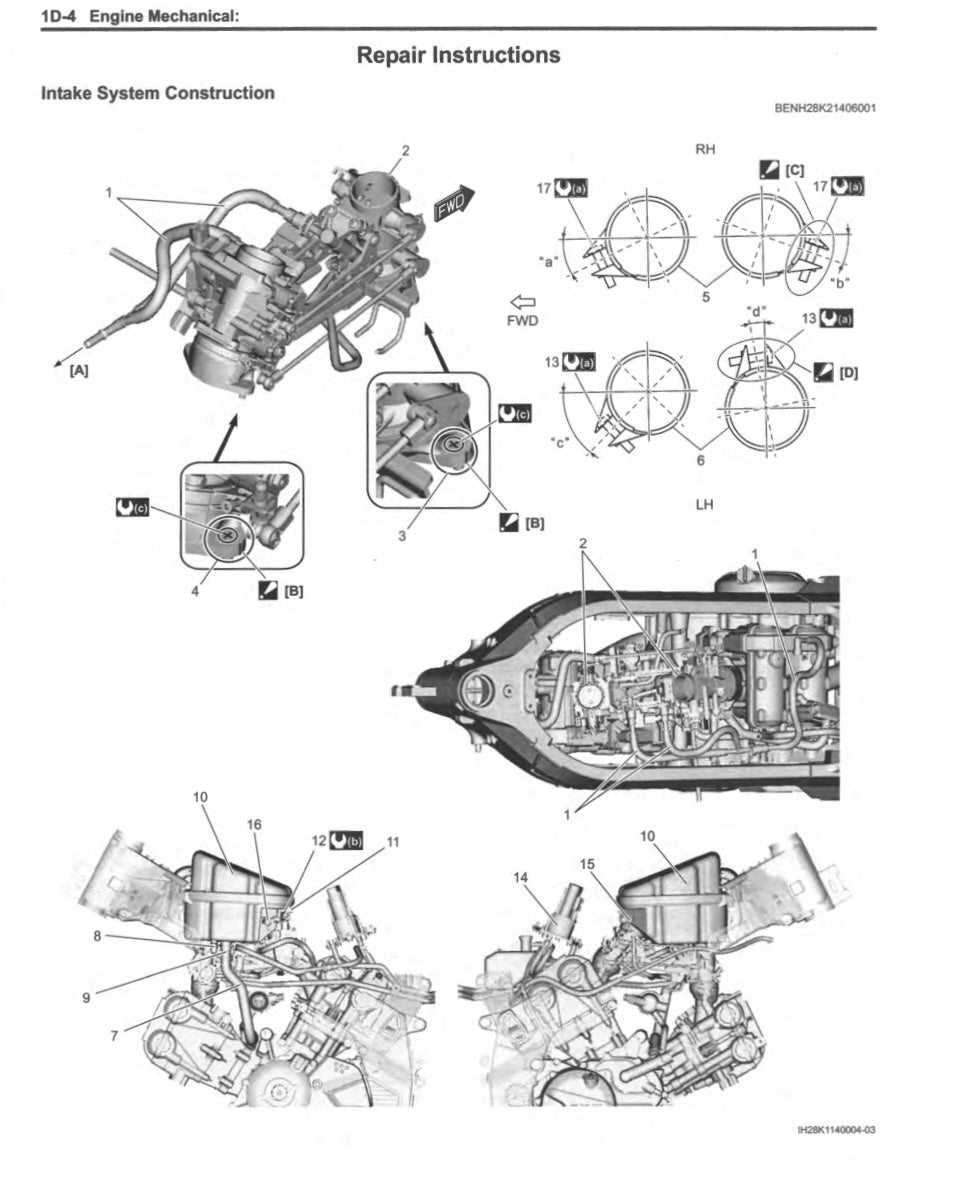

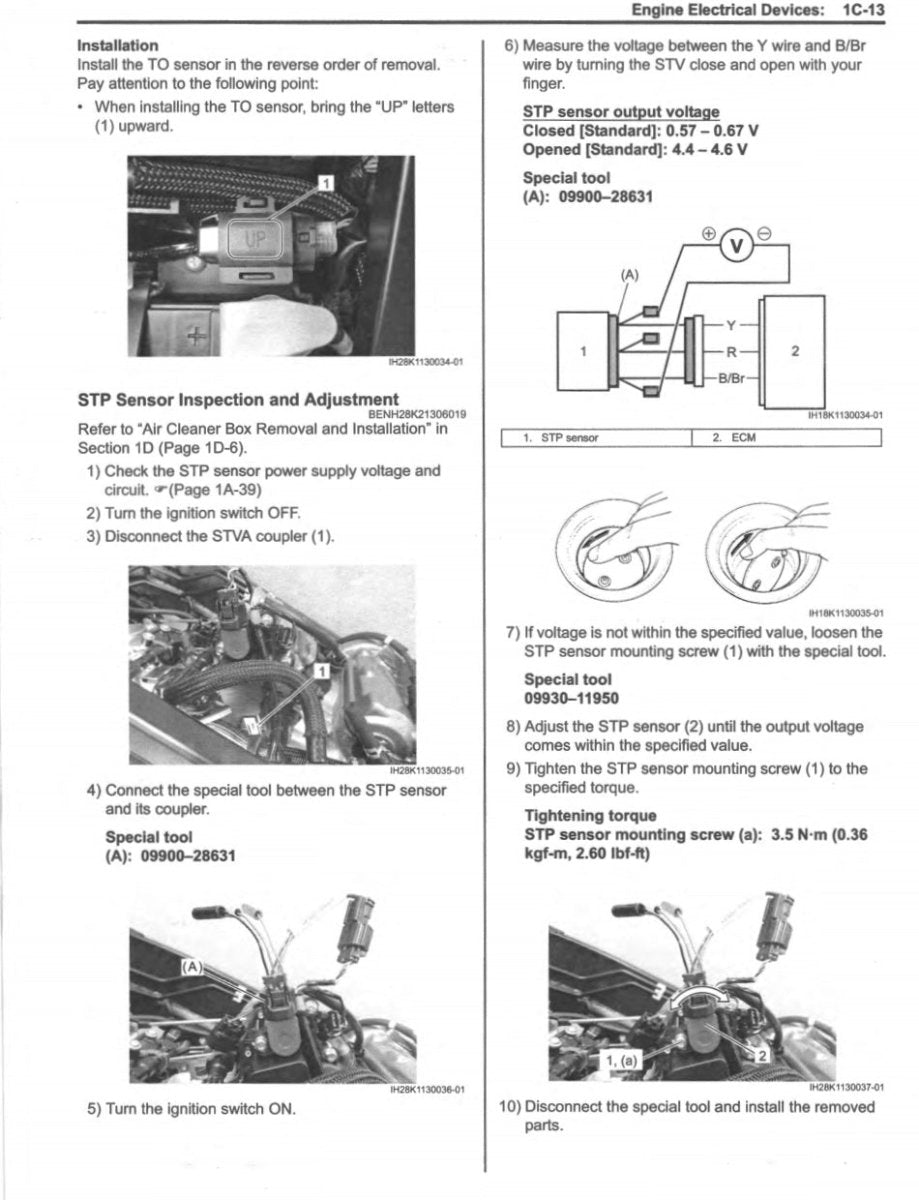

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2017-2024 V-Strom DL650 A/XA/XAA running the way it was built to.
