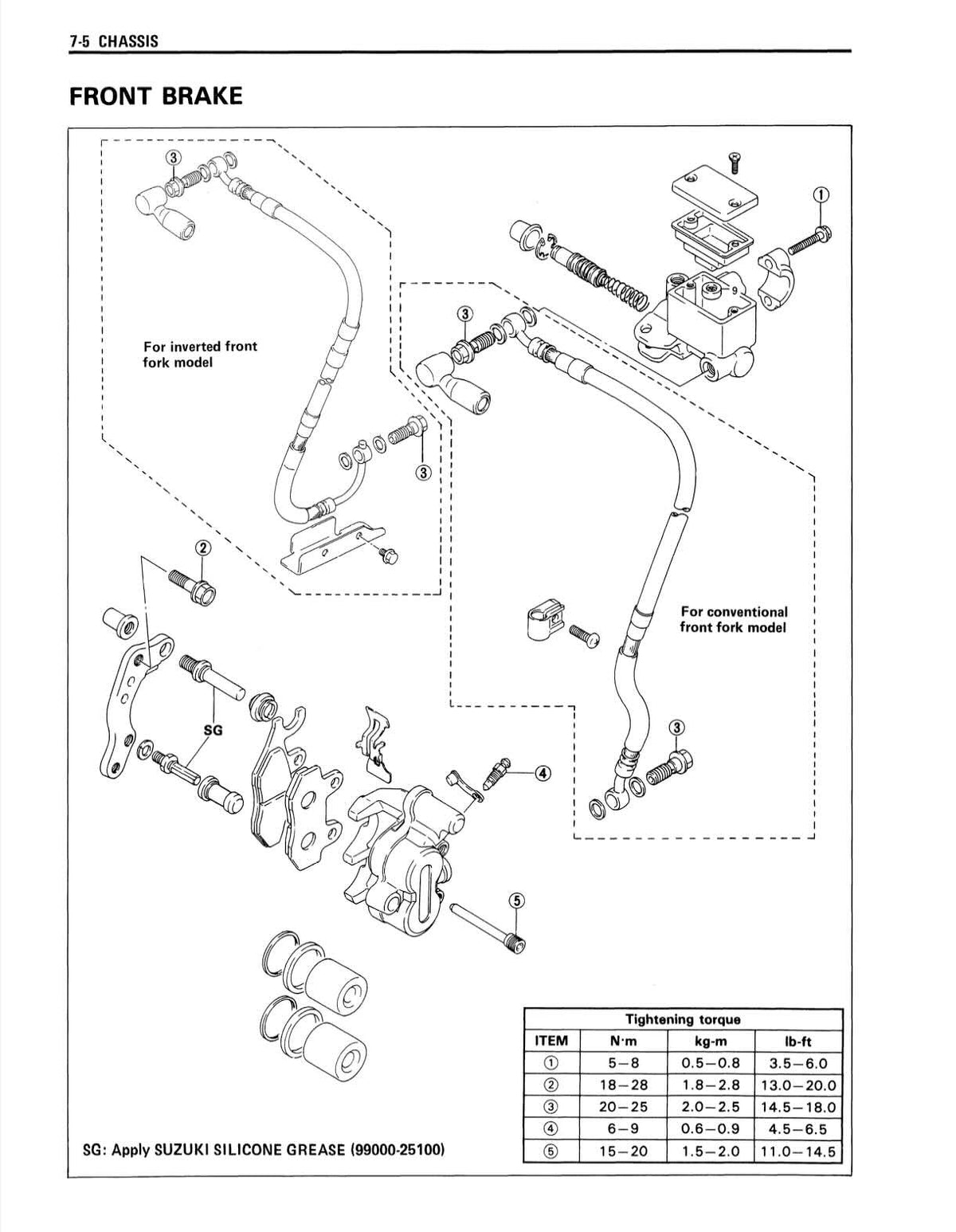

  • Suzuki TS200R service manual page 7-5 front brake exploded diagram with torque specs

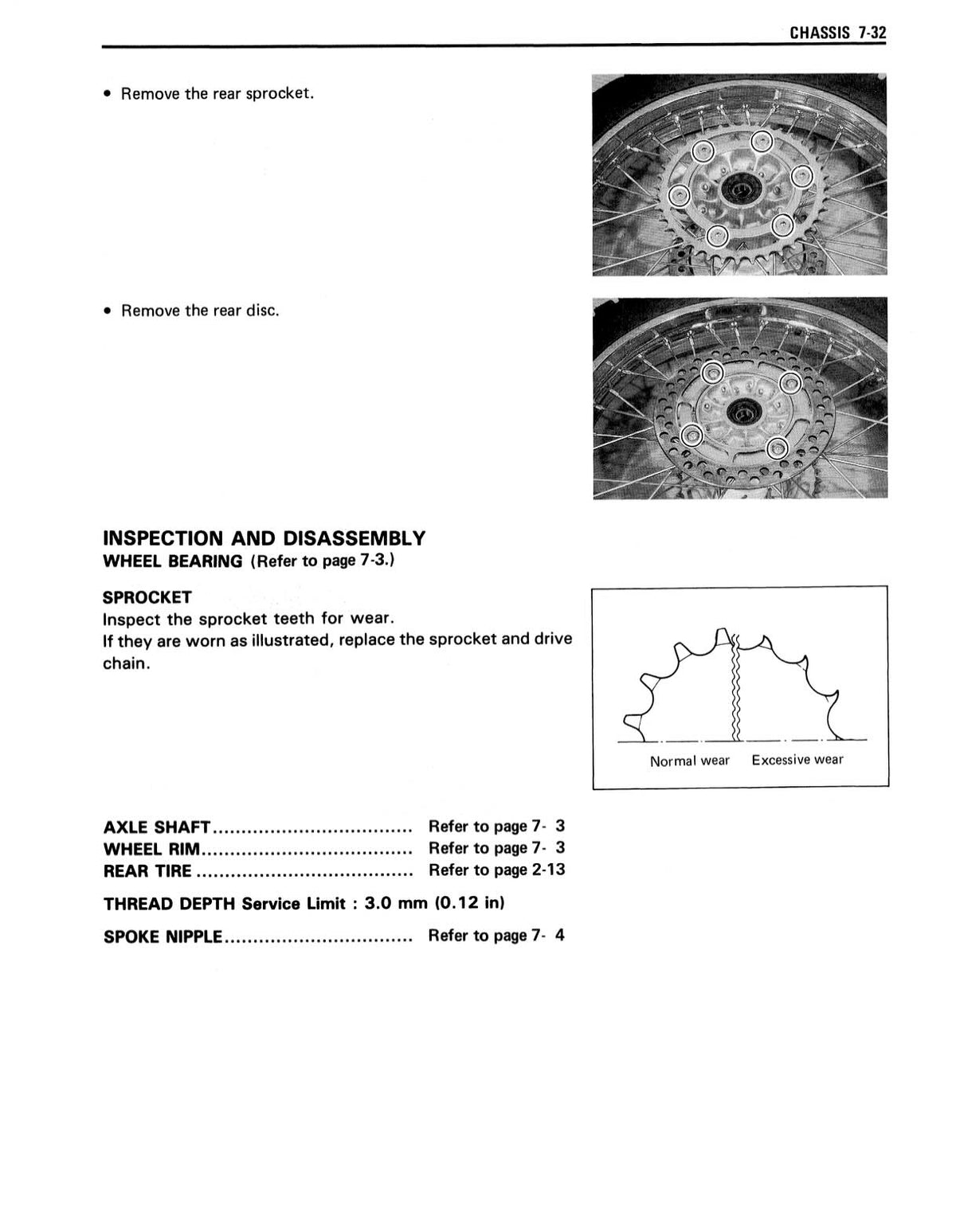

  • Suzuki TS200R service manual page 7-32 rear sprocket and disc removal with wear inspection photos
1 4

Dr. E Manuals

Suzuki TS200R 1989-1996 Service Manual

Suzuki TS200R 1989-1996 Service Manual

£11.95 GBP
£11.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

1989-1996 Suzuki TS200R Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 195 pages in English Language, it is the only manual you will require to maintain, repair and service your Suzuki TS200R.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: general information, periodic maintenance and tune-up procedure, engine, cooling system, fuel and lubrication system, electrical system, chassis, servicing information, ts200rn ('92-model), ts200rp ('93-model)

Suits Models from 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

TS200R (1989-1996): Suzuki’s Liquid-Cooled 200 Two-Stroke Trail Bike with Exhaust-Timing Control

The TS200R launched for 1989 with a newly designed engine. It added AETC, Suzuki’s Automatic Exhaust Timing Control, a 30mm slingshot Mikuni carburetor and a digital CDI. It was Suzuki’s liquid-cooled 200cc trail bike. It had long-travel suspension and a six-speed gearbox, and it stayed largely the same until 1996. The year codes run from K for 1989 to T for 1996.

Power comes from a 195cc liquid-cooled single-cylinder reed-valve two-stroke, with a 66mm x 57mm bore and stroke and an 8.5:1 compression ratio. It uses a Mikuni TM30SS carburetor with Suzuki CCI oil injection and PEI (CDI) ignition, and it’s kick-start only. Output is about 35 hp (26.1 kW) at 8,500 rpm and 29.4 Nm (21.7 lb-ft) of torque at 7,500 rpm. The gearbox is a 6-speed constant-mesh with a wet cable-operated clutch, and final drive is by 106-link RK520 chain. The spark plug is an NGK BR9ES and the battery is 12V, 3Ah.

The chassis is a steel single-cradle frame with a telescopic fork and a monoshock swingarm with adjustable damping, both with 270mm (10.6 inches) of wheel travel. Brakes are a single disc at the front and a single disc at the rear. Tires are an 80/100-21 front and a 110/90-18 rear.

Confirmed figures list a 2,185mm (86.0-inch) length, an 880mm (34.6-inch) width, a 1,245mm (49.0-inch) height, a 43-degree steering angle, 62 degrees 30 minutes of caster and 117mm (4.6 inches) of trail.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1989-1996 Suzuki TS200R running the way it was built to.
