Suzuki TS125R 1989-1996 Service Manual

Webike Japan's own coverage of the original launch captures the genuine broad appeal of this model directly: "while being a true off-road model, it was also popular among women riders. The engine was newly designed, and was matched with a suspension which had 250mm longitudinal stroke" — a genuine departure from the earlier air-cooled TS125's more purely off-road-focused character, engineered to be approachable for a wider range of riders without sacrificing real trail capability.

Power comes from a 123cc liquid-cooled two-stroke single, CycleChaos' own spec sheet confirming 4-valve architecture with a 7.1:1 compression ratio, delivering a claimed 22 hp at 8,000 rpm and roughly 14 lb-ft of torque at 7,500 rpm through a wet multi-plate, cable-operated clutch — HandWiki's own technical breakdown of the broader TS series confirms this generation ran genuinely sophisticated 2-piece power valves paired with a 6-speed transmission, a real step up in both engine technology and gear-ratio flexibility over the earlier 5-speed TS125 models.

CycleChaos' own dimensional data confirms a genuinely lightweight, purpose-built enduro package: a 100kg (220 lb) dry weight, a 55.7-inch wheelbase, and a compact 9-litre (2.4 US gallon) fuel tank — figures reflecting real trail-riding priorities over long-range touring capability. The chassis pairs a telescopic front fork with a swingarm-mounted monoshock rear end, delivering genuinely modern suspension geometry for the era, backed by single disc brakes at both wheels — a real upgrade over the drum brakes used on earlier air-cooled TS125 generations. A 2.75-21 front tire and 4.10-18 rear tire round out the enduro-oriented rolling chassis. HandWiki's own model listing confirms this TS125R shared its production span and core liquid-cooled, power-valve architecture with the larger-displacement TS200R sold alongside it — both models running from 1989 through 1996 before Suzuki's TS-series two-stroke trail bikes wound down in most markets in favor of newer four-stroke platforms.

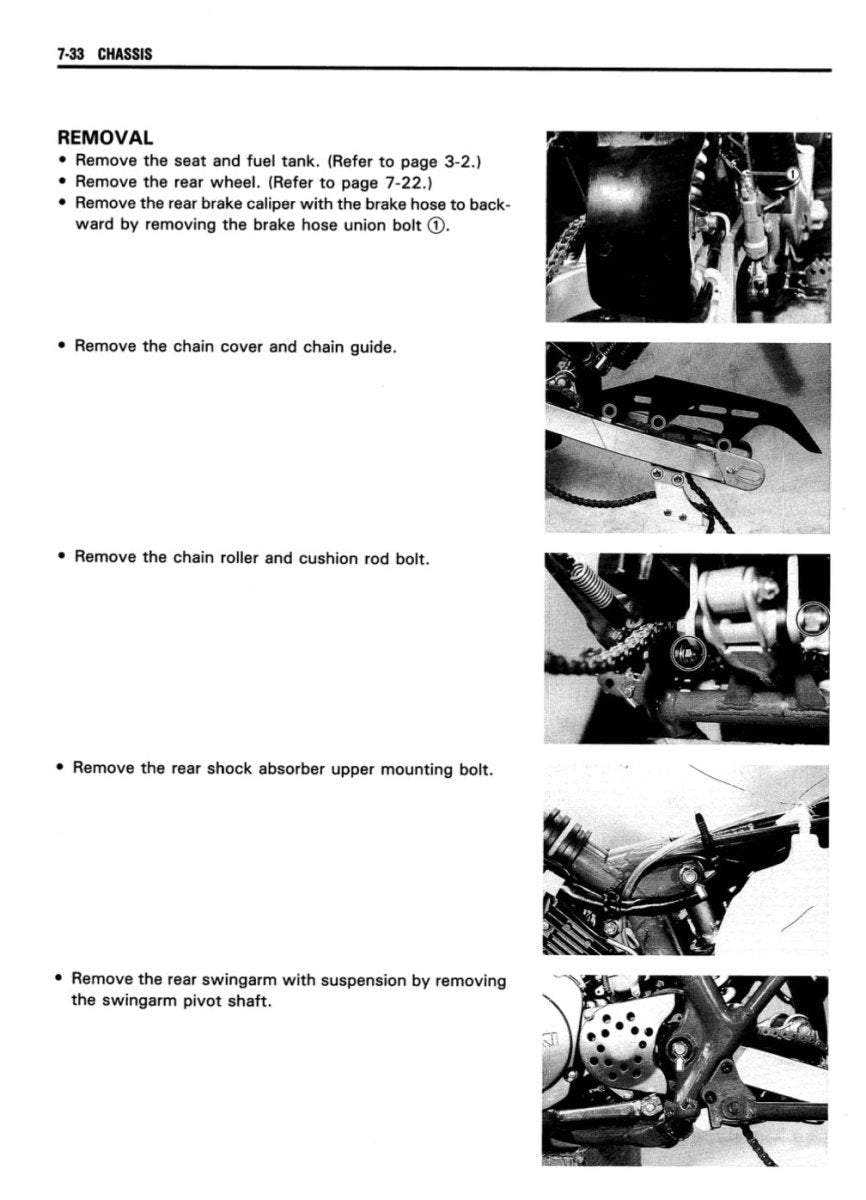

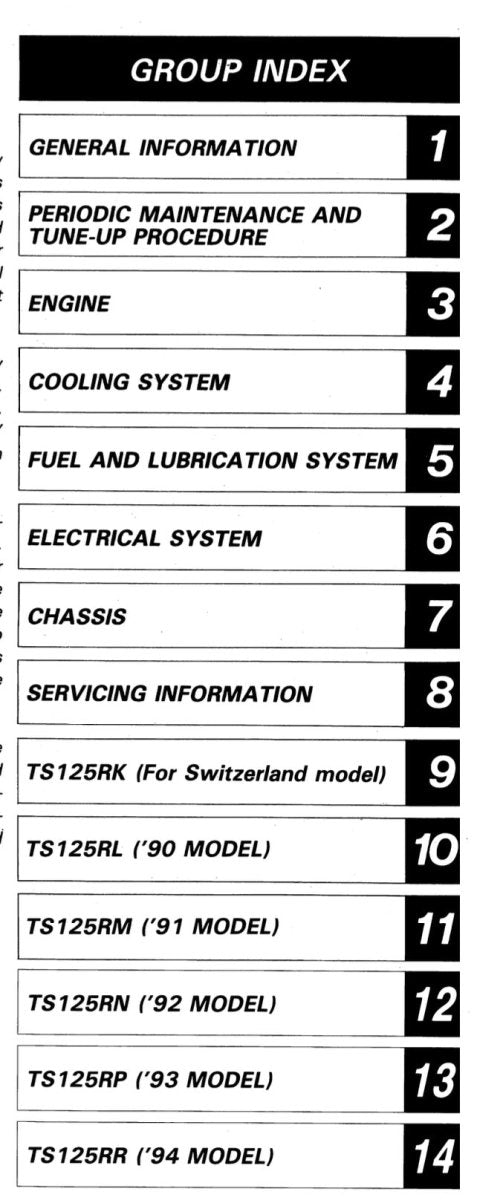

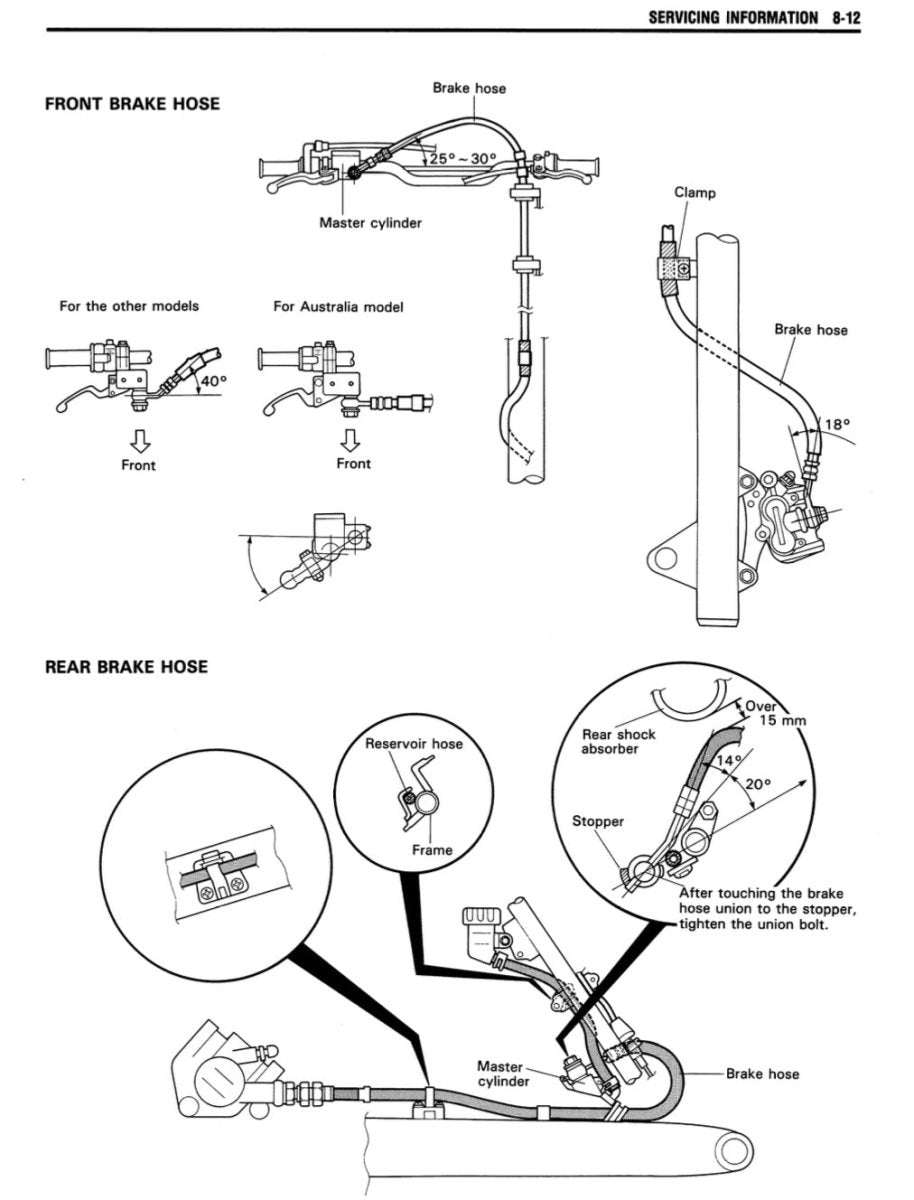

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1989-1996 TS125R's two-stroke engine and driveline running the way Suzuki built it.
