Suzuki TS125 1970-1977 Service Manual

Wikipedia's own account confirms the genesis of this bike directly: "the TS125 was introduced for the Japanese home market in December 1970. It had 13 bhp, five speeds and high-drawn exhaust pipe. It also had a sister model, a trail version called TC-125 (Prospector in USA) with dual-range gearbox with eight speeds." One period spec sheet's own concise description captures the genuine off-road-focused engineering intent behind the design: "built like an enduro racer... bead stoppers... 9.3-inch ground clearance... long travel front forks" — genuinely serious componentry for a small-displacement machine of this era.

Power comes from a 123cc air-cooled two-stroke single, delivering a claimed 13-14 hp at 7,000 rpm through a 5-speed constant-mesh transmission (though Wikipedia's own broader model listing notes some markets and years ran 6-speed configurations) — Off-Roading Pro's own retrospective highlights "an industry-leading Suzuki CCI system" as a genuine engineering differentiator, Suzuki's own automatic oil-injection technology that eliminated the traditional two-stroke chore of pre-mixing oil into the fuel at every fill-up.

Off-Roading Pro's own dimensional breakdown of the later-production 1977 model confirms a single-downtube, double-cradle steel frame with telescopic front forks and rear shocks, both hydraulically damped and offering genuine multi-way adjustability (3-way front, 5-way rear) — real tunability for a small dual-sport bike of this vintage, letting riders dial in damping for varying loads and terrain. Internal-expanding hand-and-foot-operated drum brakes handled stopping duty at both wheels, riding on a 51.6-inch wheelbase with a genuinely useful 9.2-inch minimum ground clearance and a tight 7.9-foot turning radius — dimensions built specifically for confident handling on both pavement and genuine off-road trails. Webike Japan's own parts catalog for the 1977 model year confirms a genuine mechanical update within this span: a reworked power-scavenging reed-valve engine specifically strengthening torque characteristics and throttle pickup, alongside a switch to lightweight single-hub-type wheels front and rear — real running changes Suzuki applied incrementally across this platform's long production life, which continued in various forms well beyond 1977 and into the 1990s.

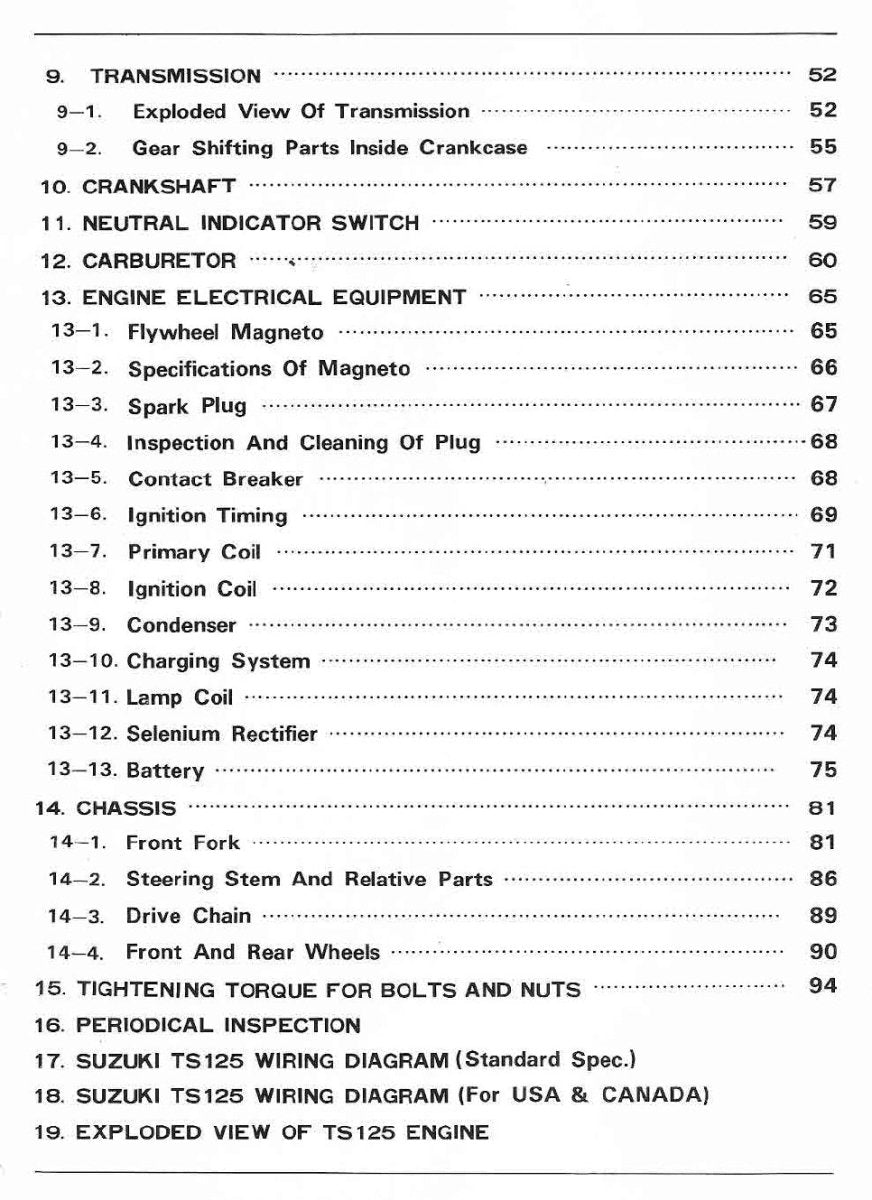

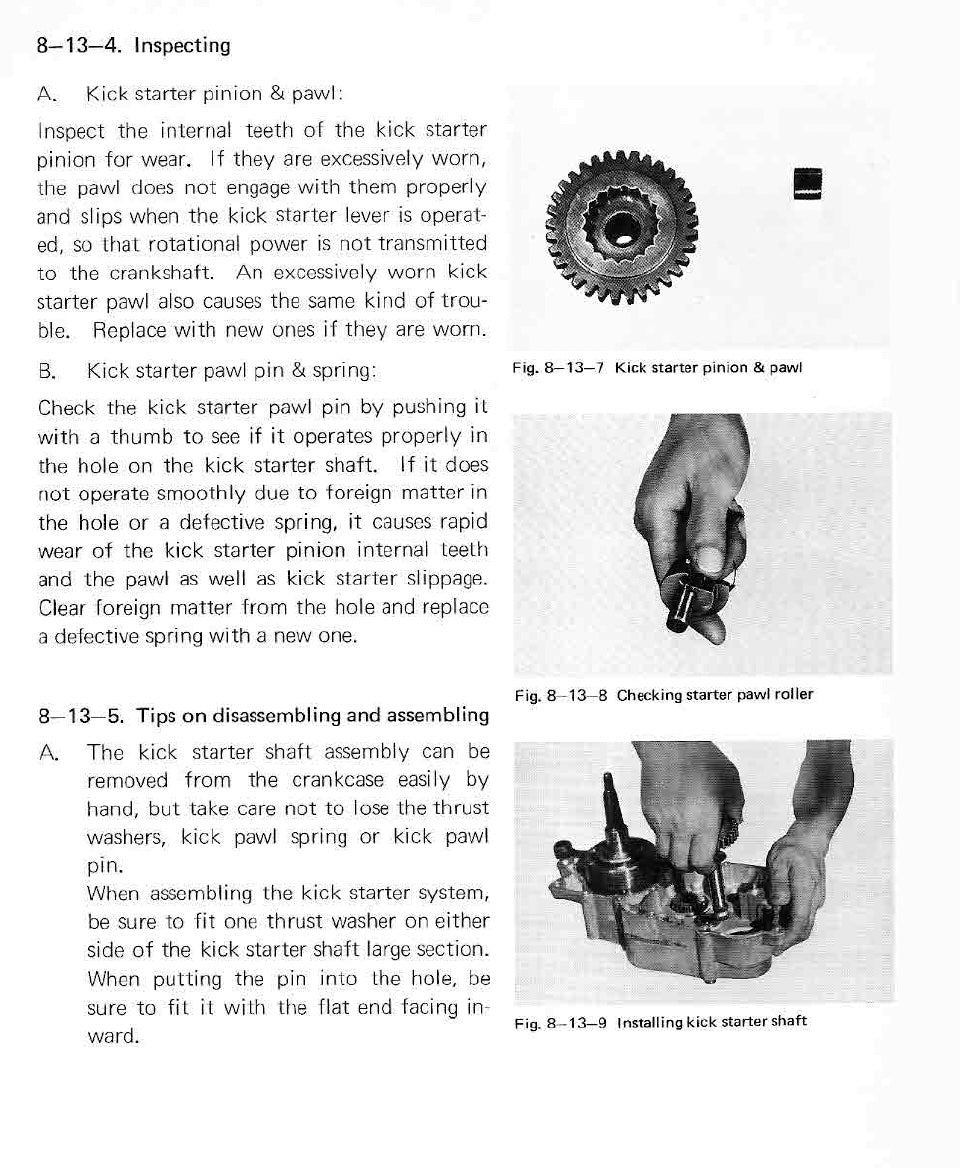

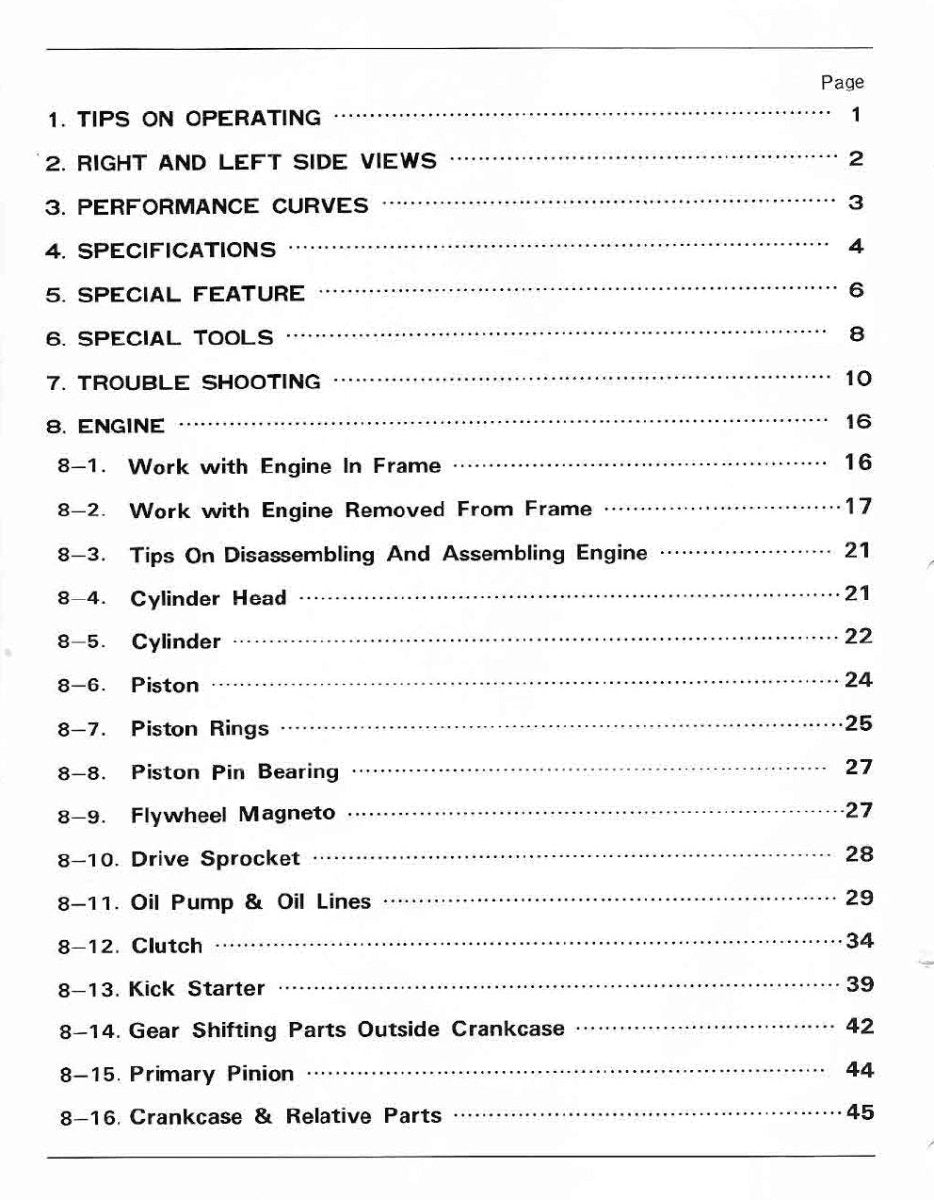

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1970-1977 TS125's two-stroke engine and driveline running the way Suzuki built it.
