Suzuki SV1000 S 2003-2007 Service Manual

MotoFomo's own retrospective sums up the SV1000S's whole recipe in one perfect sentence — and explains exactly why Suzuki built it. Wikipedia's own technical account confirms the genuine engineering shortcut behind that formula: "the SV1000 shares many common parts with the SV650, including all bodywork (front fairing, fuel tank and rear plastics/subframe), but the main frame, handlebars, swingarm and forks are different. The front forks and brakes are sourced from the earlier GSX-R600. The SV1000's engine is sourced from the TL1000S which, inside were over 300 changes to improve low-end and midrange performance" — genuinely borrowing the TL1000S's problematic rotary-damper rear shock's replacement lesson learned, since the SV1000 ditched that troublesome design entirely for a conventional shock.

Power comes from a 996cc liquid-cooled 90-degree V-twin, DOHC with 8 valves, a 98.0mm x 66.0mm bore and stroke, and an 11.6:1 compression ratio, delivering a claimed 120 hp at 9,000 rpm and roughly 75 lb-ft of torque at 7,200 rpm (108 hp and 69 lb-ft measured at the rear wheel). MotorcycleSpecs.co.za's own period coverage details Suzuki's genuine fuel-injection sophistication carried over from the flagship GSX-R line: "electronic fuel injection system features the Suzuki Dual Throttle Valve System (SDTV) — maintains optimum air velocity in the intake tract for smooth low-to-mid rpm throttle response and high torque output," a real departure from the earlier TL1000S's large 48mm carburetors it replaced, alongside two air pressure sensors per cylinder for genuinely precise fuel injection volume control.

Wikipedia's own model history confirms 2004 brought a genuine mid-cycle ergonomic revision: lower footpegs and a slightly reduced seat height, matching updates made across Suzuki's related SV range that year. MCN's own review confirms May 2005 brought a genuine special edition celebrating a Suzuki milestone: "Suzuki launched a special edition of the SV1000, in order to celebrate the 20th anniversary of the firm's GSX-R sportsbike. The SV1000SZ came with a full fairing as standard, painted to mimic the paintjobs of its more sporty cousins. It also had a higher compression ratio to give it 5bhp over the standard SV's. And the frame and wheels are black, rather than the standard silver." MCN's own long-term owner reviews are consistently enthusiastic about real-world usability: one owner logging "a bit over 450km in a day" two-up with a loaded top box found the bike "cruises 2 up with ease" despite scrubbing nearly to the edges of both tires on that fully-loaded ride, while another simply summarized eleven years of ownership with "need I say more." MCN's own technical notes flag the chassis as genuinely more sorted than its TL1000S predecessor: "the Suzuki SV1000's chunky aluminium frame with conventional suspension... works better than the TL1000S ever did," though not quite matching a pure sportbike's outright suspension sophistication — a fully adjustable aftermarket shock and fork rebuild opens up genuine track-day capability for owners wanting to push harder. Dual 310mm front discs with Tokico 4-piston calipers and a 220mm rear disc handled braking, with a claimed 187kg dry weight and a genuine 147 mph top speed. Suzuki sold the naked SV1000N alongside the faired S variant only through 2004 in the US market, while the S continued through 2007-2008.

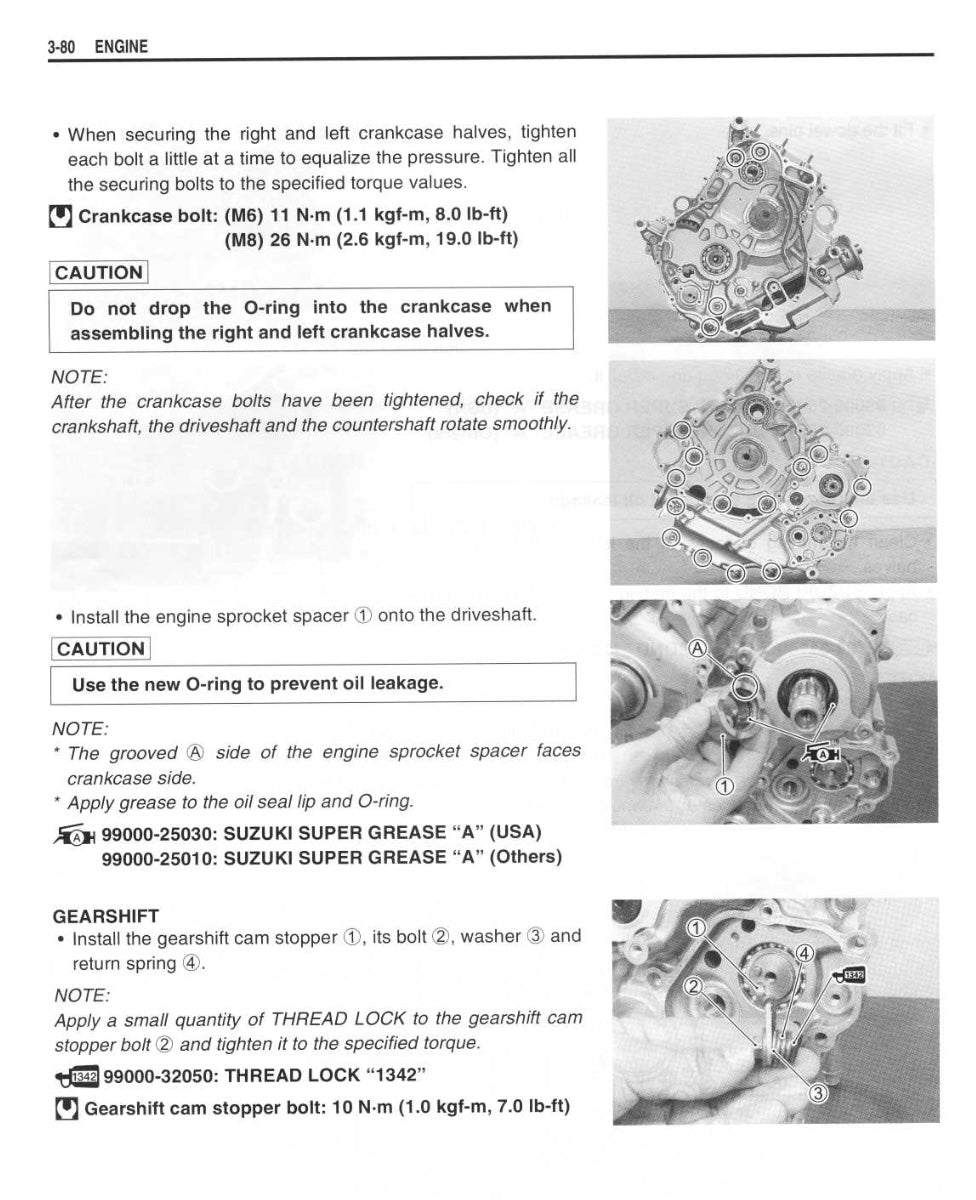

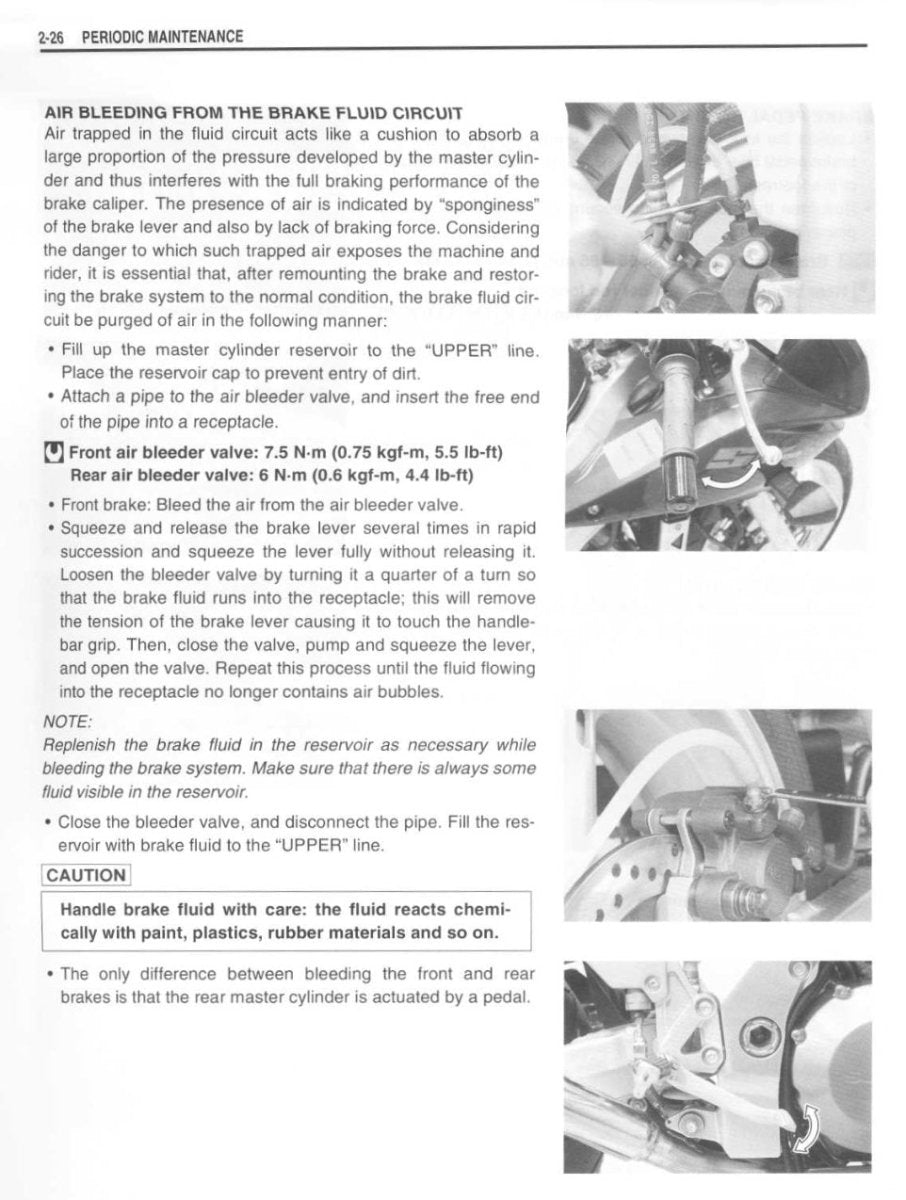

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2003-2007 SV1000S running the way it was built to.
