Suzuki RMZ450 2016-2017 Service Manual

Motocross Action Magazine's own genuinely pointed review title captures exactly what critics thought of Suzuki's approach across this exact two-year span: "MXA Race Test: 2017 Suzuki RM-Z450: The Rotary Phone of MX Bikes." That same review is candid about the real pattern behind that criticism: "for 2016 Suzuki used teeny-tiny band-aids. The big changes were BNG that were almost imperceptible, a revision of the launch-control mapping and a smaller front brake caliper. This was not enough to inspire the buying public... the 2017 engine is identical to the 2016 engine, which was the 2015 engine and, not surprisingly, very similar to the 2014 engine. Peak horsepower was 54.88 horsepower at 9200 rpm."

Power comes from a 449cc liquid-cooled single-cylinder DOHC four-stroke engine, managed by electronic fuel injection through a 44mm throttle body, delivering drive through a 5-speed transmission with a 114-link final chain drive — genuinely the same fundamental architecture Suzuki carried across both model years covered here, built on the substantial 2015 platform overhaul. Vital MX's own collected test-rider feedback on the 2016 model confirms exactly how much of that earlier redesign carried forward unchanged: "in 2016, the RM-Z450 didn't gain many improvements, but built upon a host of changes from the 2015 model... one of the most major changes was actually a new frame introduced in 2015, which has really improved the overall balance and feel that the bike gives back to the rider."

Motocross Action Magazine's own genuinely detailed technical account of the 2016 model confirms the launch-control refinement that was the year's most substantive change: "Suzuki's engineers reprogrammed last year's S-HAC settings so that the concrete-friendly A-Mode (signaled by a slow flashing indicator light when the button is pressed for less than 1 second) stays engaged for 1.2 seconds after the start or until you shift to third gear. The loam-specific B-Mode (signaled by a fast-flashing indicator light when the button is pressed for 2 seconds) stays engaged for 4.5 seconds after the start, until you shift to fourth gear, or until you chop the throttle." Dirt Bike Magazine's own detailed 2017 test confirms Suzuki did make one genuinely mechanical change that specific year: "Suzuki did increase the kick-starter length 30mm and redesigned the kick gear to increase the crankshaft's rotating efficiency," while candidly concluding "the 2017 Suzuki RM-Z450 feels identical to the 2016 model. This comes as no surprise, since it is basically the same machine."

Motocross Action's own confirmed comparative specs for this exact generation flag genuine, specific weaknesses worth knowing for anyone shopping or servicing this range: "the RM-Z450 weighed 240 pounds while the 2016 KTM 450SXF weighed 227 pounds. It had a 250mm front brake rotor, whereas the other bikes had 260mm or 270mm rotors. The clutch was in full-slip mode when it was brand new. The Showa SFF TAC air forks were virtually unrideable across rough ground." Dirt Rider Magazine's own 2017 first-impression review confirms genuine styling refinement did arrive that year despite the mechanical stagnation: "Suzuki updated the RM-Z450 with increased black and yellow accents to the machine like black wheels, triple clamps, side panels, shock spring, a yellow rear fender, a yellow/black seat cover" — with that same long-term testing crew reporting real durability confidence: "our 'Long Haul' 2016 RM-Z 450 endured over 60 hours without one valve adjustment and ran great all year."

Despite the widespread criticism of standing still on development, Motocross Action's own review confirms the genuine, consistent character that kept this exact platform relevant against newer competition: "we love Suzuki's 'turn at all costs' philosophy... Suzuki has the best-turning bike on the track. It will make even the most ham-fisted rider look like he knows what he's doing in switchbacks." MCNews' own confirmed 2017 factory dimensions list a 1,495mm wheelbase, 325mm ground clearance, a 955mm seat height, a 125mm trail, and a 45-degree steering angle, with a $10,990 RRP that year. This exact 2016-2017 configuration closed out the pre-2018 body style before Suzuki's own next platform update.

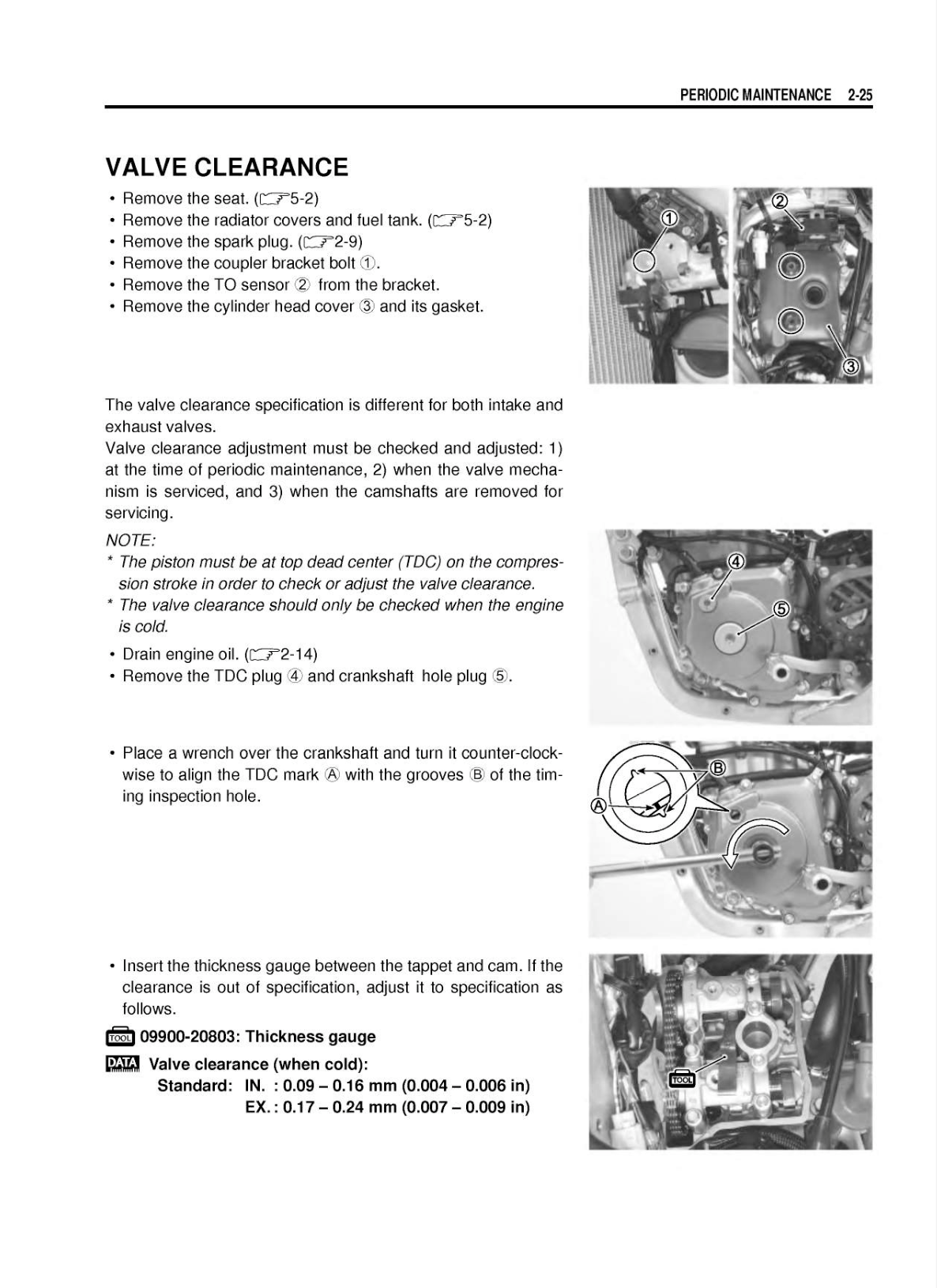

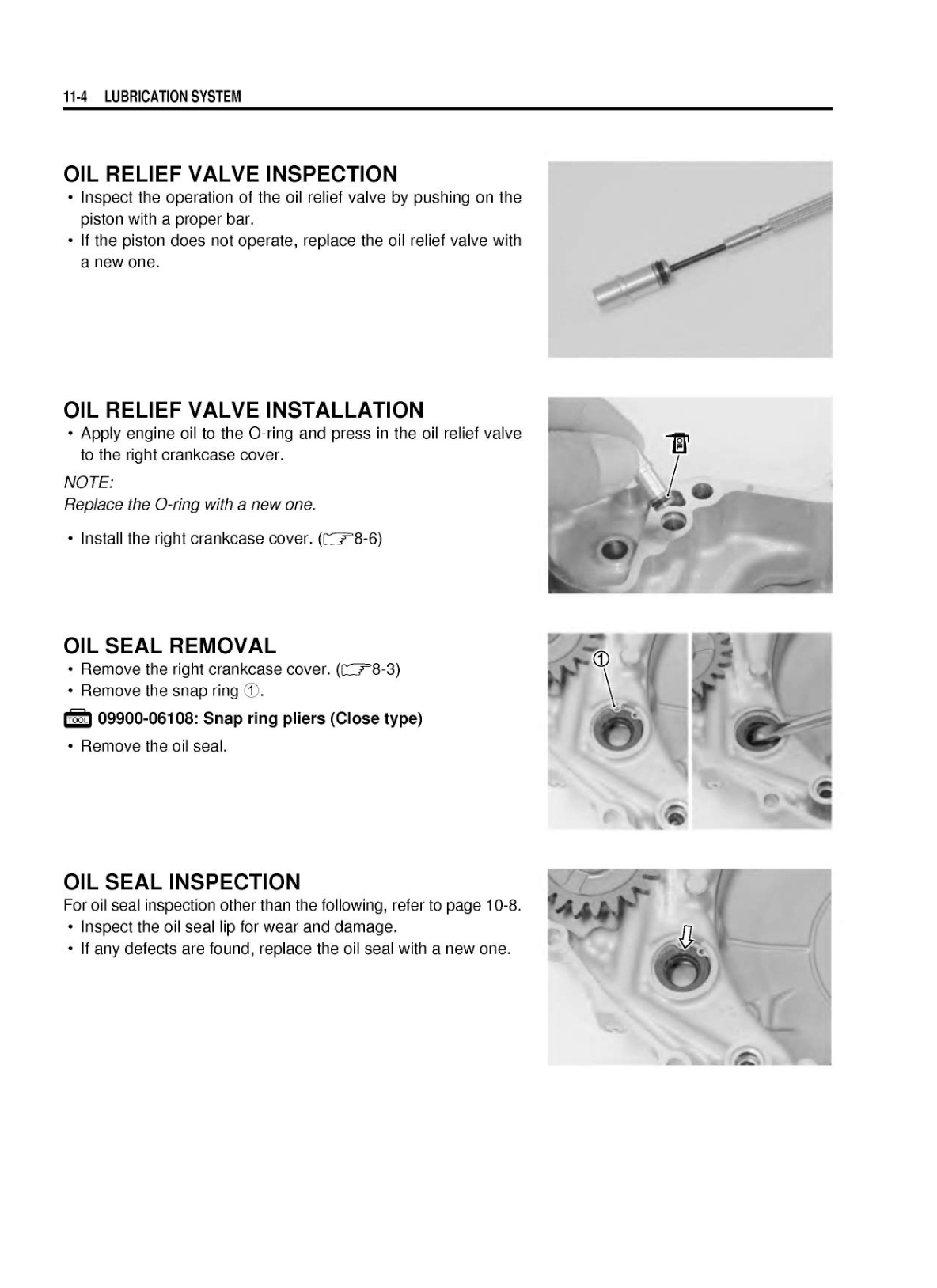

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2016-2017 RM-Z450 running the way it was built to.
