Suzuki JR50 1978-1983 Service Manual

The JR50 is a genuine platform-sharing agreement product — CycleChaos confirms it was "an identical bike to the Kawasaki KDX50 as part of Suzuki and Kawasaki's model sharing agreement," meaning the two brands sold essentially the same small-displacement minibike under different badges during this era. The National Motorcycle Museum's own account confirms the bike's real production span ran from 1977 through 2006, making this 1978-1983 range a genuine early chapter within a remarkably long-lived youth-motorcycle nameplate.

Power comes from a 49cc air-cooled two-stroke single, a 41.0mm bore and 37.8mm stroke, fed by a carburetor, delivering drive through a genuine single-speed automatic transmission with a centrifugal clutch and chain final drive. A real, thoughtful engineering feature carried across the whole JR50 line: an oil injection system that eliminates the need to pre-mix fuel, paired with an oil-level window letting a parent or young rider see at a glance when a refill is needed — genuinely practical safety engineering for a bike built for riders as young as five.

CycleChaos confirms genuine year-by-year model codes across this exact range worth knowing for correct parts sourcing: 1978 JR50C, 1979 JR50N, 1980 JR50T, 1981 JR50X, 1982 JR50Z, and 1983 JR50RD — each a distinct factory designation despite sharing the same fundamental engine and chassis architecture. Suspension consists of a telescopic front fork with 2-way height adjustment, paired with a twin-shock rear end also offering 2-way height adjustment — genuinely thoughtful engineering letting the bike grow with a young rider over successive seasons, braking through drums at both wheels.

Standard tire sizing runs 2.50-10 front and rear on both ends. This exact engine architecture later found a genuine second life in Suzuki's own small ATV lineup, powering the contemporaneous ALT50 and LT50 youth quads sharing this same fundamental two-stroke design.

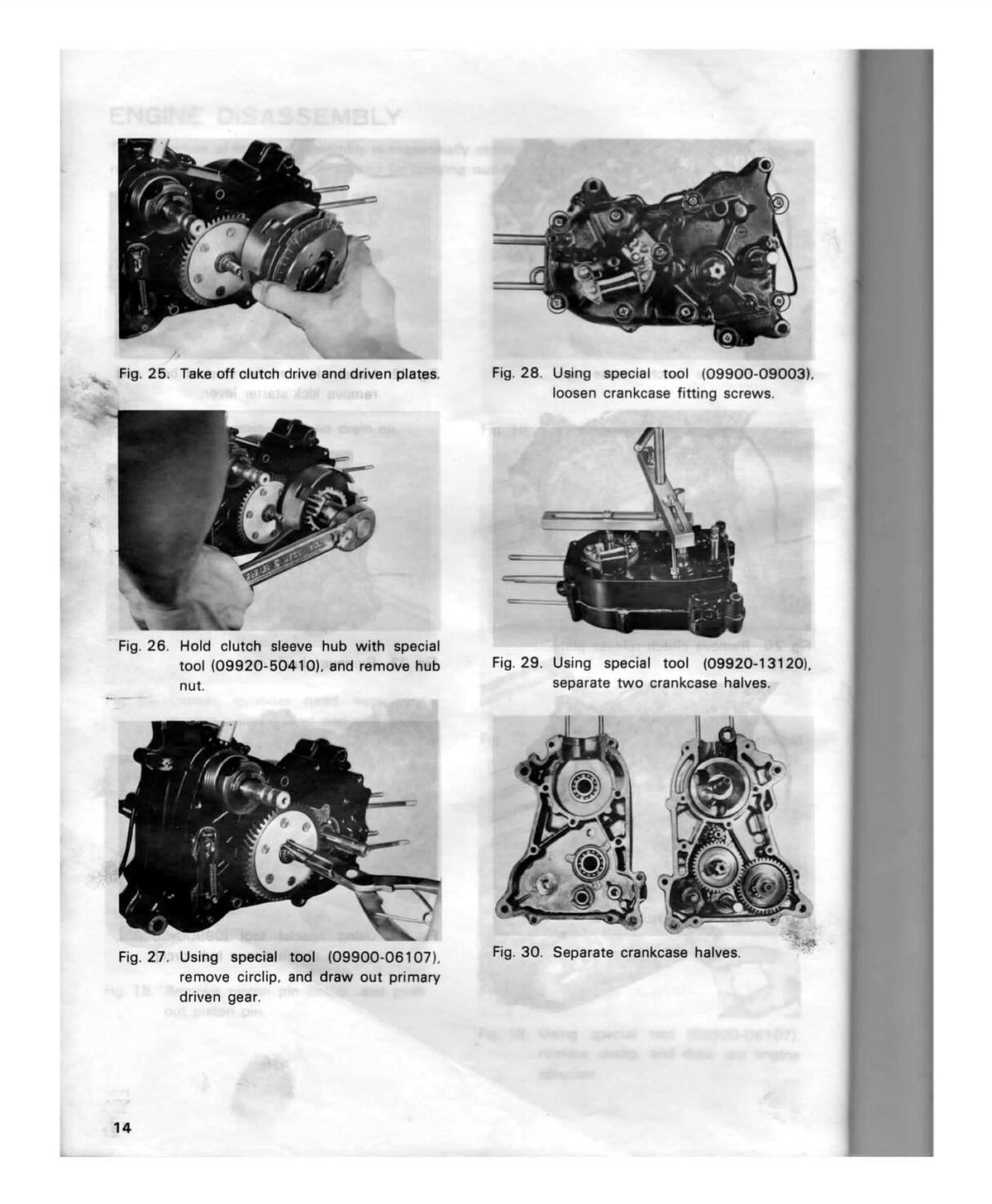

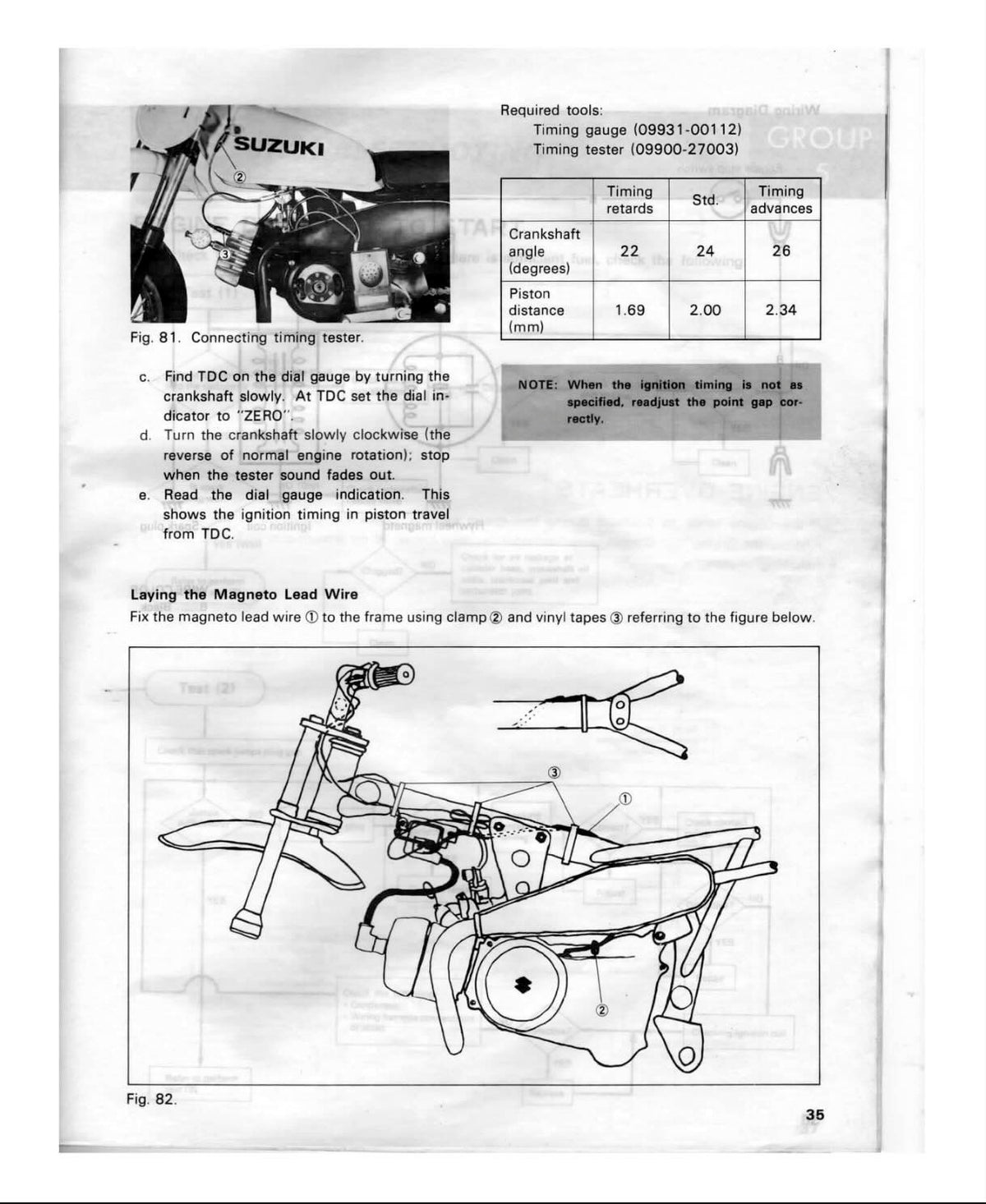

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1978-1983 JR50 Junior 50's two-stroke engine and driveline running the way it was built to.
