Suzuki GSXR750 GSX-R 750 SRAD 1996-1999 Service Manual

TotalMotorcycle's own history frames the 1996 relaunch in exactly the terms Suzuki intended: "the Suzuki GSX-R750 was back to where it was meant to be, first place." Bennetts' used-buying guide calls the SRAD "an iconic 1990s design" thanks to its bulbous tail and famously bold — some would say "fairly hideous" — paint schemes, one that's genuinely resurging in popularity today with both road riders and racers, including Michael Dunlop campaigning a 1996 SRAD in Lucky Strike-inspired livery at the Manx Grand Prix.

Iconic Motorbike Auctions' own history details the genuine break from tradition: for the first time since the original 1985 GSX-R750, Suzuki's Hamamatsu engineers abandoned the aluminum double-cradle chassis entirely in favor of a new twin-spar frame based directly on the RGV500 GP racer. The 749cc liquid-cooled inline-four went through a complete redesign too — a compact, short-stroke (72mm x 46mm) layout tilted 25 degrees forward, with magnesium covers on the cylinder head, starter motor, and clutch specifically to cut weight, plus SCEM (Silicon Carbide Electro-Plate) cylinder coating and the model's namesake SRAD (Suzuki Ram Air Direct) induction feeding electronically controlled 39mm BDSR carburetors. The combined changes shed a genuine 20kg (44 lbs) versus the outgoing model, delivering a claimed 128 hp at 12,000 rpm and roughly 61 lb-ft of torque at 10,000 rpm.

Fully adjustable suspension paired 43mm inverted Showa forks with a rear monoshock, backed by six-piston Tokico calipers on 310-320mm front discs — genuinely potent stopping power for the era, though MCN's own review flags them as needing braided lines by now on any surviving example. 1998 brought fuel injection to the range for the first time, replacing the earlier carbureted setup and bumping claimed output to 135 hp, though Bennetts notes real-world dyno testing on any SRAD tends to land closer to 120 hp regardless of fueling type — carbureted and injected models otherwise share near-identical character, with buyers showing little preference between the two when shopping used. 1999, the final year of the SRAD design before Suzuki's next-generation redesign, brought new graphics and a widened 6-inch rear wheel rim running a 190-section tire, and won Sportbike of the Year honors that year.

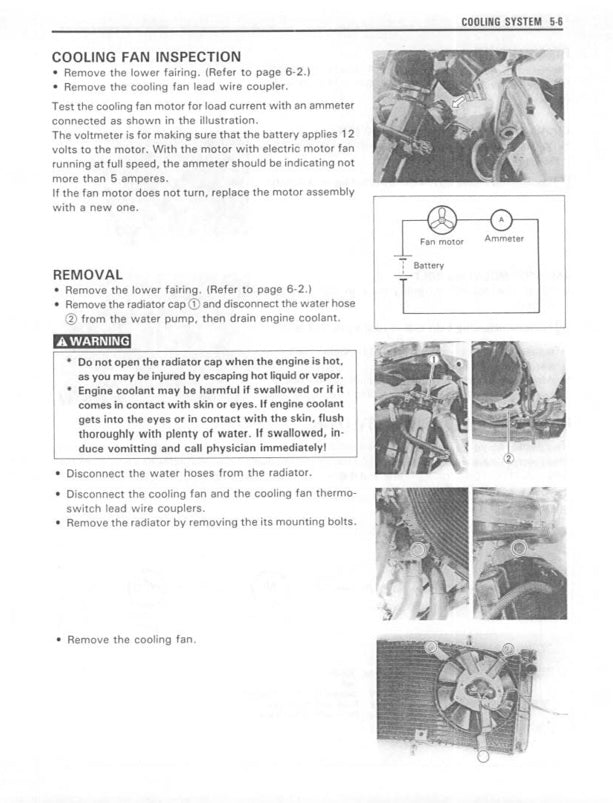

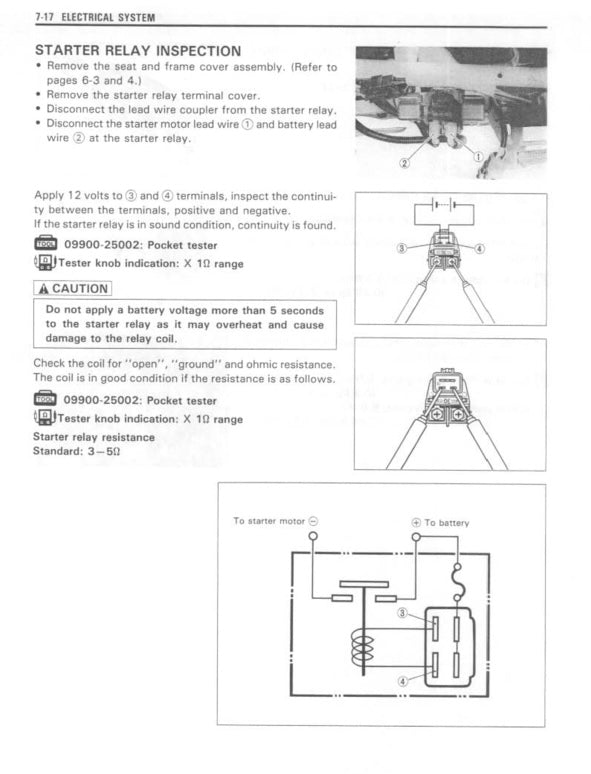

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1996-1999 GSX-R750 SRAD running the way it was built to.
