Suzuki GSXR600 GSX-R 600 K4 K5 2004-2005 Service Manual

Bennetts' own used-buying guide doesn't hedge on where the K4/K5 sits in GSX-R history: "excellent reliability, strong performance, nimble handling, and sharp looks make the K4/K5 models a strong contender for best early 2000s middleweight on the used market." TotalMotorcycle's launch coverage backs that up with Suzuki's own marketing tagline for the ground-up 2004 redesign: "own the racetrack" — a genuinely all-new machine, not an evolution of the K1-K3 platform it replaced.

The 599.4cc liquid-cooled inline-four, DOHC with 16 valves and titanium valves borrowed from Suzuki's factory racing department, retained the K3's oversquare 67.0mm x 42.5mm bore and stroke but gained new, more compact crankcases specifically to shrink overall engine length. Output climbed to a claimed 124-125 hp at 13,500 rpm with roughly 50 lb-ft of torque at 11,500 rpm, run through a 6-speed constant-mesh gearbox with #525 chain final drive and a new 32-bit ECU managing digital fuel injection. MCN's own review found the midrange genuinely strong enough to be "lazy with the 'box," while praising the gearbox itself as among "the best on the planet" for the class.

Sun Coast Cycle's parts-specialist breakdown details the chassis leap plainly: radial-mount four-piston Tokico front brake calipers (a first for the 600, matching stopping power to the pricier GSX-R750 stablemate) paired with 300mm discs and a radial-piston master cylinder, backed by fully adjustable 43mm inverted Showa forks and a heavily braced swingarm — genuinely race-grade hardware that had previously been denied to the 600-class bike. A 15mm-narrower twin-spar black-coated frame, 20mm-narrower fuel tank, and foot pegs moved 100mm closer together all contributed to a more compact, aggressive riding position. The 2005 K5 carried over mechanically identical, distinguished mainly by a headlight that switches off during startup to reduce battery load, plus a 20th Anniversary limited-edition GSX-R600X with numbered badging, a GSX-R750-style trapezoidal radiator, and graphics echoing the original 1990 GSX-R750. Worth flagging for anyone servicing one today: both years fall under NHTSA's 210,228-unit recall covering 2004-2013 GSX-R models for front brake master cylinder corrosion, and the shunt-type regulator/rectifier on this generation is a commonly reported failure point. Wet weight sits around 368-370 lbs.

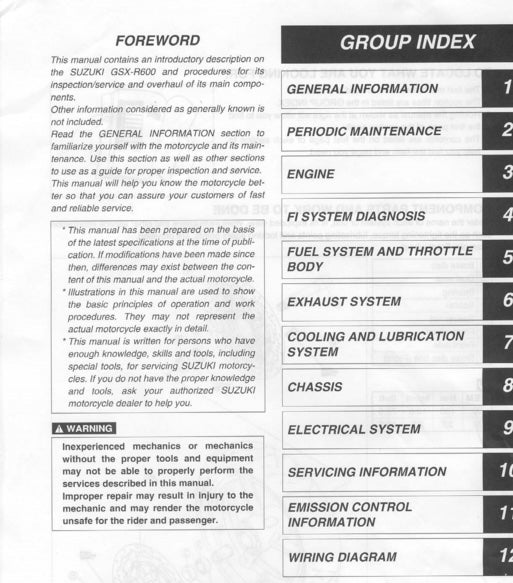

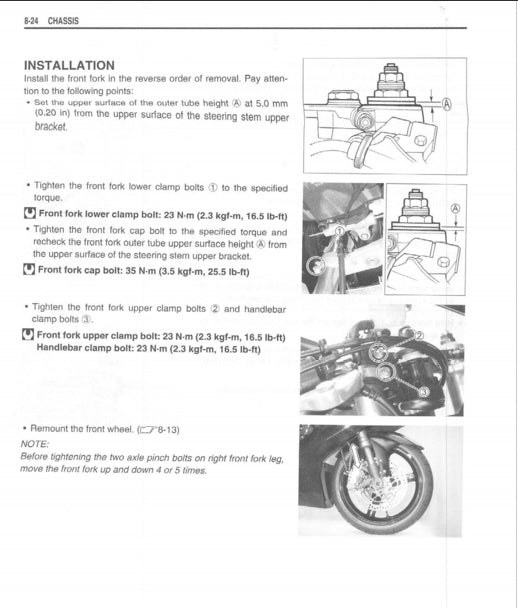

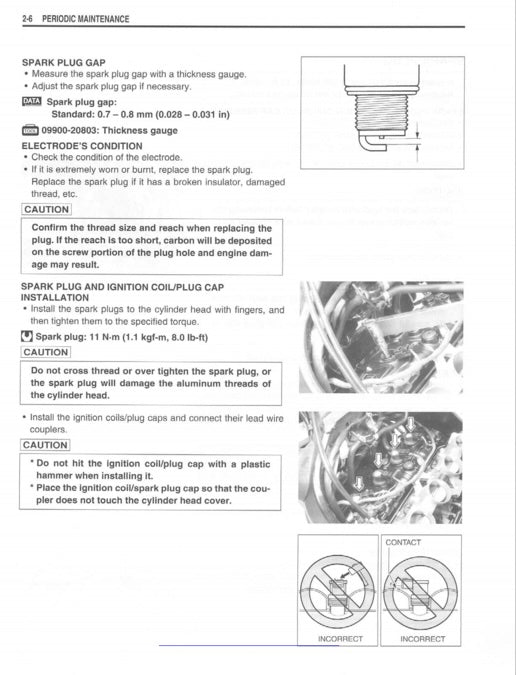

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2004-2005 GSX-R600 K4/K5 running the way it was built to.
