Suzuki GSXR1000 GSX-R 1000 K9 L1 L2 L3 L4 L5 L6 2009-2016 Service Manual

Bennetts' own used-buying guide gives this generation a genuinely compelling verdict: bikes that sold for around £10,000 new in 2009 can now be had for less than half that, and against current 1000cc superbikes costing £17,000-£30,000 "yet not be that much faster or thrilling on the road, if at all," that makes the K9-L1 era "a bargain worth hunting down if you're not yet ready to give up grinding knee sliders to atoms." Bennetts calls this span "the last hurrah for analogue GSX-Rs" — standard ABS, anti-wheelie, traction control, and multi-axis IMUs were all still a few years away when the K9 launched.

The 999.8cc liquid-cooled inline-four received a genuinely dedicated redesign for 2009 — no longer sharing its fundamental architecture with the GSX-R750 as earlier generations had. NamuWiki's own technical breakdown details a shorter overall engine achieved by arranging the crankshaft, transmission input, and output shafts in a triangular layout, paired with a new frame that shortened the wheelbase by 10mm while lengthening the swingarm by 33mm for genuinely improved cornering performance, plus a 5kg weight reduction. Suzuki fitted the fastest Big Piston Fork (BPF) among the four Japanese manufacturers at the time, delivering a claimed 182 hp with a 205kg wet weight.

2012 brought the L2 update, which Maintenance Schedule's own breakdown describes as looking, at first glance, like only a brake and muffler change — but going considerably deeper: 11% lighter pistons, a 0.1-point compression bump, and redesigned camshafts specifically aimed at improving low-speed torque and flattening the torque curve rather than chasing more peak horsepower, which stayed at 185 hp. Suzuki also dropped the twin-exhaust design for a single muffler — a genuine weight and cost saving Namuwiki attributes partly to former MotoGP chief engineer Arase's preference — and updated brakes to Brembo calipers with 4x32mm pistons on the same 310mm discs. ABS arrived as an option starting in 2014, the closest this generation came to genuine electronic rider aids before Suzuki's comprehensively reworked 2017 R-spec model introduced ride-by-wire and a full IMU package. Across this entire 2009-2016 span, the fundamental engine architecture, chassis geometry, and exhaust routing stayed consistent, meaning service procedures carry over reliably across model years within the range.

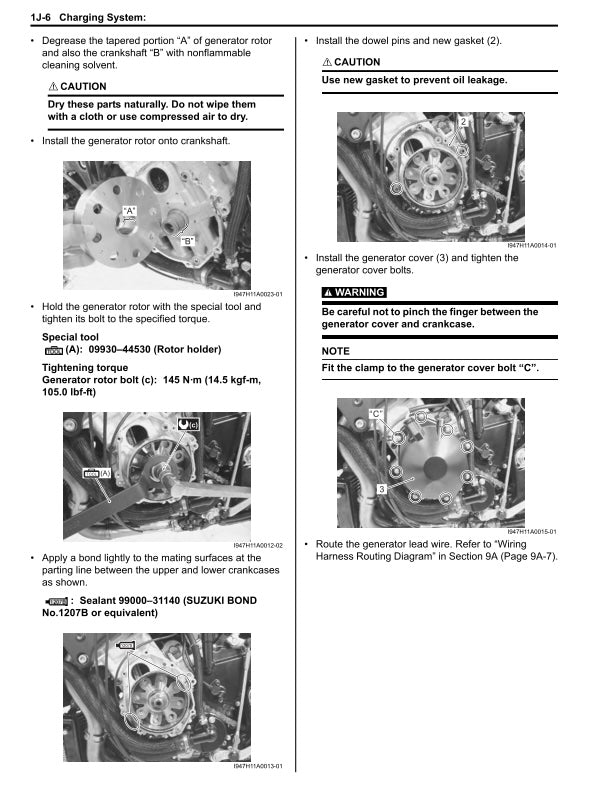

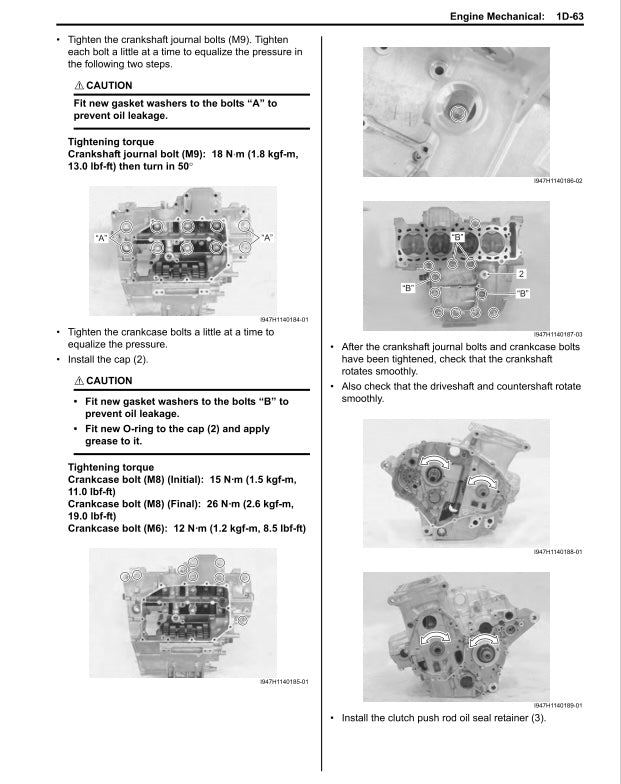

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2009-2016 GSX-R1000 K9/L0/L1/L2/L3/L4/L5/L6 (non-ABS) running the way it was built to.
