Suzuki GSXR1000 GSX-R 1000 K3 K4 2003-2004 Service Manual

MCN's own retrospective calls the 2003 revision "where the smart money goes" — while the original K1 grabbed the headlines and remains the collector favorite, the K3 delivered more power, more torque, and less weight, with a measured rear-wheel 143bhp and 74 lb-ft of torque that MCN's testing found "sublime" in how the bike put it down. Bennetts' history puts the update in fair context too: this was always meant as the "update" model — cosmetic sharpening and modest refinement — bridging the class-defining K1/K2 and the comprehensively reworked K5 that would follow in 2005.

The 988cc liquid-cooled inline-four, DOHC with 16 valves and titanium valves, gained ventilation holes between adjacent cylinders specifically to equalize crankcase pressure, contributing to a claimed power bump to 160-164 hp at 11,000 rpm and roughly 74-80 lb-ft of torque, run through a ram-air induction system and a titanium end can that shaved 2kg on its own. Total weight dropped 2kg to 168kg (370 lbs) versus the outgoing K1/K2. Genuine engineering headline for this generation: Bennetts calls it the first litre-class bike to feature radially mounted brakes — Suzuki dropped the K1/K2's fickle, expensive-to-service six-piston Tokico calipers in favor of radial-mount four-piston units on smaller 300mm discs, saving nearly 300g of unsprung mass while Suzuki claimed genuinely improved braking feel and power despite the smaller rotor size.

The K4, sold in 2004, carried the same fundamental package with more substantial suspension refinement than a typical color-only update: a new inverted Showa fork with improved rigidity and damping control, revised swingarm geometry for better stability under hard acceleration, and reworked bodywork with reduced drag — genuinely more than the "color differences" some retrospectives suggest separated the two model years. A vertically mounted headlight (borrowed conceptually from the Hayabusa) accommodated the ram-air intakes, paired with a redesigned instrument cluster and a new black-finished frame with ribbed spars replacing the earlier lacquered-aluminum design. Suzuki also upgraded the engine management to a 32-bit CPU, a genuine step up from the K1/K2's 16-bit system, giving the fuel injection meaningfully more processing headroom for refined mapping.

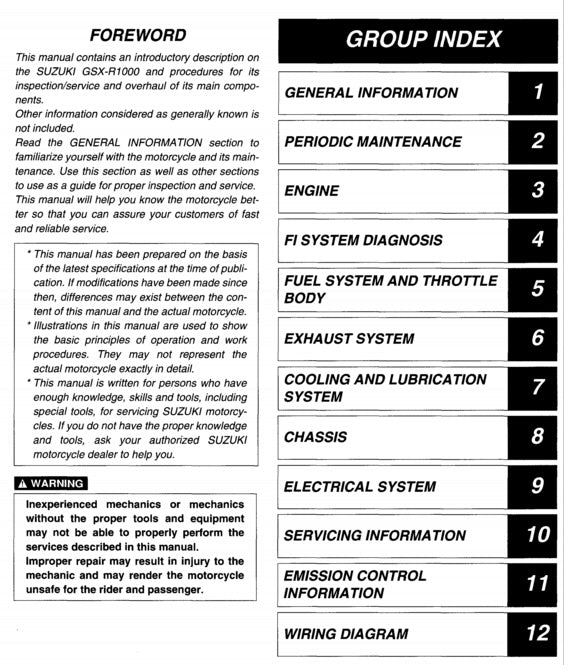

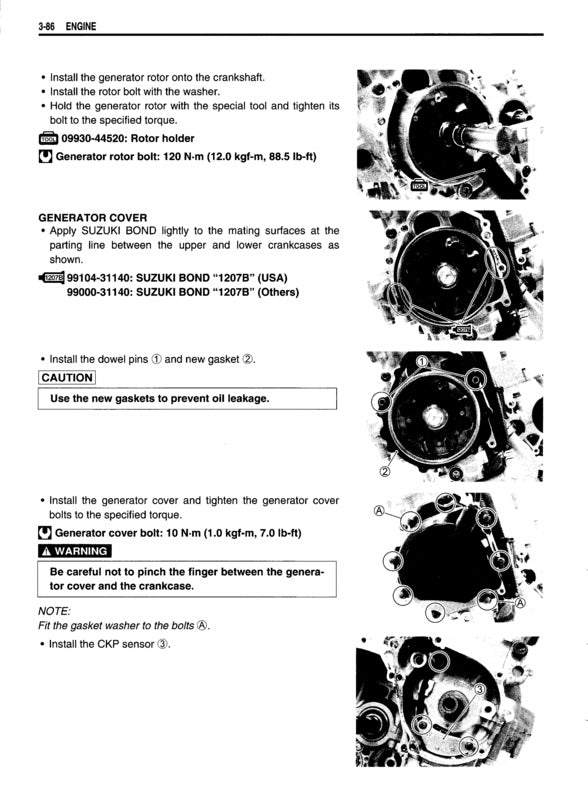

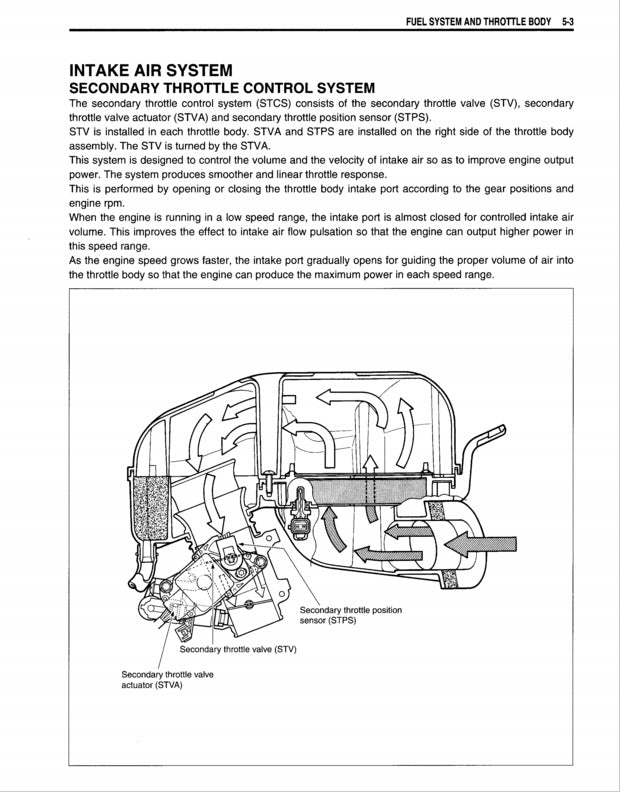

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2003-2004 GSX-R1000 K3/K4 running the way it was built to.
