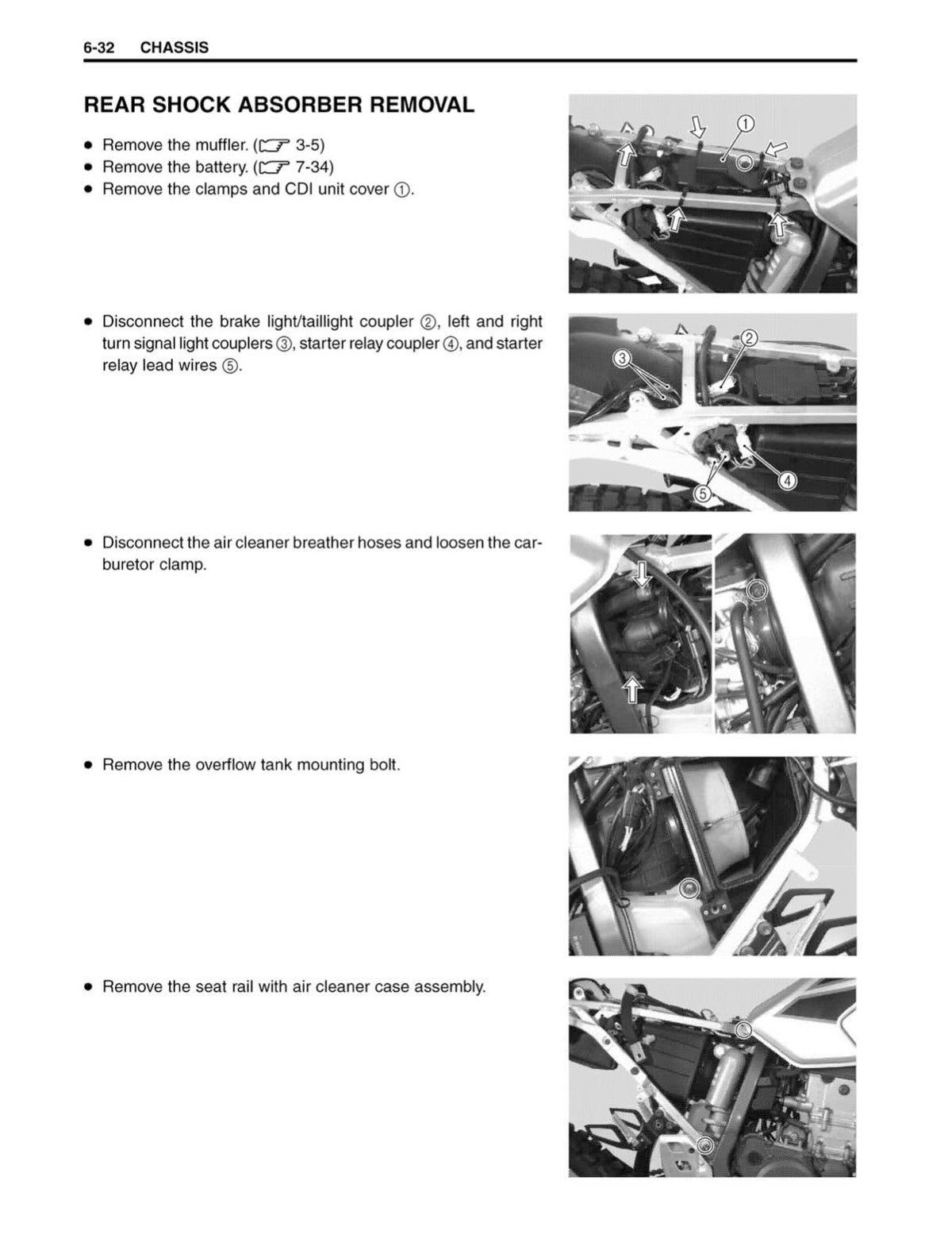

  • Suzuki DR-Z400S service manual page 6-32 with rear shock absorber removal photos showing CDI cover and electrical couplers

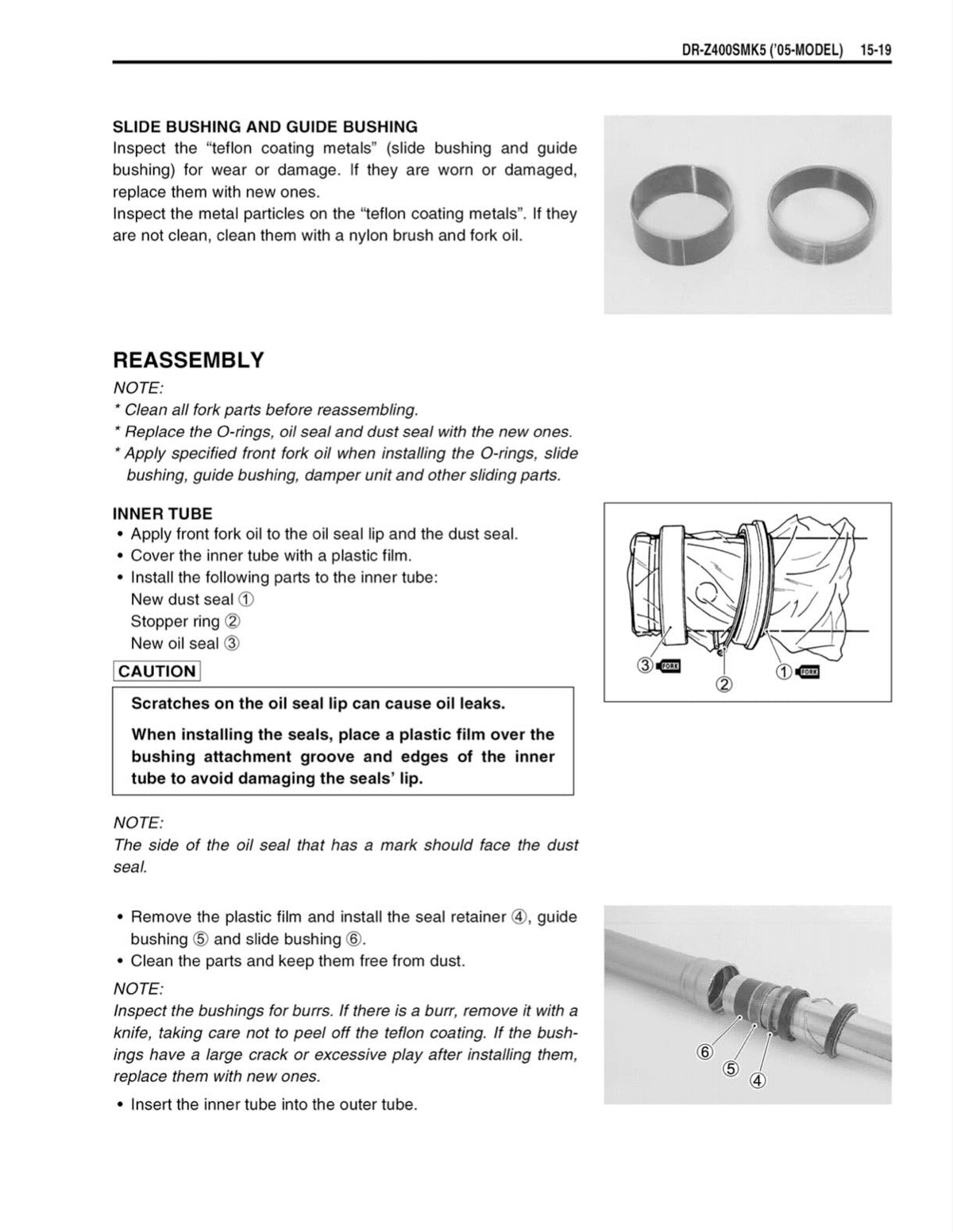

  • Suzuki DR-Z400S service manual page with front fork slide bushing inspection and oil seal installation diagrams on inner tube
1 4

Dr. E Manuals

Suzuki DR-Z400S 2000-2009 Service Manual

Suzuki DR-Z400S 2000-2009 Service Manual

£11.95 GBP
£11.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

2000-2009 Suzuki DRZ400 DR-Z400S Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 431 pages in English Language, it is the only manual you will require to maintain, repair and service your 2000-2009 Suzuki DRZ400 DR-Z400S.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: general information, periodic maintenance, engine, fuel and lubrication system, cooling system, chassis, electrical system, servicing information, emission control information

Suits Models from 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

DR-Z400S (2000-2009): Motorcycle News' Own Verdict — "A Good Old-Fashioned Plodder," With a 4.2-out-of-5 Owner Reliability Rating

Motorcycle News' own used-buying review is refreshingly direct about the engine's genuine character: "the DR-Z's single cylinder motor is a good old-fashioned plodder and with a double overhead cam, four valves and a water-jacket is hardly being stressed to produce 39bhp and 29ft-lb of torque." That same review confirms real, lived-in reliability data from actual owners: "owners' reliability rating: 4.2 out of 5," with annual servicing costs around £60 — genuinely low running costs for a bike built to handle years of mixed road and off-road use.

Power comes from a 398cc liquid-cooled single, DOHC with 4 valves, a 90mm x 62.6mm bore and stroke, and an 11.3:1 compression ratio, fed by a BSR36 CV Mikuni carburetor, delivering a claimed 39-40 hp (29kW) at 8,400 rpm and roughly 18 lb-ft (24 Nm) of torque at 5,800 rpm through a 5-speed manual transmission with wet multi-disc clutch and chain final drive, reaching a genuine 94 mph (152 km/h) top speed.

Suzuki's own Global Digital Archive confirms what genuinely distinguishes this "S" model from the closely related off-road-only DR-Z400: "a headlight, taillight, turn indicators, mirrors, and an electric start made it suitable for the roads, as well as road-oriented tires" — a real, street-legal dual-sport built specifically for riders who wanted highway capability alongside genuine trail competence. Autoevolution's own confirmed chassis account lists a chromoly steel frame, a telescopic fork with adjustable compression and rebound damping (290mm travel), and a fully adjustable link-type rear shock (295mm travel), braking through a 250mm front disc with a 2-piston caliper and a 220mm rear disc with a 1-piston caliper.

Confirmed dimensions list a 58.5-inch wheelbase, a genuinely tall 36.8-inch (935mm) seat height, a 2.6-gallon (9.8-10-litre) fuel tank, and dry weight ranging 262-317 lbs depending on exact model year, riding on 80/100-21 front and 120/90-18 (or 120/80-18 on later years) tires. Motorcycle News' own confirmed account closes out this range precisely: "production is stopped for the Suzuki DRZ400 S and SM" in 2009.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2000-2009 DR-Z400S running the way it was built to.
