Singer 491D Service Repair Manual

Anyone who's kept an industrial Singer running past its first decade knows the difference between an operator's guidebook and a genuine service manual — one tells you how to thread the machine, the other tells you how to fix it when timing drifts or a hook starts skipping stitches. The 491D's factory service manual, issued by The Singer Company in 1973, is built entirely around the latter: a technician's reference for keeping the 491D200GA and 491D300GA lockstitch machines running at full production speed.

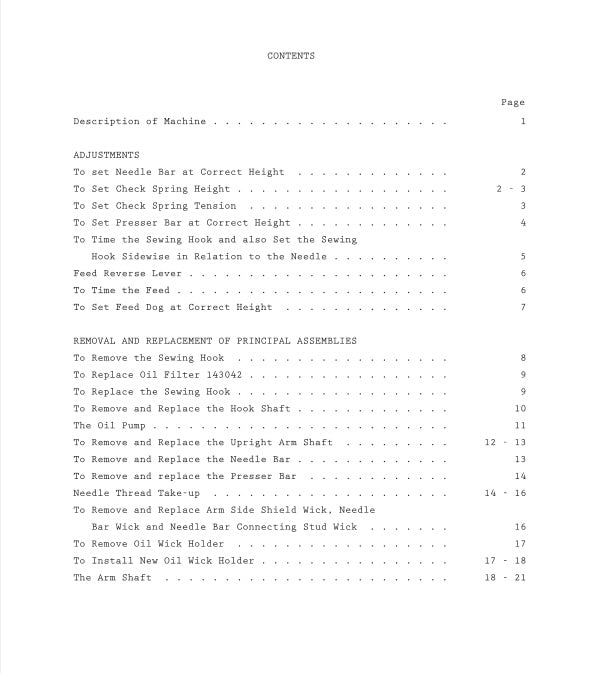

The manual walks through the core adjustments that determine whether an industrial lockstitch runs clean or starts throwing stitches: setting the check spring height and tension correctly, positioning the needle bar at its precise correct height, and setting the presser bar height to match the material being run. Timing procedures cover both the sewing hook — including setting it sidewise in relation to the needle, a job that directly determines stitch consistency — and the feed mechanism, with a dedicated section on setting the feed dog at the correct height for even material advancement. A feed reverse lever section covers the reinforcement-stitch hardware unique to this class of industrial machine.

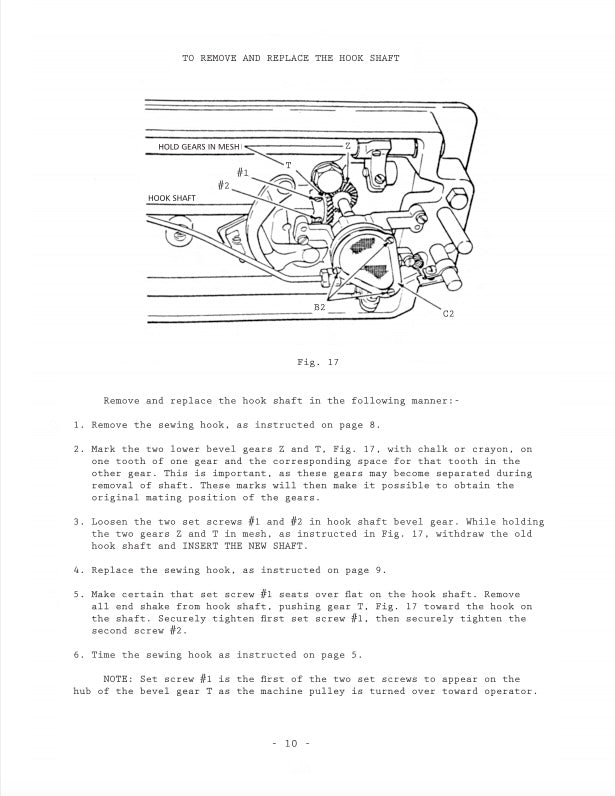

Where this manual earns its keep for repair work specifically is in the removal-and-replacement procedures for principal assemblies: pulling and reinstalling the sewing hook, the arm shaft, and the needle bar — the components most likely to need service after years of continuous industrial use. Oil filter replacement and the oil flow regulating thumb screw's role in ongoing lubrication are covered as well, since these high-speed machines depend on consistent oiling to avoid premature wear. The manual also documents the specific parts that differ between the 200GA and 300GA variants — feed dogs, throat plates, and tension springs — so a technician working on either version knows exactly which part number applies before ordering.

This factory service manual covers the full adjustment, timing, and rebuild procedures needed to keep a 491D200GA or 491D300GA running the way it was built to.
