SAME Antares 100 110 130 Tractor Service Manual

SAME Antares 100 110 130 Tractor Service Manual

£6.95 GBP
£6.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

SAME Antares 100 110 130 Tractor Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 445 pages in English Language, it is the only manual you will require to maintain, repair and service your AME Antares 100-130, using this manual you ensure that your tractor is repaired to manufacturer standards / specification.

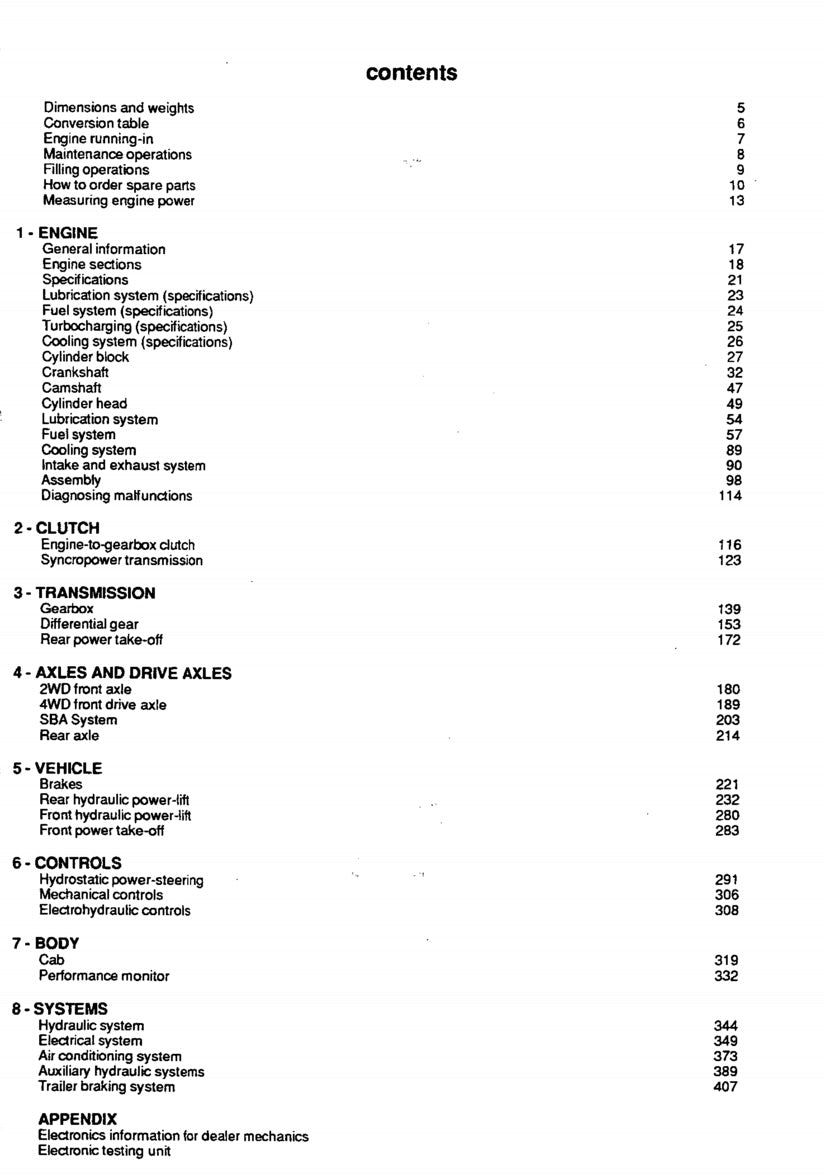

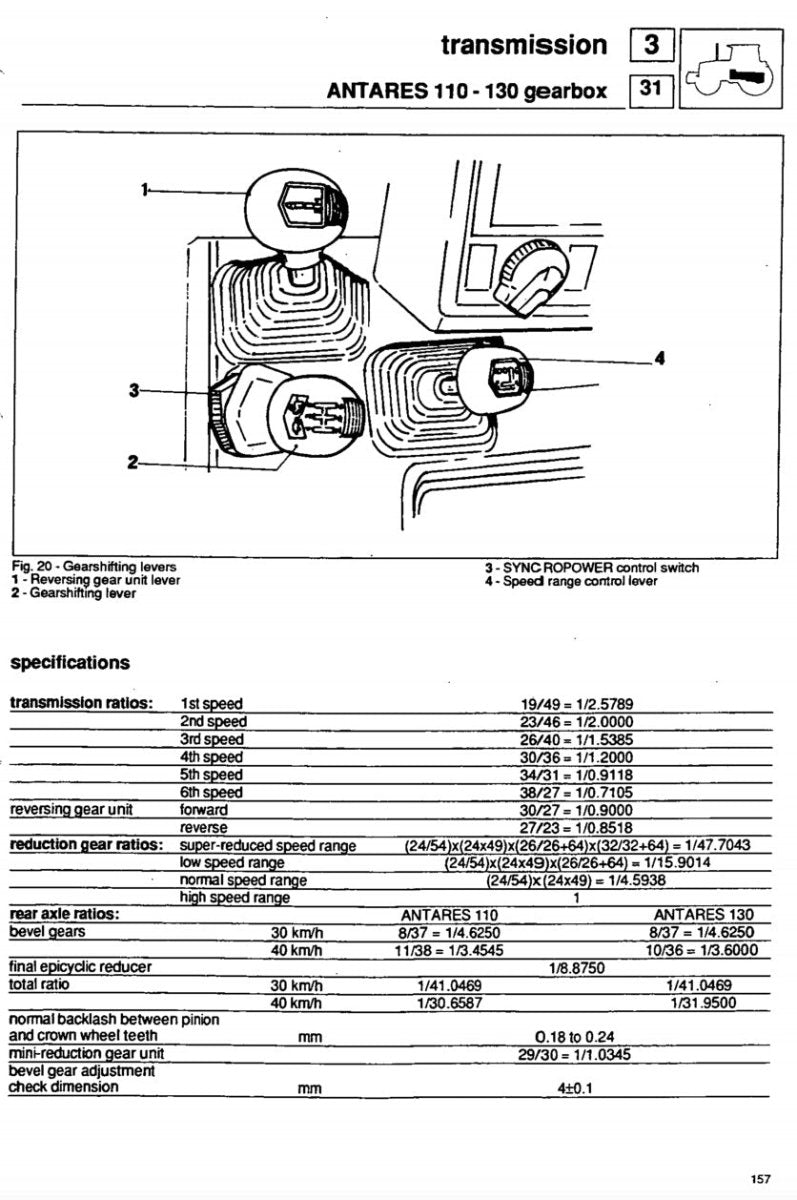

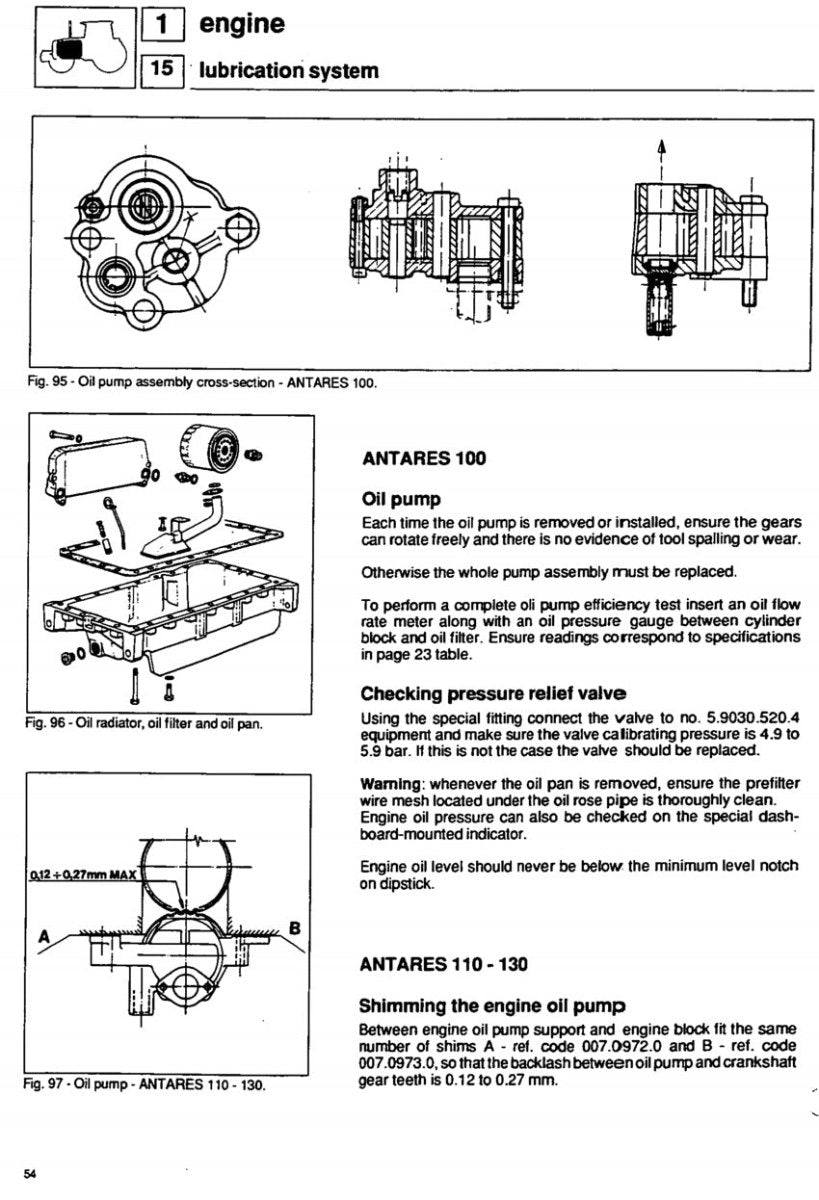

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

Antares 100/110/130 (1989-1996): SAME's Genuine Row-Crop Workhorse Family, Scaled Across Three Power Classes

SAME built the Antares 100, 110, and 130 as a genuinely tiered lineup of 4WD row-crop tractors, produced in Italy across roughly 1989-1996, each sharing a common design philosophy but scaled to progressively higher power outputs — a genuinely broad range covering everything from moderate general-purpose farm work up to serious heavy-duty field applications.

Power scales meaningfully across this range: the Antares 100 runs a SAME 4.0-litre, 4-cylinder turbocharged intercooled diesel engine delivering a rated 100 hp at 2,500 rpm through a 105mm x 115mm bore and stroke; the Antares 110 steps up to 110 hp; and the range-topping Antares 130 delivers 125.4-130 hp through a genuinely larger 6.0-litre, 6-cylinder turbocharged diesel — a real jump in cylinder count and displacement rather than just a horsepower badge change, reflecting the significant additional workload the flagship 130 was built to handle. All three models run 4x4 MFWD (mechanical front-wheel drive) configuration.

Transmission options genuinely vary depending on model and specific configuration: tractor-info's own spec sheet for the Antares 130 lists a choice between a 24-forward/12-reverse gear setup or a more sophisticated 48-speed partial power shift, while other sources document 30-40-speed configurations across the family — a real reminder that correct transmission identification against the specific tractor's serial number and options matters before ordering parts or attempting drivetrain service. The Antares 130 specifically delivers a substantial 13,671 lb rear lift capacity, hydraulic wet disc brakes, power steering, and a 15.2 gpm hydraulic pump flow, with standard 540/1000 RPM rear PTO and an optional independent front PTO for running powered implements. Optional air-conditioning was available across the range for genuine operator comfort during long field days. Dimensions on the Antares 130 run 182.28 inches long and 111.81 inches tall on a 108.27-inch wheelbase, weighing roughly 11,025 lbs and running 16.9R30 tires front and rear, with a 60.8-gallon fuel tank supporting genuinely long working days without refueling.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a SAME Antares 100/110/130 tractor running the way it was built to.
