Royal Enfield Himalayan LS410 Engine 2018-2024 Service Manual

BikeDekho's own technical breakdown captures the genuine engineering significance of this engine architecture: "this is the first modern Royal Enfield motor to do away with push rods instead using a chain-driven overhead camshaft. The engine is called LS410 where LS stands for long-stroke. This long stroke nature allows the motor to develop its peak torque and horsepower at low rpm which is quite useful in off-road riding conditions." GaadiKey's own dedicated breakdown of this exact engine confirms Royal Enfield's own deliberate tuning philosophy: "according to Royal Enfield, power has deliberately been kept low on the motorcycle so as to make its performance more accessible to newer riders graduating from smaller bikes."

Power comes from the 411cc air-cooled single-cylinder, SOHC, four-stroke LS410 engine, fuel injected, with a 78mm x 86mm bore and stroke and a 9.5:1 compression ratio, delivering a claimed 24.3-24.5 hp at 6,500 rpm and roughly 32 Nm (24 lb-ft) of torque at 4,000-4,500 rpm through a 5-speed gearbox. GaadiKey's own technical account confirms a genuinely clever dual-cooling arrangement: "the top-end of the engine is air-cooled while the bottom end of the engine i.e. the crankcase uses oil cooling," with a counterbalancer specifically added to smooth out vibration from the long-stroke single-cylinder design.

A half-duplex split-cradle steel frame carries the LS410 engine, paired with 41mm telescopic forks and a rear monoshock — BikeDekho's own spec sheet confirms braking through a 300mm front disc with a 2-piston floating caliper and a 240mm rear disc with a single-piston caliper, backed by standard dual-channel ABS with switchable rear ABS for off-road use. The bike rolls on 21-inch front and 17-18-inch rear spoked wheels with dual-purpose tube-type tires, delivering a genuinely useful 220mm of ground clearance for off-road capability. Really Big Bike Ride's own recent field review is candid about this engine's real-world character on modern roads: "on paper, that might not sound exciting, but in real-world riding, it delivers smooth and usable power... comfortable at 90 km/h, but anything over 110 km/h feels strained," with fantastic low-end torque for climbing steep trails and loose terrain, though the reviewer notes wishing for a sixth gear on long highway stretches. That same review confirms the genuine reason this engine's production run is winding down: "stricter emission norms worldwide mean the 411's older air-cooled engine isn't as future-proof. Customer demand for more highway power pushed Royal Enfield to develop the 450cc variant" — with the LS410-powered Himalayan 411 still available through 2024 before Royal Enfield's all-new liquid-cooled 452cc DOHC engine took over the Himalayan nameplate. Wiganmotorcycles' own listing confirms this LS410 met Euro 5 emissions requirements throughout its later production years, with a 15-litre fuel tank supporting genuinely long-range off-road touring.

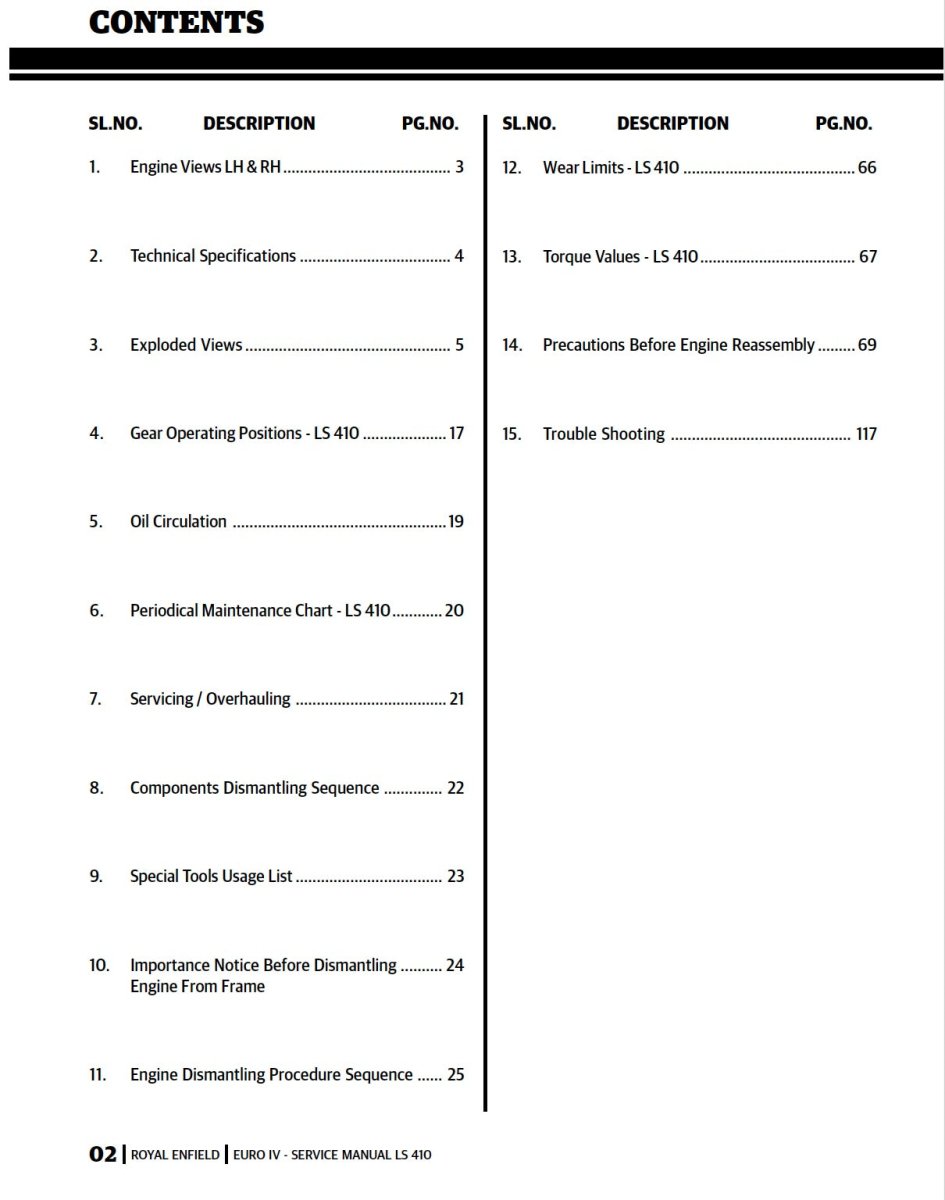

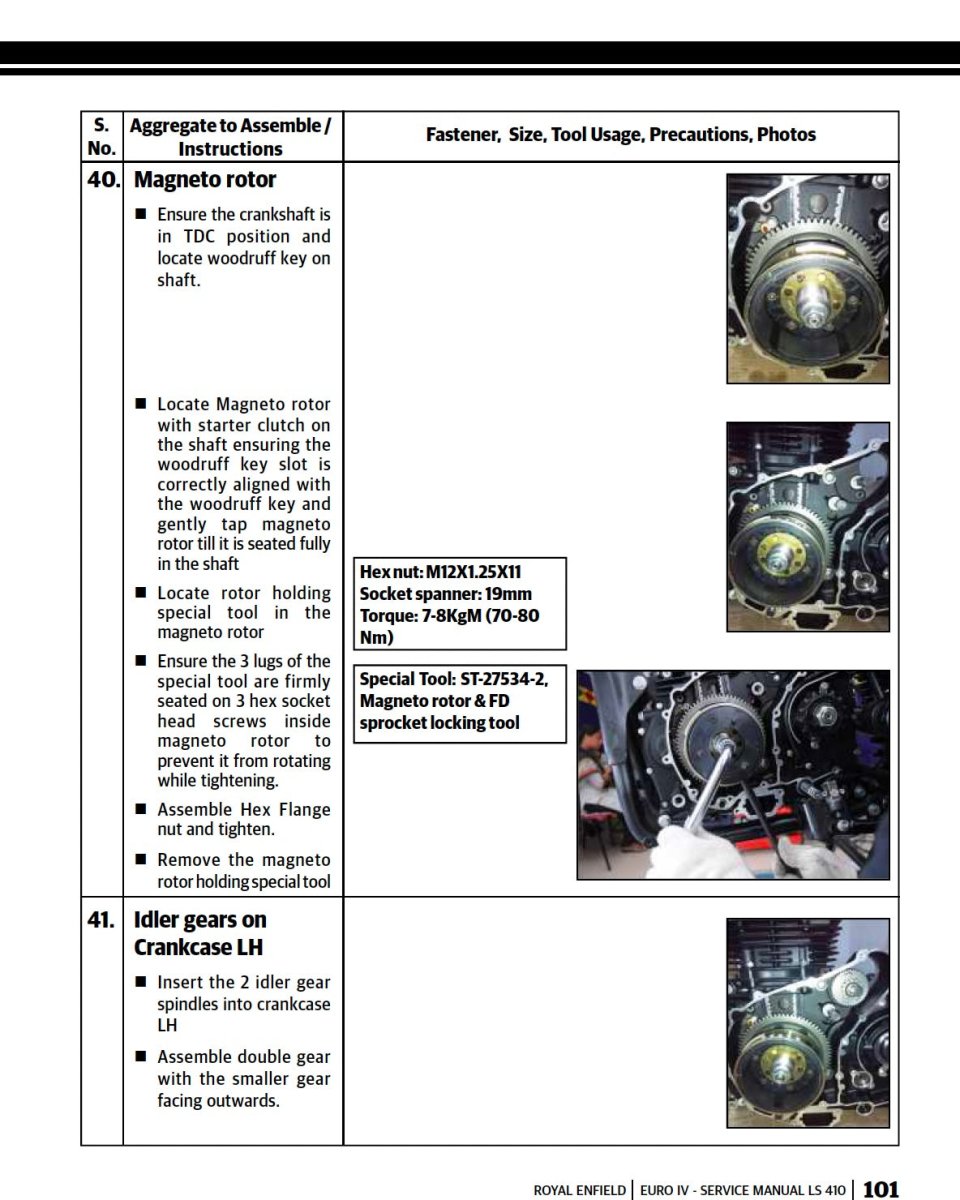

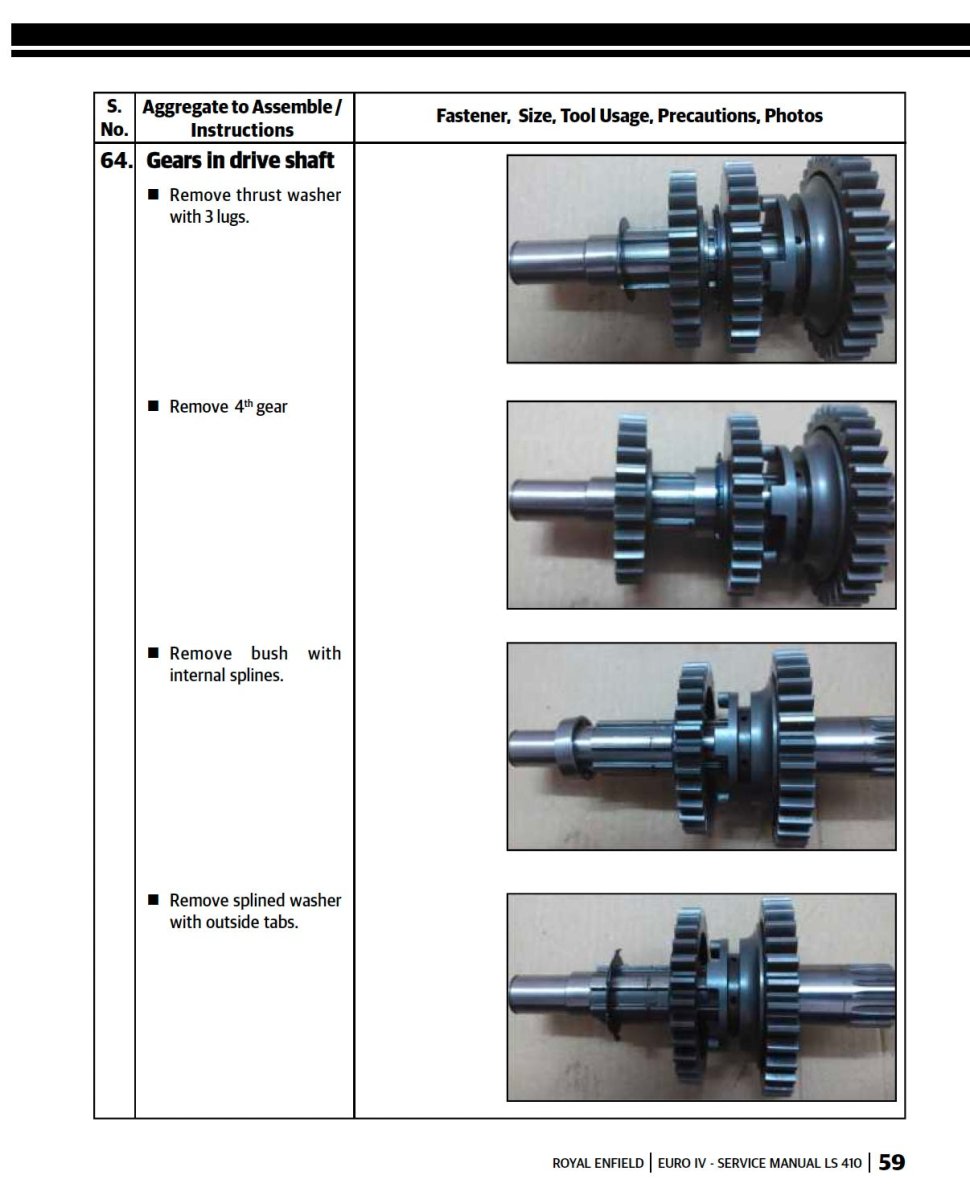

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2018-2024 Himalayan LS410 engine running the way it was built to.
