Royal Enfield Classic 350 Euro V 2009-2024 Service Manual

Wikipedia's own history confirms the Classic 350's genuine styling inspiration since launch: "the Classic series of Royal Enfield motorcycles are inspired by the Royal Enfield G2 350cc Bullet motorcycle, first produced in 1948." Cycle World's own coverage of the modern relaunch confirms this platform's genuine commercial significance: "said by Royal Enfield to be the bestselling model in the company's long (since 1901) history, the Classic 350 made a modern return in 2022 with an all-new engine and chassis that is also shared with the Bullet, Hunter, and Meteor 350s as well."

The original 2009-2020 generation ran a 346cc air-cooled single-cylinder UCE (Unit Construction Engine), a genuine twinspark, four-stroke design shared with the contemporary Thunderbird — Wikipedia's own first-generation spec sheet confirms a 70mm x 90mm bore and stroke, 8.5:1 compression ratio, delivering a claimed 19.1 hp at 5,250 rpm and roughly 21 lb-ft (28 Nm) of torque at 4,000 rpm through a 5-speed gearbox with left-side gear shift. Autoevolution's own coverage of the 2009-2012 range confirms the platform's genuine sales appeal even at launch: "the torque to flatten mountains and the fuel efficiency to cross entire ranges comes in the same understated yet charming styling." Wikipedia's own timeline confirms genuine emissions-driven upgrades ran through this first generation: 2017 brought Euro 4 compliance to the related Classic 500 with standard ABS, and 2018 extended ABS availability to Classic 350 models in some markets, before Royal Enfield's BS6-compliant update arrived for the platform's final years.

The genuine ground-up reinvention arrived in 2021-2022: Cycle World's own coverage of the 2024 model confirms the current Classic 350 runs an entirely new single-cylinder SOHC counterbalanced air/oil-cooled 349cc J-series engine, delivering a claimed 20.2 hp at 6,100 rpm and 19 lb-ft of torque — genuinely different architecture from the earlier UCE unit, sharing this new platform's engine and chassis directly with the Bullet 350, Hunter 350, and Meteor 350 launched around the same period. This modern Classic 350 rides on a 100/90-19 front and 120/80-18 rear tire combination, with Cycle World's own 2024 pricing confirming a range spanning $4,599 for base Halcyon colorways up to $4,799 for premium Chrome finishes. Because this range spans two genuinely distinct engine architectures — the original UCE twinspark and the newer J-series platform — correct year and generation identification against the specific engine and frame numbers is essential before ordering parts, since fundamental components like pistons, cylinder heads, and ignition systems are not interchangeable between the pre-2021 and post-2021 Classic 350.

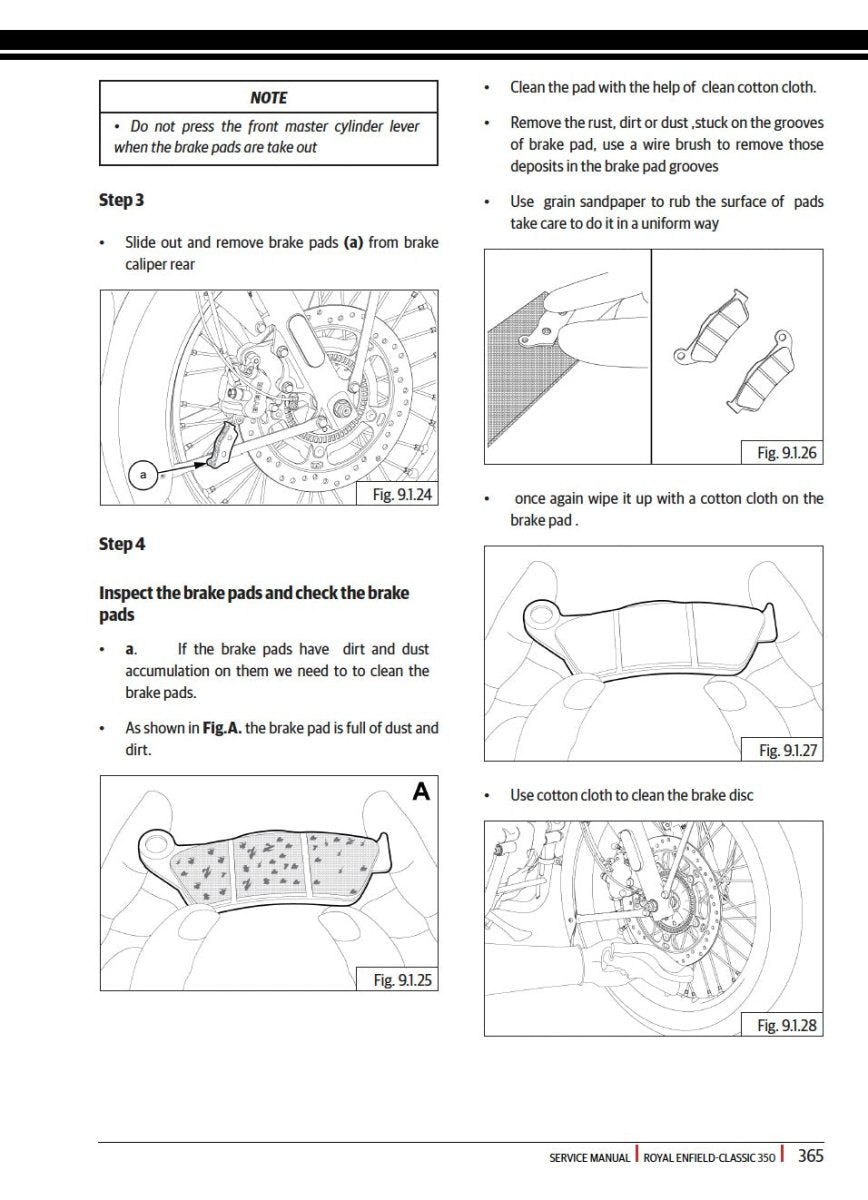

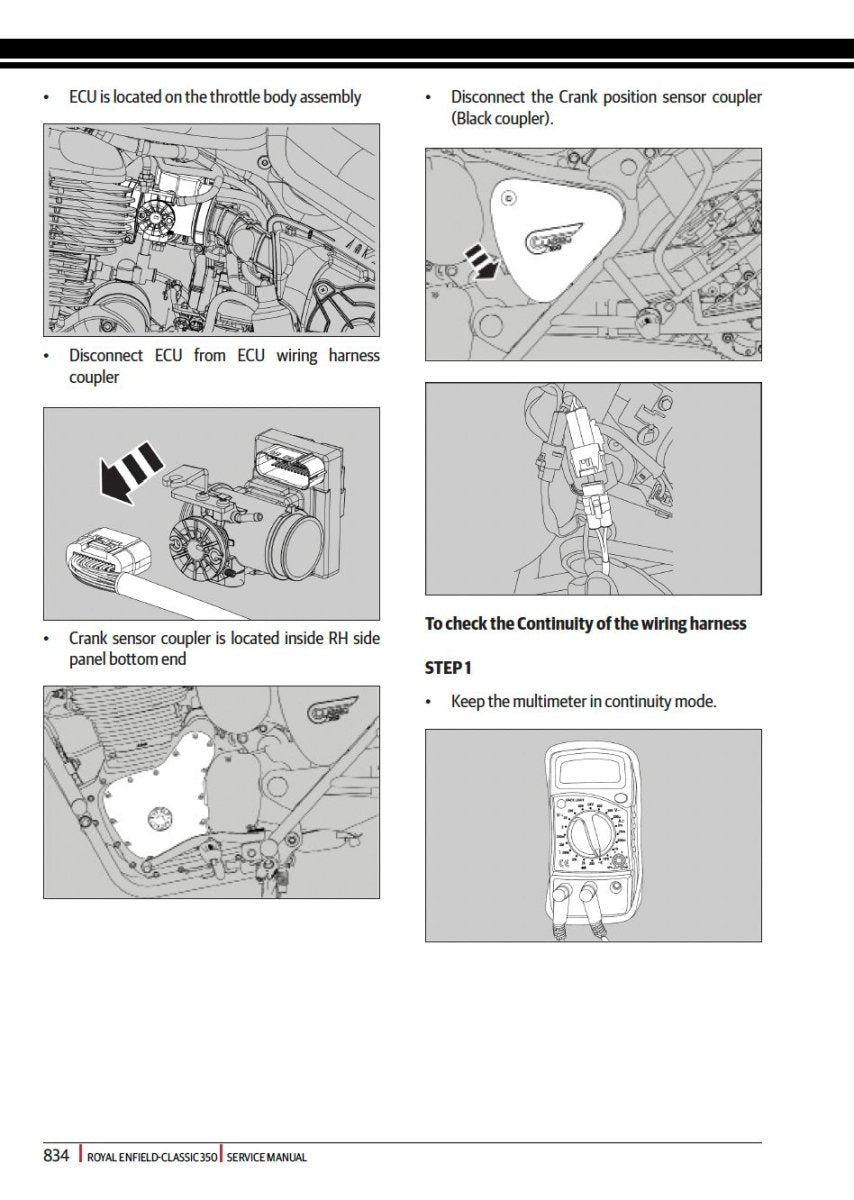

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2009-2024 Classic 350 running the way it was built to.
