Royal Enfield Bullet Electra 500 EFI E5 2008-2016 Service Manual

Motorcycle News's own review of this generation frames the achievement plainly: "Royal Enfield have tried hard to meet Euro3 emission laws without ruining the feel of their classic 500cc single, and it's worked." The E5 Electra shares its all-new fuel-injected engine platform with the C5 Classic launched the same year, but keeps the Electra's own distinct trim identity — a name that traces back to 2002 and the original electric-start Bullet.

Power comes from the same all-new Unit Construction Engine (UCE) 499cc single introduced across the range in 2008, retaining the classic 84mm bore, 90mm stroke, and heavy crank of the earlier pre-unit Electra, now fitted with electronic fuel injection for the first time. That reviewer found the new engine genuinely quicker off the line than the old carbureted model, with a touch more top-end pull, while still delivering the same lazy, unhurried character and classic push-rod exhaust note that's kept Enfield purists loyal for decades. Rubber strips between the cooling fins help quiet mechanical noise without dulling the bike's distinctive thump. Output sits around 27-28 hp at 5,200-5,250 rpm and 30.5 lb-ft of torque at 4,000 rpm, run through a 5-speed gearbox with a 7-plate wet clutch and left-foot gear change — a genuine step up from the old four-speed pre-unit design.

Distinguishing the Electra from its Classic sibling within the wider 2008-2016 UCE range: a nacelle-housed headlamp with integrated speedometer and ammeter, unique to the Bullet line, paired with a hand-painted pinstriped fuel tank and a traditional mudguard with subframe. Braking comes from a single front disc with dual-channel ABS on later units, paired with a rear disc or drum depending on market and year. The same platform spawned several notable siblings during this period — the Bullet Trials (alloy mudguards, wide bars, solo seat, enduro tires) and the Electra Sportsman (clip-ons and rear-sets for a café racer stance). Reliability across this generation was genuinely inconsistent, with contemporary reviews flagging patchy electrics as the most common owner complaint, though the simple mechanical layout made most issues straightforward to diagnose and fix at home. This version of the 500 Bullet went off sale in 2016, succeeded by a further-refined EFI update from 2017 meeting Euro 4 standards.

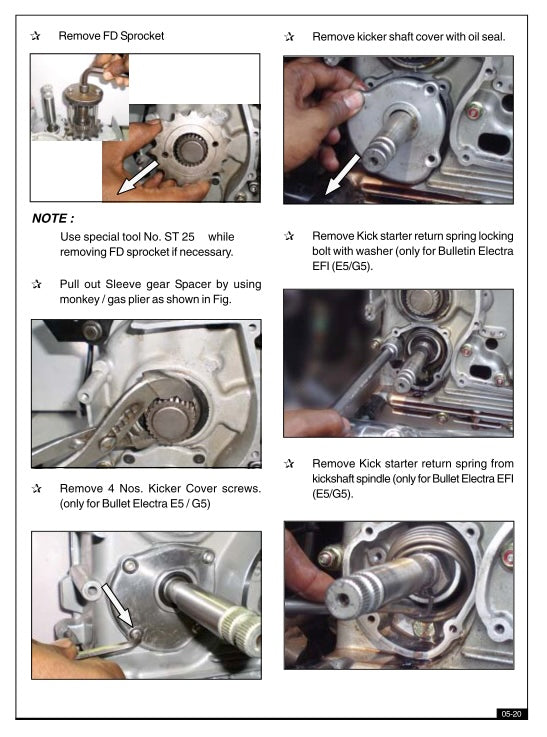

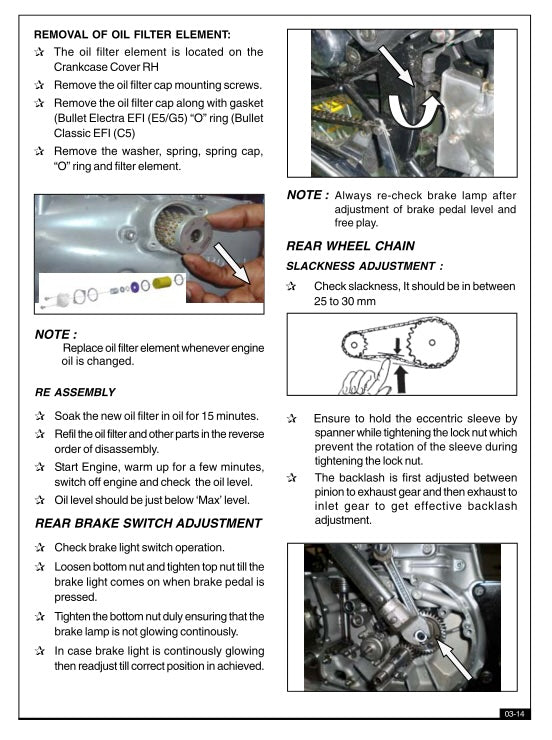

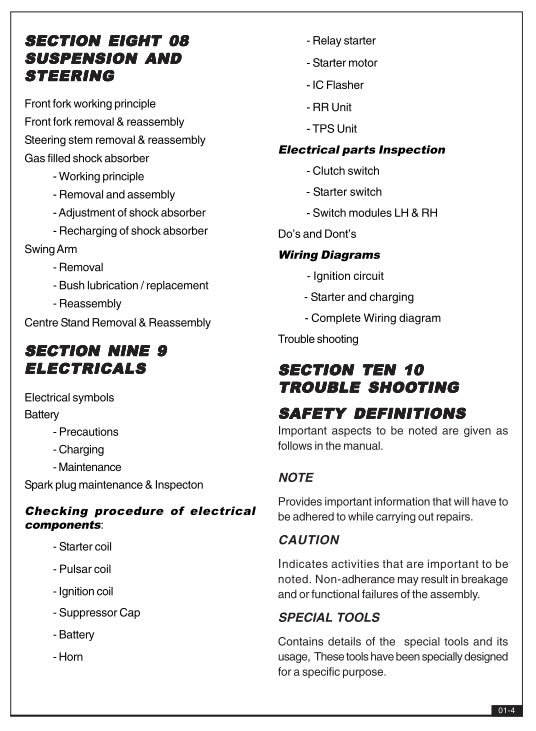

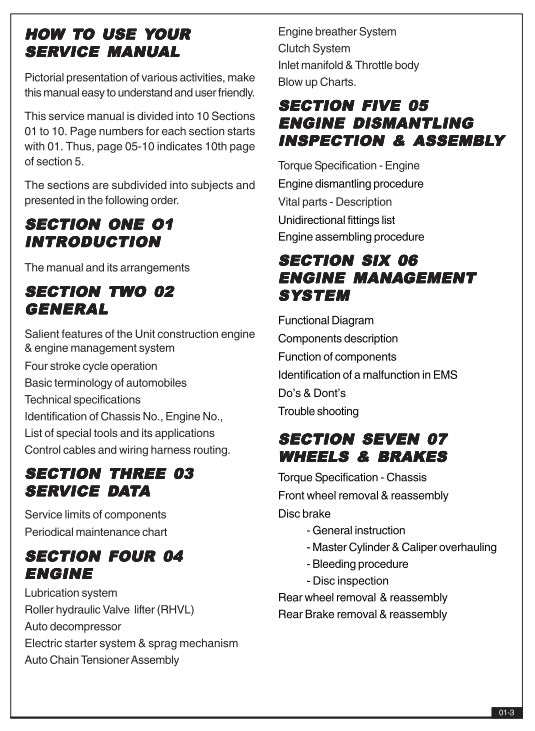

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2008-2016 Bullet Electra 500 EFI E5 running the way it was built to.
