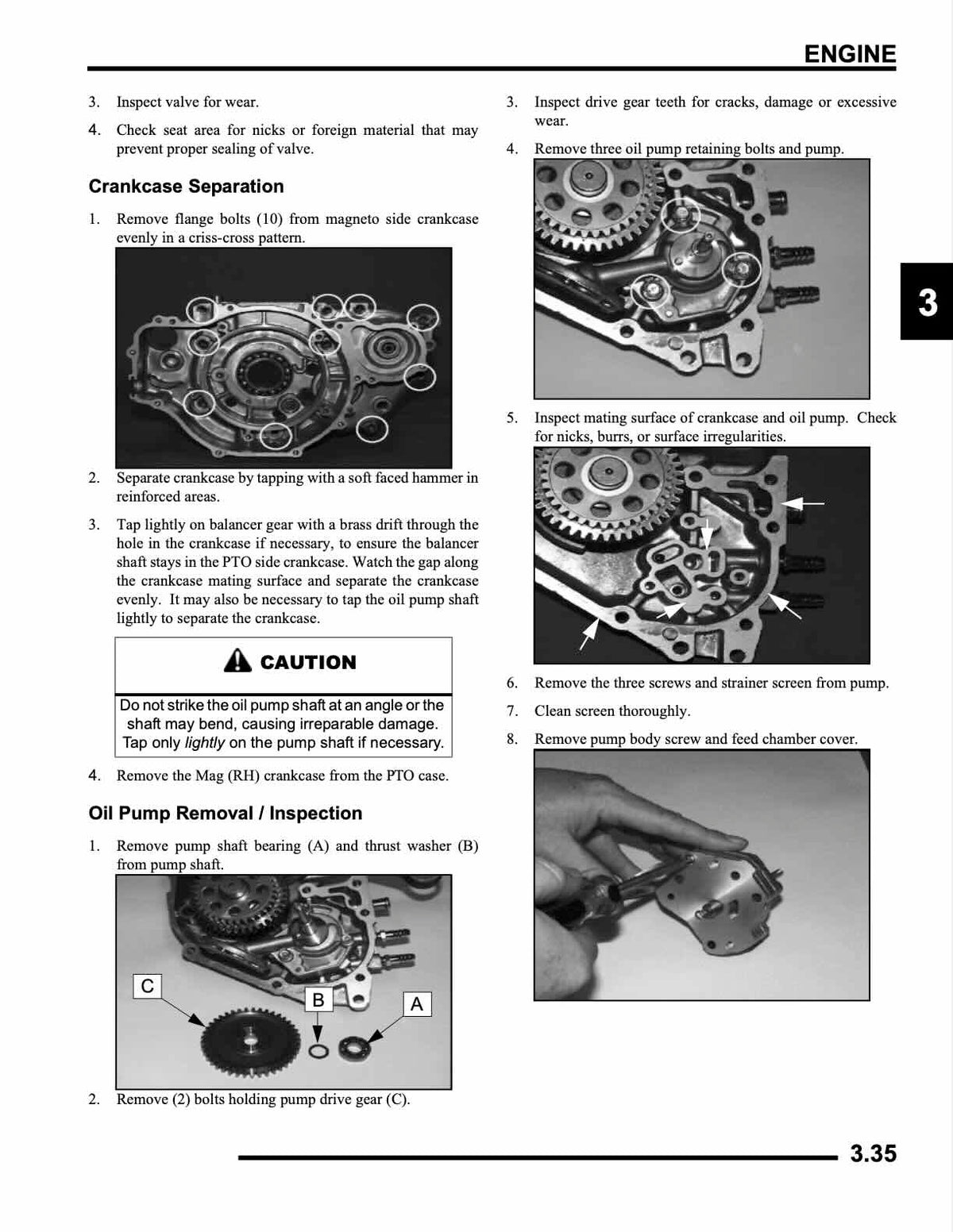

  • Polaris Ranger 500 service manual crankcase separation and oil pump removal procedures with magneto side flange bolt removal pattern diagram, pump bearing and thrust washer extraction, drive gear inspection, and pump disassembly steps with strainer screen and feed chamber cover removal

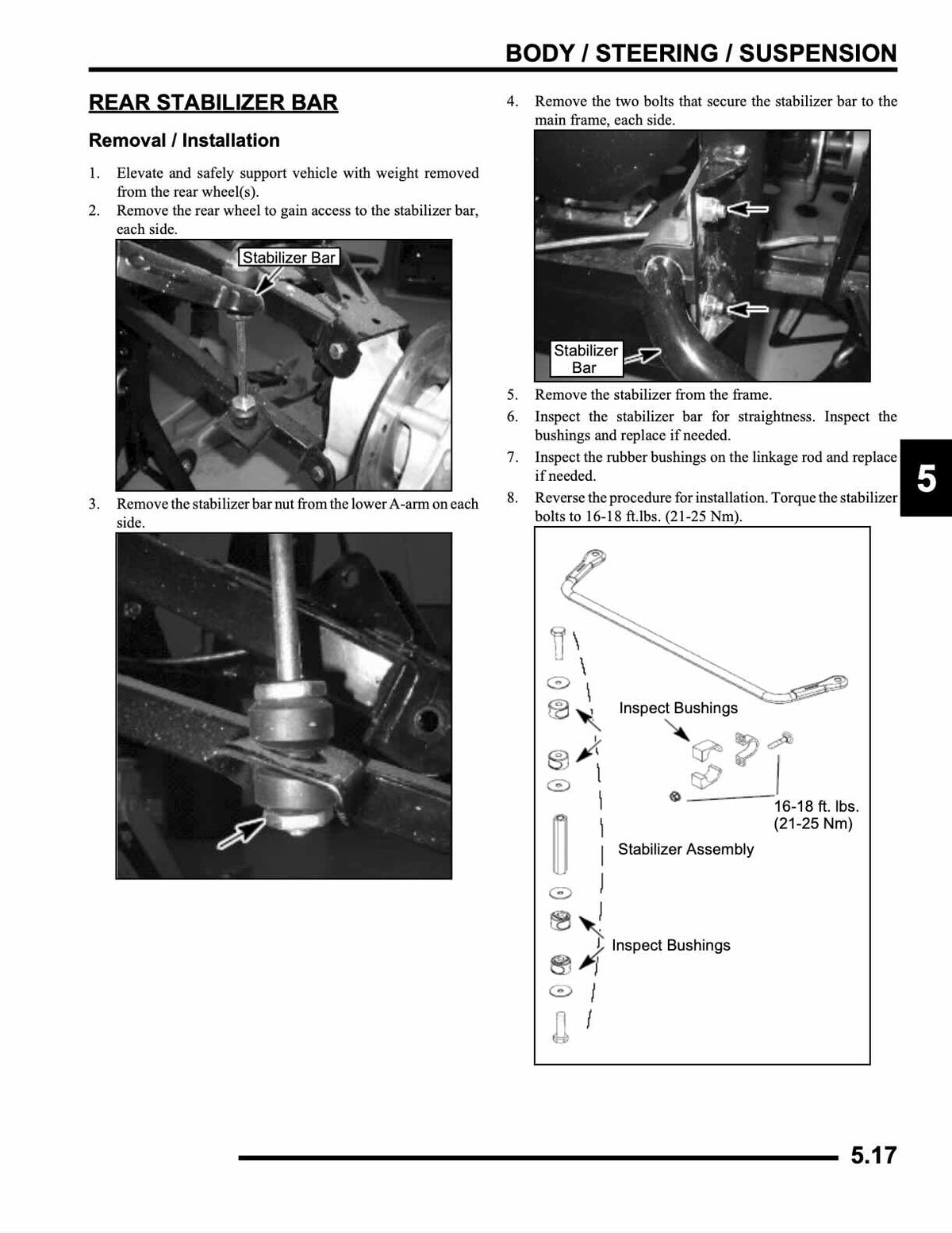

  • Polaris Ranger 500 service manual rear stabilizer bar removal and installation with frame attachment points, stabilizer assembly exploded diagram showing bushings and linkage rod, bushing inspection, and torque specifications 16-18 ft-lbs / 21-25 Nm
1 4

Dr. E Manuals

Polaris Ranger 500 2007-2011 Service Manual

Polaris Ranger 500 2007-2011 Service Manual

£10.95 GBP
£10.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

2007-2011 Polaris Ranger 500 Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 345 pages in English Language, it is the only manual you will require to maintain, repair and service your Polaris Ranger 500.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: general information, maintenance, engine, carburetion / efi, body / steering / suspension, clutching, final drive, transmission, brakes, electrical

Suits Models from 2007, 2008, 2009, 2010, 2011

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

Ranger 500 (2007-2011): Polaris’s Midsize Utility Vehicle with a 499cc Single and Fuel Injection

The Ranger 500 is Polaris’s midsize side-by-side. It’s small enough that one owner said it fits in the back of his truck, but it carries a bed load and tows like a full-size utility vehicle, and it offered a single-seater camo version. Versions sold in these years included the Ranger 500 2x4, the 4x4 (carbureted), the 4x4 EFI, the 2010 4x4 H.O. EFI and the 2011 Ranger 500 EFI, listed at $8,999. Fuel injection came in from 2006, and the carburetor versions had a different fuel system, so the carburetor and EFI manuals aren’t interchangeable.

Power comes from a 498cc liquid-cooled single-cylinder four-stroke with four valves per cylinder and pushrod-operated valves, making a claimed 32 hp (about 24 kW) on the 2011 EFI model. Fuel is injected on the EFI bikes. Drive is through Polaris’s Variable Transmission (PVT), a belt-driven CVT with Hi/Low range and reverse, and shaft drive to the wheels. Selectable 2WD and 4WD is available on the 4x4 versions.

Wheels are 12-inch steel, with 25 x 10-12 front and 25 x 11-12 rear tires on the 2011 bike. The front has hydraulic disc brakes and strut suspension. Confirmed figures list a 2,740mm (108-inch) length, a 1,440mm (57-inch) width, a 1,829mm (72-inch) wheelbase and a 34-litre (9-gallon) fuel tank. Dry weight is about 479 kg (1,056 lbs), and the bed holds 500 lbs (226.8 kg).

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Polaris Ranger 500 running the way it was built to.
