Piaggio Medley 150 2016-2019 Service Manual
Piaggio Medley 150 2016-2019 Service Manual
Couldn't load pickup availability
2016-2019 Piaggio Medley 150 Service / Repair / Workshop Manual
Instant download after purchase, in PDF form, NOT a physical book.
This manual contains 370 pages in English Language, it is the only manual you will require to maintain, repair and service your Piaggio Medley 150.

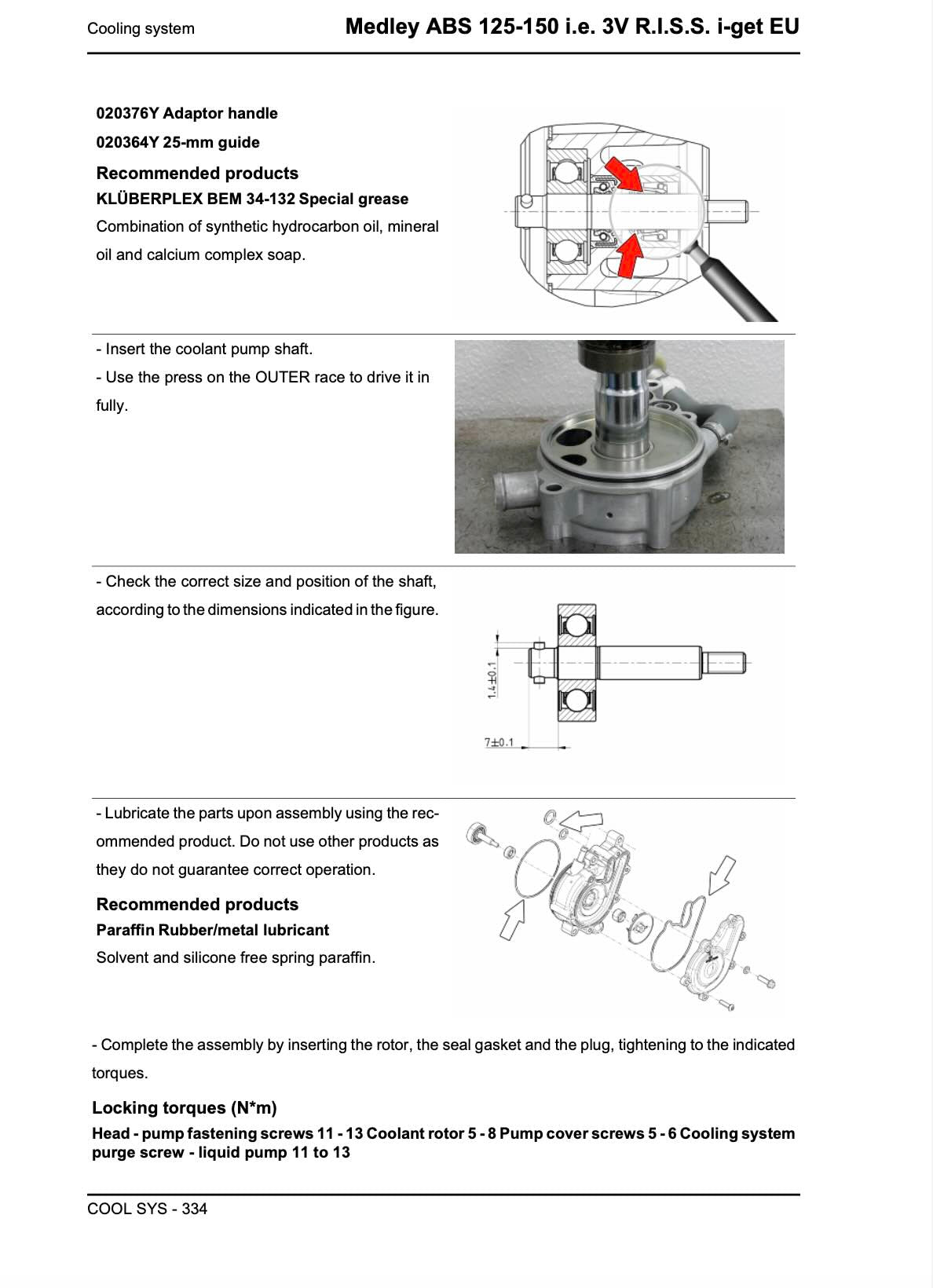

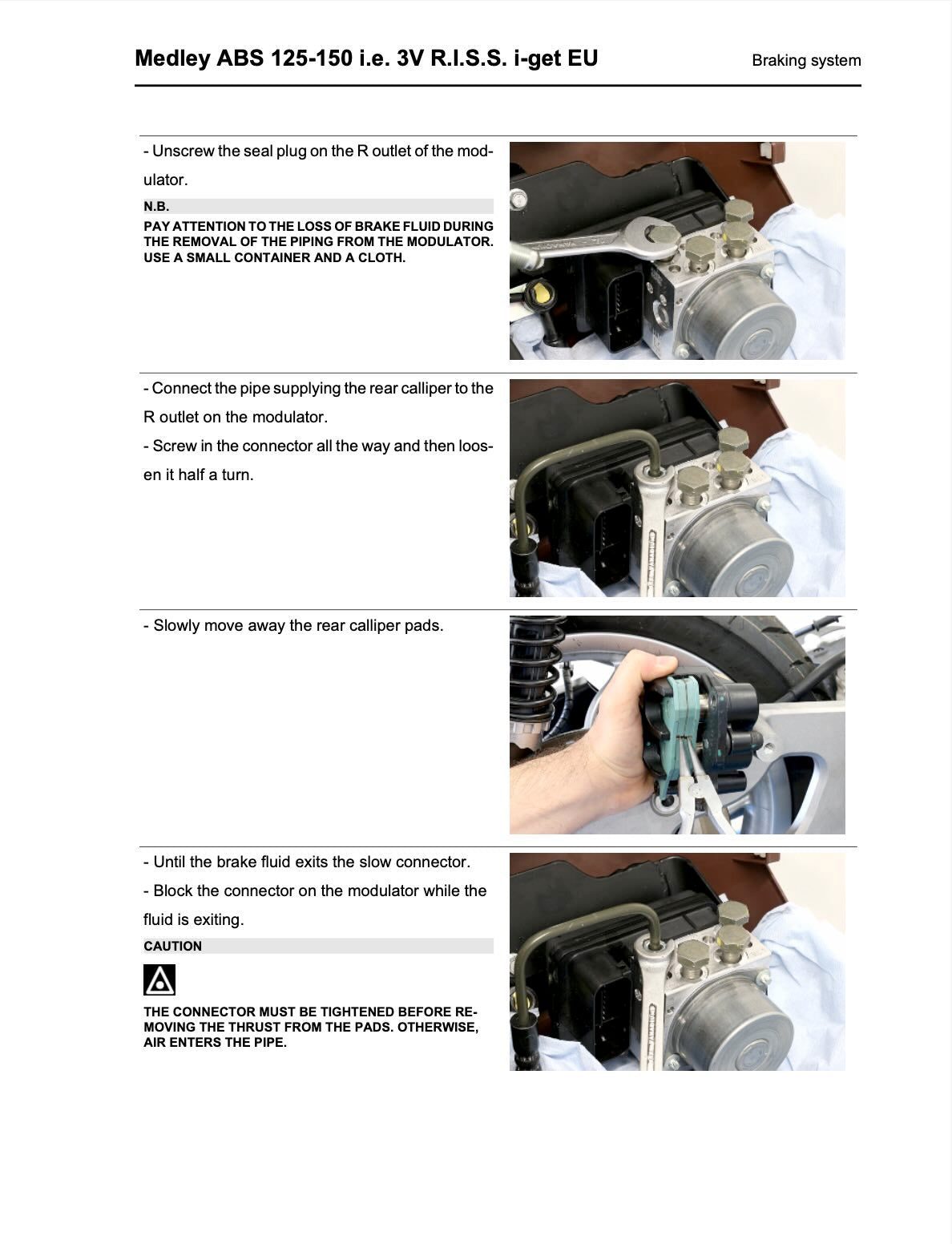

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.
Features Chapters: pre-delivery, technical data, tooling, maintenance, troubleshooting, electrical system, engine from vehicle, engine, injection, suspensions, braking system, cooling system, chassis
Suits Models from 2016, 2017, 2018, 2019
If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.
Share
Medley 150 (2016-2019): Piaggio's Larger-Displacement Sibling to the 125, Built With the Same Big-Wheel, High-Storage Formula
The Medley 150 shares its fundamental chassis and equipment package with the smaller 125, differing mainly in displacement. Power comes from a 155cc liquid-cooled i-GET single, fuel-injected with 4 valves, delivering a claimed 14.75-14.8 hp at 7,750 rpm and roughly 14.4 Nm (10.6 lb-ft) of torque at 6,400 rpm through a CVT automatic transmission. Real-world testing found the engine character genuinely refined, with minimal vibration even at highway speeds, though acceleration is deliberately smooth rather than punchy — 0-60 km/h arrives in a leisurely 8-9 seconds, with the CVT keeping power delivery seamless in stop-and-go traffic.
Fuel economy is a genuine strength: Piaggio's own claim of 2.28L/100km (103mpg) translates to roughly 90-98mpg in real-world use, giving a 7-litre tank a real-world range around 250-280km (155-174 miles) between fill-ups. Real owners in Australia have reported one genuine limitation worth knowing before buying — top speed caps out around 100-110kph even on longer stretches, which some owners upgrading from an older 150cc machine found disappointing.
The chassis uses a single-cradle tubular steel frame with a hydraulic telescopic fork up front and dual shock absorbers at the rear, riding on 110/80-16 front and 110/80-14 rear tires. Standard equipment includes two-channel ABS, Start & Stop technology, LED lighting, and genuinely generous under-seat storage capacity — a real selling point Piaggio marketed as class-leading cargo space for a scooter of this size.
Confirmed dimensions list a 2,020mm overall length, 799mm (31.5-inch) seat height, and Euro 4 emissions compliance across this exact 2016-2019 range. A Special Edition trim was offered alongside the standard model within this same span, sharing identical mechanicals with distinct cosmetic finishing. This configuration ran before Piaggio's subsequent Euro5-driven update to the platform.
This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2016-2019 Medley 150 running the way it was built to.
-
