New Holland Workmaster 50 60 70 Service Manual

New Holland's own marketing doesn't hide the nostalgia angle: "New Holland salutes a generation of doers by introducing a new line of tractors with a familiar name — WORKMASTER. Popular in the 1960s, the original WORKMASTER models were known for their dependability and value. Today, it's no different." Launched in 2015 as a genuine three-model utility series, the modern Workmaster line borrows a proven nameplate and applies it to a purpose-built, mid-size tractor family aimed at municipalities, landscapers, grounds crews, and ag lifestylers rather than large-scale row-crop farming.

Power comes from an FPT R753 three-cylinder turbocharged diesel engine, delivering 53, 60, or 70 gross horsepower depending on model, with the Workmaster 70 specifically rated at 70 hp (52.2 kW) engine output and 62 hp (46.3 kW) at the PTO. New Holland's own product literature describes indirect mechanical fuel injection across the range for quick throttle response and smooth, fuel-efficient operation, backed by timed glow plugs for genuinely easy cold-morning starts. Every model meets Tier 4B final emissions standards through an automatic system requiring no extra fluids or operator intervention — a real practical advantage over diesel particulate filter setups that demand active regeneration cycles.

All three models share the same 8x8 synchronized shuttle transmission, letting operators flip smoothly between forward and reverse without clutching through a full gear change — genuinely useful for repetitive loader work or mowing that involves constant direction changes. The Workmaster 70 4WD delivers a substantial 3,307 lb three-point lift capacity, backed by New Holland's own description of "a hydraulic system tailored for efficiency" built for demanding loader work and rigorous three-point implement tasks. Standard equipment across the range includes a foldable ROPS, a one-piece fold-up strut hood for easy daily maintenance access (engine oil check and filter both reachable without tools), position control and draft-sensing hydraulics with a single control lever, and a standard 7-pin implement power outlet. Buyers can choose between 2WD and 4WD configurations across all three horsepower ratings, with 4WD models offering an available front differential lock and limited-slip front axle for genuinely improved traction in slippery or challenging field conditions.

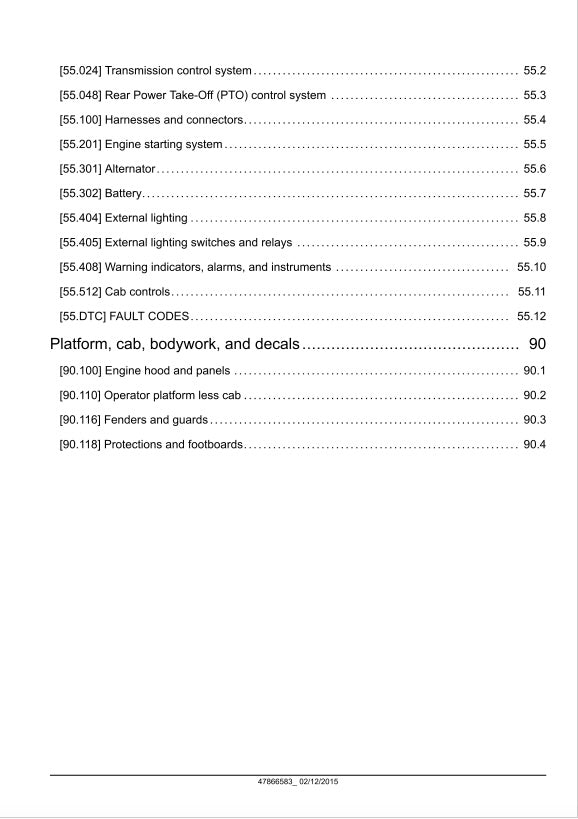

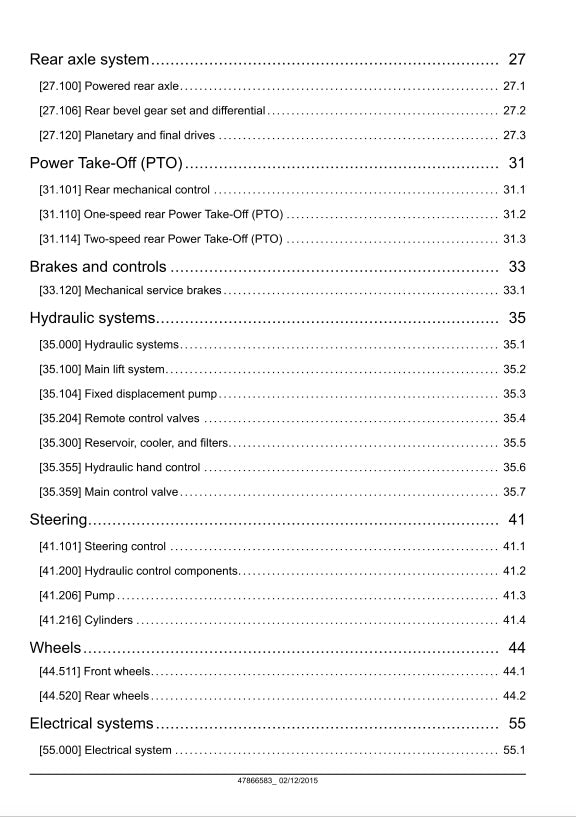

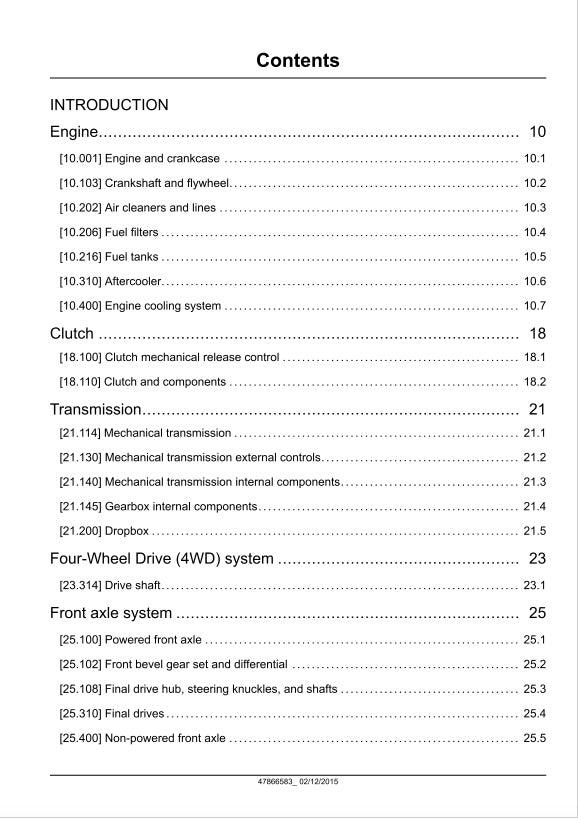

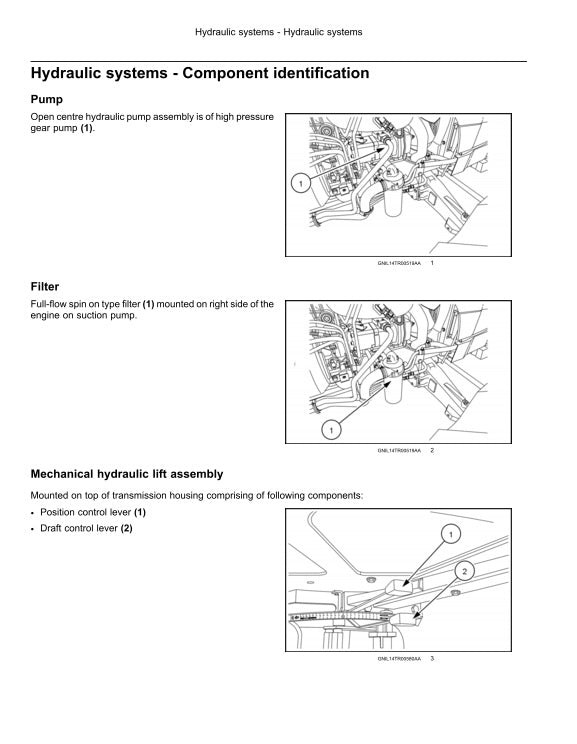

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Workmaster 50/60/70 running the way it was built to.
