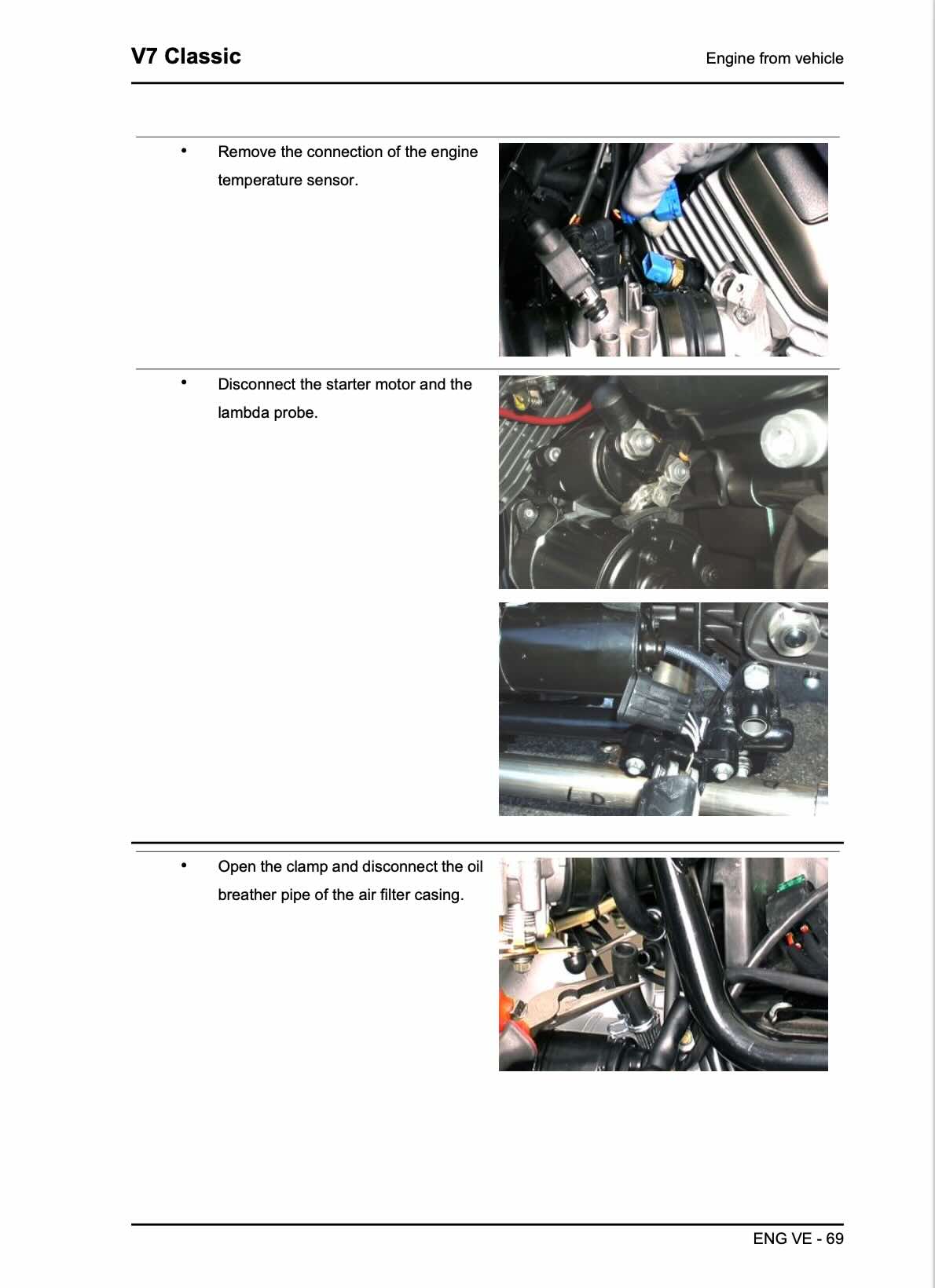

  • Moto Guzzi V7 Classic service manual page ENG VE-69 engine removal procedures showing engine temperature sensor connector disconnect, starter motor and lambda probe disconnection, and oil breather pipe clamp release from air filter casing with step-by-step hand procedure photos

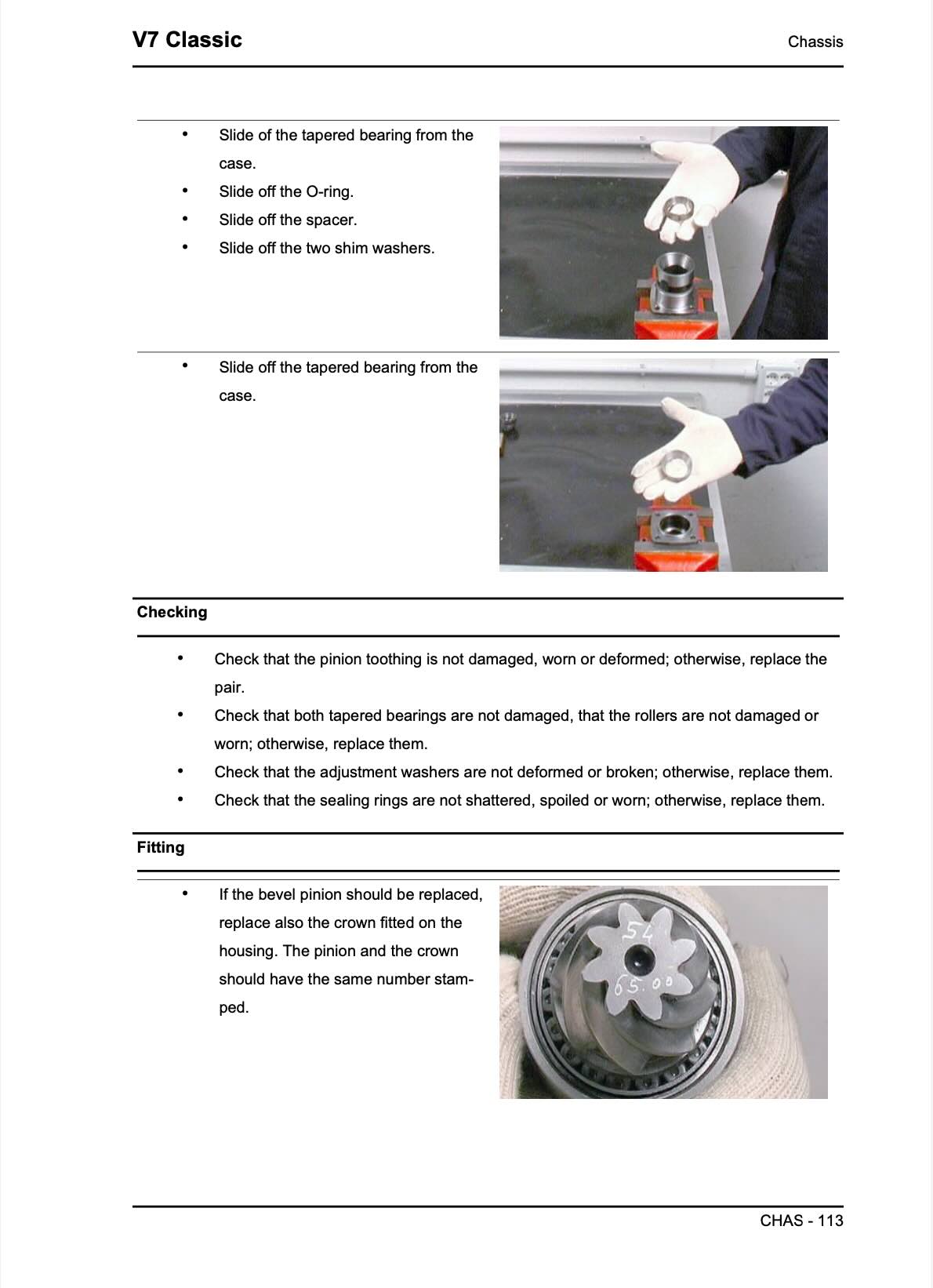

  • Moto Guzzi V7 Classic service manual page CHAS-113 chassis with tapered bearing removal sequence showing bearing slide-off from case, O-ring removal, spacer removal, and shim washer removal procedures with hand technique photos, bearing and pinion inspection checklist for damage and wear, bevel pinion and crown gear replacement with matching number stamp verification photo
1 4

Dr. E Manuals

Moto Guzzi V7 Classic 2008-2013 Service Manual

Moto Guzzi V7 Classic 2008-2013 Service Manual

£11.95 GBP
£11.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

2008-2013 Moto Guzzi V7 Classic Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 157 pages in English Language, it is the only manual you will require to maintain, repair and service your 2008-2013 Moto Guzzi V7 Classic.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: characteristics, special tools, maintenance, electrical system, engine from vehicle, engine, power supply, suspensions, chassis, braking system, bodywork, pre-delivery

Suits Models from 2008, 2009, 2010, 2011, 2012, 2013

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

V7 Classic (2008-2013): Moto Guzzi's Tribute to the 1967 V7, and the Bike That Became Its Best Seller

Moto Guzzi launched the V7 Classic as a tribute to the original 1967 V7, the first Italian maxi motorcycle, created by Giulio Cesare Carcano with a transverse 90-degree V-twin. Retro stylists say few manufacturers do retro as well. The tank keeps the sculpted shape of the V7 Special launched in 1969, and the narrow bike mimics the compact dimensions of the original, with classic spoked-wheel styling. It went on to become Moto Guzzi's best-selling model from 2009.

Power comes from the air-cooled 744cc 90-degree V-twin, with pushrod-operated overhead valves, two valves per cylinder and an 80mm x 74mm bore and stroke. It has special low-wear graphite pistons and aluminium alloy cylinders. Claimed output was 48 hp on the 2008 bike and about 49 hp at 6,800 rpm on later years, with about 58 Nm (43 lb-ft) of torque at 3,200 rpm. Fuel is injected, and the gearbox is a 5-speed with a dry clutch and shaft final drive. Moto Guzzi says it's known for reliability and low consumption, and the five-speed shifts best if it isn't rushed.

The chassis is a double-cradle steel frame with Marzocchi suspension. Brakes are a four-piston Brembo caliper at the front and a two-piston Brembo disc at the rear. Tires are a 110/90-18 front and a 130/80-17 rear.

Confirmed figures list a 1,435mm (56.5-inch) wheelbase, a 2,185mm length, an 800mm width and a 1,115mm height. Seat height is 805mm (31.7 inches), and the tank holds 17 litres (4.5 gallons). Weight rose across the run, from about 182 kg dry in 2008 to about 198 kg by 2012-2013. Top speed is about 120 mph. The sibling Café Classic arrived in 2009. The V7 Classic's five-speed, ABS-free layout carried on until the V7 II brought a six-speed gearbox in 2015.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2008-2013 V7 Classic running the way it was built to.
