Mercury 115HP EFI Outboard 4 Stroke 2001 Onwards Service Manual

BoatTEST's own engine review makes the pedigree plain: the Mercury 115 EFI shares its 1.7-litre block and powerhead with the 200-hp supercharged Verado — the same heavy-duty castings and internals, just without the supercharger bolted on. That shared architecture means the 115's bottom end was engineered to handle nearly double the power output it's actually tuned to deliver, a genuine durability margin most outboards in this class simply don't have.

The Fisherman's own launch coverage frames the 115 as the largest of a next-generation trio of lightweight 2.1-litre four-strokes (alongside 75hp and 90hp siblings), calling it "like a top middleweight boxer" — genuinely powerful for its size. At 359-399 lbs depending on shaft length and gearcase, it's lighter than any four-stroke rival in its class and only marginally heavier than the lightest two-stroke outboards, while running an 8-valve SOHC inline-four with a 3.5-inch bore and 3.2-inch stroke. Real-world factory testing on a Carolina Skiff 218 DLV recorded a 43.2 mph top speed at 6,000 rpm and 5.4 mpg at optimum cruise, with 27.1 mph achievable at 4,000 rpm.

BoatTEST's review highlights genuine long-term ownership advantages built into the design: the same shim-free, maintenance-free valve architecture used on the Verado family means no valve adjustments for the life of the engine, while Mercury's specialized metal alloys and hard-anodizing coating back a limited 3-year corrosion-failure warranty — a genuinely unusual guarantee that few competitors offer for saltwater use. A 35-amp/441-watt alternator with a water-cooled voltage regulator keeps electronics powered reliably, and the lineup spans standard and Command Thrust gearcase configurations across 20-inch and 25-inch shaft lengths, with a high-performance Pro XS variant adding a tuned scroll intake manifold and SmartCraft digital ignition for buyers prioritizing top-end speed. Mercury backs the 115 with a 3-year factory warranty.

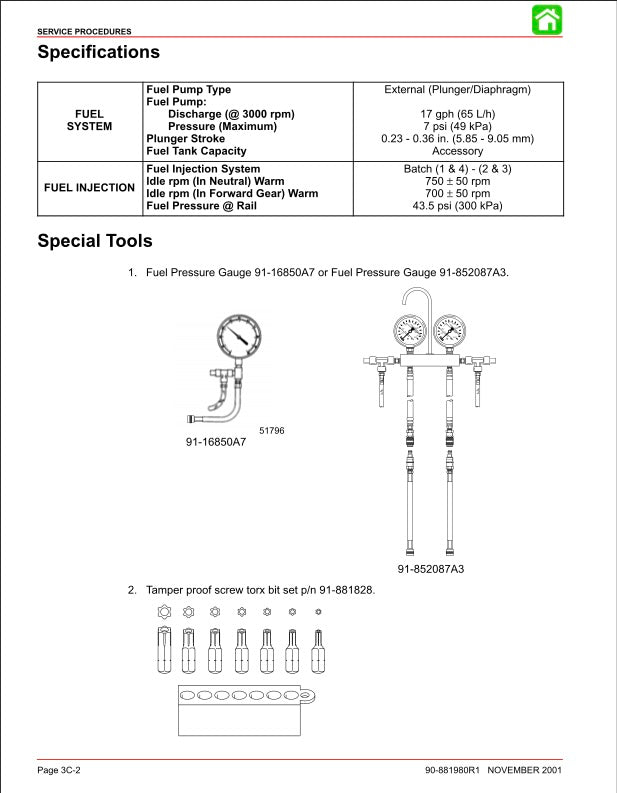

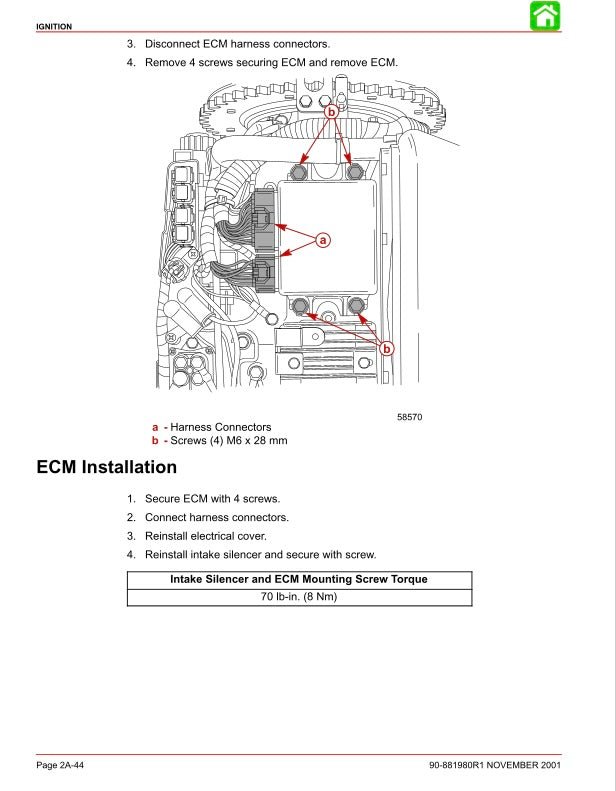

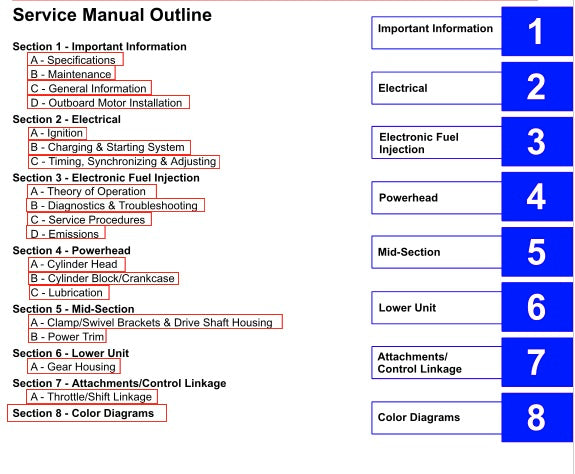

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Mercury 115 FourStroke EFI outboard running the way it was built to.
