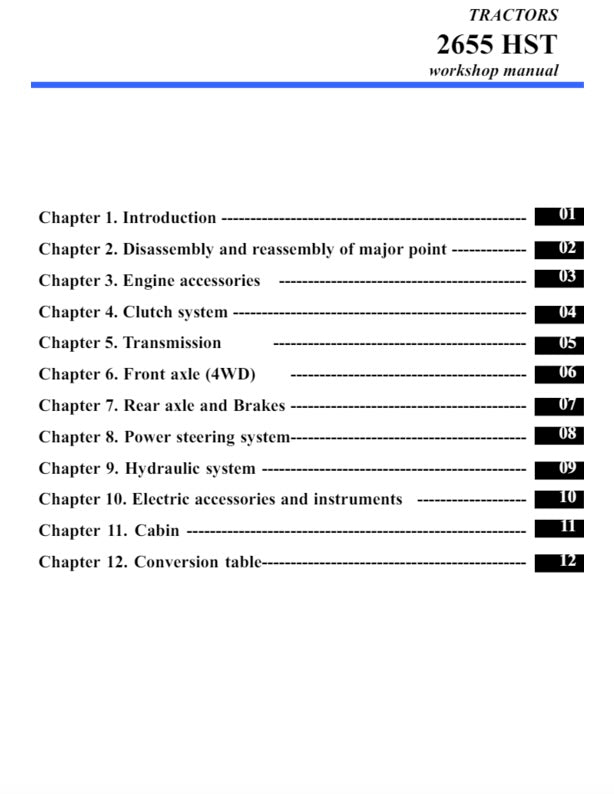

  • Table of contents for a tractor workshop manual titled '2655 HST'.

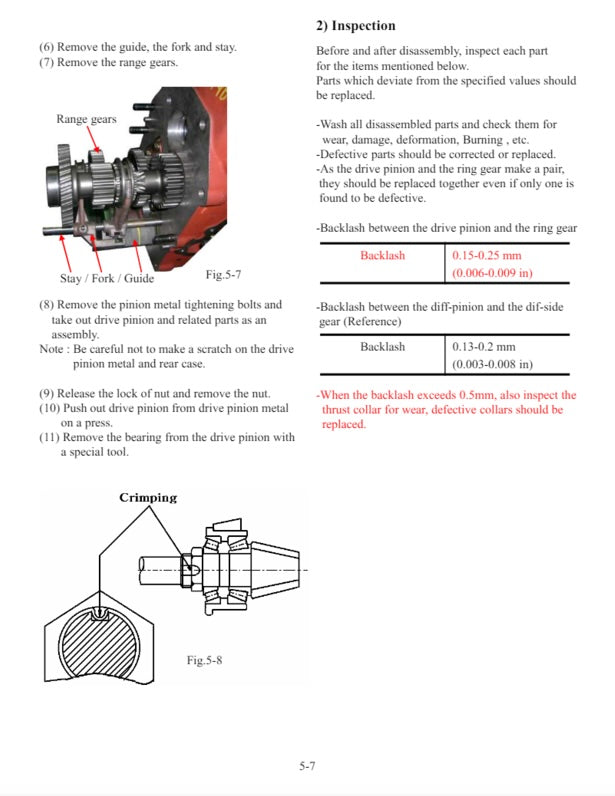

  • Technical diagram and instructions for inspecting and disassembling mechanical components, likely from a repair manual.

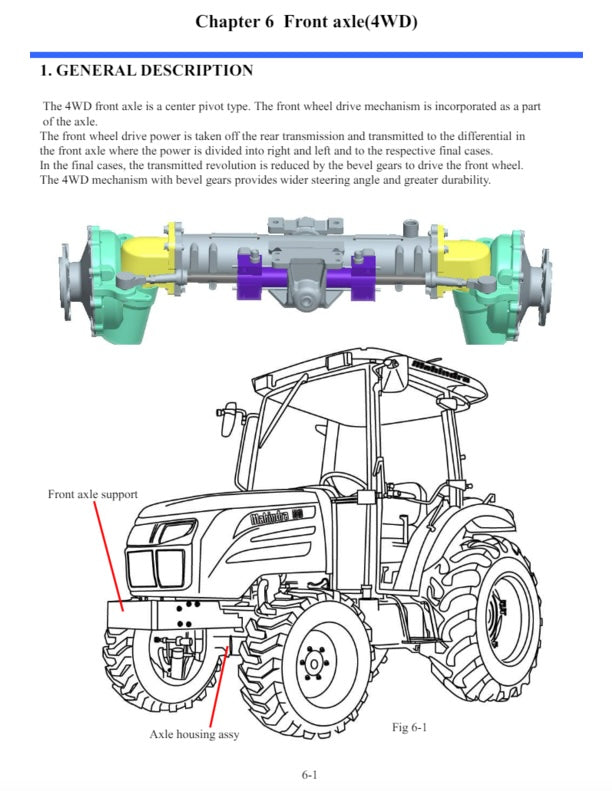

  • Technical diagram of a front axle system on a vehicle with labeled parts.
1 6

Dr. E Manuals

Mahindra 2655 HST Tractor Service Manual

Mahindra 2655 HST Tractor Service Manual

£8.95 GBP
£8.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Mahindra 2655 HST Tractor Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This service manual contains 267 pages in English Language, it is the only manual you will require to maintain, repair and service your Mahindra 2655 HST Tractor, using this manual you ensure that your tractor is repaired to manufacturer standards / specification, whether you are using OEM or genuine Mahindra Parts.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Features Chapters: Introduction, Disassembly and Reassembly of Major Points, Engine Accessories, Clutch System, Transmission, Front Axle (4WD), Rear Axle and Brakes, Power Steering System, Hydraulic System, Electric Accessories and Instruments, Cabin, Conversion Table.

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

2655 HST (2018-2020): The Compact Tractor With the Industry's Biggest Displacement Engine

Mahindra's own dealer literature makes a specific, verifiable claim: the 2655 HST features "the largest displacement engine in the industry" for its horsepower class — a genuine engineering choice, not just a spec-sheet flex. Part of the 2600 Series sitting between the smaller 2645 and larger 2665, the 2655 pairs that big-displacement approach with Mahindra's mCRD fuel-efficient technology to deliver more horsepower at lower rpm than comparable competitors, translating to reduced fuel consumption, cooler running temperatures, and longer engine life.

Power comes from a 4-cycle, three-cylinder turbocharged and intercooled diesel engine, displacing 2.62 litres (161.5 cubic inches) via a 96.0mm bore and 122.0mm stroke, with a 17.2:1 compression ratio delivering a rated 55 hp at 2,300 rpm and 44.5 PTO horsepower. Maximum torque comes in at 201 Nm (149 lb-ft) at 1,500 rpm, run through direct injection fuel delivery with a mechanical governor. The infinitely variable HST (hydrostatic) transmission offers three speed ranges with a dry-type single clutch, giving operators smooth, pedal-controlled speed adjustment rather than manual gear shifting — genuinely useful for repetitive loader or PTO work.

Standard equipment includes wet disc brakes, hydrostatic power steering, and a 12V/96Ah electrical system with mobile charging capability. The Cab trim adds a fully enclosed, climate-controlled interior with Bluetooth radio, large dual-side access doors, and Mahindra's mCOMFORT seat featuring extra cushioning, lower back support, and full suspension adjustment — genuinely upscale amenities for a compact utility tractor. Reinforced steel side panels and hood, a curved boom for improved visibility, and foldable ROPS with seat belt (on open-station models) round out the safety and durability package. Optional attachments include the Mahindra 65B backhoe, with a documented lift capacity of 3,120 lbs to full height and 5,225 lbs of breakout force at the pin. The 2655 HST is backed by Mahindra's notable 7-year, 3,000-hour powertrain warranty with no deductible.
