Kubota SVL95 2S Compact Track Loader Service Manual

Messicks' own overview is candid about how evolutionary this exact model genuinely is: "this machine is replacing the old SVL90. Really could almost be an SVL90-3 for the most part because there's not a whole lot of changes compared to the old series. This is more of an evolution over the old models. The original one of this came out was as SPL90 followed by a 90-2 with some emissions updates and now this machine goes to tier four final as well and really is the end of the emissions updating process."

Power comes from a Kubota V3800-TIEF4, a 230 cu.in (3.8L) vertical four-cylinder turbocharged diesel meeting Tier 4 Final standards with EGR, DPF, and SCR technologies, delivering a rated 87-96.4 hp depending on measurement standard, run through a 2-speed hydro transmission. Messicks' own account confirms the genuine emissions consequence of that Tier 4 Final compliance: "it does require DEF fluid in order to meet emission requirements, so you'll see a little blue tank on the back."

Landscape Management's own coverage confirms a genuine hydraulic system upgrade beyond just the engine update: five-way adjustable optional high-flow hydraulics that quickly match flow requirements to whatever attachment is connected, delivering up to 40 gpm at 3,553 psi. Messicks' own testing found the real-world benefit of Kubota's Closed Center System genuinely noticeable in the seat, even if it wouldn't show up on a spec sheet: "when you start doing those multiple functions, driving and lifting or operating something on your auxiliary couplers, you won't be losing flow and losing performance in different areas... something that won't show up on a spec sheet but when you're in the seat and you're comparing machine side by side, it's definitely something that you can pick up on."

Skid Steer Loader Specs' own confirmed dimensions list a vertical-lift boom reaching 128.5 inches to the hinge pin, a rated operating capacity of 3,200 lbs (35% tipping) or 4,570 lbs (50% tipping), a 9,140-lb tipping load, and 7,960 lbs of bucket breakout force. Landscape Management's own coverage confirms genuine cab upgrades for operator comfort accompanied this update as well.

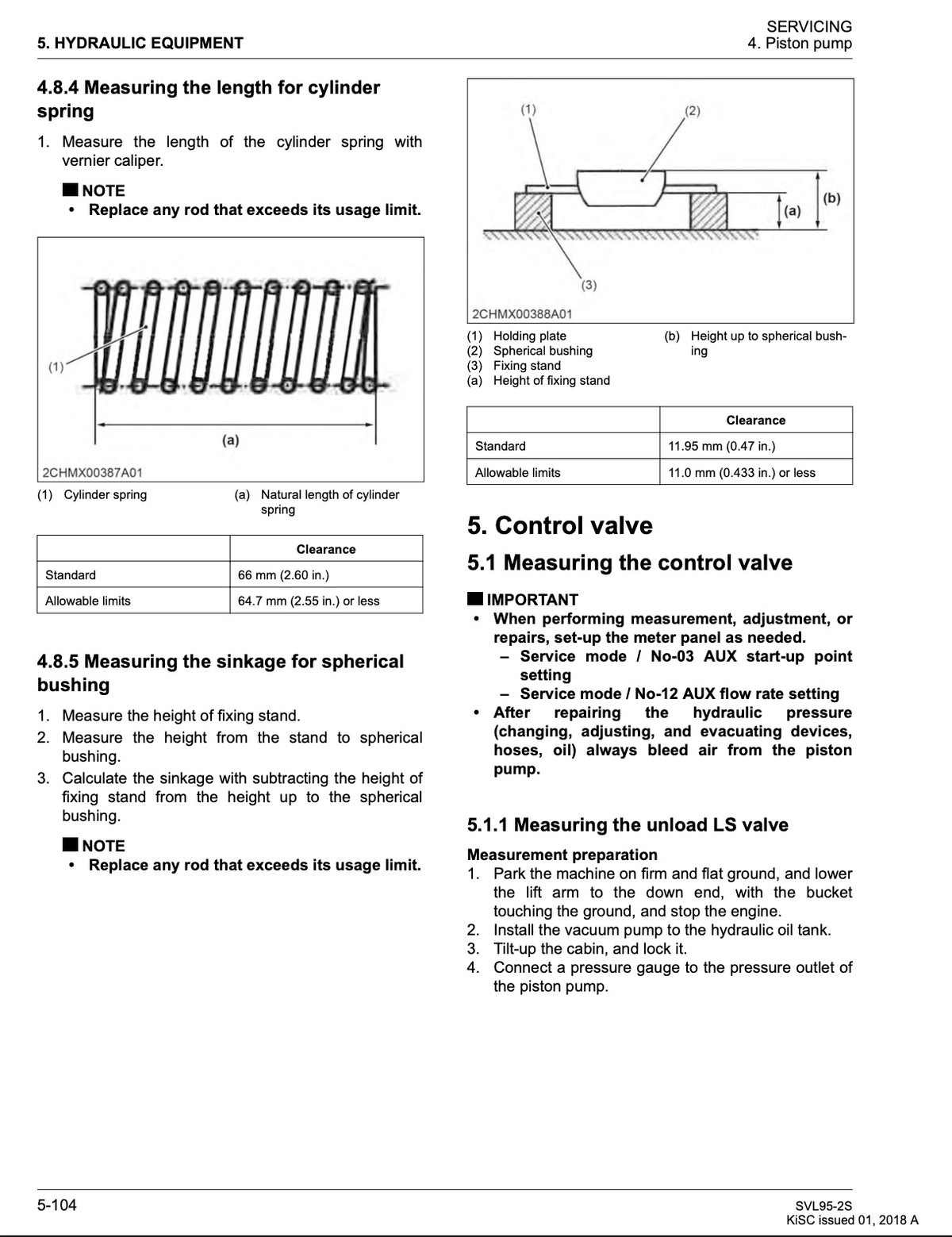

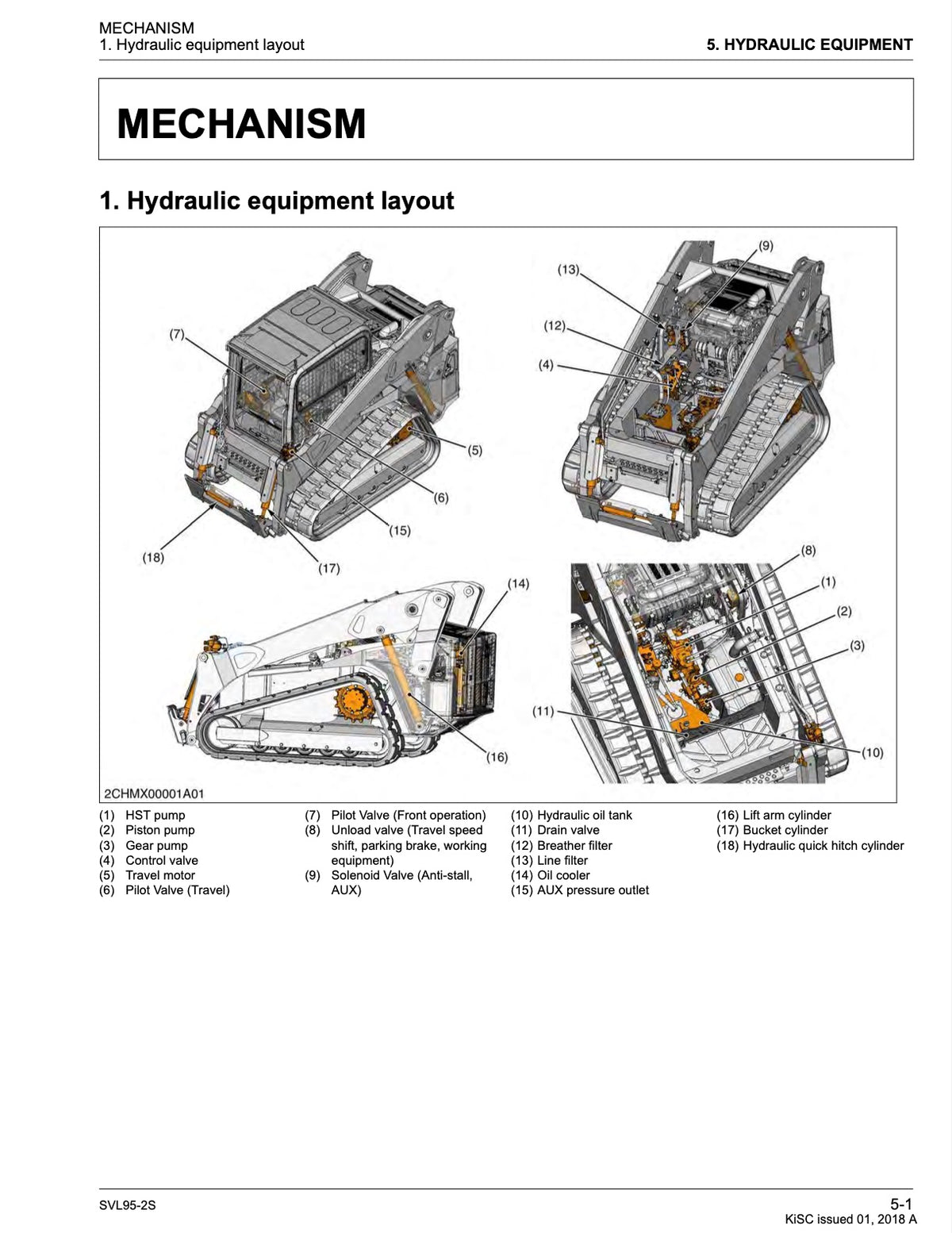

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a Kubota SVL95-2S compact track loader running the way it was built to.
