KTM 990 Adventure 2006-2012 Service Manual

Rider Magazine's own retrospective traces the lineage plainly: the Adventure began in 2003 as a 942cc machine, but "engineers being what they are — restless when idle," KTM bumped displacement to 999cc for 2006, revised the cams, and replaced the original carbureted setup with fuel injection. ADV Pulse's own history frames the deeper significance: the 950/990 platform was essentially "a legalized rally bike capable of never before seen performance off-road," directly descended from the KTM 950 Rally that raced (and won) the Dakar before being banned on safety grounds — Fabrizio Meoni took a Dakar win on a prototype in 2002, cementing the platform's off-road pedigree before it ever reached showrooms.

Power comes from the LC8, a liquid-cooled 999cc 75-degree V-twin, DOHC with 4 valves per cylinder, delivering a claimed 98-105 hp at 8,250 rpm and 71-74 lb-ft of torque at 6,000-6,500 rpm through a 6-speed transmission with chain final drive. Bennetts' own buying guide traces the mid-cycle refinement: 2009 brought an updated engine (now making 106 hp), with the "S" designation renamed "R" and gaining a more powerful 116 hp variant alongside genuine suspension upgrades — that reworked crank, per MCN's review, took "the edge off" the earlier engine's vibey crudeness, leaving a "punchy motor with a typical V-twin lumpy but involving delivery," genuinely well-suited to both back-road playing and loaded, two-up touring.

A powder-coated chromoly steel trellis frame uses the engine as a stressed member, paired with a 48mm WP upside-down fork offering 210mm of travel and a WP PDS monoshock with hydraulic preload adjustment at the rear, delivering the same 210mm — genuinely long-travel, off-road-capable suspension for a full-size adventure bike. Braking uses dual 300mm floating front discs with Brembo calipers and a 240mm rear disc, with optional two-channel ABS on the standard model (the R and, later, S variants ran without ABS for genuine off-road use). ADV Pulse's buying guide flags a well-known weak point worth checking on any used example: clutch slave cylinder seal failures, along with the platform's dry-sump oil system requiring a different, non-intuitive checking technique than a conventional wet-sump bike. This generation ran through 2012 (with a 2011 Dakar Edition variant carrying the higher-spec R engine into the standard Adventure) before the all-new 1190 Adventure replaced the platform entirely for 2013.

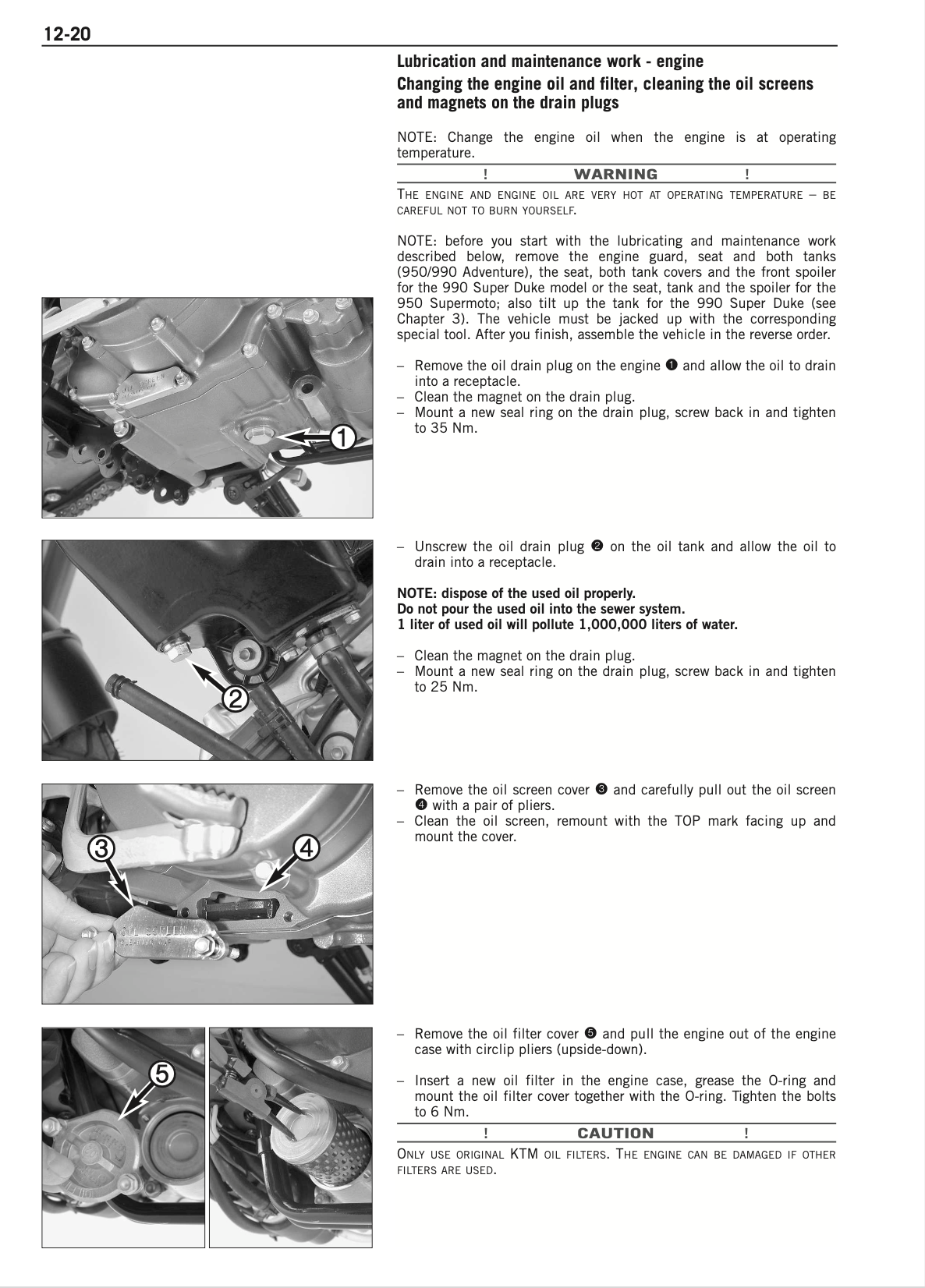

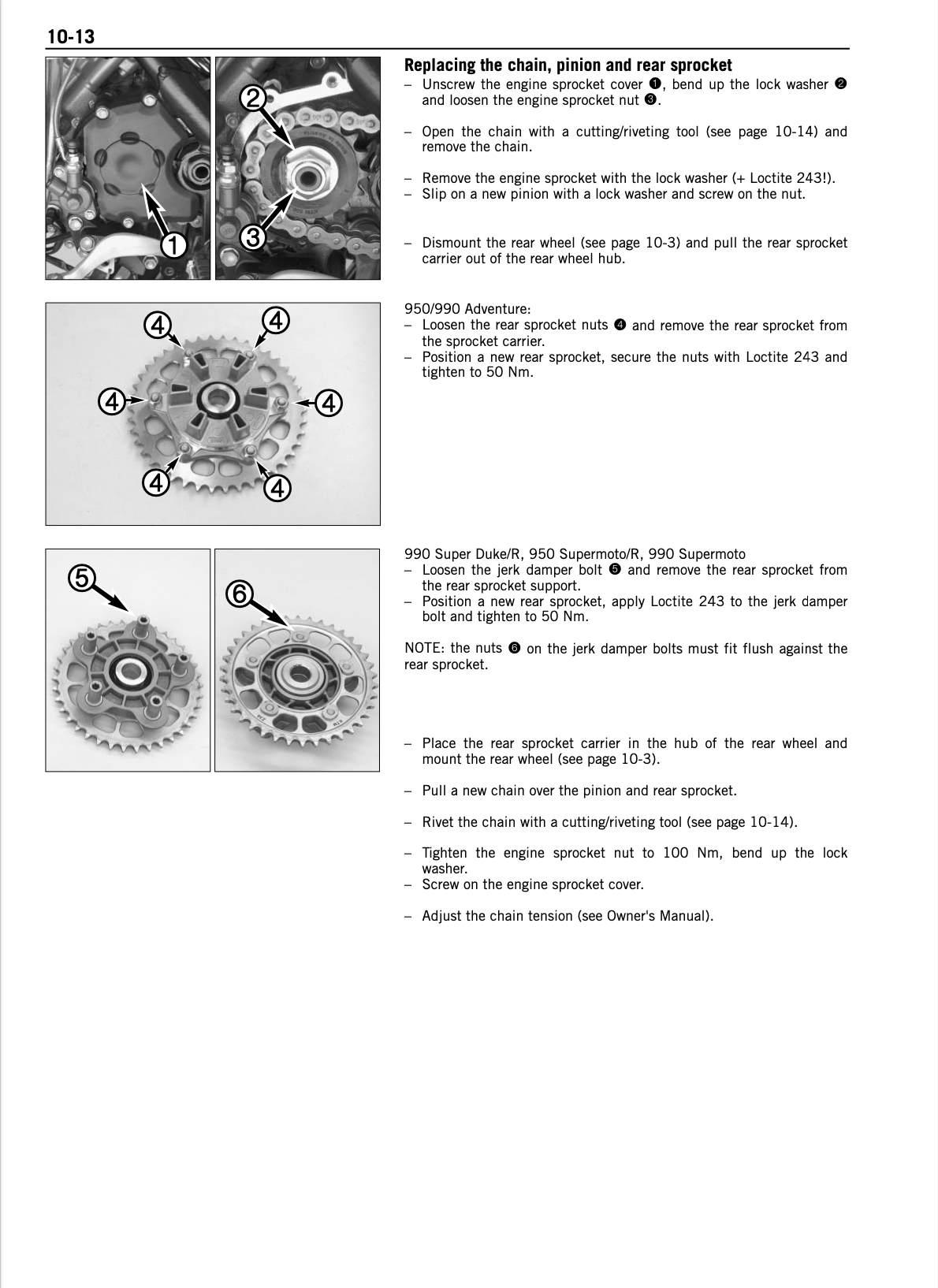

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2006-2012 990 Adventure running the way it was built to.
