KTM 950 Adventure 2003-2006 Service Manual

Rider Magazine's own retrospective traces the platform's genuine origin story: the Adventure began in 2003, powered by a liquid-cooled 942cc V-twin with dual overhead cams and cylinders set at a 75-degree angle — a "short, narrow engine" that "pumped out a twitch of the dyno needle more than 100 horsepower, plenty sufficient to blast through the boonies or gobble up miles of Interstate travel effortlessly." ADV Pulse's own history frames the deeper significance: this was essentially "a legalized rally bike," directly descended from the KTM 950 Rally that competed at Dakar before that class of large-displacement twin was banned from the event on safety grounds.

Power comes from the LC8, a 942cc liquid-cooled 75-degree V-twin, DOHC, with an 11.5:1 compression ratio via a 100mm x 60mm bore and stroke, delivering a claimed 102 hp at 8,000 rpm and roughly 72 lb-ft of torque at 6,000 rpm through a 6-speed transmission with Denso CDI ignition. Top speed reached a genuine 215 km/h (134 mph) — startling numbers for a tall, off-road-capable adventure bike of this era. The standard 950 Adventure and its more track-oriented "S" sibling shared this same fundamental engine and chassis architecture, with the S trim distinguishing itself through suspension and equipment differences rather than a different powerplant.

The chassis uses an open cradle frame built from chrome-molybdenum steel tubes with an aluminum subframe, paired with a 48mm WP inverted fork (adjustable for both damping and rebound) and a WP Progressive Damping System (PDS) rear shock offering adjustable hydraulic preload, rebound, and separately adjustable low- and high-speed compression damping — genuinely sophisticated suspension technology for a production adventure bike of this period. Braking comes from dual perforated 300mm front discs with Brembo floating calipers and a single 240mm rear disc, riding on a 90/90-21 front and 150/70-18 rear tire, with a 26.6-degree rake and 119mm of trail. Minor year-to-year updates ran through this span — 2004 brought a darker windscreen fairing and revised fender paint, while 2005 saw engine refinements including a modified clutch specifically aimed at reducing mechanical noise. This original 942cc-engine generation gave way to the larger 999cc 990 Adventure for 2006, which carried the platform's fundamental architecture forward with increased displacement and fuel injection replacing the original carbureted setup.

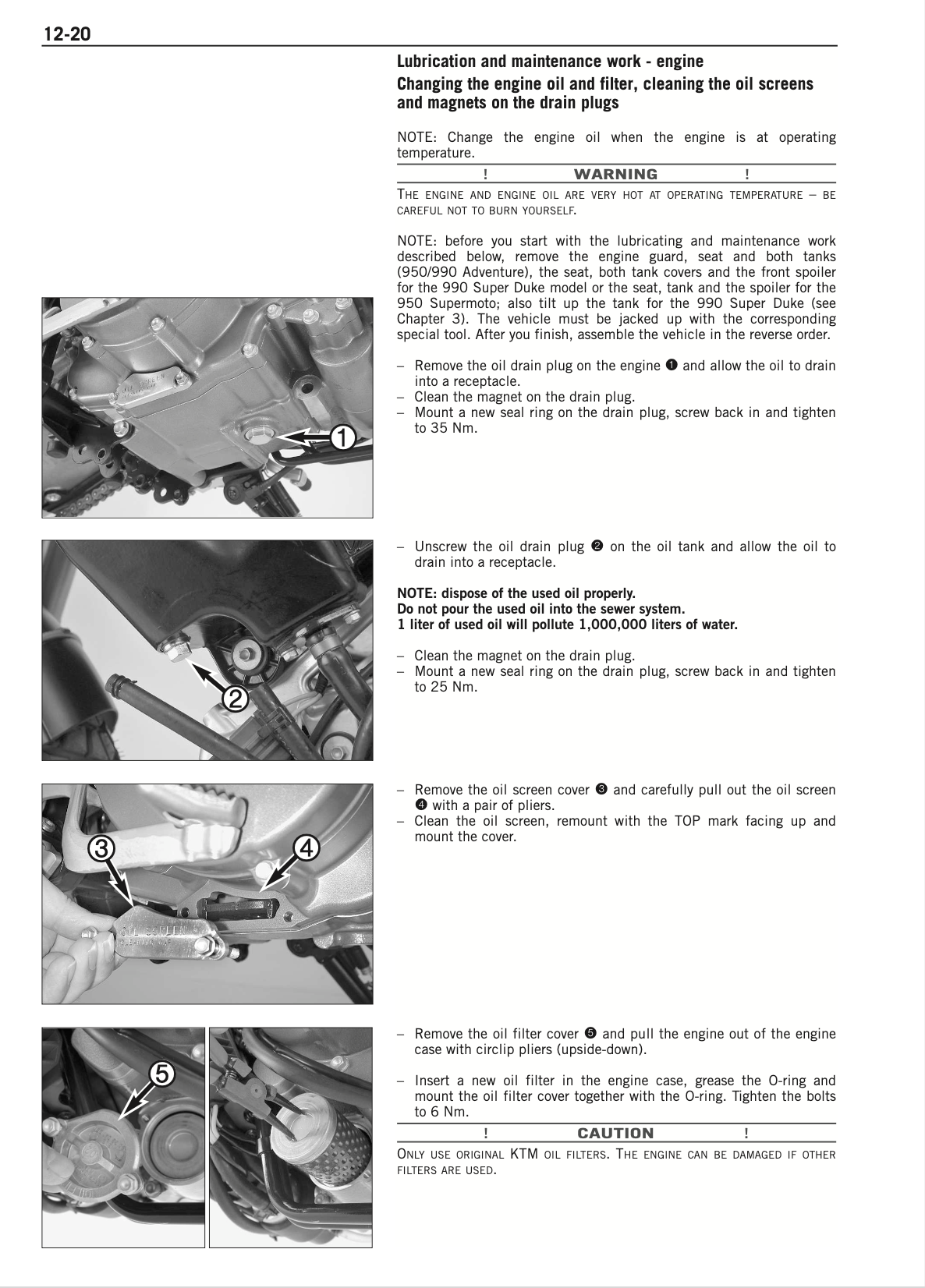

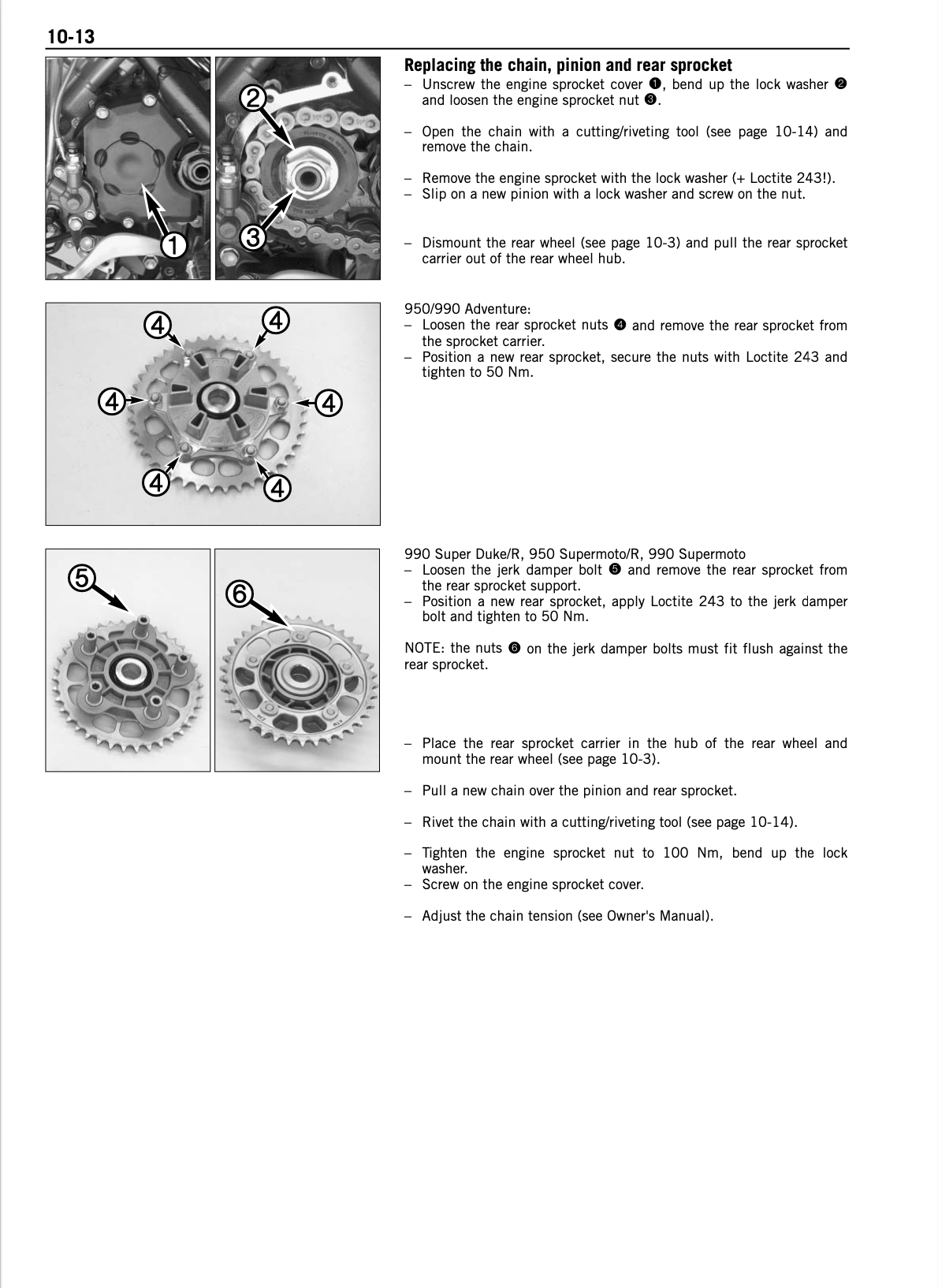

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2003-2006 950 Adventure running the way it was built to.
