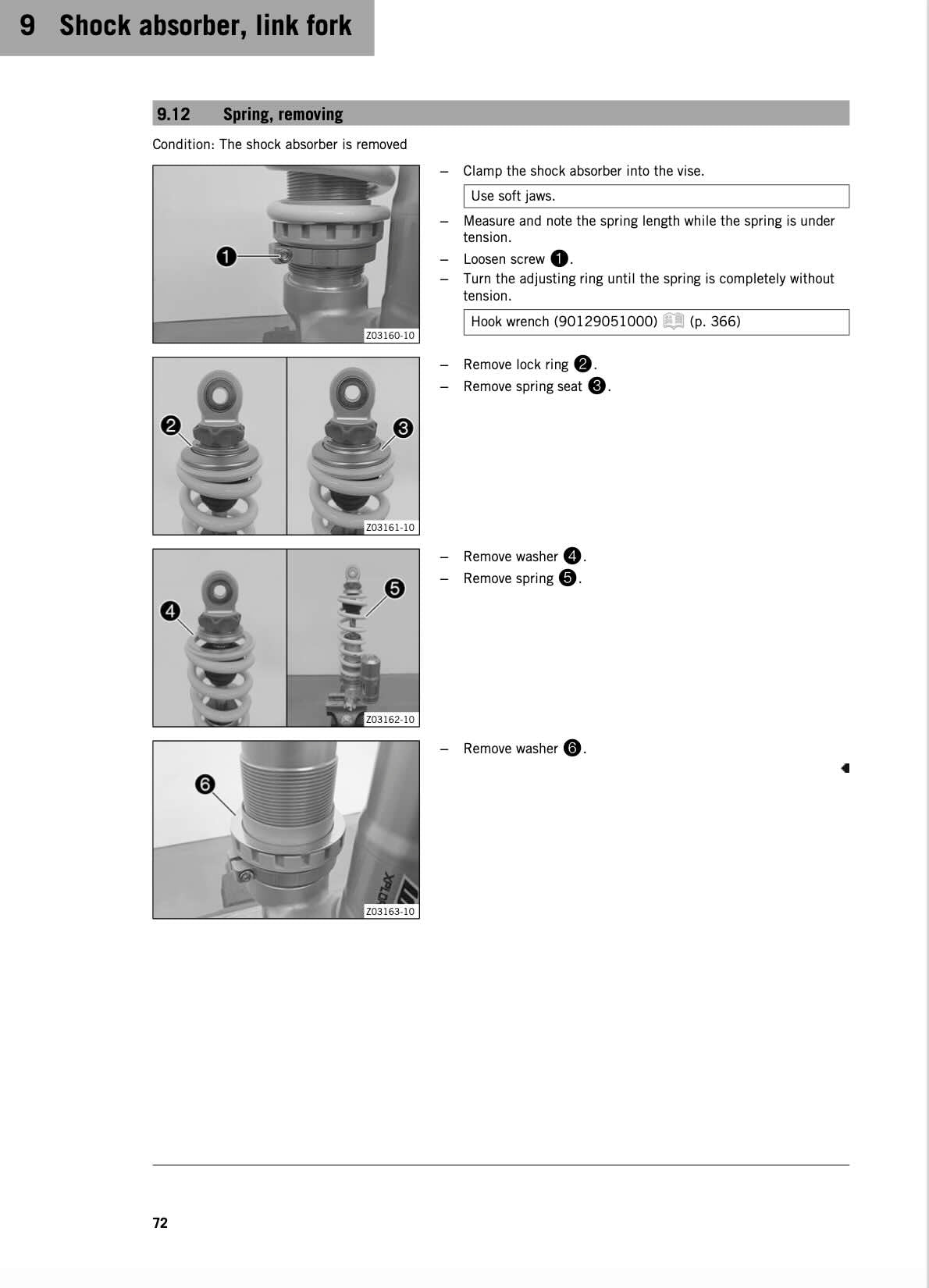

  • KTM 500 XWF service manual page 72 shock absorber spring removal photos

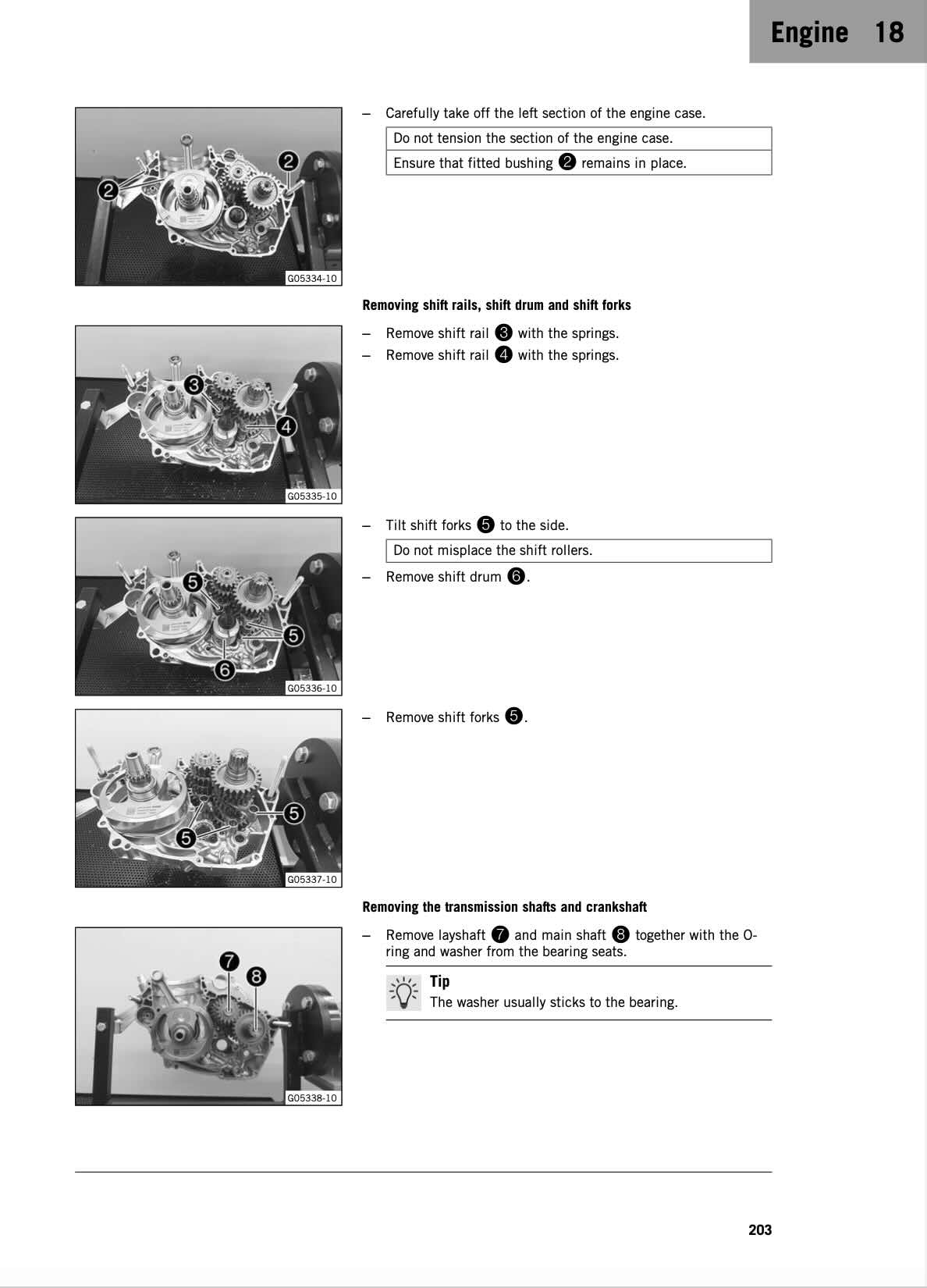

  • KTM 500 XWF service manual page 203 shift rails drum forks and transmission shaft removal photos
1 4

Dr. E Manuals

KTM 500 XW-F XWF 2025-2026 Service Manual

KTM 500 XW-F XWF 2025-2026 Service Manual

£11.95 GBP
£11.95 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

2025-2026 KTM 500 XW-F XWF Service / Repair / Workshop Manual

Instant download after purchase, in PDF form, NOT a physical book.

This manual contains 386 pages in English Language, it is the only manual you will require to maintain, repair and service your KTM 500 XW-F XWF.

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.

Suits Models from 2025, 2026

If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.

View full details

KTM 500 XW-F Service Manual: Workshop Guide for KTM’s 510cc Four-Stroke Off-Road Platform

KTM’s 500cc four-stroke is the big-bore end of its off-road range. In 2025-2026 the closest listed model is the 500 EXC-F, which KTM describes as built for championship-level off-road performance with the torque to match. It suits everything from tight single trails to wide-open desert, with selectable engine maps and smooth throttle response. If you’re working on a 500cc KTM from this family, confirm the exact model code against your frame number before ordering parts.

The engine is a 510.9cc liquid-cooled single with a 72mm bore, a 95mm stroke and a compression ratio of about 12.75:1. Keihin fuel injection with a 42mm throttle body feeds it, with Keihin engine management. It has a 6-speed gearbox, a wet DDS multi-disc clutch with Brembo hydraulics, a 29:72 primary drive and a 520 X-ring chain.

The chassis is a central double-cradle frame in 25CrMo4 chromoly, with an aluminium-reinforced polyamide subframe. Suspension is a 48mm WP XACT inverted fork with 300mm of travel and a WP XPLOR shock with PDS and 310mm of travel, both adjustable. There are disc brakes at both ends. KTM lists a 963mm seat height, 347mm of ground clearance, an 8.5-litre tank and a weight of about 108 kg without fuel.

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a KTM 500 XW-F running the way it was built to.
