KTM 250 DUKE 2016 Service Manual

Autocar India's own coverage confirms the genuine business logic behind this bike's surprise arrival: "although KTM did not initially plan to bring the 250 to India, the new 2016 390 Duke has gotten more features and become more expensive in the process. This has created a bit of a vacuum in the pricing with the 200 and the 390 Dukes. And that's where the 250 Duke comes in." That same review confirms the genuinely close mechanical relationship with its bigger sibling: "while the sharp styling of the 250 Duke has been inspired by the 1290 Super Duke R, it shares most of its bodywork and frame with the new 2016 390."

Power comes from a 248.8cc liquid-cooled DOHC single-cylinder engine, delivering a claimed 29-31 hp at 9,000 rpm and roughly 24 Nm (18 lb-ft) of torque at 7,250 rpm through a 6-speed transmission with a genuine slipper clutch — CarBlogIndia's own coverage confirms a real mechanical upgrade over the earlier engine this platform replaced: "while power-torque figures are same as earlier, the engine now gets a DOHC layout and ultra hard, carbon-coated cam followers," genuine internal refinement rather than a simple carryover unit. IndiaCarNews' own launch coverage confirms a genuine industry-first claim for the class: "it is also the first motorcycle in its league to feature Slipper Clutch," a real technical distinction against direct rivals like the Yamaha FZ25 and Kawasaki Z250.

The chassis uses a lightweight tubular steel trellis frame with a bolt-on subframe, paired with WP upside-down forks and a WP monoshock — genuinely the same fundamental suspension architecture as the pricier 390. CarBlogIndia's own detailed comparison confirms the genuine equipment distinctions separating this bike from its more expensive sibling: "it features a similarly aggressive headlamp. However, it misses out on the split headlamp treatment. Also, while the new 390 gets an LED headlamp, the new 250 will have to make do with a halogen setup... the new 250 doesn't get the TFT speedo console from the new 390. However, it does get an LCD speedo console" — real cost-saving equipment reductions that genuinely justified the price gap between the two models. IndiaCarNews' own coverage confirms one genuine safety-equipment omission at launch: "the bike misses out on a dual-channel Bosch ABS (Anti-Lock Braking System), which is available in Duke 390" — though ProKerala's own later listing confirms KTM subsequently added dual-channel ABS to the Duke 250 as part of its ongoing 2016-2020 production run, alongside a fully digital LCD display showing engaged gear, fuel gauge, service reminder, and an RPM shift alert borrowed from racing convention.

Standard equipment on this 2016 launch specification included disc brakes at both ends (four-piston front, single-piston rear caliper), 17-inch wheels front and rear on tubeless tires, a redesigned key-switch positioned at the front of the tank rather than at the base of the speedometer, and a new, longer, better-bolstered seat. Autocar India's own testing at Bajaj's Chakan test track confirmed the platform's genuine dry weight around 149kg, delivering a favorable power-to-weight ratio against direct 250cc-class competition. This exact 2016 specification represented the genuine launch configuration of the 250 Duke before subsequent running changes across its 2016-2020 production span.

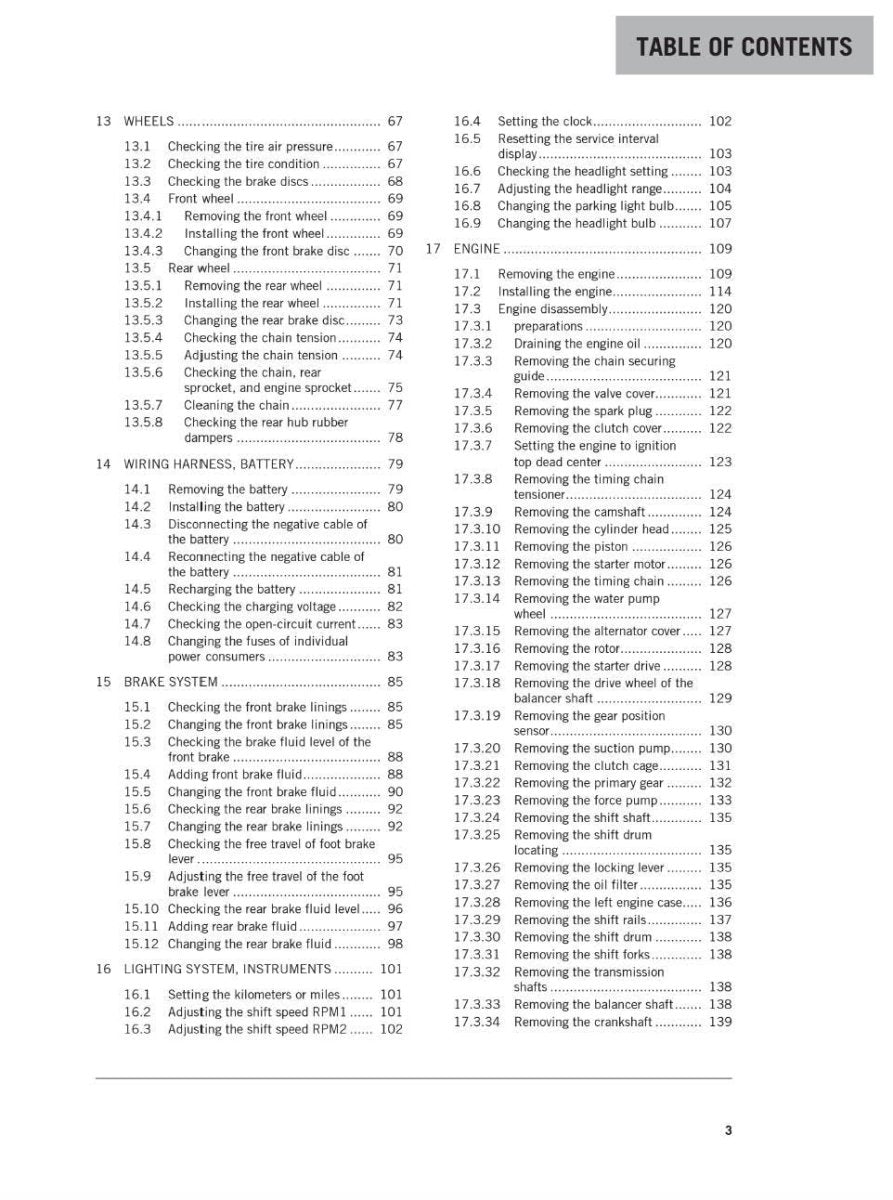

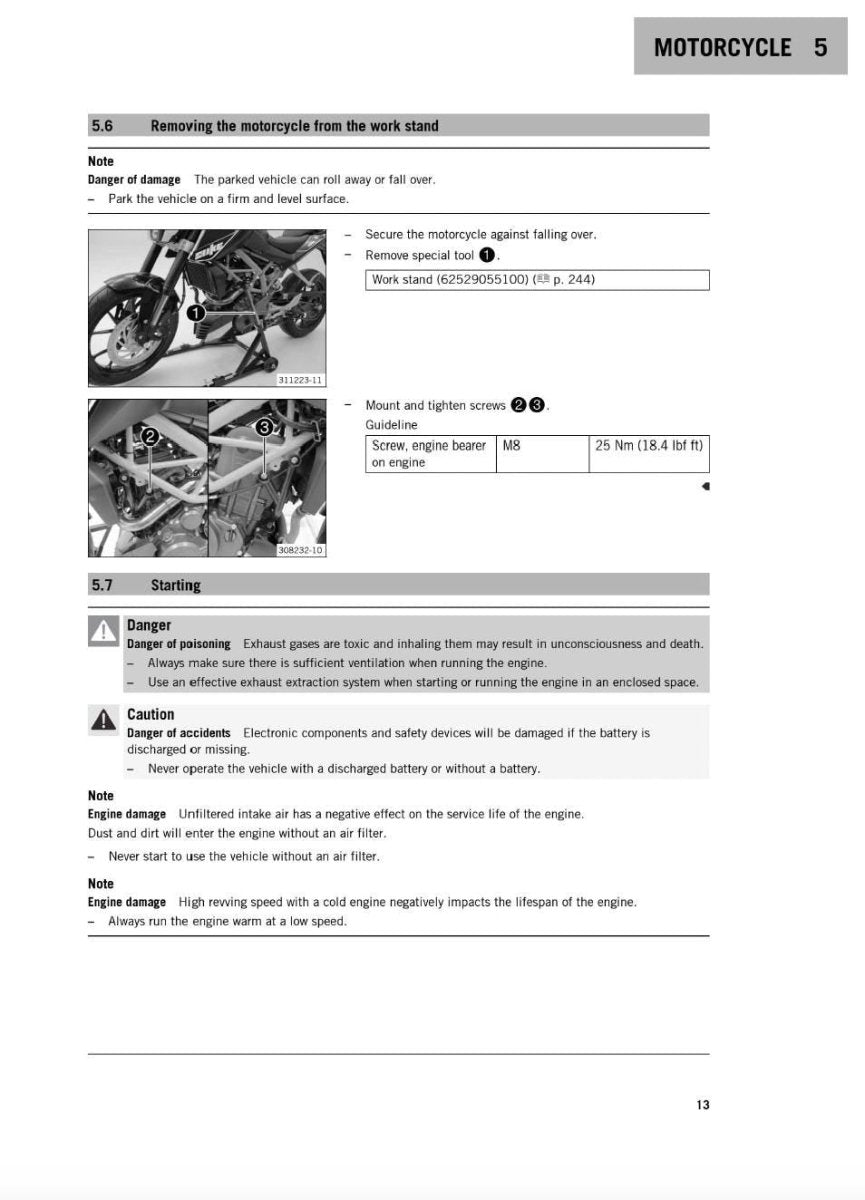

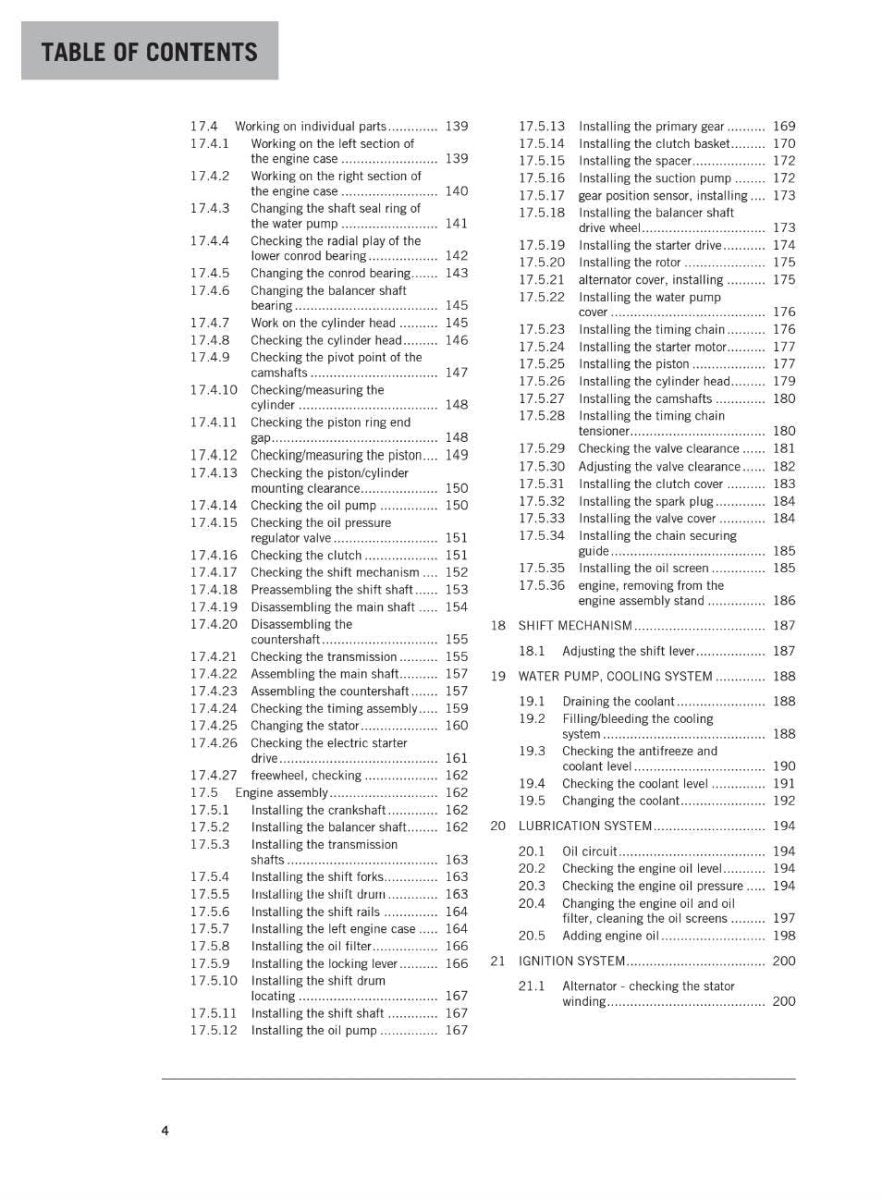

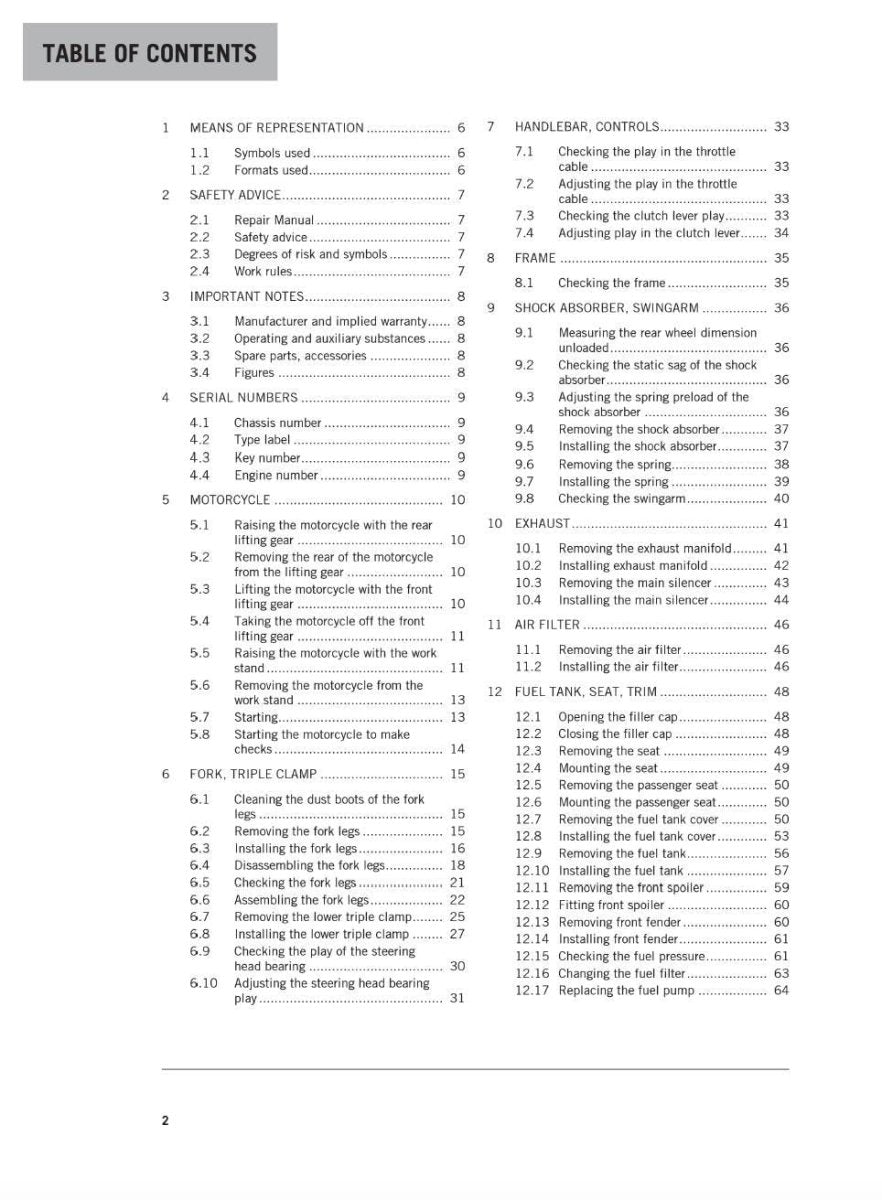

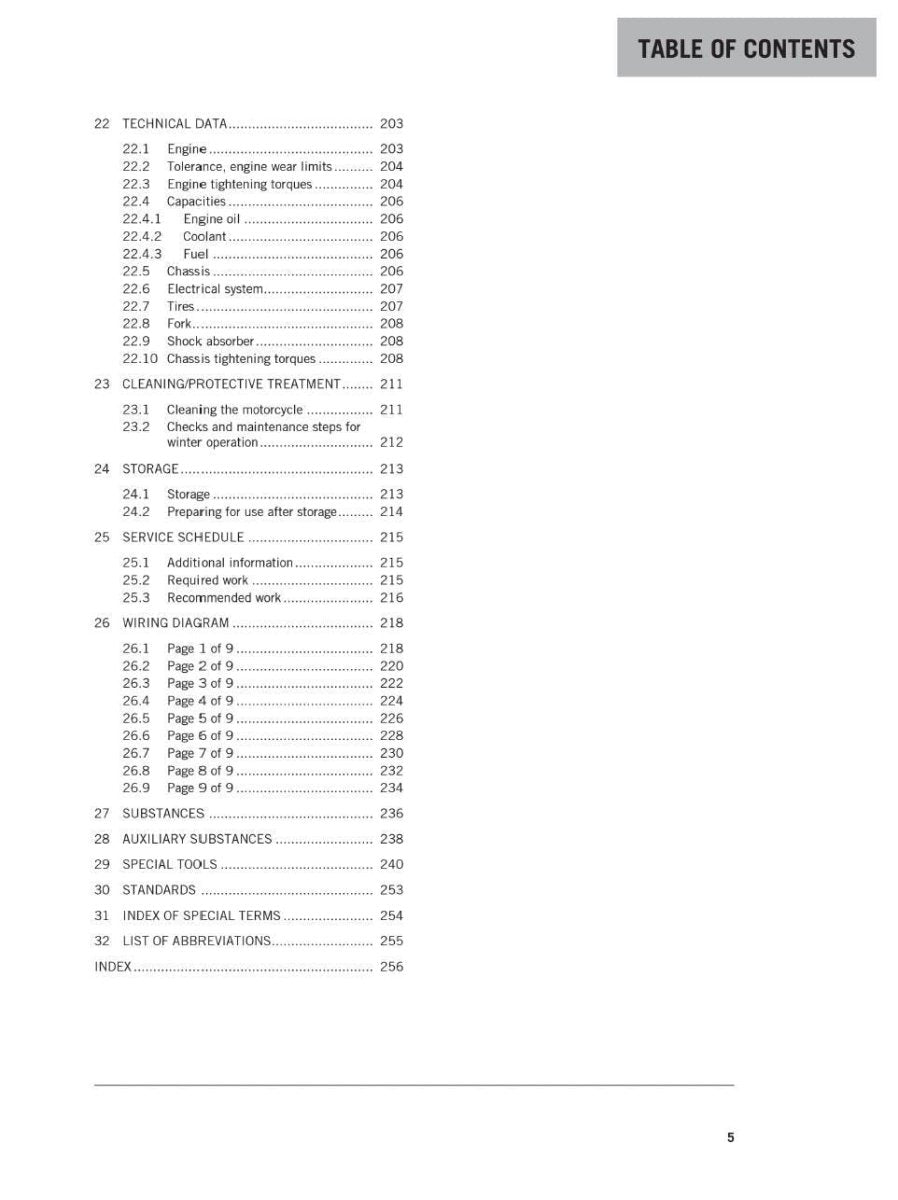

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2016 250 Duke running the way it was built to.
