Kawasaki ZX12R ZX1200 Ninja A N2 2000-2003 Service Manual

Bennetts' own retrospective is candid about the ZX-12R's identity crisis relative to its arch-rival: "unveiled in 2000, the Ninja ZX-12R was Kawasaki's answer to the Suzuki Hayabusa. Generally faster than the Busa... [but] the Ninja was hampered by the fact it never really knew what it wanted to be. Part sportsbike, part tourer, it hit an odd middle-ground." That confusion never stopped it from being a genuinely capable machine — Bennetts calls it today "a very good value hyperbike that still has more than enough performance to fry your brain while also boasting impressive reliability."

Power comes from a 1,199cc liquid-cooled inline-four, DOHC with 16 valves, an 83.0mm x 55.4mm bore and stroke, and a 12.2:1 compression ratio, delivering a claimed 178.5 hp at 9,500-10,500 rpm and roughly 99-101 lb-ft of torque at 7,500 rpm through a 6-speed sequential manual gearbox with chain final drive. Autoevolution's own coverage notes ram-air intake bumps output to a claimed 190 hp at high speed — genuine gentlemen's-agreement territory, since the ZX-12R "played a big role in bringing a truce to the escalating competition of building the fastest production motorcycle in the world," with electronically speed-limited top speeds becoming industry standard practice after this bike's arrival, a norm that held until MV Agusta's F4R broke ranks in 2007.

The genuine engineering headline for this generation was the frame: autoevolution's own coverage confirms "the Kawasaki ZX-12R packed a unique monocoque aluminum frame, which was a first on mass-production motorcycles, designed to make the bike narrower and more aerodynamic" — a fundamentally different construction approach than the twin-spar perimeter frames every rival used. MCN's own year-by-year history details this specific 2000-2003 span's real changes: the 2000 launch bike came without Kawasaki's traditional green paint option; 2002 brought new bodywork, ram-air intakes, gearbox tweaks, a retuned engine for snappier acceleration, and a strengthened crankshaft; and 2003 finally reintroduced black-and-gold and green colorways. MCN's own testing found the ZX-12R's handling genuinely surprising for a bike this large — "an unusually steep steering head angle of 23.5 degrees, making the front end feel fairly nimble" despite its bulk, with the stiff monocoque frame delivering real stability at speed. Suspension consisted of a 43mm fully adjustable inverted cartridge fork (120mm travel) and a piggyback rear shock, backed by dual 320mm front discs with six-piston calipers (radial calipers didn't arrive until the 2004 update, outside this range). Dry weight sits around 210kg (463 lbs), with a genuine top speed approaching 187 mph.

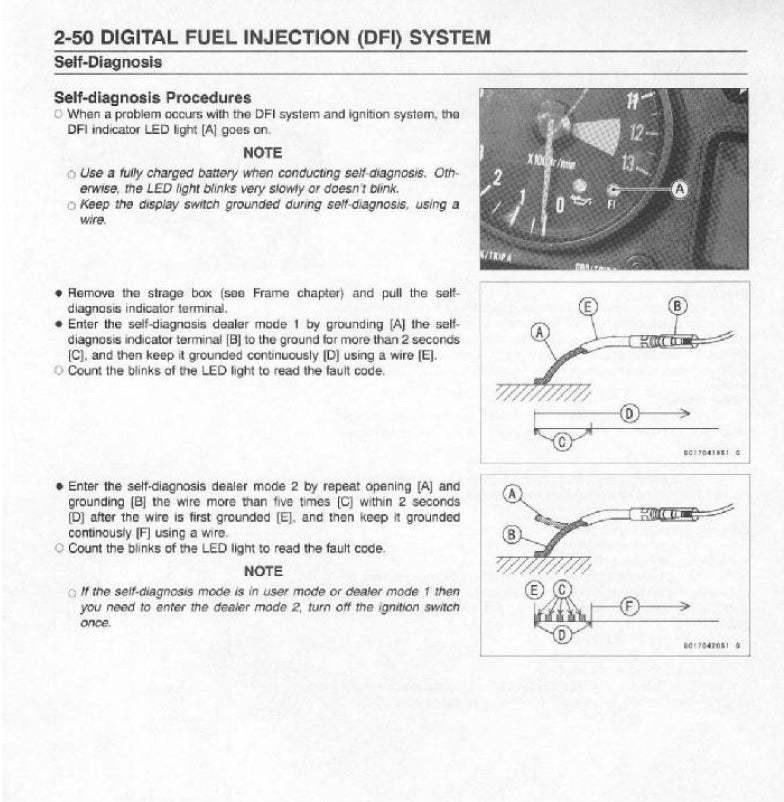

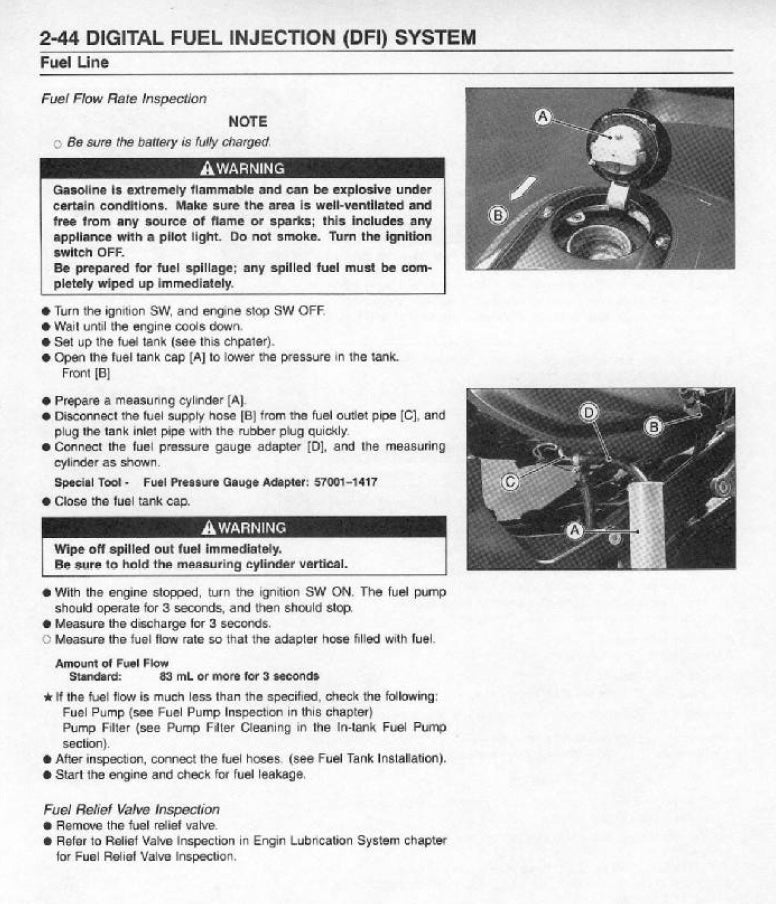

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2000-2003 ZX-12R running the way it was built to.
