Kawasaki Z1000SX Z1000 Ninja 1000 SX 2011-2013 Service Manual

Visordown's own launch review from testing in southern Spain captured Kawasaki's thinking behind this bike's creation: with sports bike sales in freefall, Kawasaki built a genuine all-rounder aimed at "two sectors" at once — the marketing team's own explanation was that "S" stands for special and "X" for extra, and after two days of testing, the reviewer found himself agreeing. Launched for 2011 as a fully-faired sibling to the Z1000 naked streetfighter, it shared the same engine and frame while adding genuine touring capability.

Power comes from a 1,043cc liquid-cooled inline-four, DOHC with 16 valves, a 77.0mm x 56.0mm bore and stroke, delivering a claimed 138 hp at 9,600 rpm and roughly 81 lb-ft of torque at 7,800 rpm — genuinely strong numbers for a bike also positioned as a comfortable, upright all-rounder. Visordown's review found the motor's character split cleanly in two: torquey, smooth pulling from idle before a genuine second wind kicked in past 7,000 rpm, running to a 10,500 rpm redline, yet equally happy loafing between 4,000-5,000 rpm in top gear all day. A tooth-longer overall gearing (41-tooth rear sprocket) versus the naked Z1000 smoothed engine response specifically for sustained highway cruising, while rubber-mounted rider and pillion footpegs addressed a vibration complaint carried over from the standard bike.

Genuinely touring-focused hardware set the SX apart from its naked sibling: a larger 19-litre fuel tank (up from the Z1000's 15 litres), radial-mount brakes with petal racing discs, fully adjustable suspension front and rear, and a distinctive quad-exhaust styling touch. MCN's own owner reviews consistently praised the comfortable, upright riding position and confident handling through corners — genuinely capable of both track-day riding and two-up touring, according to multiple owners, though several wished ABS and traction control came standard rather than as options this early in the platform's life. A three-way adjustable windscreen, adjustable only by hand rather than electronically, rounded out the touring-oriented equipment on this first-generation platform, ahead of the more substantial updates that arrived with the 2014 model refresh.

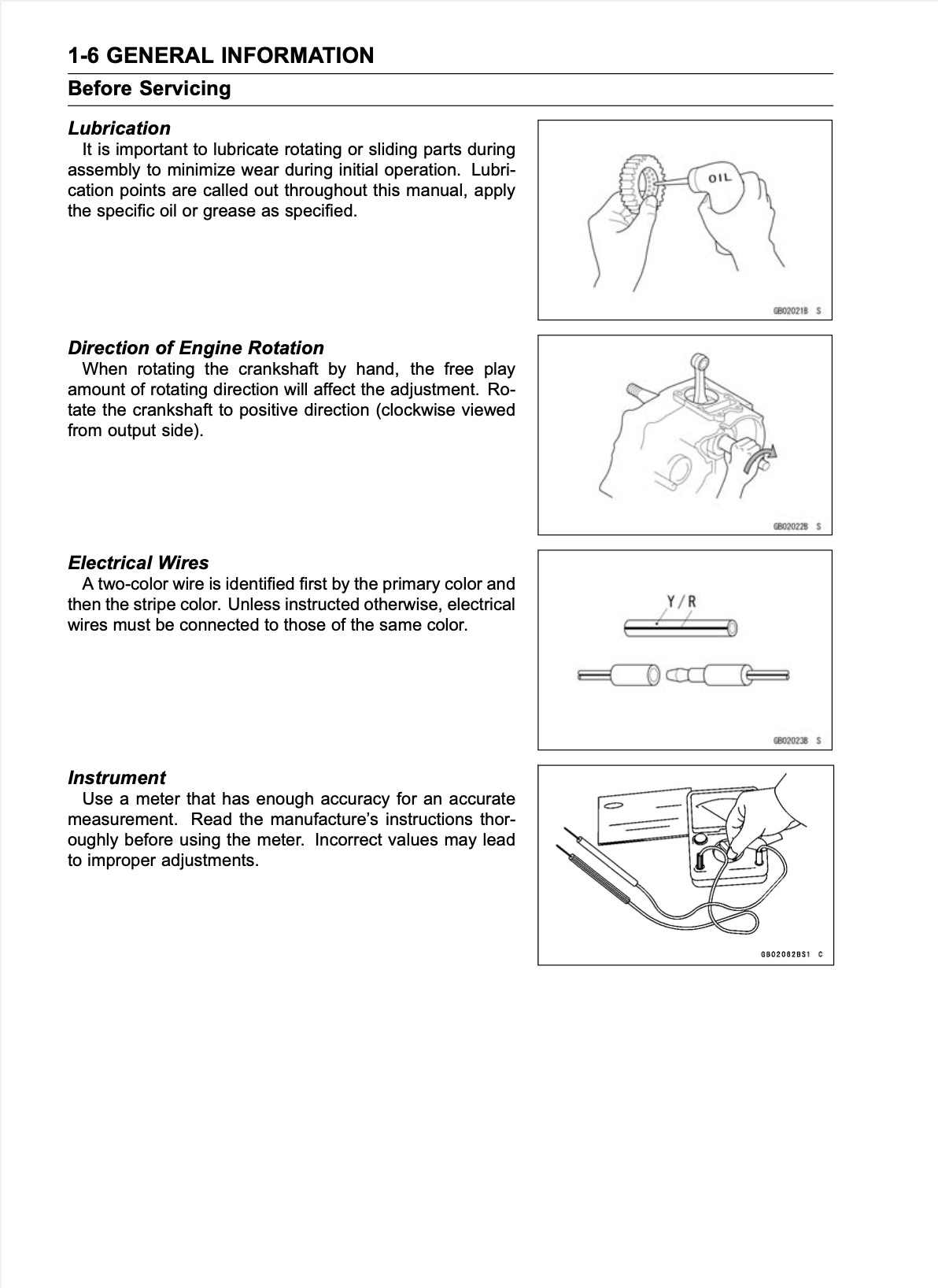

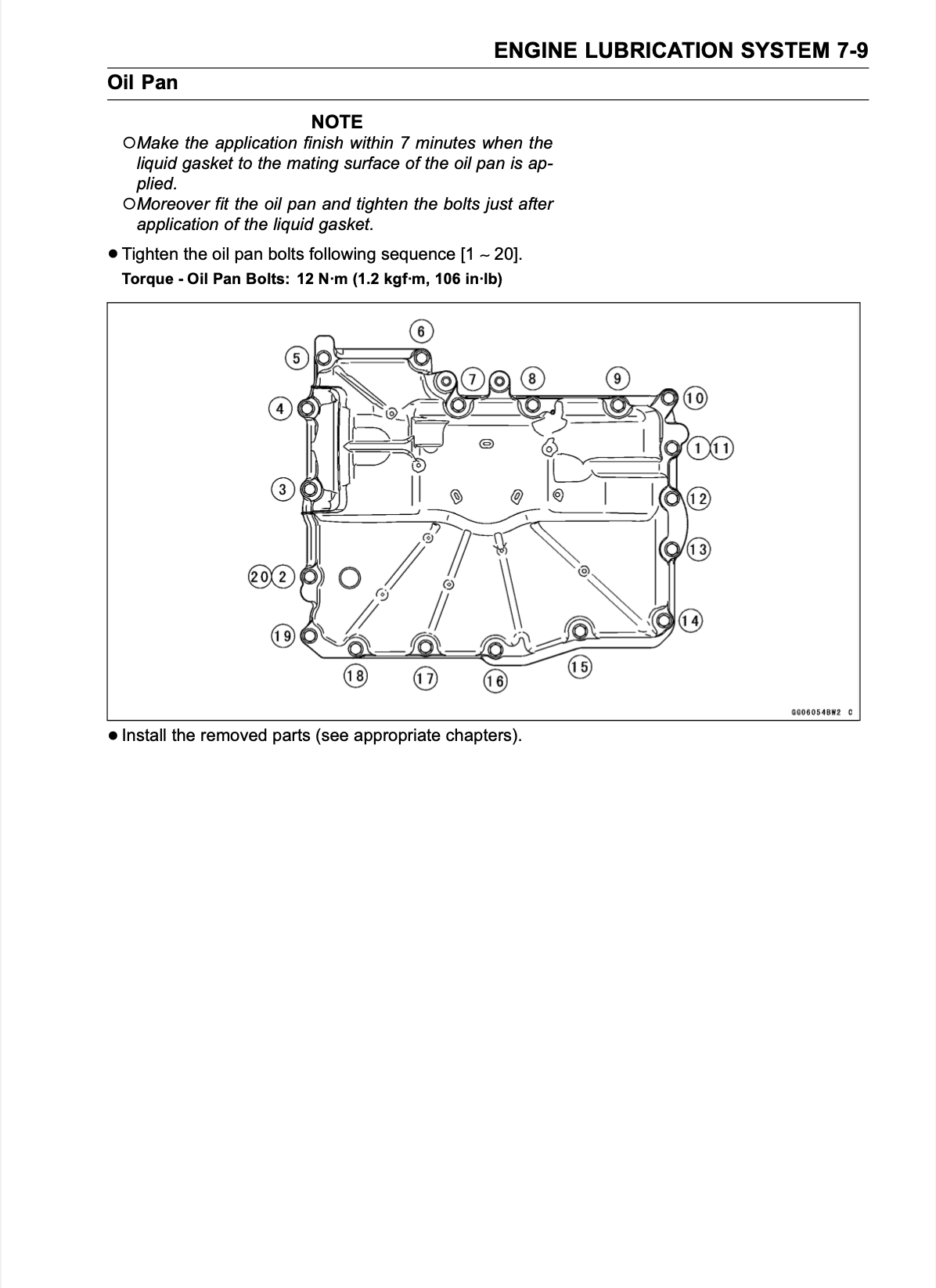

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2011-2013 Z1000SX/Ninja 1000 running the way it was built to.
