2010-2013 Kawasaki Z1000 Service / Repair / Workshop Manual
Instant download after purchase, in PDF form, NOT a physical book.
This manual contains 745 pages in English Language, it is the only manual you will require to maintain, repair and service your Kawasaki Z1000.

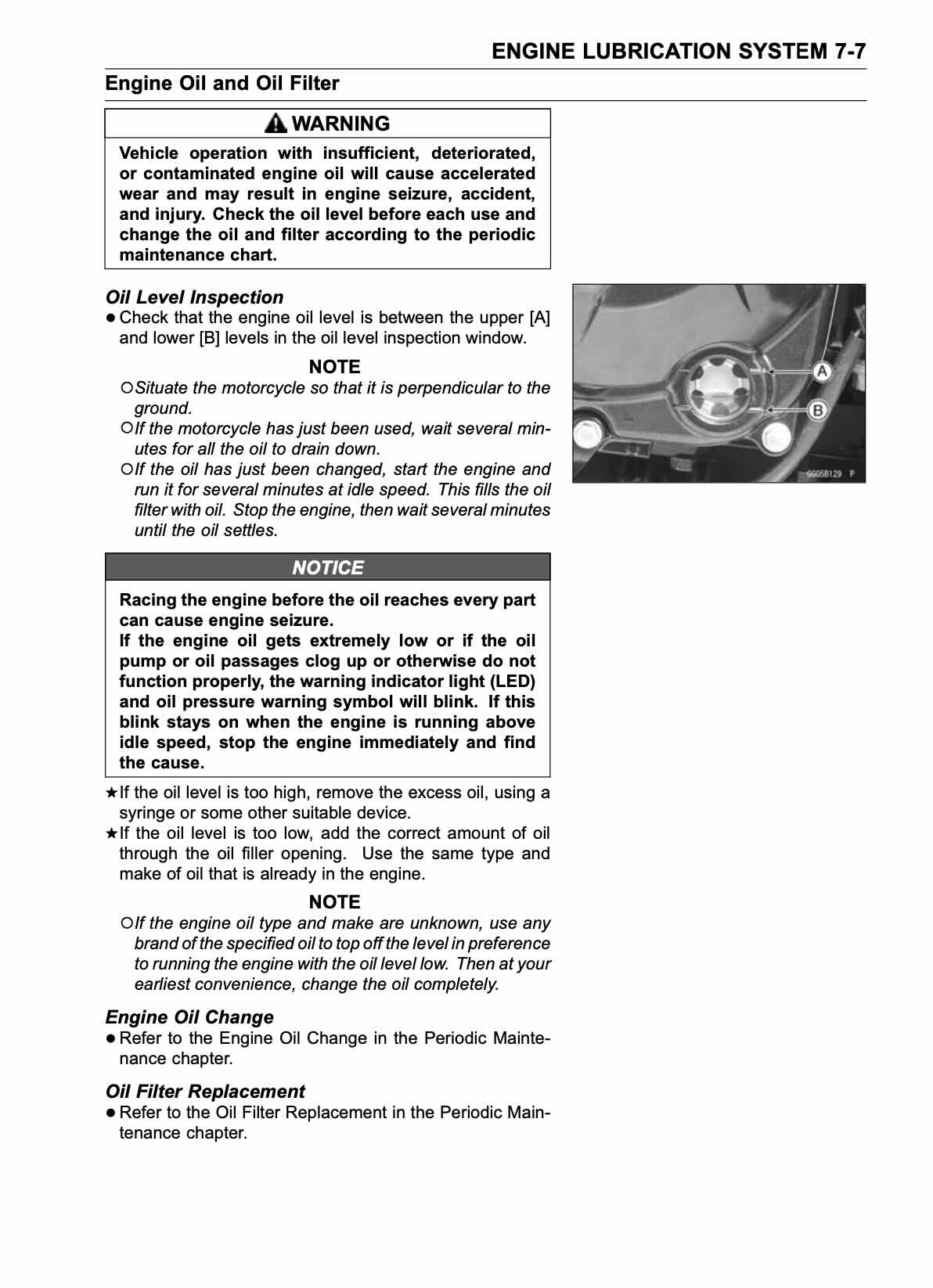

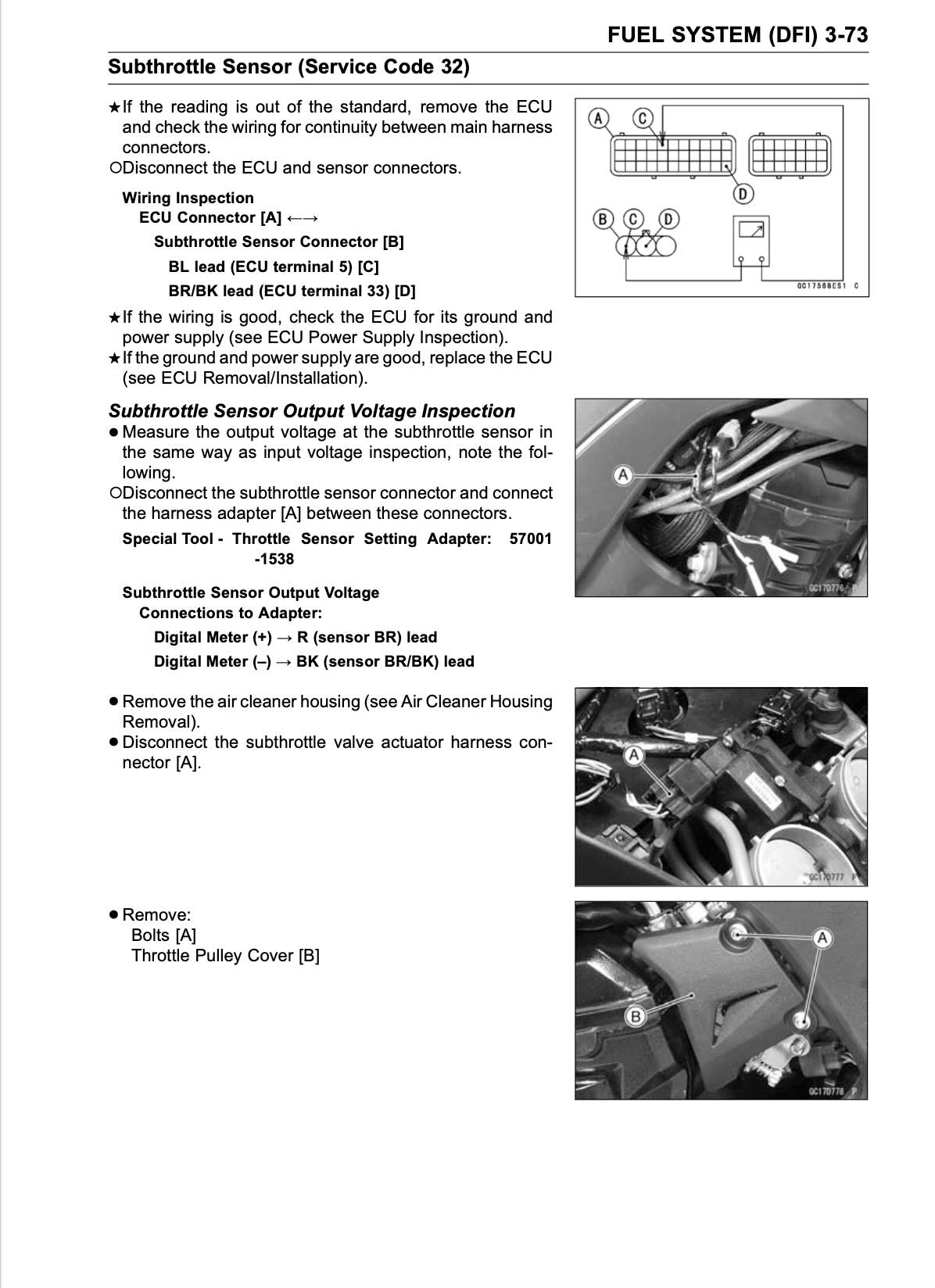

Sample pages and table of contents can be seen in the third product picture, please make sure you are happy with the quality of the manuals before purchasing.
Features Chapters: general information, periodic maintenance, fuel system (dfi), cooling system, engine top end, clutch, engine lubrication system, engine removal/installation, crankshaft/transmission, wheels/tires, final drive, brakes, suspension, steering, frame, electrical system, appendix
Suits Models from 2010, 2011, 2012, 2013
If you have any issues downloading/accessing your manual, please contact us so we can fix this for you.
Share
Z1000 (2010-2013): A Longer-Stroke 1,043cc Engine and the First "Sugomi" Design
Motorcycle News calls this the version that dropped the old 953cc ZX-9R-derived motor for a new 1,043cc liquid-cooled, fuel-injected inline-four with a 5.1mm longer stroke than before, to boost midrange power. Kawasaki's styling for the bike, called Sugomi, is built around a mass-forward, crouching stance and a predator-glare front end. Kawasaki later said its newer Z1000 pushes that concept "even further" than this 2010-2013 model.
Power comes from a 1,043cc liquid-cooled DOHC 16-valve inline-four. It has a 77mm x 56mm bore and stroke and an 11.8:1 compression ratio. Fuel comes from four 38mm Keihin throttle bodies with oval sub-throttles. Claimed output is 138 hp (101 kW) at 9,600 rpm and 81 lb-ft (110 Nm) at 7,800 rpm, through a 6-speed gearbox with an X-ring chain.
The chassis is an aluminum twin-tube backbone frame with a 41mm inverted fork, adjustable for compression, rebound and preload, and a horizontally mounted back-link gas shock. Brakes are dual 300mm semi-floating petal discs with radial-mount four-piston calipers and a 250mm rear petal disc. Tires are 120/70ZR17 front and 190/50ZR17 rear.
Confirmed figures list a 4-gallon (15.1-litre) tank, a 32.1-inch (815mm) seat height and a weight of 481-509 lbs depending on source. Owners rate it 4.7 out of 5 for reliability and quote roughly £120 for a year of servicing. Variants within the range include a Black Edition (2011-2012), a 2012-2013 Special Edition, and an ABS version that became standard in 2013. The Z1000SX sport-tourer shares this engine. The Z1000 was replaced by a restyled 2014 model after this generation.
This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 2010-2013 Z1000 running the way it was built to.
-
