Kawasaki VN800 B Vulcan Classic Cruiser 1996-2004 Service Manual

MCN's own review captures the Vulcan Classic's appeal in the words of a genuinely long-term owner: "this bike cannot fail you: if you treat it well, it is good for you too" — a rider still logging yearly cross-Europe trips on the same bike bought secondhand back in 2004, over two decades on. That same review is candid about what the VN800 Classic isn't: "not fast, it is not powerful" — but "strong, reliable" with a comfortable dual seat and forward pegs that deliver genuine cruiser presence without demanding much from the rider in return.

Launched in 1996 as a retro-styled update to the standard VN800 (itself introduced in 1995 as a replacement for the smaller VN750), the Classic distinguished itself with full fenders and matching 16-inch front and rear wheels — a deliberately vintage, 1950s-inspired silhouette versus the standard model's Softail-derived bobbed rear fender and larger front wheel. Power comes from an 805cc liquid-cooled V-twin, four valves per cylinder with an 88mm x 66.2mm bore and stroke, delivering a claimed 52-56 hp at 7,000 rpm and roughly 47 lb-ft of torque at 3,300 rpm, run through a 5-speed transmission. Viking Bags' own history notes every model from 1996 through 2000 shared this same 805cc V-twin architecture and output figures, meaning service specifications stayed remarkably consistent across the model's early years.

The steel tubular double-cradle frame hides its rear shocks specifically to create an antique, hardtail-look appearance — genuine Softail-style engineering underneath a deliberately old-fashioned silhouette — paired with a telescopic front fork and Uni-Trak rear suspension. Braking uses a single 300mm front disc with 2-piston calipers and a 180mm rear drum, riding on a 130/90-16 front and 140/90-16 rear tire. Big Bike Reviews highlights the transistorized electronic ignition and digital timing as genuine efficiency upgrades over older carbureted cruisers, delivering a claimed 39.7 mpg from a 4-gallon tank. Dry weight comes in at 518 lbs, with a genuinely accessible 27.8-inch seat height that made the Classic a popular choice for smaller or less experienced riders stepping up into V-twin cruiser ownership. Chrome detailing runs throughout — fork covers, headlight housing, oil filler caps, and caliper covers — reinforcing the model's nostalgic, showroom-ready cruiser identity through to its 2004 discontinuation.

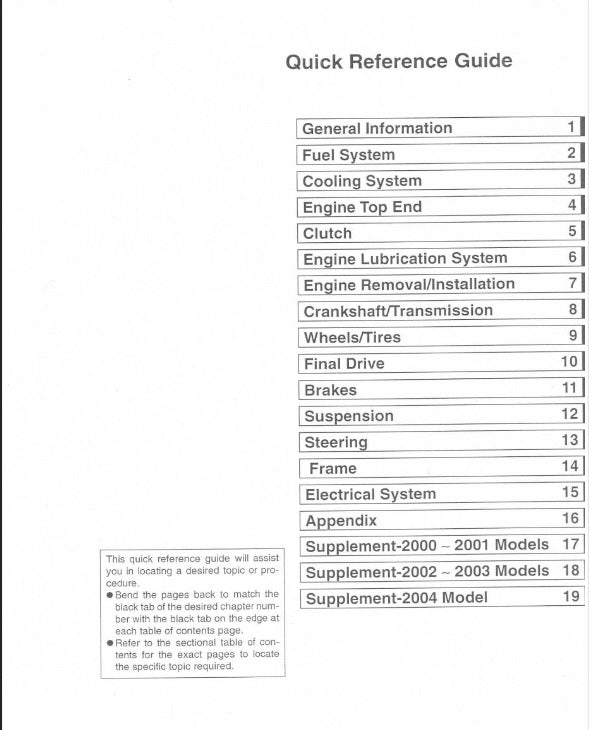

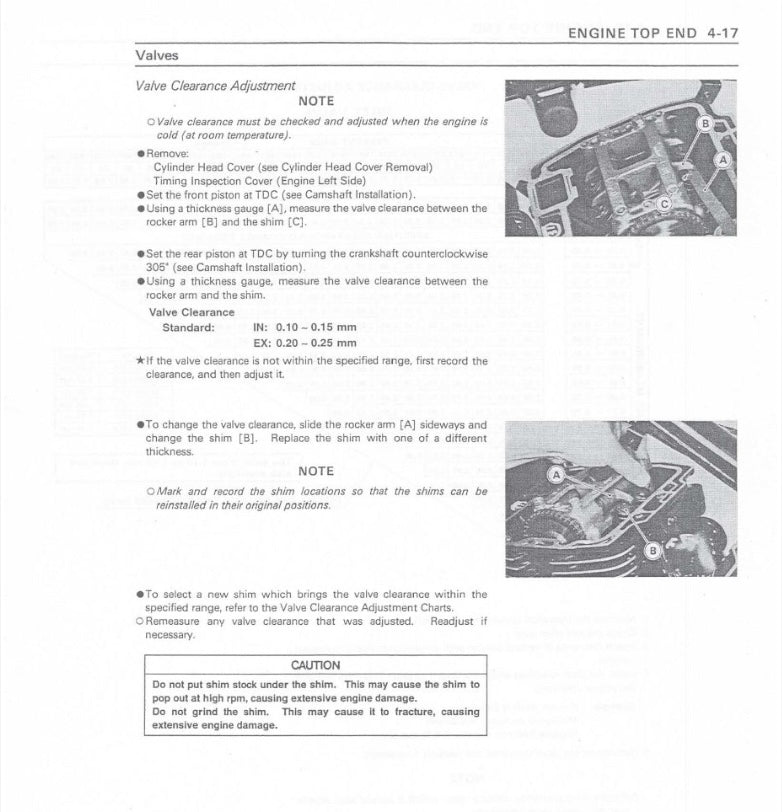

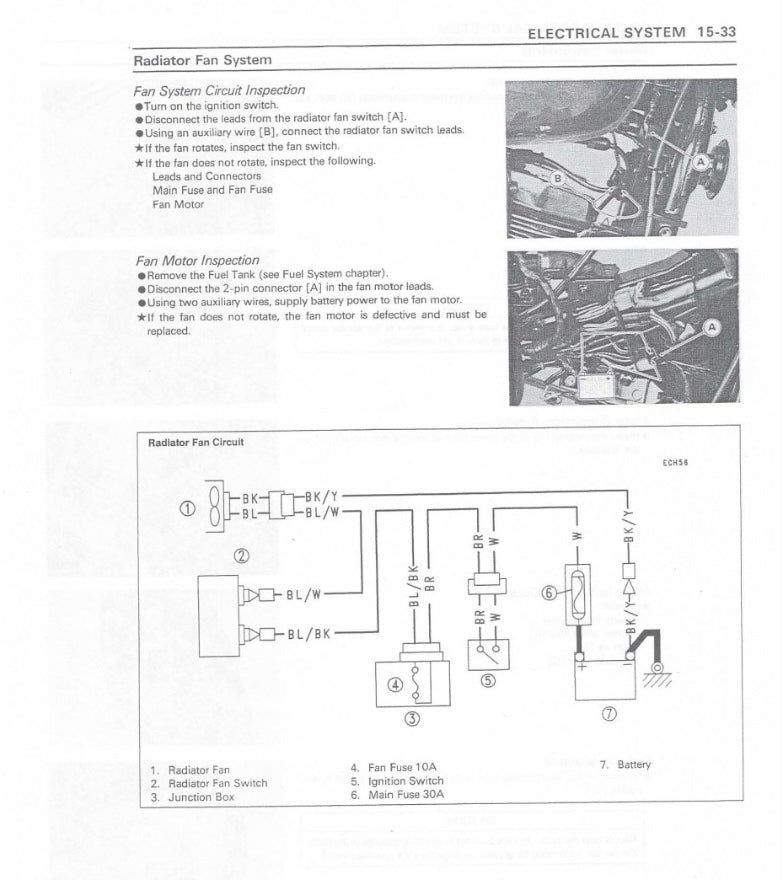

This factory service manual covers the procedures, torque specs, and diagrams needed to keep a 1996-2004 Vulcan Classic VN800B running the way it was built to.
